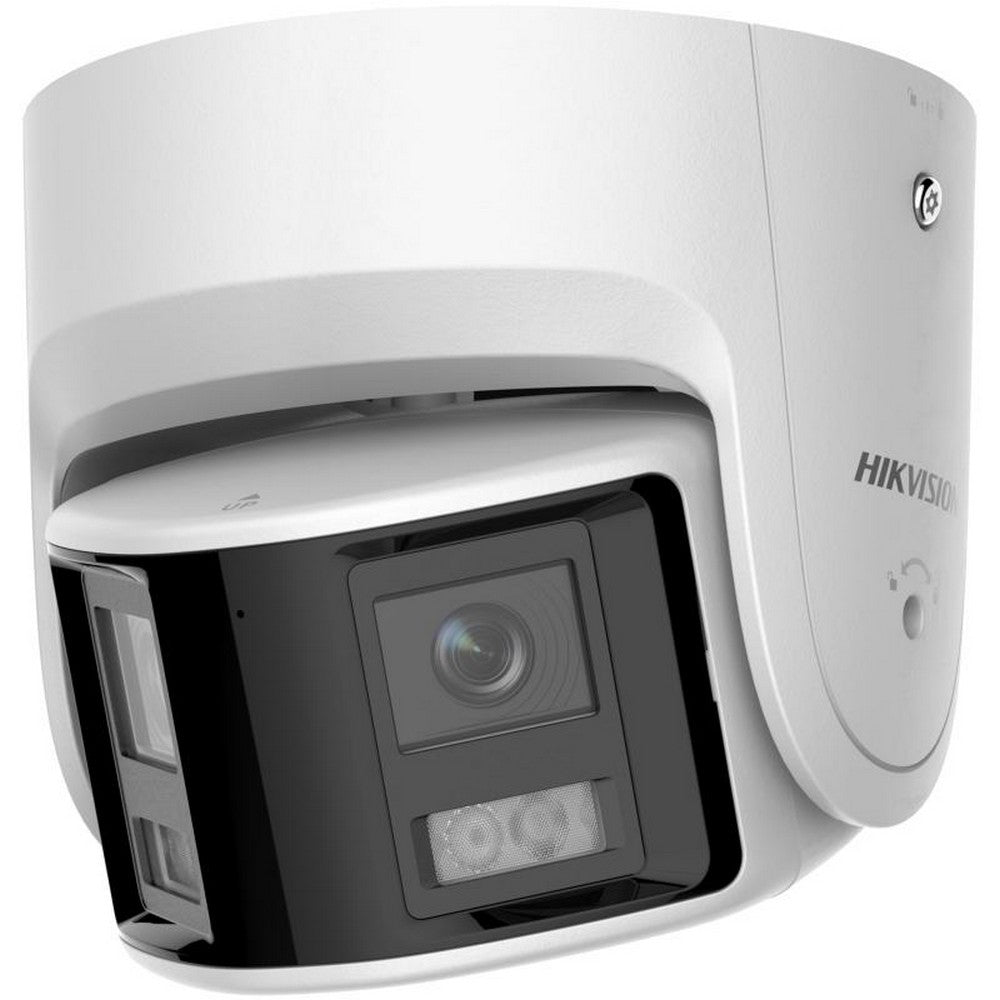

Hikvision ColorVu 6MP WDR Panoramic Turret IP Camera, 2.8mm Fixed Lens, White

Enhance Your Surveillance with Hikvision ColorVu Technology
Experience vivid and colorful 24/7 imaging with Hikvision ColorVu technology. This powerful tool combines F1.0 advanced lenses, high-performance sensors, and friendly lighting to provide clear, high-quality images. By collecting more light, the F1.0 super-aperture produces brighter images. Plus, advanced sensor technology dramatically improves the use of available light, making your surveillance sharper and more reliable.

Key Features

• 6 MP resolution for superior imaging quality
• Comprehensive coverage of all scenes with a single image captured by the camera
• Continuous colorful imaging available 24/7
• Advanced H.265+ compression technology for efficient data storage
• Exceptional imaging clarity even in strong back light conditions, thanks to 130 dB WDR technology
• Deep learning-based classification system focusing on human and vehicle identification
• Integrated active strobe light and audio alarm to deter intruders
• Resistant to water and dust with an IP67 rating
• Reliable and durable construction for long-lasting performance
• Enhanced security features for optimal surveillance and protection

Technical Specifications

Camera
Image Sensor
2 x 1/2.5” Progressive Scan CMOS
Max. Resolution
3632 x 1632
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: -30° to 30°, tilt: -75° to 75°
Lens
Lens Type
Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV
2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
DORI
2.8 mm, D: 45 m, O: 17.5 m, R: 9 m, I: 4.5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 20 fps (3632 x 1632)
60 Hz: 20 fps (3632 x 1632)
Sub-Stream
50 Hz: 20 fps (1200 x 536, 960 x 432)
60 Hz: 20 fps (1200 x 536, 960 x 432)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region(s) for main stream
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC,3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
Yes
Built-In Speaker
Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),
Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
General
Power
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Base: metal, cover: metal
Dimension
Ø140 mm x 145.6 mm (Ø5.5 x 5.7”)”
Package Dimension
230 mm x 230 mm x 230 mm (9” x 9” x 9”)
Weight
Approx. 920 g (2.0 lb.)
With Package Weight
Approx. 1680 g (3.7 lb.)
Storage Conditions
-30 Degrees C to 60 Degrees C (-22 Degrees F to 140 Degrees F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 Degrees C to 60 Degrees C (-22 Degrees F to 140 Degrees F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-banding, heartbeat, mirror, flash log, pixel counter
Flashing Light
Yes
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
