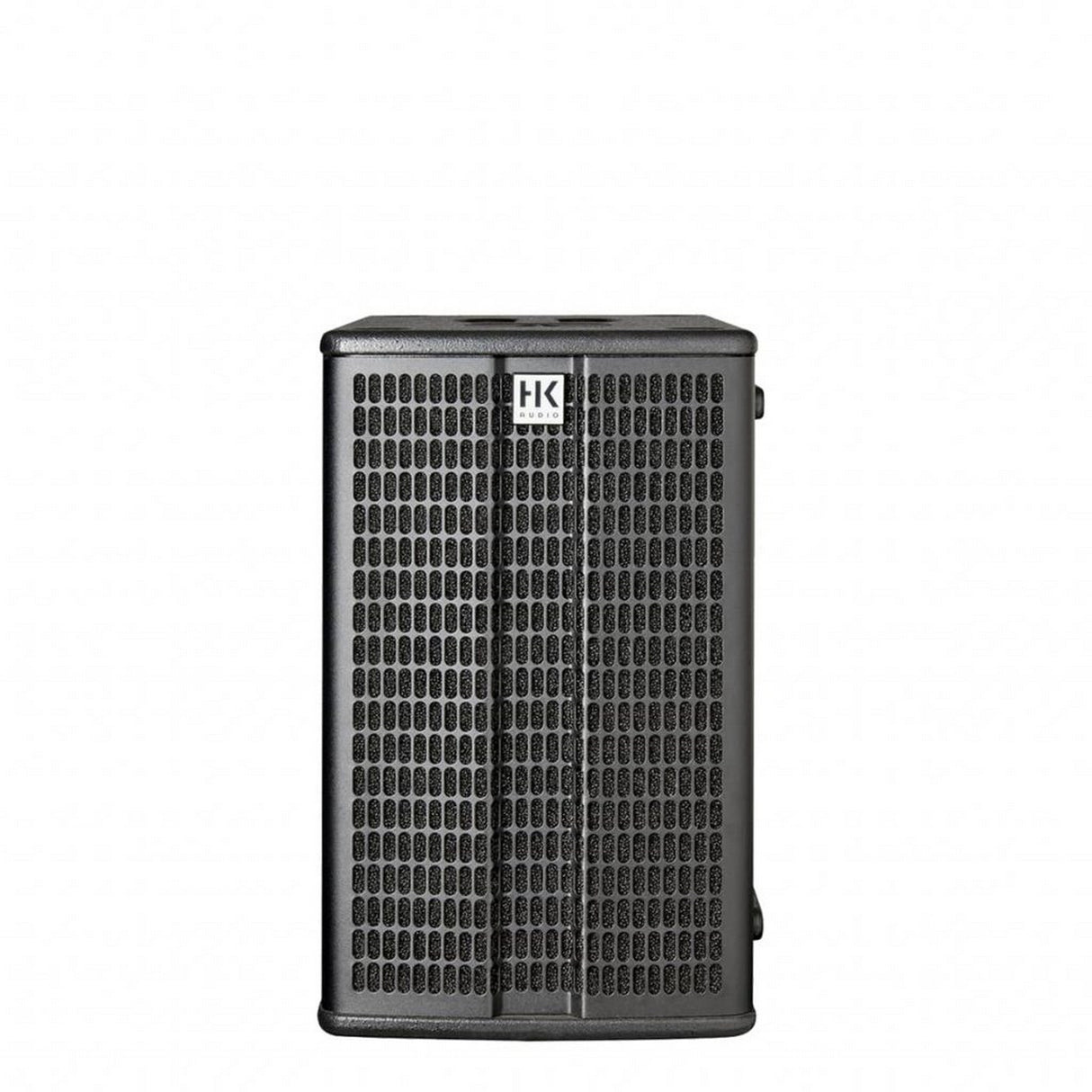

HK Audio Elements E 110 SUB 250W 1 x 10-Inch Subwoofer

HK Audio Elements E 110 SUB 250W 1 x 10-Inch Subwoofer

Compared to the subwoofers already available in the ELEMENTS family, the new ELEMENTS E 115 Sub D subwoofer delivers significantly increased bass performance. In combination with the 1500-watt power amplifier, the 15” woofer achieves considerably more sound pressure right into the low end. As a system subwoofer, it also offers a 900-watt power amplifier as a powerful drive for up to three E 835 mid/high units.

Ten years ago, ELEMENTS changed the audio world for good. Before that, slim line arrays were associated with acoustically unpleasant church installations - that is, until ELEMENTS came along. Combining elegance with professional sound power and developed using the finest speaker components, it was the first scalable line source solution, setting standards that are still relevant today.

The new ELEMENTS D continues to systematically apply these standards and combines them with the far-reaching possibilities of modern digital technology. The 96 kHz controller, a powerful tool in the hands of experienced developers, provides significantly improved audio performance all round.

Ingeniously simple sound
ELEMENTS D truly shines thanks to its astonishingly transparent sound all the way up to the top end - without the need for a tweeter. This is the result of some revolutionary engineering: The custom-designed 3.5-inch speakers have been modified so that the diaphragms significantly extend the high-frequency range. The arrangement of the speakers also creates a genuine line array effect, giving your audience an unobtrusive yet very defined sound wherever they are in the room; never too loud at the front, never too quiet at the back.

This passive sub is the ideal add-on for applications demanding an even more powerful low-end. It draws its power from a connected E 110 Sub AS active subwoofer. It also has an E-Connect flange (without signal routing) for accommodating mid/high units with an amp module.

Ingeniously simple portability
Thanks to its advanced, highly efficient speaker and power amplifier technology, ELEMENTS D is exceptionally lightweight for its performance capabilities. Transporting all the ELEMENTS D components is a breeze - even alone.

Intelligently designed handles on the subwoofers and practical carrying bags for the mid/high units make handling a walk in the park.

And, thanks to its compact dimensions, you can easily pack ELEMENTS D into any car- that’s truly revolutionary for a full PA system.

Key Features

• Passive system subwoofer, ideal for enhancing low-end response
• Remarkably compact and powerful
• 1 x E-Connect system flange with integrated signal connection
• Very lightweight (16.5 kg)

Technical Specifications

Product Class
Elements
Power-handling nominal (RMS)
250 W
Frequency response -10 dB
45 Hz - 150 Hz, via the active system crossover
LF Speaker
1x 10”
Connections
1x Speakon In, 1x Speakon Out, 1x E-Connect out
Pole mount
1 E-Connect sleeve
Dimensions (WxHxD)
30 x 48 x 46 cm
Weight
16.5 kg / 36.4 lbs.
