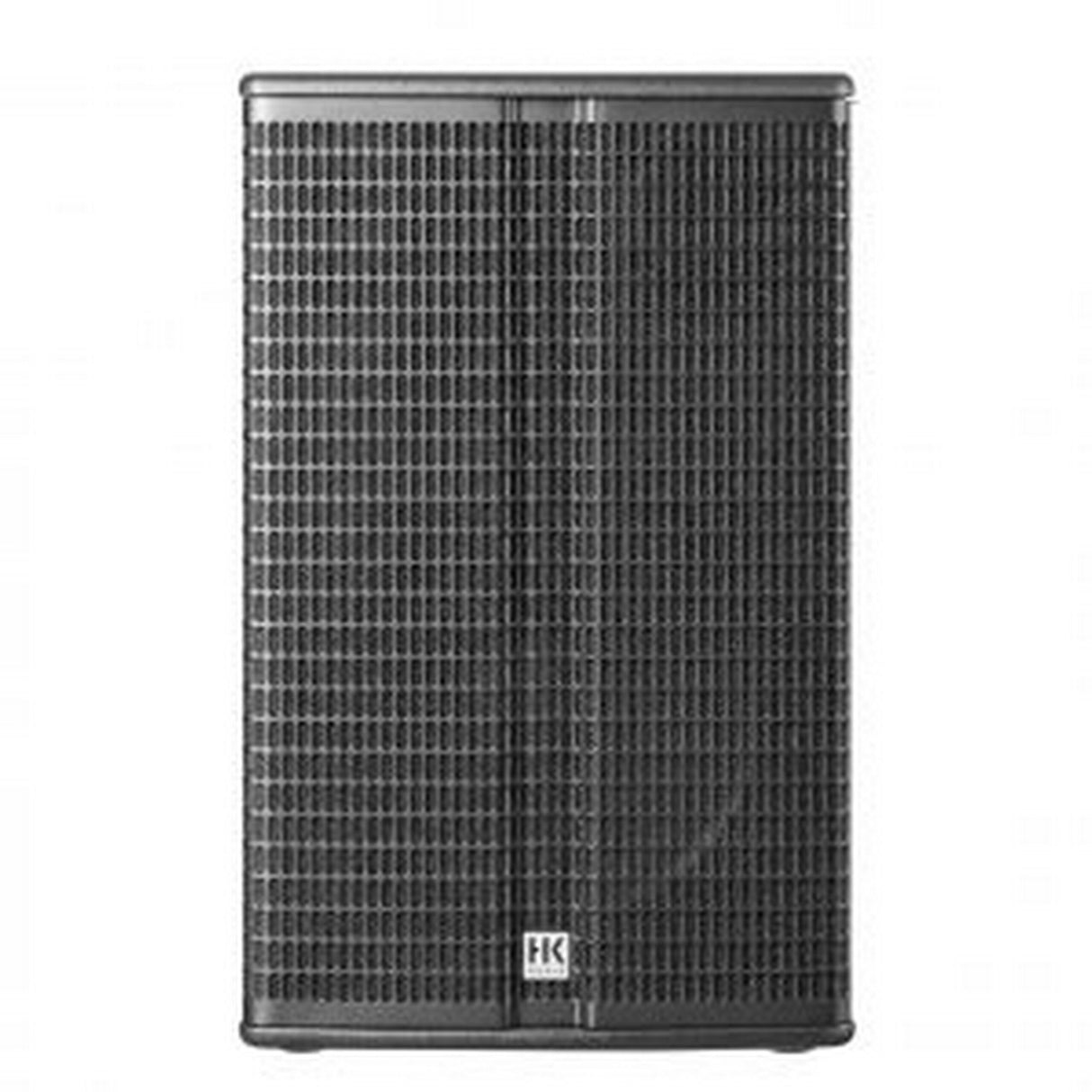

HK Audio Linear 3 115 FA Active 15 Inch 1200W 2-Way Speaker
HK Audio Linear 3 115 FA Active 15 Inch 1200W 2-Way Speaker
HK Audio Linear 3 115 FA Active 15 Inch 1200W 2-Way Speaker
Compared to the 12 version, the active 15/1 speaker offers even more depth with the same features. Especially in standalone use, it impresses with powerful bass and a balanced, crystal-clear sound across the entire frequency spectrum.
Technical Specifications
Max. SPL @ 10% THD
126 dB half space (58 Hz - 12 kHz averaged)
Max. SPL peak @ 10 % THD
135 dB half space
Frequency response +/-3 dB
58 Hz - 16 kHz
Frequency response -10 dB
49 Hz - 18 kHz
Power amp output (peak power)
1200 W
Preamp
DSP (Time Alignment)
Amp type
Class D - biamped
Active protective circuits
Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker
1x 15”, 2.5” voice coil
HF driver
1”, 1” voice coil
Horn directivity
90 x 55 CD horn
Active crossover frequency
2.3 kHz FIR X-over with 72 dB/oct.
Analog inputs
2x XLR combo balanced, 1x Stereo RCA
Analog outputs
2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity
+4 dBu @ Gain center-notched
Sensitivity switch
Line/Mic Input A
Filter presets
2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector
1x IEC socket with V-Lock cord retainer
Power consumption
3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Pole mount
DuoTilt 3/7
Rigging points
4x M8 (AP-8)
Carrying handles
2x MultiGrip
Housing
16 mm MDF
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64”
Weight
27.9 kg / 61.5 lbs
