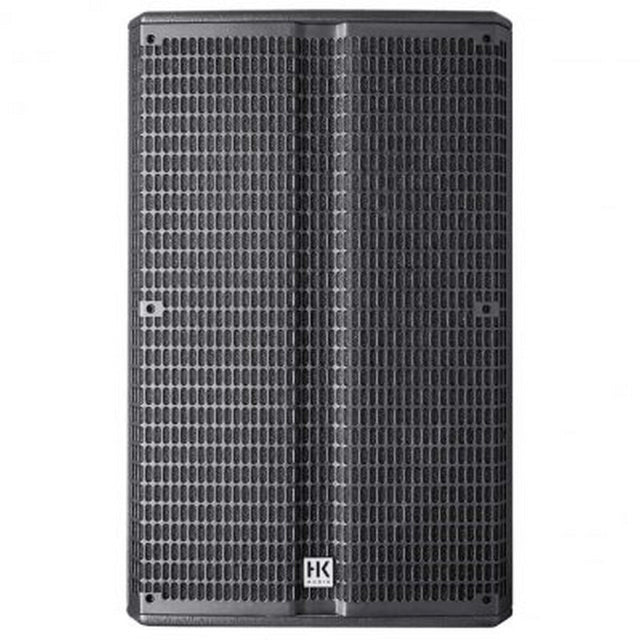

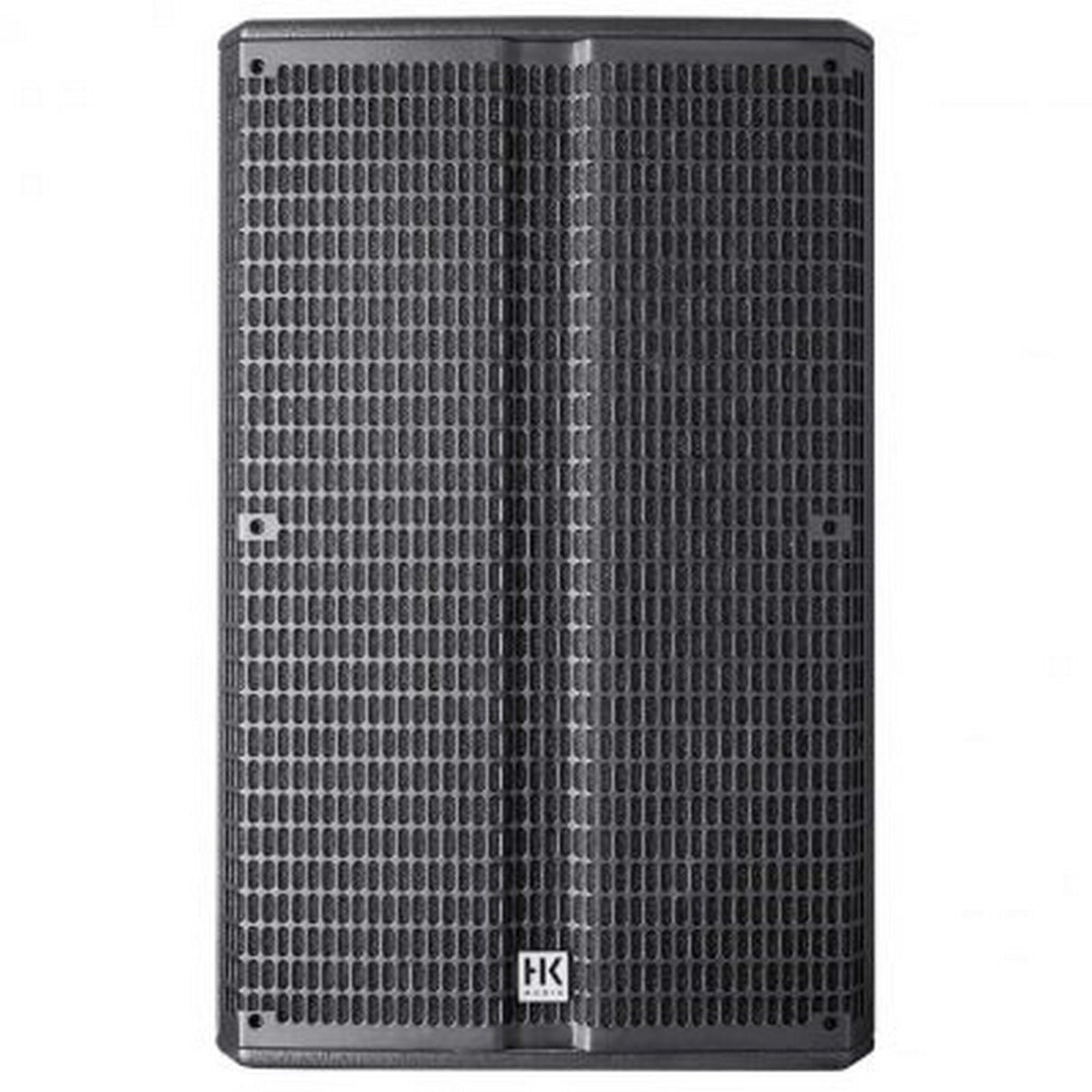

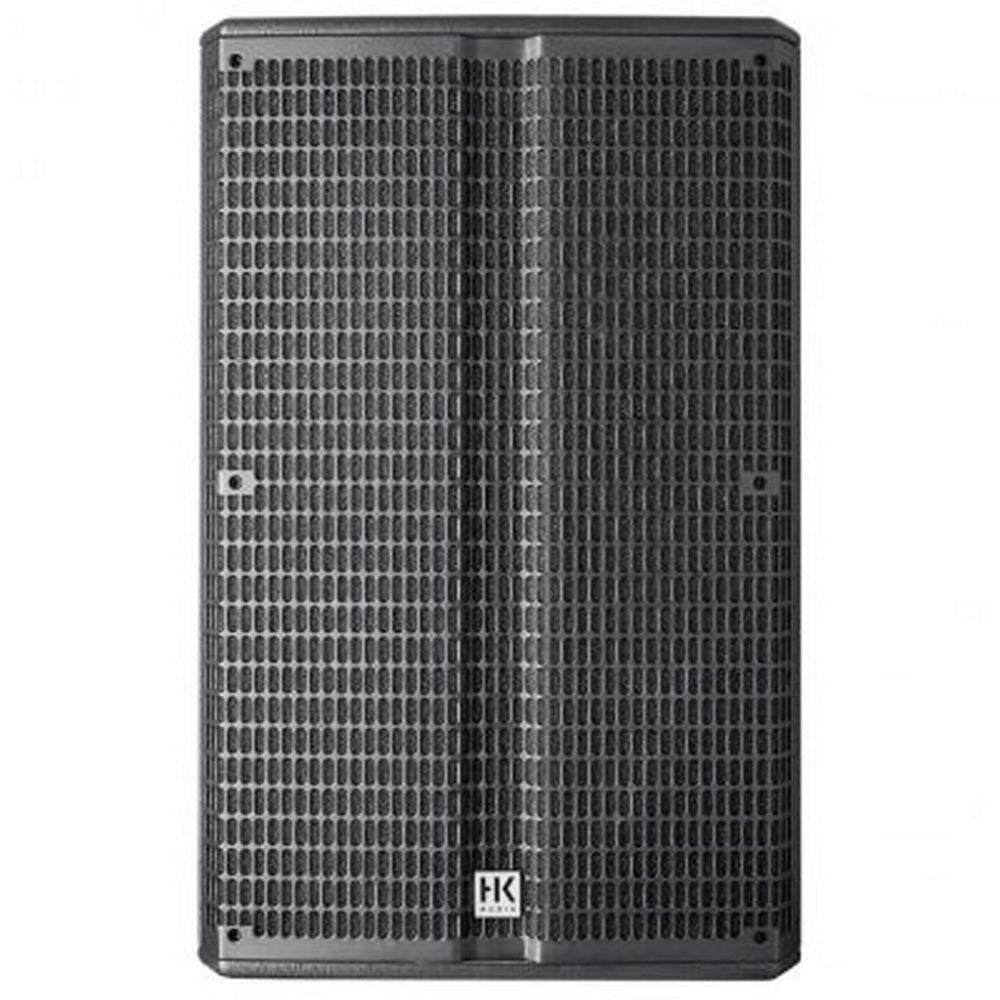

HK Audio Linear 5 115 F Passive 15 Inch 1200W 2-Way Speaker
HK Audio Linear 5 115 F Passive 15 Inch 1200W 2-Way Speaker
HK Audio Linear 5 115 F Passive 15 Inch 1200W 2-Way Speaker
As a stand-alone speaker with a maximum power handling capacity of 2,400 watts peak, the 15/1 full-range mid/high unit is the loudest reference in its class. Like the LINEAR 5 112 F, it is equipped with an asymmetrical horn for optimum dispersion, allowing it to provide a wide dispersion at the front while directing the sound more focused in the back for a greater range. Application: Mid/high unit, standalone system, DJ monitoring
Technical Specifications
Power-handling nominal (RMS)
600 W
Power-handling, program
1200 W
Frequency response +/-3 dB
62 Hz - 18 kHz
Frequency response -10 dB
52 Hz - 20 kHz
Sensitivity 1 W @ 1 m
103 dB half space
Max. SPL @ 10% THD
129 dB half space (62 Hz - 12 kHz average)
Max. SPL Peak @ 10% THD
135 dB half space
Electrical impedance
8 ohms
Protective circuits
PTC circuit
Low-/mid speaker
1x 15ā, 3ā voice coil
HF Driver
1ā, 1.75ā voice coil
Directivity
60-90 (asymmetrical) x 55 CD-Horn, rotatable
Crossover frequency
1.7 kHz, 12 dB/Oct.
Connections
2x Speakon NL4
Pole mount
DuoTilt 3/7
Rigging points
3x M8 (AP-8)
Carrying handles
2x MultiGrip
Housing
Hybrid (birch multiplex/MDF)
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
44.9 x 70.8 x 45 cm 17-43/64 x 27-7/8 x 17-23/32ā
Weight
30.1 kg / 66.4 lbs
