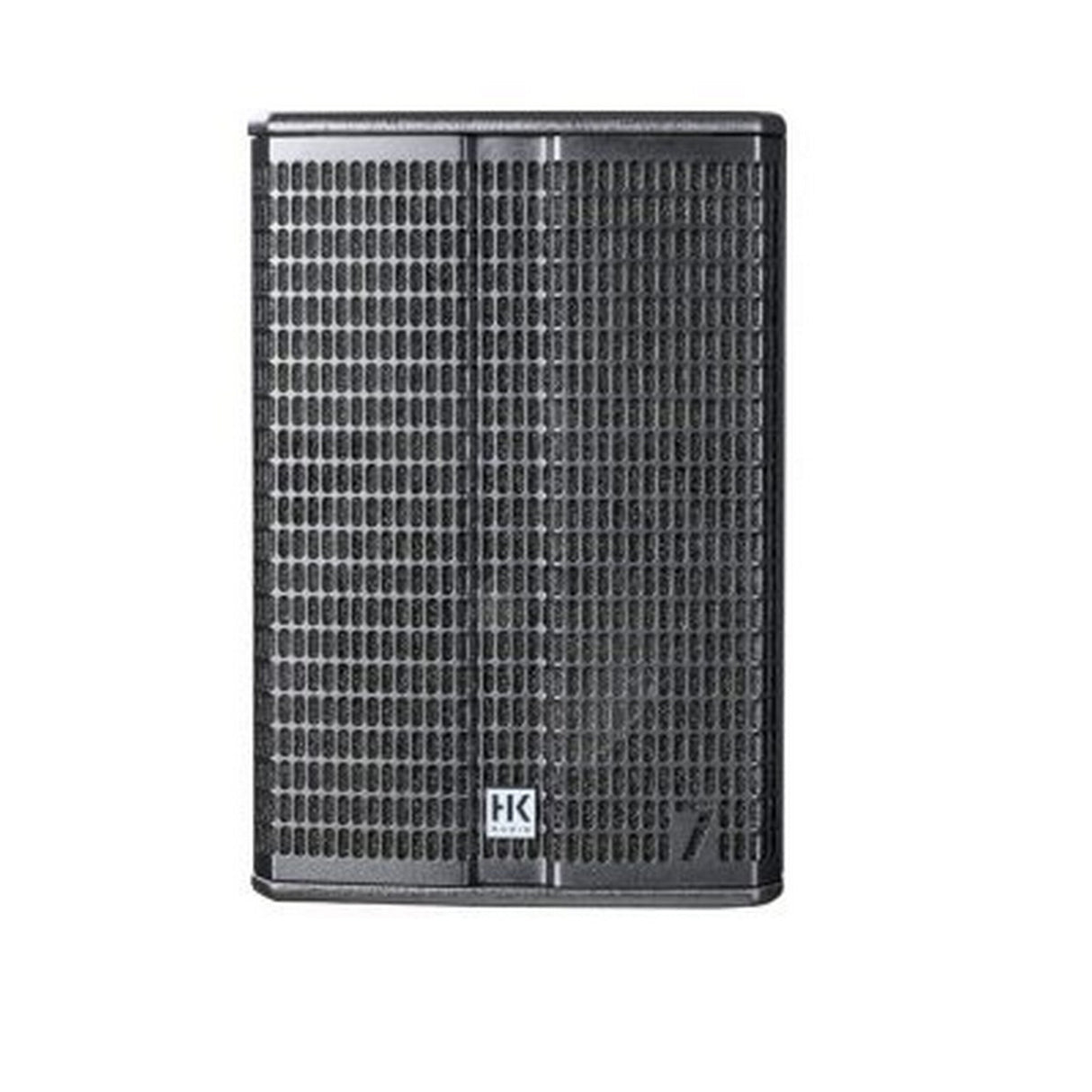

HK Audio Linear 7 110 XA 2000W 10 Inch Active PA Speaker

HK Audio Linear 7 110 XA 2000W 10 Inch Active PA Speaker

Thanks to its cabinet shape with integrated 30 slant, the LINEAR 7 110 XA active and network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimized for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.

Technical Specifications

Max. SPL @ 10% THD
126 dB half space (70 Hz - 12 kHz averaged)
Max. SPL peak @ 10 % THD
129 dB half space
Frequency response +/-3 dB
70 Hz - 19 kHz
Frequency response -10 dB
65 Hz - 20 kHz
Power amp output (peak power)
2000 W
Amp type
Class D - biamped
Low-/mid speaker
1x 10”, 2.5” voice coil
HF driver
1”, 1.4” voice coil
Horn directivity
80 x 60 CD horn, rotatable
Active crossover frequency
2 kHz FIR X-over with 60 dB/oct.
Maximum input level
+20 dBu
Analog inputs
1x XLR combo balanced
Analog thru
1x XLR balanced
DSP Out
1x XLR
Network port
Ethercon RJ45, 1x in, 1x thru
Filter presets
Flat, Monitor, Low Cut, and Remote
Remote software
DSP CONTROL (Windows, Mac OS)
DSP functions
fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate
96 kHz
System latency
Less than 2.6 ms
Mains connector
1x Powercon NAC3 In, 100-240 V
Power consumption
1 A / 100-240 V nominal according to EN 62368-1
Angels up (Monitor angle)
30
Pole mount
DuoTilt 3/7
Rigging points
5x M8 (AP-8)
Carrying handles
2x SingleGrip
Housing
Hybrid (birch multiplex/MDF)
Finish
Black acrylic enamel
Front grille
2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)
36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64”
Weight
17 kg / 37.5 lbs
