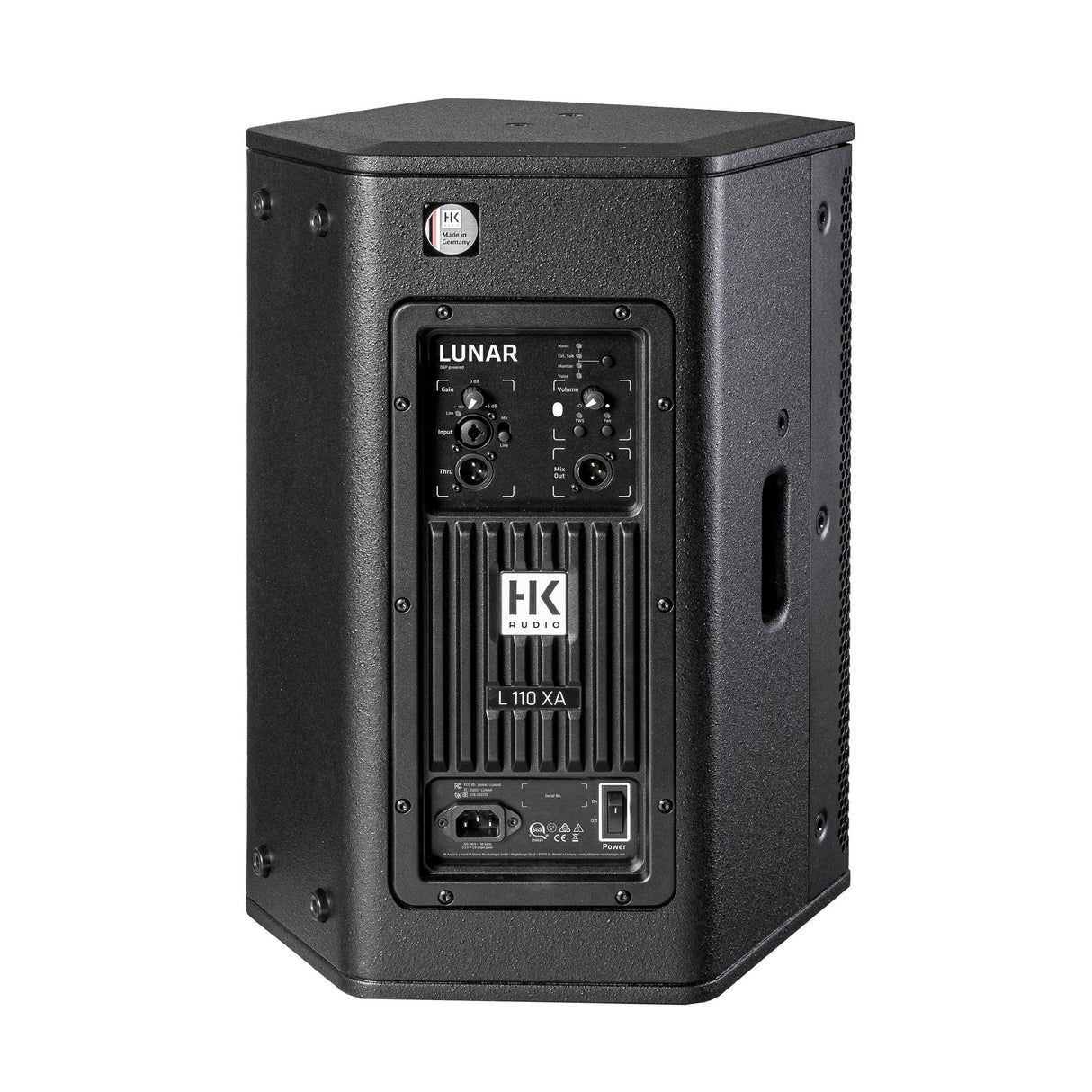

HK Audio LUNAR 110 XA Active 10-Inch Loudspeaker

HK Audio LUNAR 110 XA Active 10-Inch Loudspeaker

The HK Audio LUNAR 110 XA Active 2-Way Loudspeaker is a compact powered speaker for mobile setups, monitoring, and smaller events. It combines a 10" woofer, 1" compression driver, 1200W peak Class D amplification, Bluetooth 5.4, and DSP presets for clear, powerful sound in fast-moving production environments.

Designed for DJs, live performers, presenters, and sound reinforcement crews, this active loudspeaker works as a full-range main, floor monitor, or satellite with an external subwoofer. Use the HK Audio LUNAR 110 XA for portable PA applications, compact live sound systems, rehearsal spaces, and event audio setups that need speed, clarity, and reliability.

The DSP preamp, FIR crossover, phase correction, and limiter protection support consistent professional performance. A rugged MDF cabinet, DuoTilt pole mount, M8 mounting points, steel grille, and German manufacturing make this powered speaker a practical choice for installed and mobile audio work.

Compact Powered PA Speaker Features

• Active 2-Way Design: Combines a 10" mid/high cone speaker and 1" compression driver for clear full-range sound.
• 1200W Peak Amplification: Class D biamped power delivers strong output from a compact, portable enclosure.
• 128 dB Peak SPL: Provides high sound pressure for small events, monitoring, and mobile PA applications.
• DSP Presets: Music, Ext. Sub, Monitor, and Voice presets quickly tune the speaker for common use cases.
• Bluetooth 5.4 with TWS: Supports wireless audio streaming and True Wireless Stereo operation.
• Flexible Mounting: DuoTilt 3/7, four M8 mounting points, and a 33° monitor angle support multiple deployment styles.
• Rugged Wooden Cabinet: MDF construction, acrylic enamel finish, and a steel grille help withstand professional use.
• Made in Germany: Built for dependable live sound, DJ, and professional reinforcement applications.

Technical Specifications

• Product Type: Active 2-way loudspeaker
• Brand: HK Audio
• Model: LUNAR 110 XA
• Concept: Active 2-way loudspeaker
• Cabinet Principle: Bass reflex
• Maximum SPL Peak: 128 dB
• Maximum SPL Measurement: 1 x unit at 1 m, 10% THD, half space
• Crossover Frequency: 2.5 kHz FIR X-Over with 60 dB/oct.
• Frequency Range -6 dB: 66 Hz - 18 kHz
• Frequency Range -10 dB: 61 Hz - 20 kHz
• Dispersion Angle -6 dB: 90° x 55° horizontal x vertical
• Mid/High Frequency Driver: 1 x 10" cone speaker with 2" voice coil
• High Frequency Driver: 1 x 1" compression driver with 1" voice coil
• Horn: Constant directivity horn

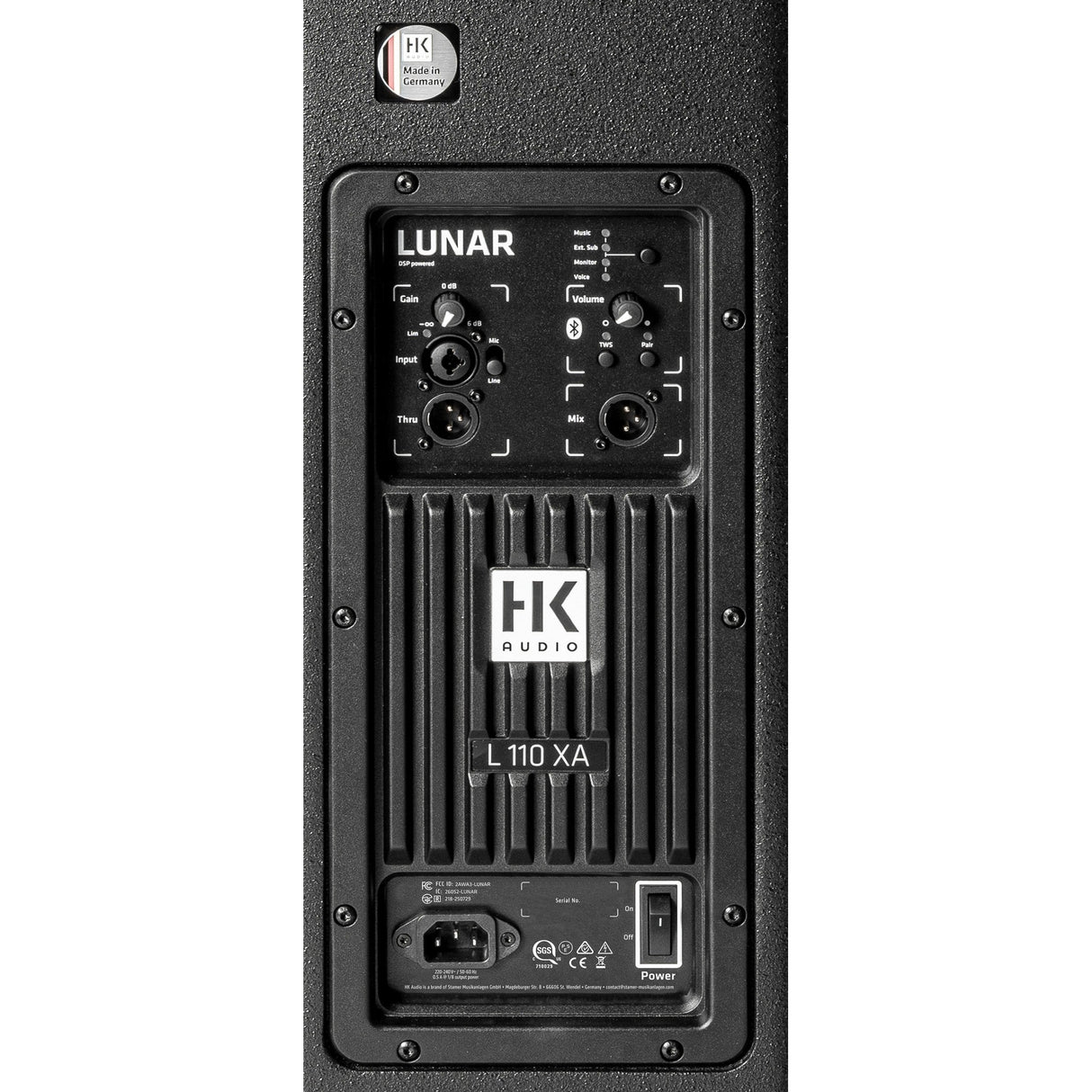

• Power Supply Connection: 1 x IEC connector
• Analog Input: 1 x XLR/jack combo balanced Mic/Line input
• Analog Output: 1 x balanced XLR-Thru
• Mix Output: 1 x balanced Mix Out XLR
• Preamplifier: DSP preamp
• Power Amplifier: Class D, biamped
• Power Amplifier Output RMS: 600 W
• Power Amplifier Output Peak: 1200 W
• Power Consumption: 0.5 A / 220-240 V AC at 1/8 output power; 0.9 A / 100-120 V AC at 1/8 output power
• Maximum Input Level: 20 dBu
• Speaker Protection: Subsonic filter, peak limiter, RMS limiter, and multiband limiter
• Sample Rate: 48 kHz
• Latency: 3 ms
• Filter Presets: Music, Ext. Sub, Monitor, Voice
• Bluetooth: Yes, Bluetooth 5.4 with TWS

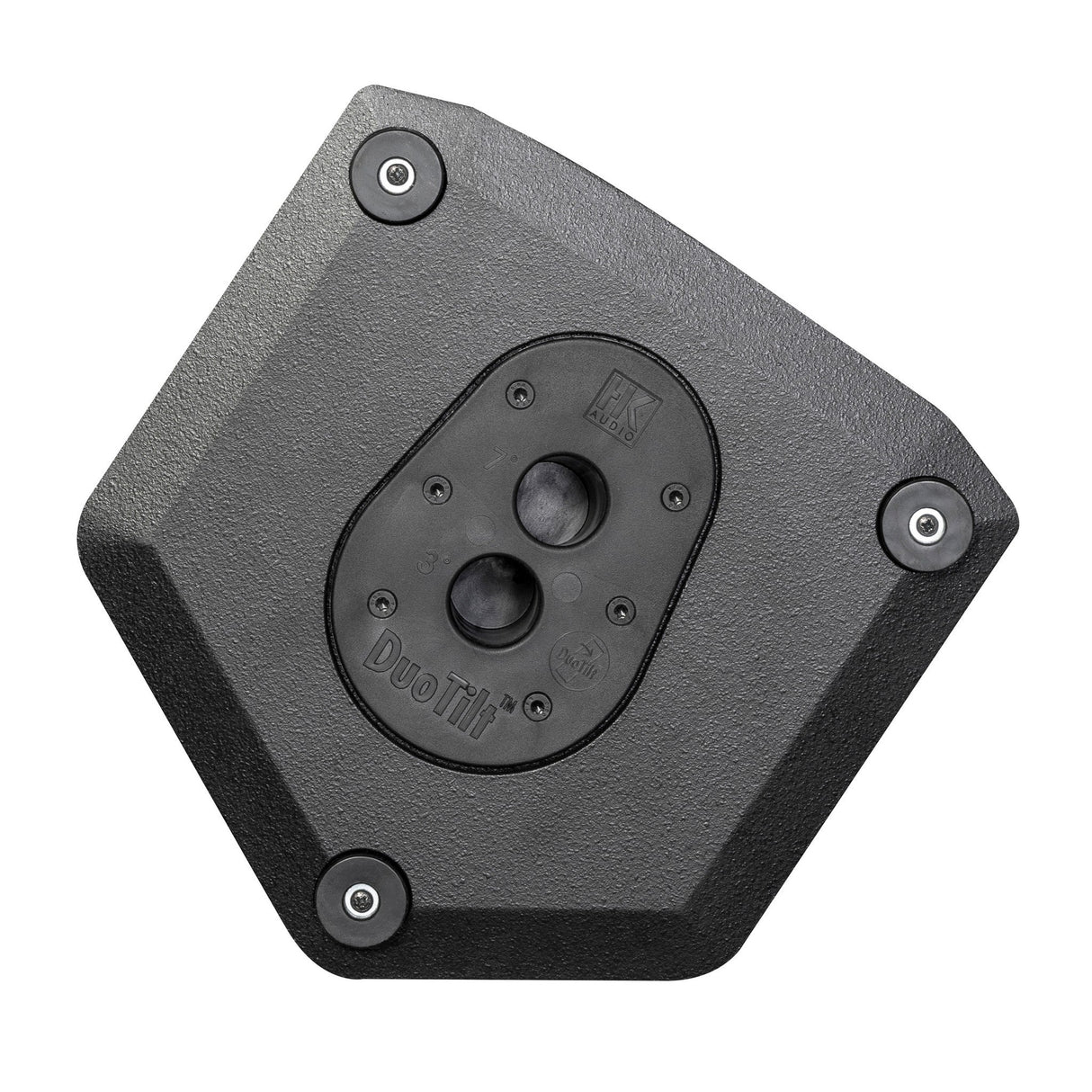

• Cabinet Features and Rigging: DuoTilt 3/7, 4 x M8 mounting points for AP-8, 33° monitor angle

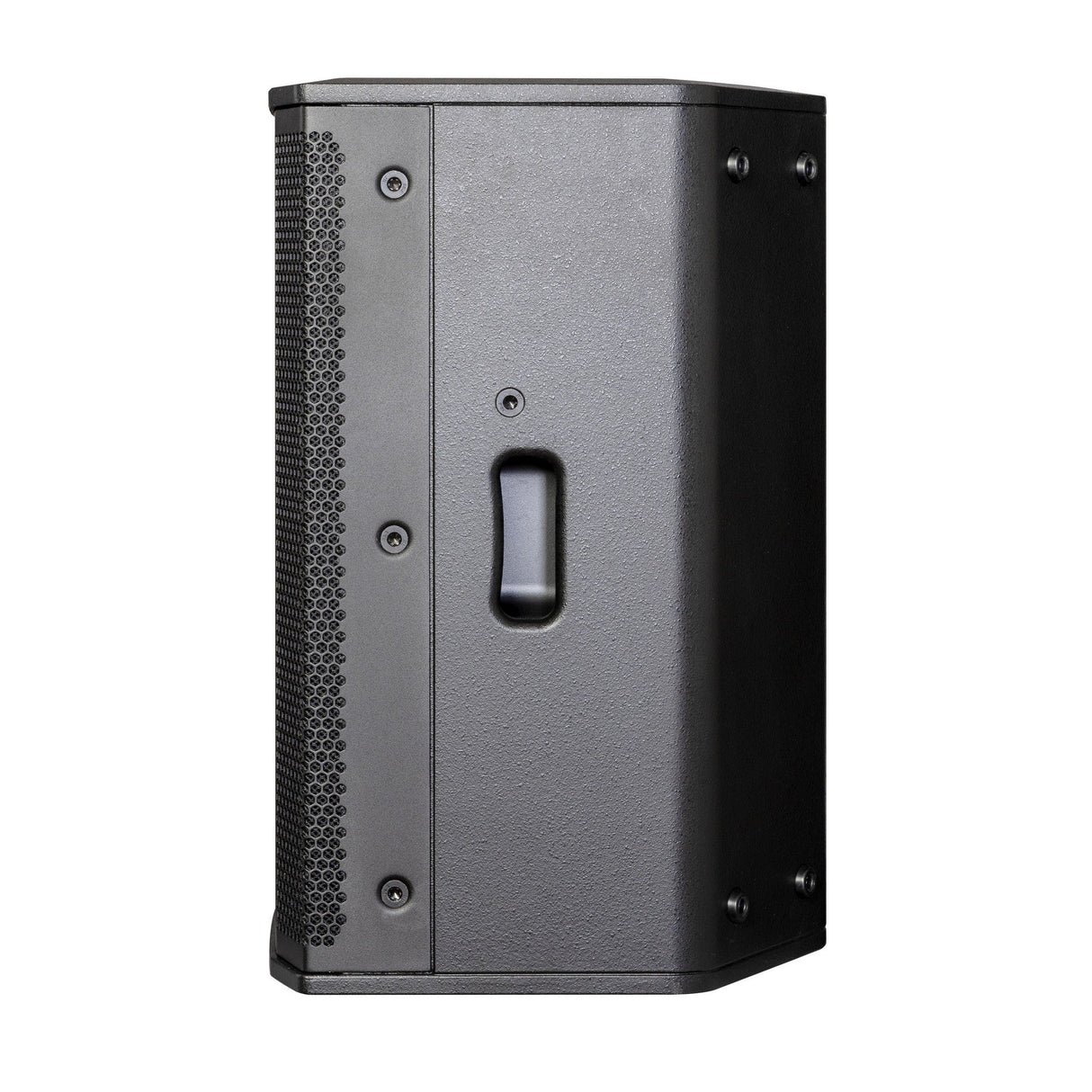

• Carrying Handles: 2 x SingleGrip
• Cabinet Material: MDF
• Cabinet Surface: Acrylic enamel
• Color: Jet black, RAL 9005

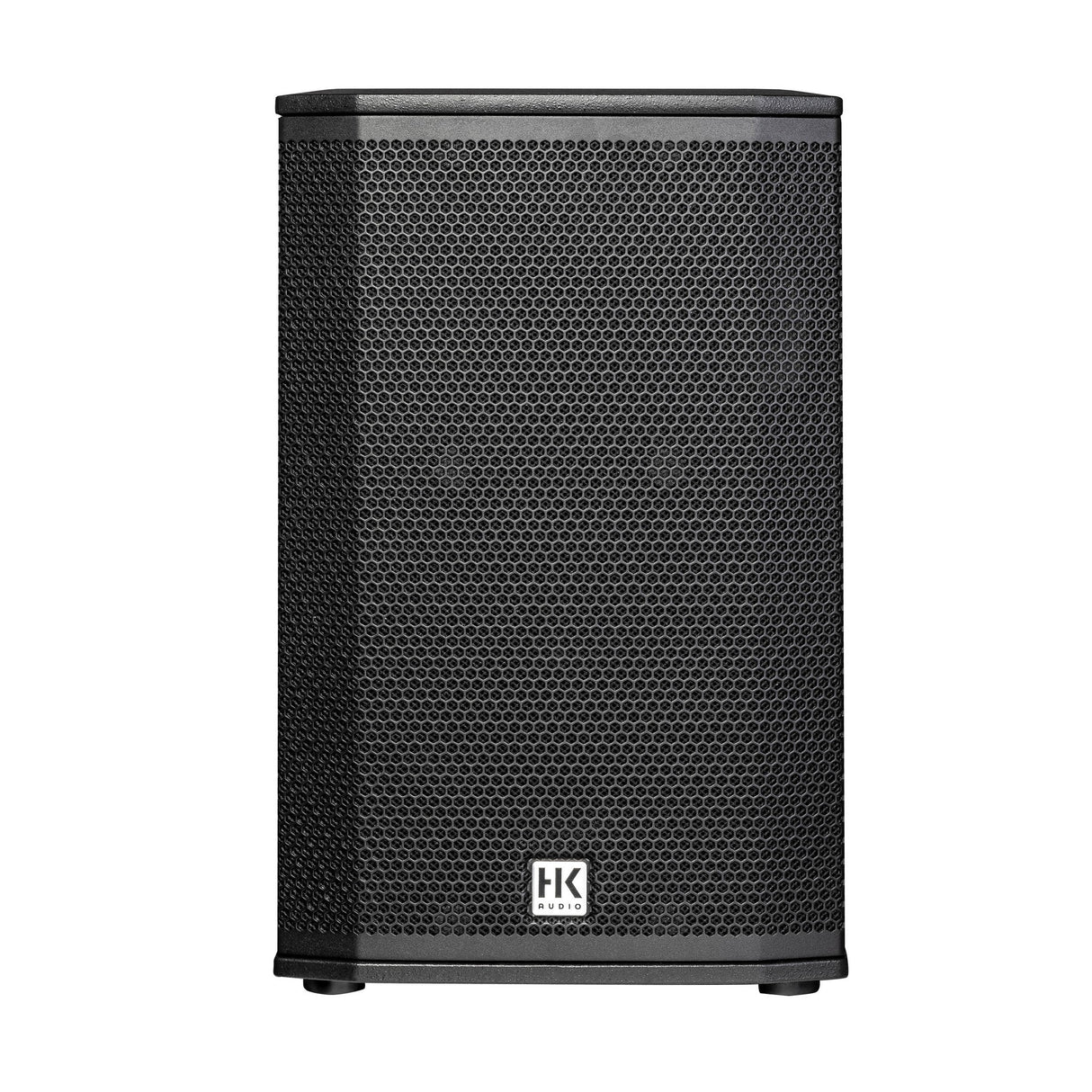

• Front Grille: Steel front grille backed with acoustic foam
• Dimensions: 12.75" x 20.61" x 13.13" (W x H x D)
• Weight: 35.28 lbs
• Integrated Presets: Music, Monitor, Voice, Subwoofer
• Operation: Intuitive operation without complex menu navigation
• Audio Streaming: Bluetooth audio streaming with True Wireless Stereo
• DSP Processing: 32-bit DSP with FIR filter and phase correction
• Applications: Full-range speaker, monitor, or system use with a subwoofer
• Country of Manufacture: Germany
• Warranty: 5-year manufacturer’s warranty upon registration
