Hollyland Pyro 7 Ultra Wireless Transceiver Monitor, 7 Inch

Hollyland Pyro 7 Ultra 7" Wireless Transceiver Monitor

The Hollyland Pyro 7 Ultra Wireless Transceiver Monitor combines a professional 7.02" QD-LCD field monitor, wireless transmitter, and wireless receiver in one production tool. It supports up to 4K60 HDMI video, 3G-SDI workflows, transmission distances up to 3,300 feet, and Focus Mode latency starting at 20 ms under specified test conditions.

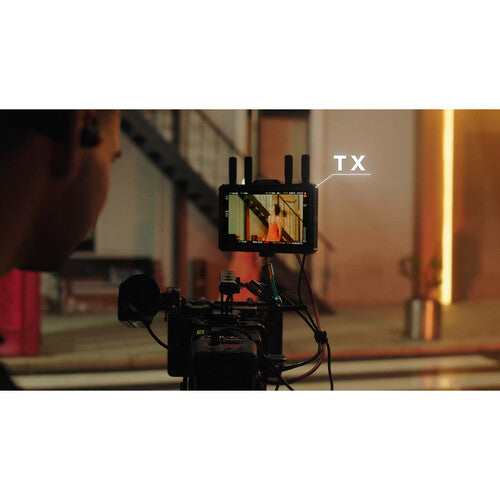

Designed for camera operators, focus pullers, directors, and multicamera production crews, the Pyro 7 Ultra reduces the need for separate monitoring and wireless transmission hardware. Its 1500-nit touchscreen provides daylight-viewable monitoring, while TWiFi dual-band transmission operates across 2.4 and 5 GHz frequencies with automatic frequency hopping. Broadcast Mode supports one transmitter with multiple receivers, making it well suited for long-range wireless video monitoring, professional on-set focus pulling, and multicamera director monitoring.

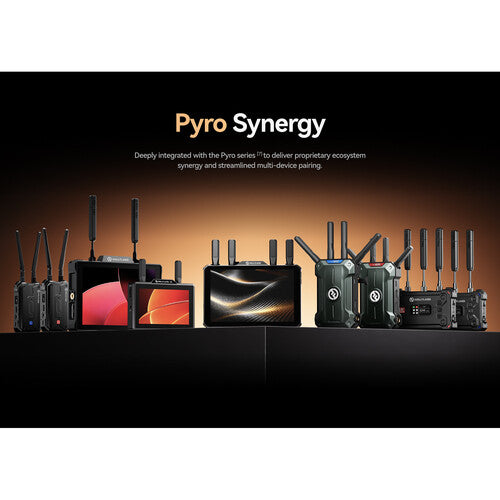

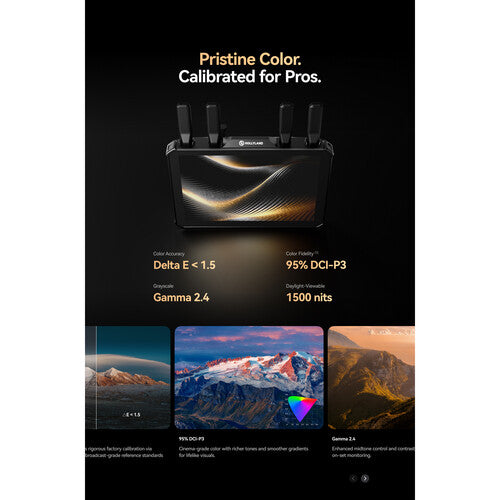

The monitor covers at least 99% of Rec.709 and 95% of DCI-P3 with a factory-calibrated Delta E of 1.5 or lower. HDMI 2.0 and 3G-SDI connectivity supports flexible professional routing, including HDMI/SDI cross-conversion. An integrated V-mount battery plate, DC input, SD card slot, USB-C data connection, camera-control support, image-analysis tools, and compatibility across supported Hollyland Pyro products help the Pyro 7 Ultra fit established cinema and live-production workflows.

Key Features

• Three-in-One Design: Functions as a professional field monitor, wireless video transmitter, or wireless video receiver from a single integrated platform.
• Long-Range Wireless Transmission: Sends video up to 3,300 feet line of sight using proprietary TWiFi dual-band 2.4 and 5 GHz transmission.
• 4K60 HDMI Support: Handles HDMI signals up to UHD 4K at 60 fps while supporting professional 3G-SDI video workflows up to 1080p60.

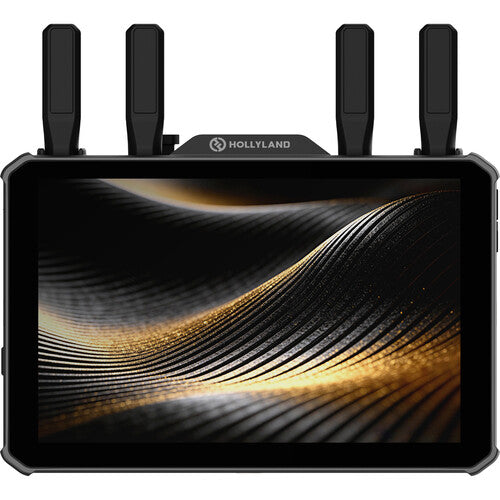

• High-Brightness QD-LCD: The 7.02" 1920 x 1200 touchscreen reaches 1500 nits for improved outdoor and high-ambient-light visibility.
• Professional Color Accuracy: Provides Delta E of 1.5 or less, at least 99% Rec.709 coverage, and at least 95% DCI-P3 coverage.
• Broadcast and Focus Modes: Broadcast Mode expands receiver deployment, while Focus Mode provides transmission latency starting at 20 ms under supported test conditions.
• Professional Monitoring Tools: Includes waveform, histogram, zebra, false color, LUT support, focus peaking, anamorphic viewing, image overlay, markers, mirroring, and other analysis functions.
• Flexible Production Connectivity: HDMI, 3G-SDI, USB-C, headphone monitoring, SD storage, DC power, V-mount battery support, and multiple 1/4"-20 mounting points simplify integration into camera rigs.

Technical Specifications

Display

• Screen Type: QD-LCD touchscreen
• Screen Size: 7.02"
• Resolution: 1920 x 1200
• Aspect Ratio: 16:9
• Brightness: 1500 nits
• Contrast Ratio: 1000:1
• Color Accuracy: Delta E ≤1.5
• Color Gamut: Rec.709 ≥99%; DCI-P3 ≥95%
• Grayscale Gamma: 2.4
• Monitoring Tools: Waveform, histogram, zebra, false color, rotate, LUT, mirror, anamorphic, aspect ratio, safety frame, center marker, image overlay, grid, focus peaking, sharpness

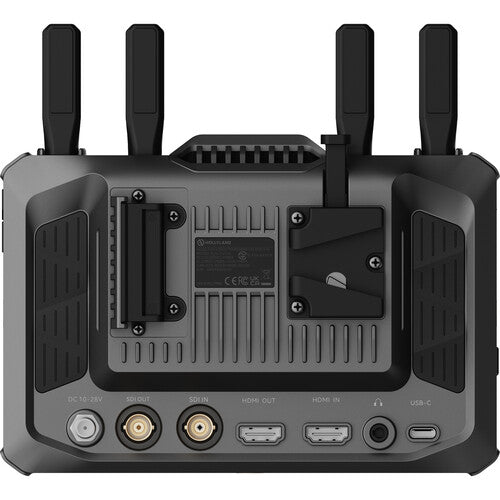

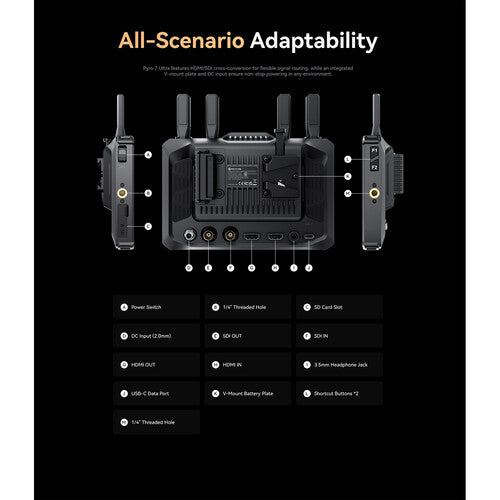

Video and Audio Connections

• Video Input/Output: HDMI 2.0 and 3G-SDI
• Antenna Interface: 4 x SMA male
• Audio Monitoring: 3.5 mm headphone jack
• Data Transmission: USB-C 2.0
• Storage: SD card slot
• Power Input: 2.0 mm DC input and integrated V-mount battery plate
• Mounting: 1/4"-20 threaded mounting points

Wireless Transmission

• Wireless Technology: TWiFi dual-band transmission with automatic frequency hopping
• Operating Frequencies: 5.1 to 5.8 GHz and 2.412 to 2.484 GHz
• Transmission Range: Up to 3,300 ft line of sight
• Transmission Power: Less than 24 dBm
• Receiver Sensitivity: Greater than -80 dBm
• Transmission Latency: Starting at 20 ms in Focus Mode under specified test conditions
• Display Latency: Greater than 27 ms
• Bandwidth: 20 MHz; 40 MHz in Broadcast Mode
• Broadcast Mode: Supports one transmitter with unlimited receivers; practical performance depends on the deployment environment

Supported HDMI Input Formats

• UHD 4K: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 720p: 50, 59.94, 60 fps

Supported HDMI Loop Output / Output Formats

• UHD 4K: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 720p: 50, 59.94, 60 fps

Supported SDI Input Formats

• 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 1080i: 50, 59.94, 60 fps
• 1080PsF: 23.98, 24, 25, 29.97, 30 fps
• 720p: 50, 59.94, 60 fps

Supported SDI Loop Output / Output Formats

• 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 1080i: 50, 59.94, 60 fps where supported
• 720p: 50, 59.94, 60 fps

Power and Environmental

• Supply Voltage: 10 to 28 VDC
• Power Consumption: Transmitter ≤25 W; receiver ≤20 W
• Battery Mount: Integrated V-mount battery plate
• Operating Temperature: 14 to 113°F
• Storage Temperature: -40 to 140°F

Physical Specifications

• Dimensions: 7.1 x 4.6 x 1.8" including battery plate
• Weight: Up to 1.4 lb

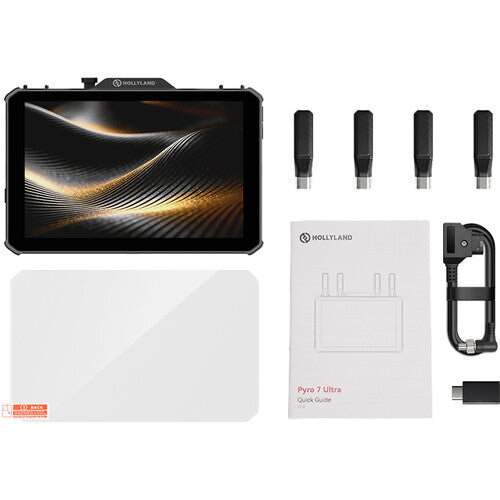

What's In the Box

• Hollyland Pyro 7 Ultra Wireless Transceiver Monitor
• 4 x Easy-Install Short Antennas
• Tempered Glass Screen Protector
• D-Tap to Locking DC Power Adapter Cable
• USB-C OTG Adapter
• Quick Guide
