Huddly C1 Crew AI-Driven Multi-Camera Conferencing Kit

Huddly C1 Crew AI-Driven Multi-Camera Conferencing Kit

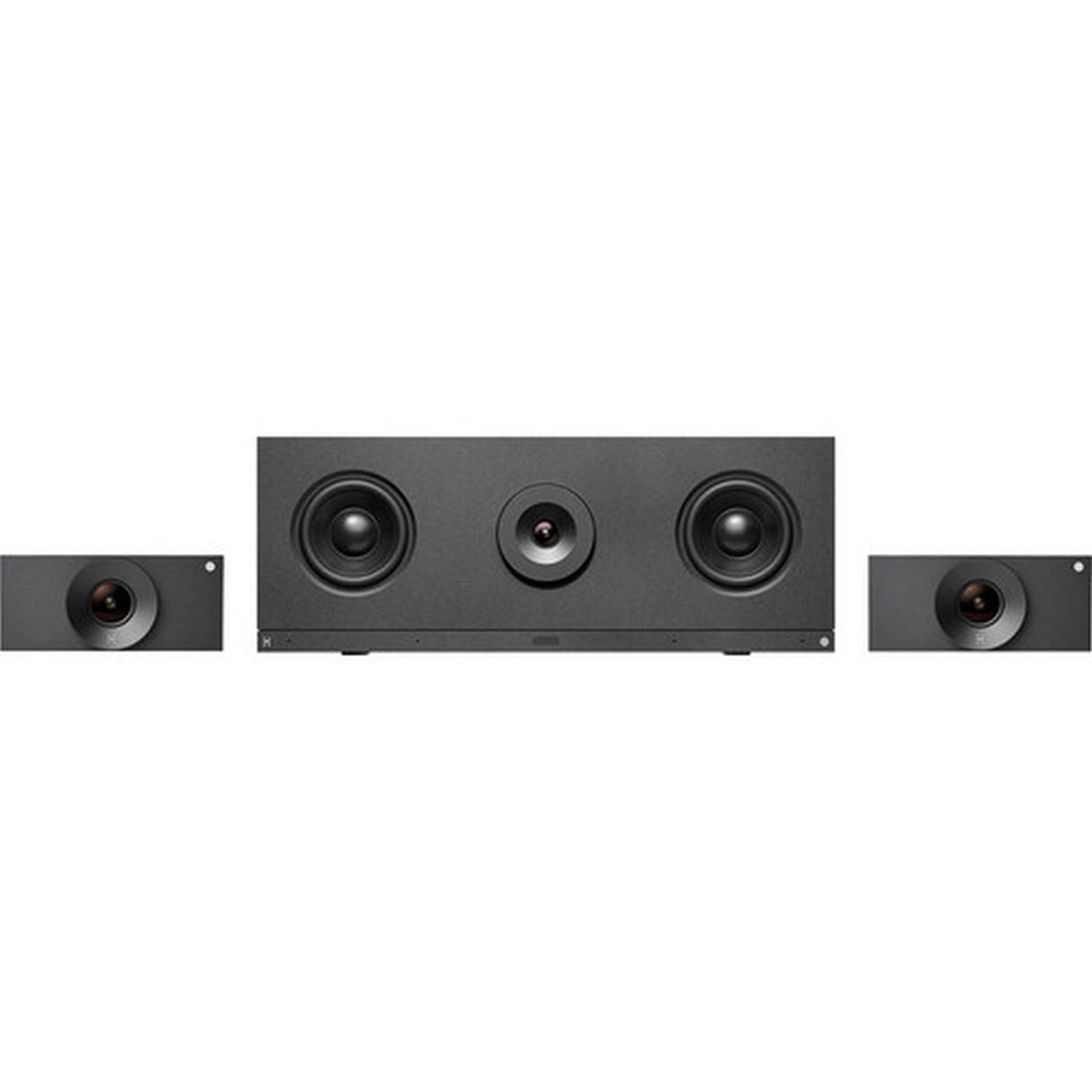

The Huddly C1 Crew AI-Driven Multi-Camera Conferencing Kit combines one C1 videobar with two Crew Add-On Cameras for medium meeting rooms and soft-seating spaces. On-device intelligence coordinates framing, camera changes, voice pickup, noise reduction, and room audio in real time, delivering a complete USB collaboration system without a separate production operator.

Teams can switch between multi-camera Speaker and Collaboration modes or use the C1 alone for Group Framing and Manual Framing. This multi-camera meeting room system suits boardrooms, training spaces, collaborative offices, and executive meeting areas that need natural speaker views, listener reactions, and dependable coverage from several angles.

The C1 provides a 16-microphone array, stereo 12W speakers, HDMI connectivity, dual USB-C workflows, and BYOD charging. Two networked Crew cameras add 20.3MP 1-inch sensors and independent neural processing. The North American kit includes the switch, mounts, power hardware, and cabling required for deployment with Microsoft Teams, Zoom, or Google Meet.

Key Features

• Complete Three-Camera System: Combines one C1 videobar with two Crew Add-On Cameras for broader room coverage.
• Autonomous Multi-Camera Direction: On-device AI selects and frames useful camera views without requiring a dedicated operator.
• Speaker and Collaboration Modes: Focuses on active speakers or alternates between speakers and listener reactions.
• Single-Camera Framing Options: Group Framing and Manual Framing provide flexible C1 views when multiple angles are unnecessary.
• AI-Enhanced Room Audio: Sixteen microphones process voice direction while reducing noise, echo, and room reverberation.
• Integrated Stereo Playback: Two 12W full-range speakers and passive radiators provide clear speech and balanced room audio.
• Networked Camera Deployment: Included Ethernet hardware connects the add-on cameras to the unified conferencing system.
• Platform Flexibility: Supports Microsoft Teams, Zoom, Google Meet, native room systems, and bring-your-own-device workflows.

Technical Specifications

System Configuration

• Product Type: AI-driven multi-camera video conferencing system with integrated audio
• Recommended Application: Medium meeting rooms and soft-seating collaboration spaces

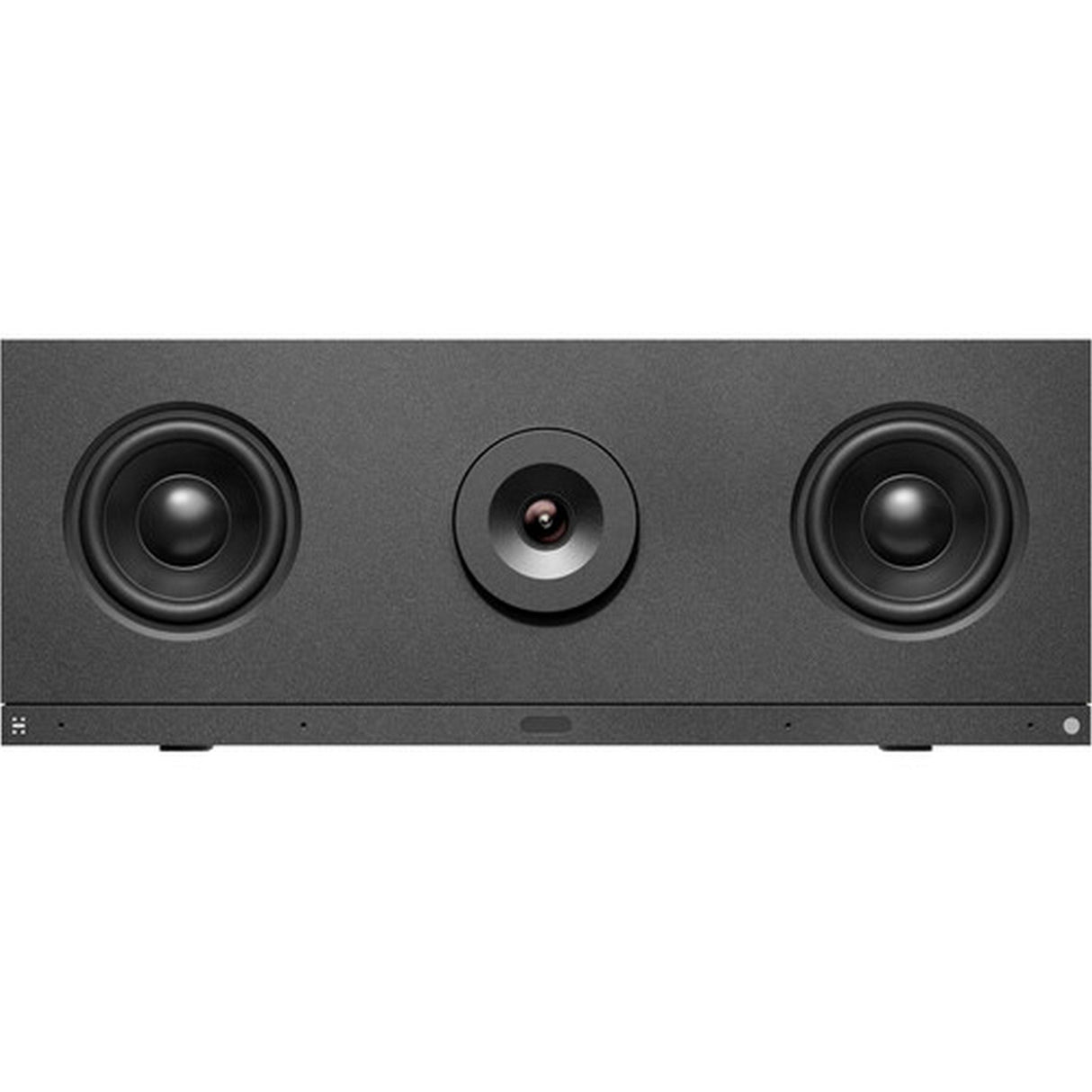

• Primary Videobar: One Huddly C1
• Add-On Cameras: Two Huddly Crew Add-On Camera L1 units
• Camera Operation: Multi-camera or single-camera
• Multi-Camera Modes: Speaker Mode and Collaboration Mode
• Single-Camera Modes: Group Framing and Manual Framing
• Digital Camera Control: Electronic pan, tilt, and zoom without moving camera parts
• Framing Zone: User-defined detection area for Group Framing and Manual Framing
• Perspective Correction: Real-time correction of wide-angle and camera-placement distortion
• Image Processing: Automatic white balance, color correction, optical-aberration correction, and exposure adjustment
• Audio Processing: Virtual microphone, selective noise cancellation, echo reduction, and reverberation reduction
• Software: Upgradeable through ongoing software releases

Huddly C1 Camera and Optics

• Image Sensor: 12MP 1/2.3-inch CMOS
• Sensor Class: 4K
• Video Output: 1080p Full HD at 30 fps or 720p HD at 30 fps
• Aspect Ratio: 16:9
• Digital Zoom: Up to 4x
• Lens: Ultra-wide-angle glass optics
• Horizontal Field of View: 120 degrees
• Vertical Field of View: 90 degrees
• Diagonal Field of View: 150 degrees
• Aperture: f/2.8

Huddly C1 Audio

• Microphone Array: 16 microphones
• Microphone Processing: Speech pickup and audio direction-of-arrival processing
• Speakers: Two 3-inch, 12W full-range speakers
• Passive Radiators: Two vibration-canceling bass radiators
• Speaker Output: Stereo
• Hearing Loop Output: One 3.5 mm mini jack

Huddly C1 Connectivity

• HDMI Input: One HDMI input supporting 4K at 60 Hz with HDCP
• HDMI Output: One HDMI output supporting 4K at 60 Hz with HDCP
• Room Compute Connection: One USB-C port with plug-and-play UVC video and UAC audio
• BYOD Connection: One USB-C port with UVC video, UAC audio, and DisplayPort video input
• BYOD Video Support: Up to 4K at 60 Hz with HDCP
• USB Power Delivery: Up to 65W device charging
• Network Ports: Two Gigabit Ethernet ports
• Crew Expansion Port: One Gigabit Ethernet port labeled Extend
• Reserved Network Port: One Gigabit Ethernet port reserved for future use
• Power Input: 24 VDC

Huddly C1 Hardware and Dimensions

• Processor: High-performance VPU with neural compute engine
• Housing: Durable aluminum body
• Color: Matte Black
• Security: Kensington lock interface
• Mounting: Included wall bracket
• Dimensions (W x H x D): 13 x 4.9 x 3.5 inches
• Unit Weight: 5.3 pounds
• C1 Package Dimensions (L x W x H): 15.6 x 8.9 x 7.2 inches
• C1 Package Weight: 11.1 pounds

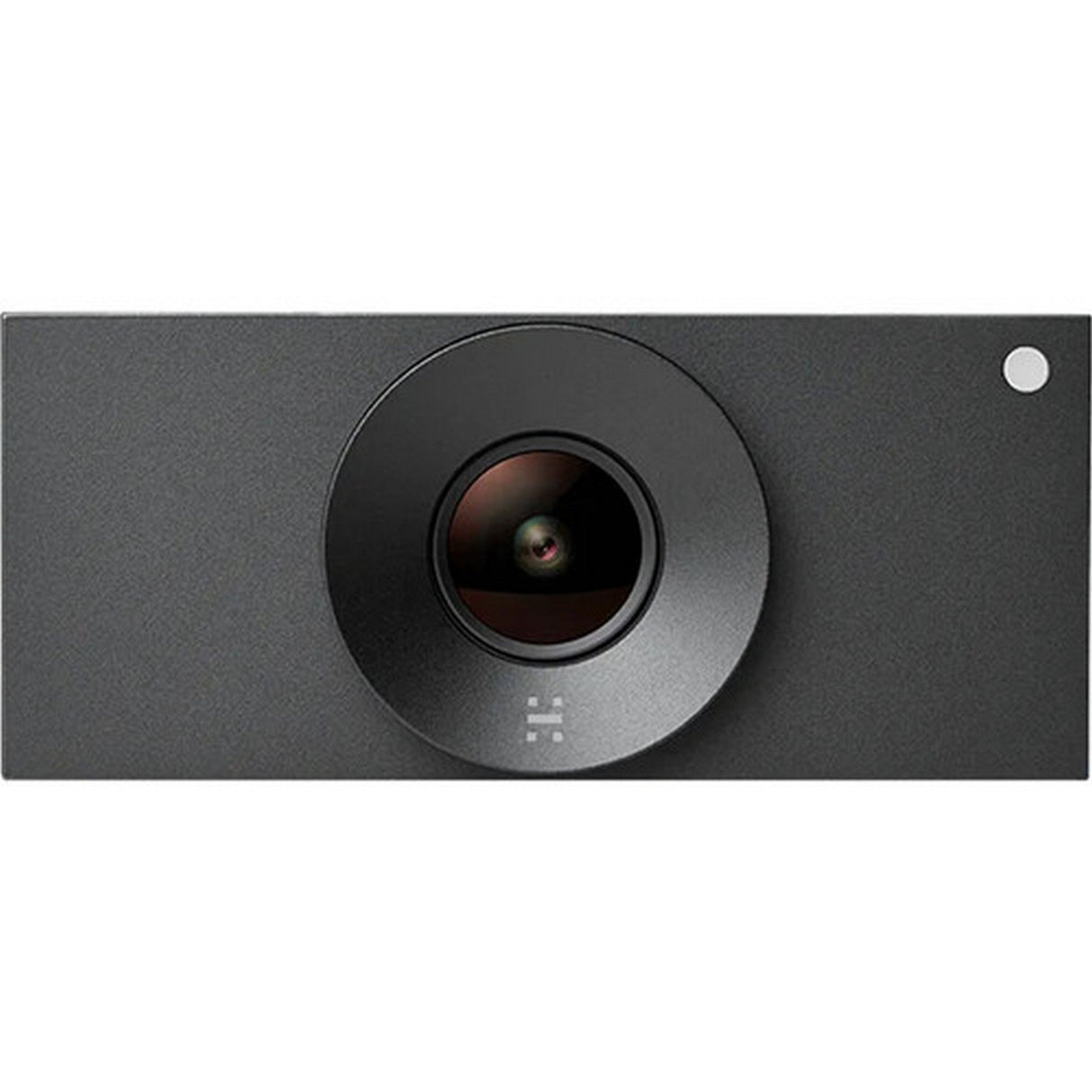

Crew Add-On Camera Specifications

• Quantity: Two cameras
• Image Sensor: 20.3MP 1-inch CMOS
• Sensor Class: 6K
• Video Output: 1080p Full HD at 30 fps or 720p HD at 30 fps
• Aspect Ratio: 16:9
• Digital Zoom: Up to 5x
• Image Orientation: Automatic 180-degree image flip
• Lens: Wide-angle glass optics
• Horizontal Field of View: 92 degrees
• Vertical Field of View: 65 degrees
• Diagonal Field of View: 103 degrees
• Aperture: f/2.9
• Network Connector: RJ45
• Supported Network Cable: Cat 5e, Cat 6, or Cat 7
• USB Connectivity: USB-C supporting USB 2 or USB 3 through a compatible adapter
• Processor: High-performance VPU with neural compute engine
• Housing: Aluminum
• Color: Matte Black
• Dimensions (L x W x H): 4.8 x 3.5 x 2 inches, including lens
• Weight: 1.3 pounds each

Crew Camera Wall Mounts

• Quantity: Two mounts
• Construction: Aluminum
• Color: Matte Black
• Dimensions (L x W x H): 5 x 1 x 1.8 inches each
• Weight: 0.3 pounds each

Power, Compatibility, and Room Guidance

• C1 Power Supply: External 160W AC/DC adapter
• AC Input Range: 85 to 264 VAC
• DC Output: 24 VDC at 6.67A
• Operating System Support: Windows 10 or later, macOS, and ChromeOS with USB plug-and-play support
• Conferencing Platforms: Microsoft Teams, Zoom, and Google Meet
• C1 Standalone Room Guidance: Four to six people in rooms approximately 11.5 x 13 feet
• C1 Crew Room Guidance: Six to twelve people in rooms approximately 18 x 20 feet

What's In the Box

• Huddly C1 videobar
• C1 power adapter and regional power cable
• C1 wall mount with mounting template
• One-way USB-C cable, 16.4 feet
• HDMI cable, 6.6 feet
• Two Huddly Crew Add-On Camera L1 units
• Two Crew camera wall mounts
• Three Ethernet cables, 9.8 feet each
• Ethernet switch
• Ethernet switch power adapter
• Four regional power cables
