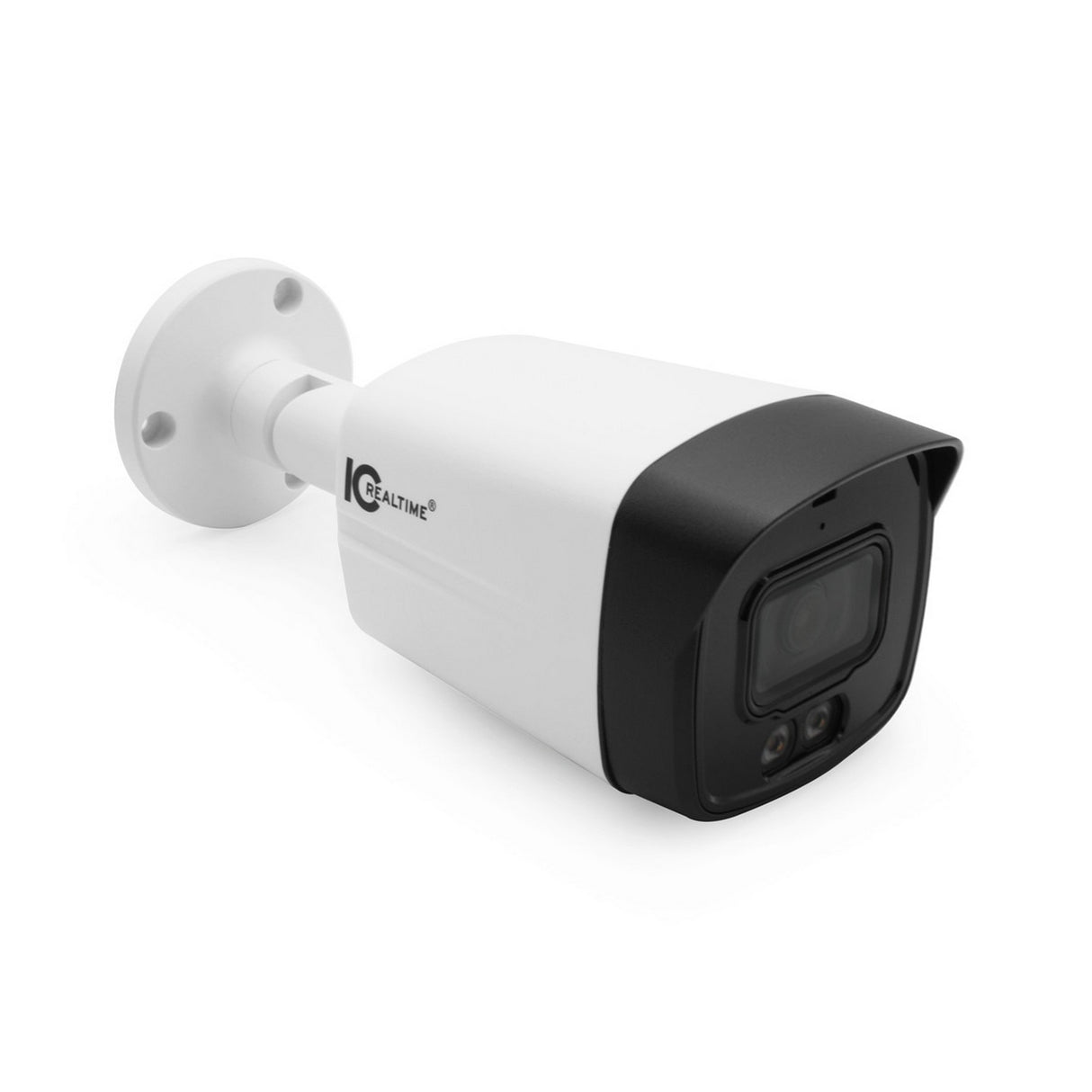

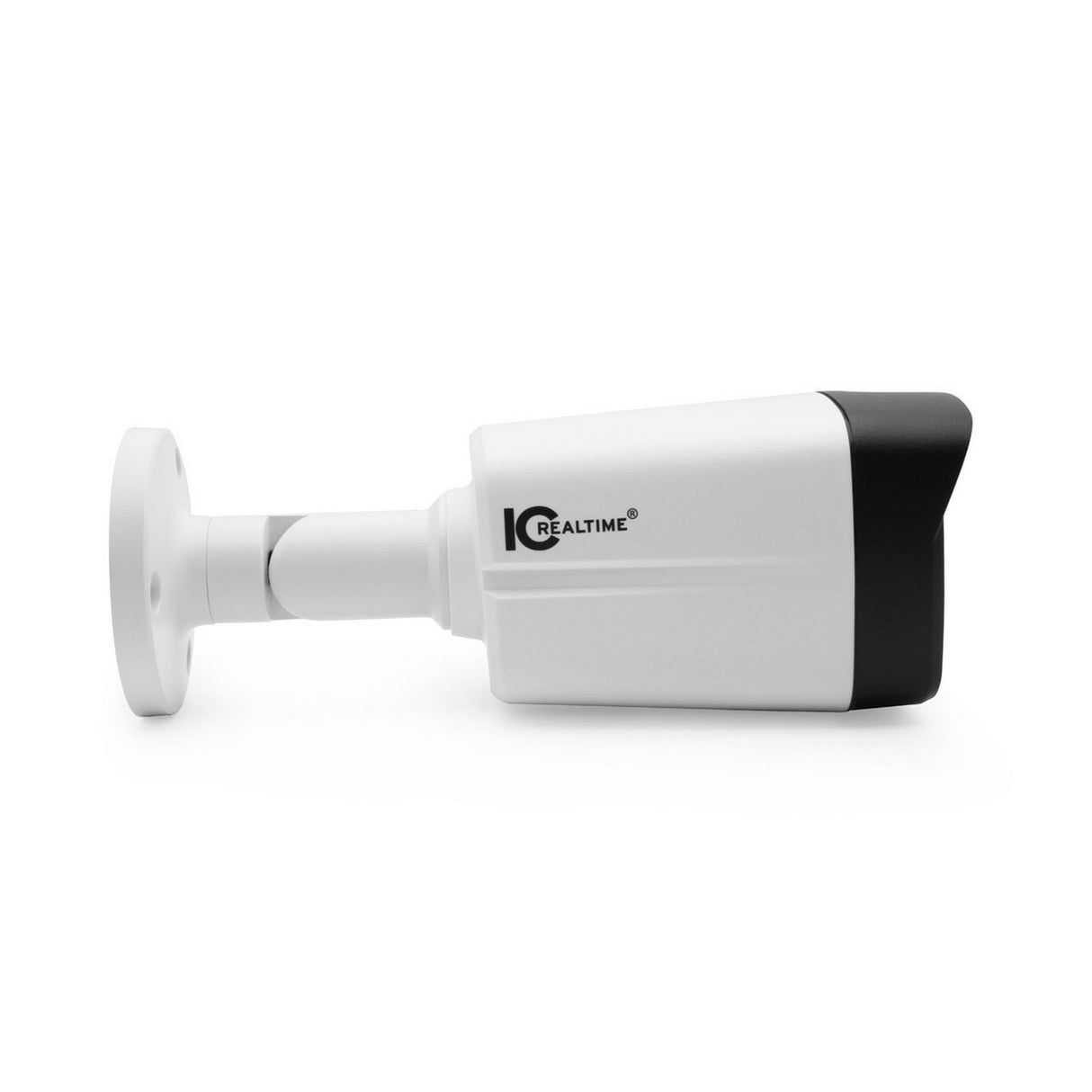

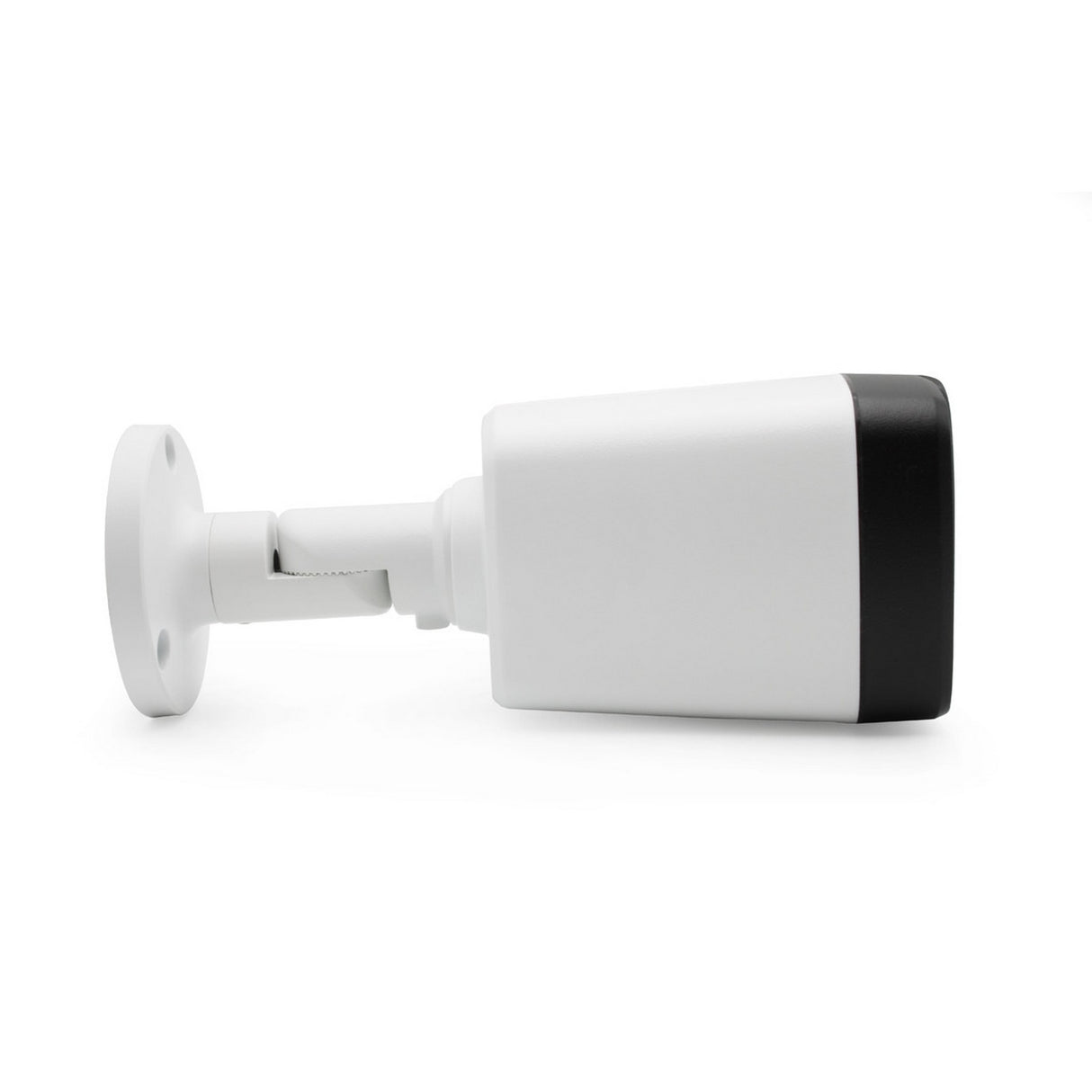

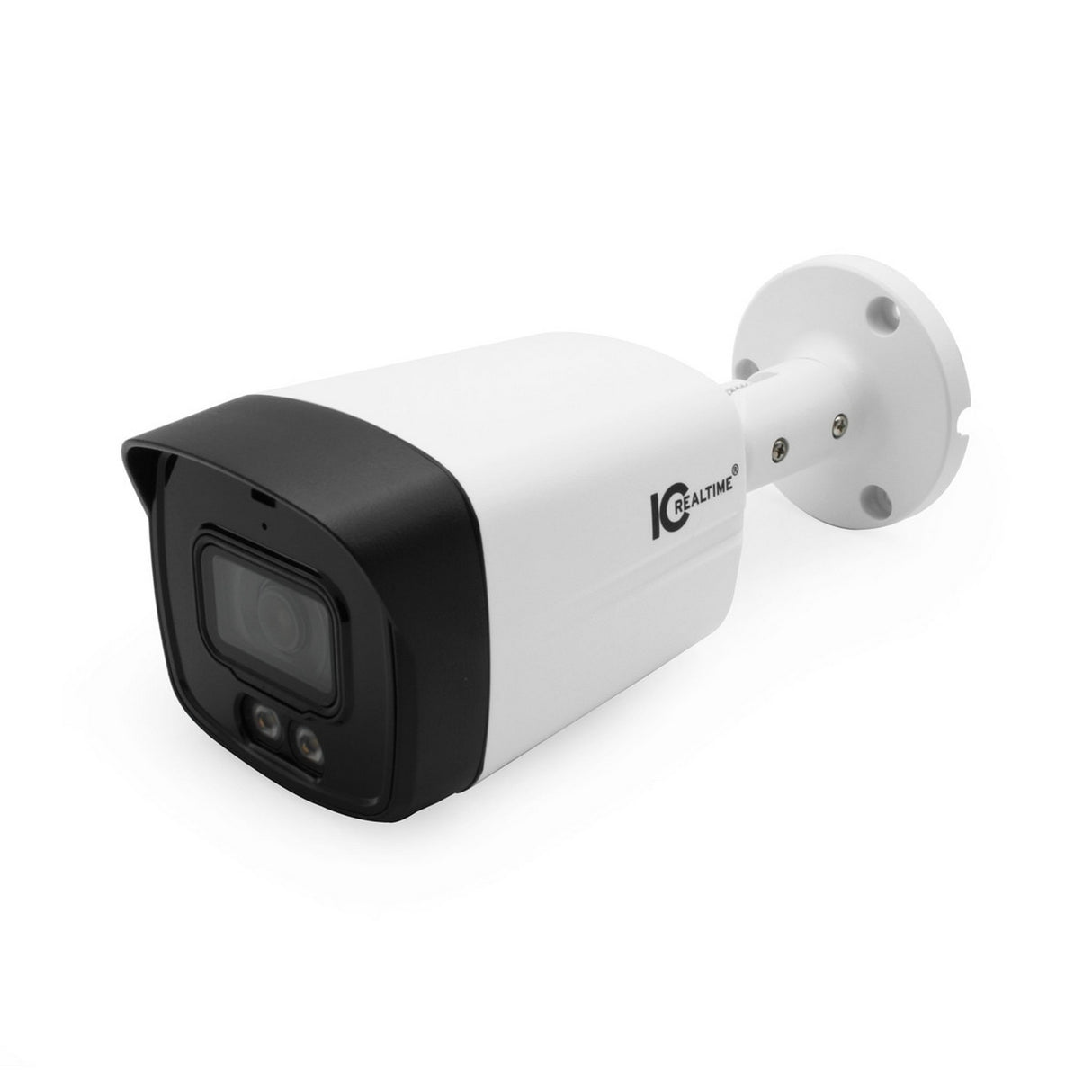

IC Realtime HDEG-B80F-DI-M1 8MP HDAVS Indoor/Outdoor Mid-Size Bullet Camera

The IC Realtime HDEG-B80F-DI-M1 is a high-performance 8-megapixel bullet camera designed for both indoor and outdoor surveillance applications. Equipped with a fixed 2.8mm lens, it offers a wide 106° horizontal field of view, ensuring comprehensive coverage of monitored areas. Its robust construction, featuring a metal front cover and bracket, coupled with an IP67 ingress protection rating, makes it resilient against harsh environmental conditions, operating effectively in temperatures ranging from –40°F to +140°F.

This camera boasts advanced imaging capabilities, including a 4K CMOS image sensor that delivers ultra-high-definition video with a resolution of 3840 × 2160 pixels. It supports multiple video output formats such as AVS, TVI, AHD, and CVBS, providing flexibility for integration with various recording systems. The HDEG-B80F-DI-M1 also features a built-in microphone, enabling audio recording to enhance situational awareness.

One of the standout features of this camera is its Smart Dual Illumination technology, which intelligently switches between infrared and white light modes to ensure optimal image quality in varying lighting conditions. With an illumination distance of up to 131 feet, it captures clear footage even in complete darkness. Additionally, the camera supports advanced image enhancement technologies like 120 dB Wide Dynamic Range (WDR), 3D Noise Reduction, and Backlight Compensation, ensuring superior image clarity in challenging lighting environments.

Key Features

• 8MP 4K CMOS image sensor for ultra-high-definition video
• Fixed 2.8mm lens with 106° horizontal field of view
• Smart Dual Illumination with 131 ft range for optimal night vision
• Supports multiple video output formats: AVS, TVI, AHD, CVBS
• Built-in microphone for audio recording
• Robust construction with IP67 weather resistance
• Advanced image enhancement technologies: 120 dB WDR, 3D NR, BLC

Technical Specifications

Camera
Image Sensor: 4K CMOS
Effective Pixels: 3840 × 2160 (8MP)
Scanning System: Progressive
Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance: 131 ft
Illumination On/Off Control: White Light Mode; IR Mode; Smart Dual Illumination Supported* (With appropriate HDVR and firmware)

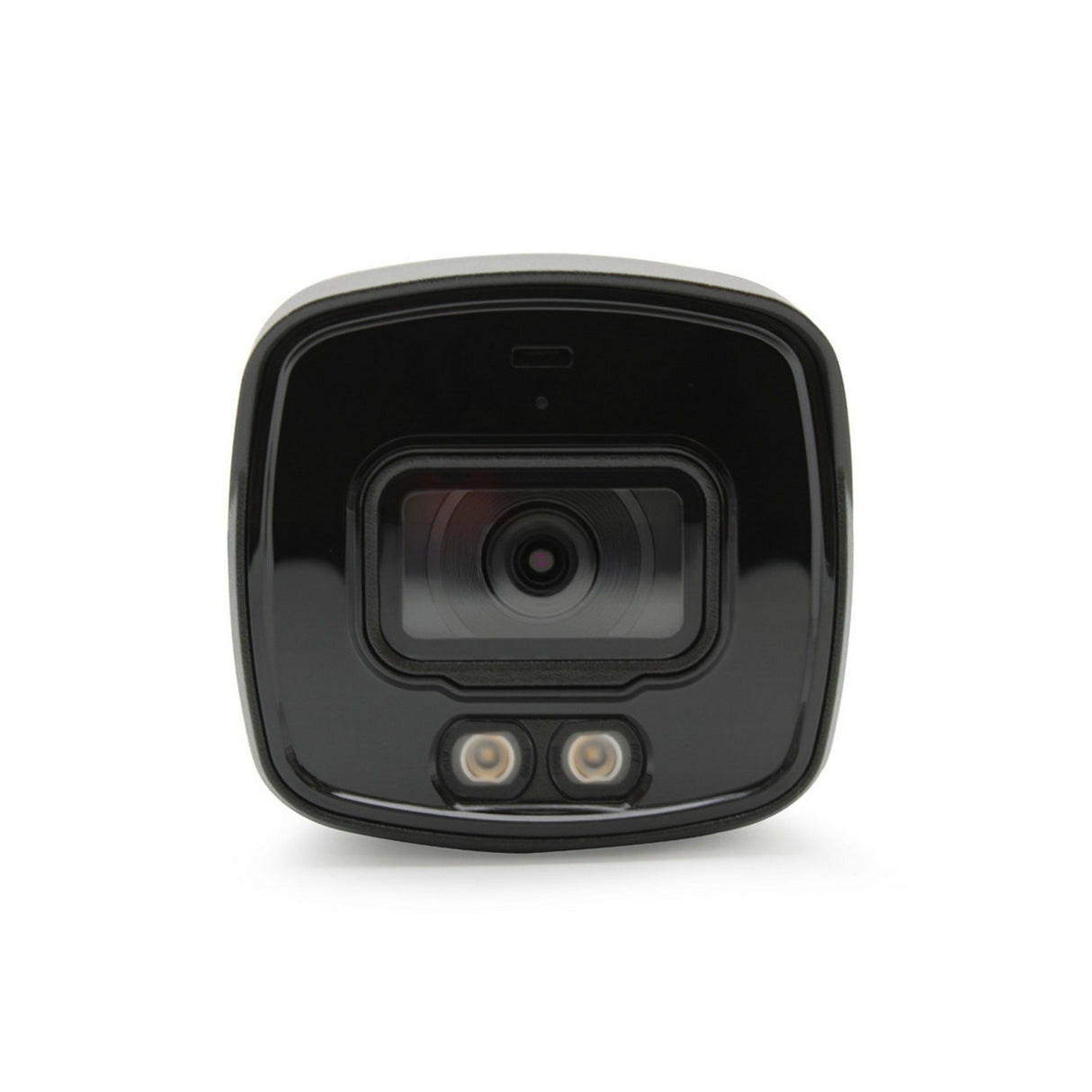

Illumination LEDs: 2x IR LED, 2x Warm Light LED
Camera Illumination Type: IR and White Light

Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8mm
Max. Aperture: F2.0
Angle of View: Horizontal: 106°; Vertical: 56°
Close Focus Distance: 4.27 ft
DORI - Detect: 288 ft
DORI - Observe: 115 ft
DORI - Recognize: 57 ft
DORI - Identify: 28 ft

Video
Resolution: 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate: AVS: NTSC: 4K@15 fps; 5M@25 fps; 4M@30fps; 1080p@30 fps; PAL: 4K@15 fps; 5M@25 fps; 4M@25fps; 1080p@25 fps; AHD: NTSC: 4K@15 fps; PAL: 4K@15 fps; TVI: NTSC: 4K@15 fps; PAL: 4K@15 fps; CVBS: NTSC: 960H; PAL: 960H
Backlight Compensation: BLC; HLC; WDR; HLC-Pro
Gain Control: Auto / Manual
Noise Reduction: 3D NR
Smart IR: Supported
WDR: 120 dB

Interface
Video Interface: 1 BNC port
Video Output Formats: AVS/TVI/AHD/CVBS (Toggled by OSD)
Audio I/O: Built-in Mic

Electrical
Power Supply: DC 12V ±30%
Power Consumption: Max 5.7 W (12 VDC, Illuminators on)

Environmental
Operating Conditions: –40°F to +140°F; < 95% (non-condensation)
Storage Conditions: –40°F to +140°F; < 95% (non-condensation)
Ingress Protection: IP67

Construction

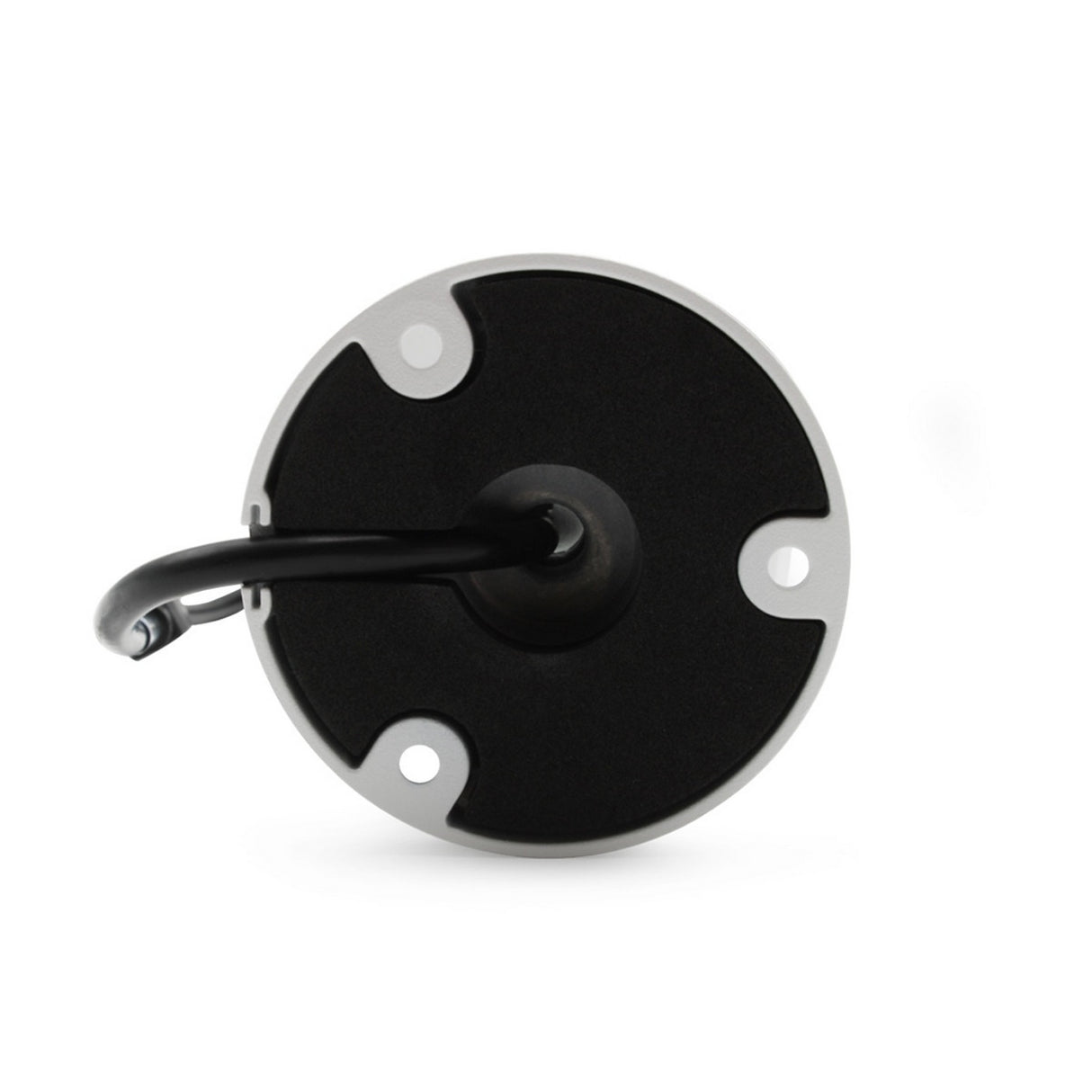

Casing: Metal front cover + plastic rear cap + metal bracket
Dimensions: 7.81" × 3.16" × 3.00"
Gross Weight: 1.06 lb
Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

What's Included

• IC Realtime HDEG-B80F-DI-M1 Bullet Camera
• Mounting Bracket
• Installation Screws
• User Manual
