IC Realtime ICR-THIPP4078FMIR 256x192 Thermal/4MP Visible Hybrid Dual Lens PTZ Camera
The IC Realtime ICR-THIPP4078FMIR 256x192 Thermal/4MP Visible Hybrid Dual Lens PTZ Camera is a top-tier surveillance solution that combines cutting-edge thermal and visible imaging technologies. Designed for exceptional monitoring capability, this hybrid camera is perfect for a range of security applications. Its dual-lens systemācomprised of a 7mm thermal lens and an 8mm visible lensāensures crystal-clear images in both thermal and visible spectrums, providing unparalleled surveillance coverage.
This advanced camera features full PTZ (Pan-Tilt-Zoom) functionality, allowing for a 360° endless pan range and a tilt range from -15° to 90°. These capabilities make it an incredibly flexible and versatile surveillance tool, capable of covering extensive areas with ease. The camera also includes sophisticated intelligent analytics, such as perimeter protection, auto-tracking, and cold/hot spot traceāessential for high-security environments requiring accurate and reliable monitoring.
Additionally, the THIP-P4078FM-IR Hybrid PTZ Camera boasts robust environmental resistance and various streaming capabilities, ensuring it operates effectively under challenging conditions. It offers both auto and manual IR illumination control, providing optimal performance day or night. The camera's durable construction and advanced features make it an indispensable asset for modern surveillance needs.
Key Features
- Dual Imaging: Thermal and Visible
- Pan/Tilt/Zoom (PTZ) with 360° Pan and -15° to 90° Tilt
- Advanced Intelligent Functions: Perimeter Protection, Auto Tracking, Cold/Hot Spot Trace
- Video Compression: H.265/H.264
- Ethernet Compatibility: RJ-45, 10/100/1000 Base-T
- Power Supply: DC 12V ±15%/PoE+
Specifications

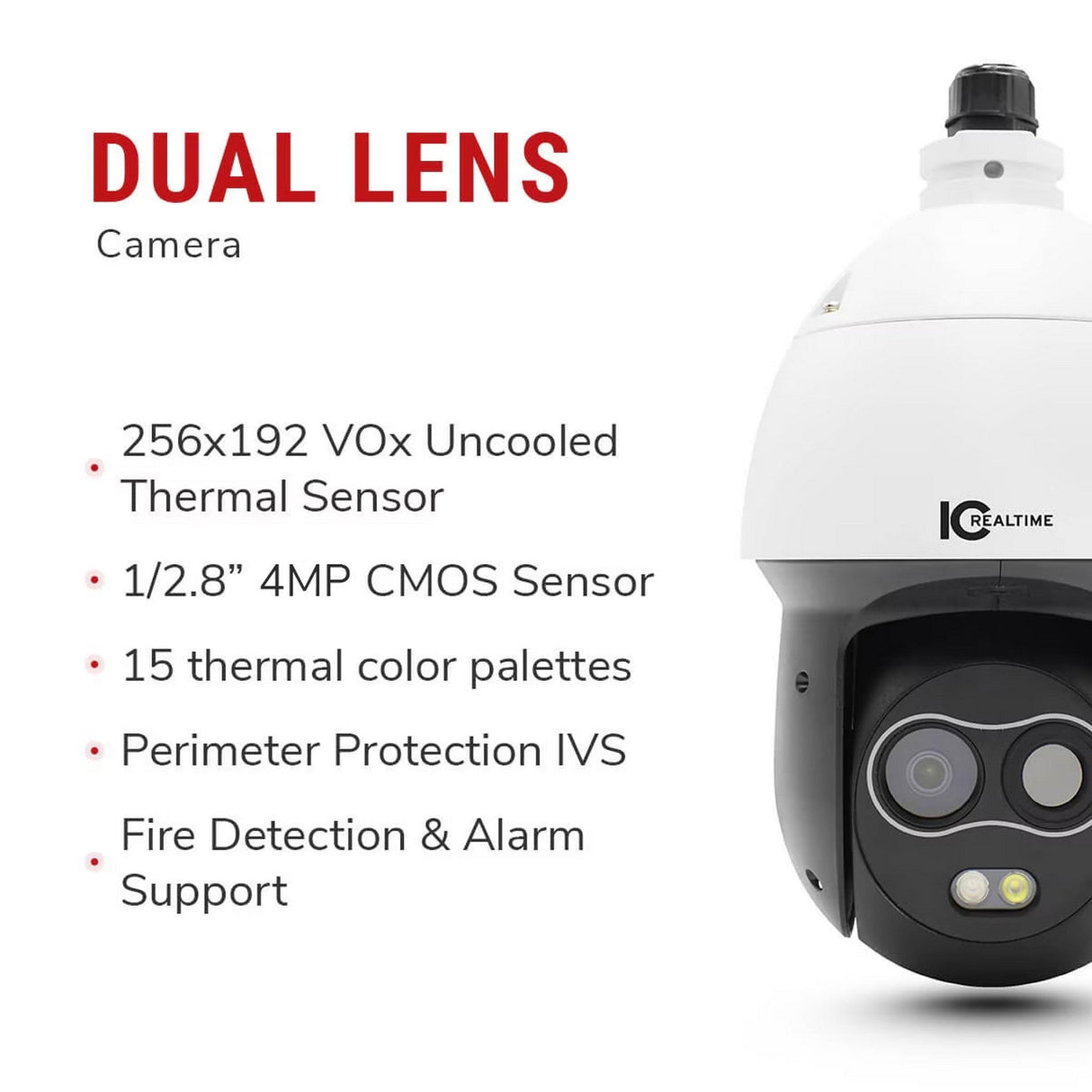

- Image Sensor: Uncooled VOx Microbolometer (Thermal), 1/2.8 inch CMOS (Visible)
- Effective Pixels: 256x192 (Thermal), 2336 x 1752 (Visible)
- Minimum Illumination: Color: 0.05Lux, Black & White: 0.005Lux, IR light (on): 0Lux
- Illumination Distance: Up to 164ft (50m)
- Lens Type: Fixed, 7mm (Thermal), 8mm (Visible)
- Max. Aperture: F1.0 (Thermal), F2.0 (Visible)
- Angle of View: Thermal: 24° (horizontal), 18° (vertical)
- Visible: 33.4° (horizontal), 25° (vertical)
- Close Focus Distance: Visible: 0.65ft (0.2m)
- Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°
- Manual Control Speed: Pan: 0.1°ā200°/s; Tilt: 0.01°ā120°/s
- Presets: 300
- PTZ Mode: 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan
- Power up Action: Auto restore to previous PTZ and lens after power failure
- Idle Motion: Activate Preset/Scan/Tour/Pattern/Pan
- IVS: Tripwire, Intrusion (50 objects max)
- Advanced Intelligent Functions: Perimeter Protection (Tripwire, Intrusion with Human/ Vehicle Recognition, 50 objects max), Auto Tracking
- Cold/Hot spot trace (Auto Tracking), Call detection, Fire detection
- Video Compression: H.265/H.264M/H.264H/H.264B/MJPEG
- Streaming Capability: 2 Streams
- Resolution: Thermal: Main stream: 1.3M (1280 Ć 960); XVGA (1024 Ć 768); VGA (640 Ć480/256 Ć 192); 1280 Ć 960 (default)
- Sub stream: VGA (640 Ć480/256 Ć 192); 256 Ć 192
- Visible: Main stream: 2336 Ć 1752; 1080p (1920 Ć 1080); 720p (1280 Ć 720); D1 (704 Ć 576); 2336 Ć 1752 (default)
- Sub stream: 720p (1280 Ć 720); D1 (704 Ć 576); CIF (352Ć 288); 352 Ć 288
- Frame Rate: Thermal: Main stream: 1 fpsā25 fps, 25 fps by default
- Sub stream: 1 fpsā25 fps, 15 fps by default
- Visible: Main stream: 1 fpsā25 fps, 25 fps by default
- Sub stream: 1 fpsā25 fps, 15 fps by default
- Bit Rate Control: CBR/ VBR
- Bit Rate: H.265: 256 ~ 8192Kbps
- Day/Night: Auto(ICR) / Color / B/W
- Backlight Compensation: BLC/HLC/DWDR
- White Balance: Auto/indoor/outdoor/tracking/manual/sodium lamp/ natural/street light
- Noise Reduction: 2D DNR/3D DNR
- Flip: Supported (180)
- Mirror: Support
- WDR: DWDR
- Audio Compression: G.711a; G.711mu; PCM
- Ethernet: RJ-45 (10/100/1000 Base-T)
- Compatibility: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
- Edge Storage: Micro SD (256G), NAS (Network Attached Storage), Local PC for instant recording
- Web Viewer: IE, Chrome, Safari, Firefox
- Management Software: Smart ICRSS, DSS
- Smart Phone: iOS, Android
- Audio I/O: In/Out 1/1 (2 Way talk supported)
- Alarm I/O: 2/1
- Factory Reset: Supported (button)
- Memory Slot: 256GB mSD support
- Power Supply: DC 12V±15%/PoE+ (Power Supply not Included)
- Power Consumption: Basic: <12 W (12 VDC), Max: <24 W (12 VDC)
- Ingress Protection: IP66
- Casing: Metal/Plastic
- Dimensions: 11.61'' Ć 6.3'' (295mm Ć 160mm)
- Gross Weight: 10.36 lb (4.7Kg)
Package Contents
- IC Realtime THIP-P4078FM-IR Camera
- Mounting Accessories
- Quick Start Guide
