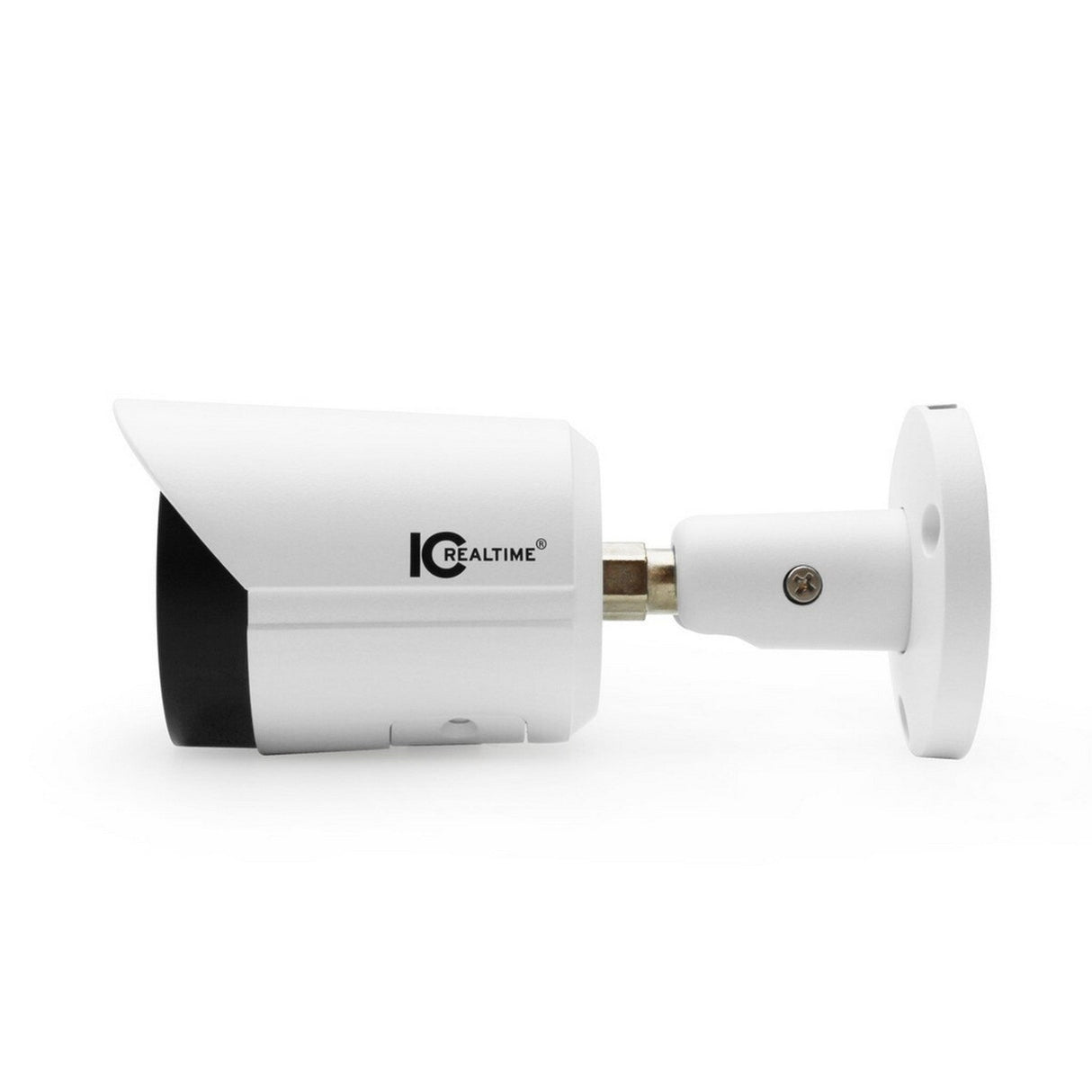

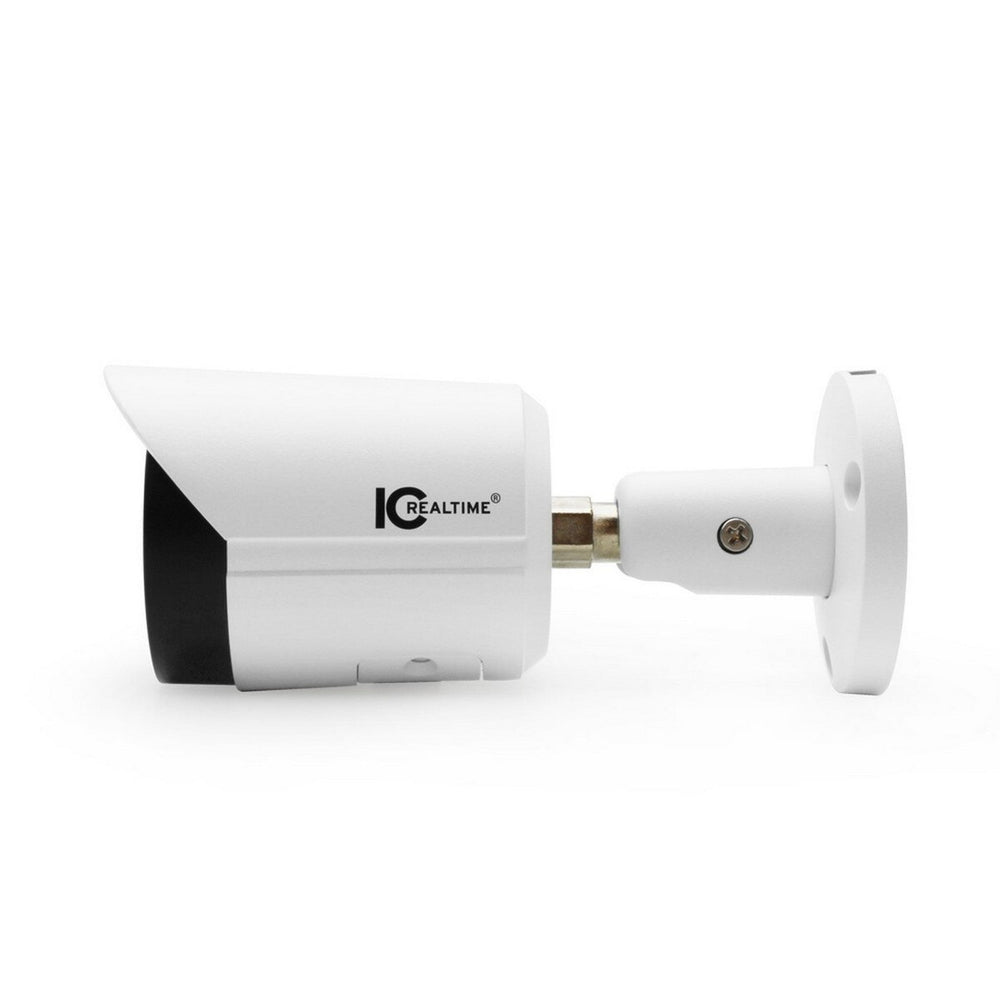

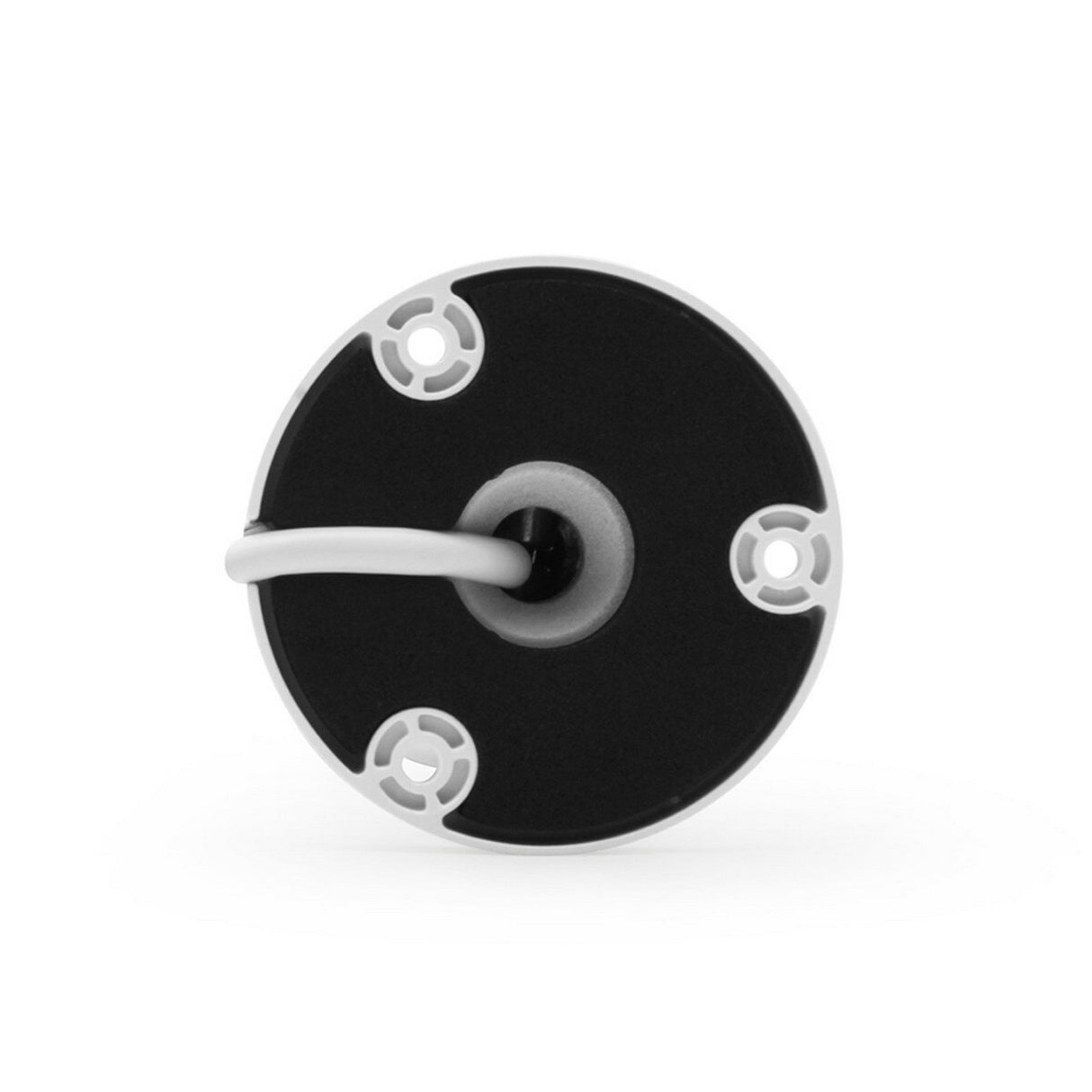

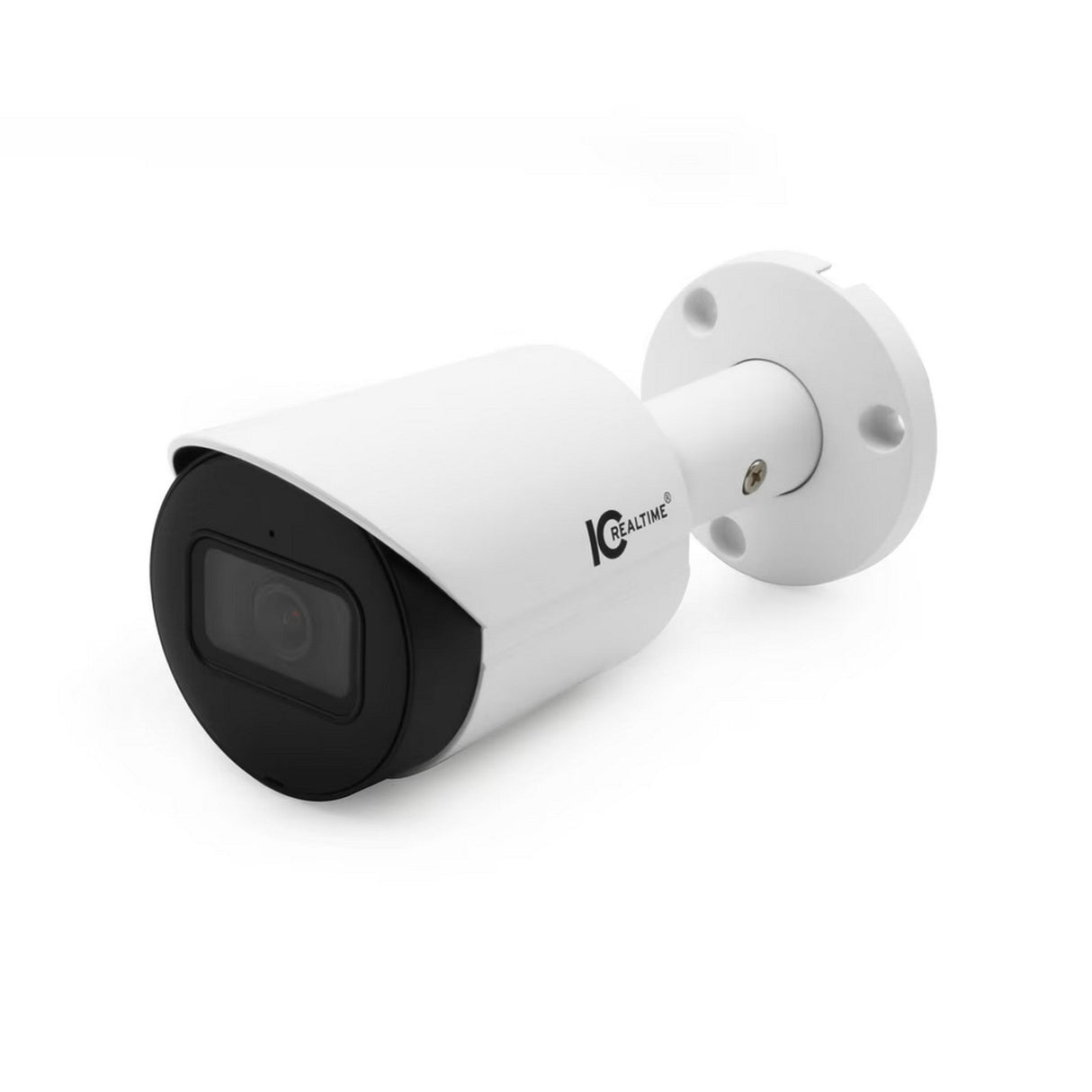

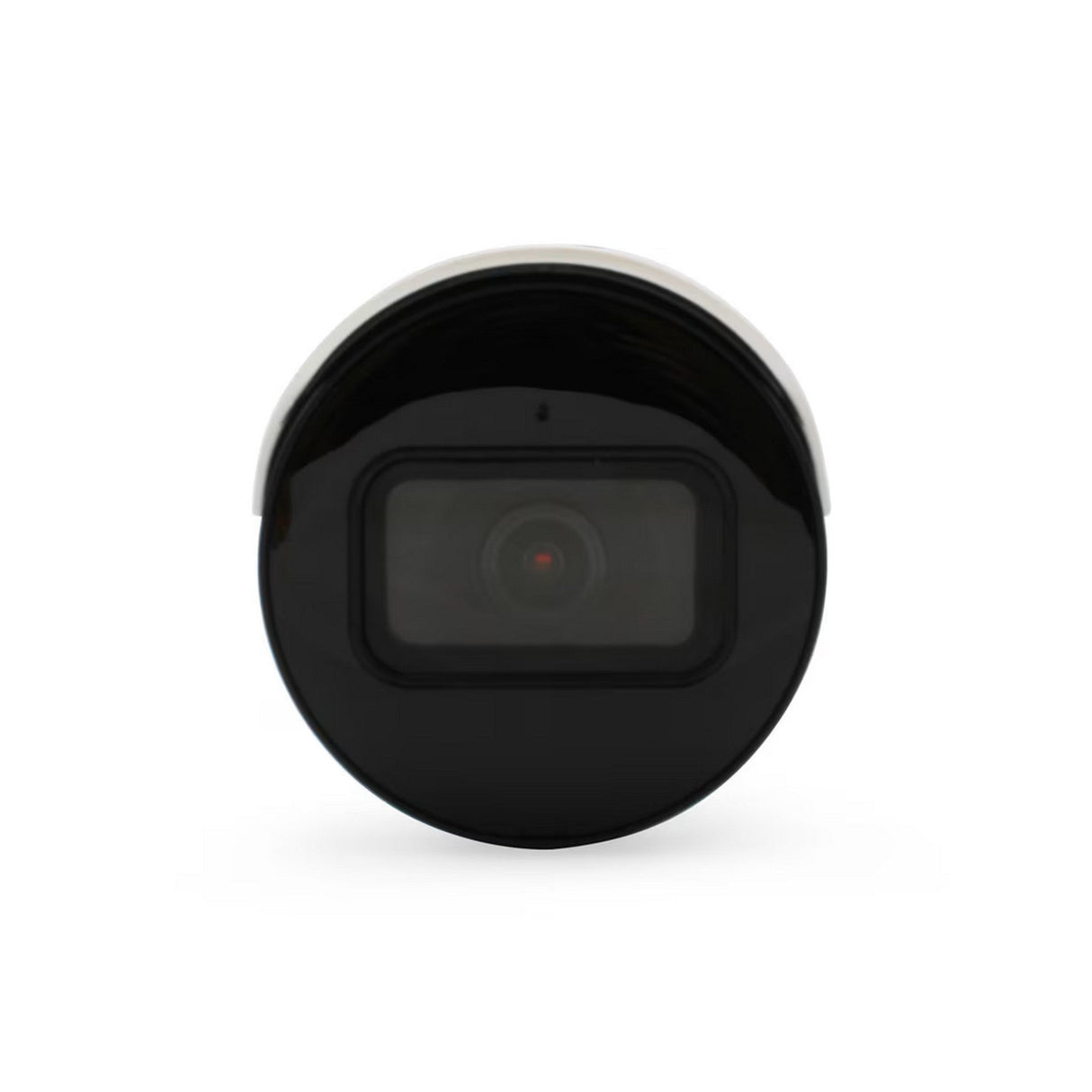

IC Realtime IPEG-B20F-IRW5 2MP IP Bullet Camera with 2.8mm Lens

IC Realtime IPEG-B20F-IRW5 2MP IP Bullet Camera with 2.8mm Lens

The IC Realtime IPEG-B20F-IRW5 2MP IP bullet camera captures 1920 x 1080 video at up to 30 fps through a fixed 2.8 mm lens with a 107-degree field of view. It combines 98.4 ft infrared illumination, 120 dB WDR, intelligent motion detection, perimeter analytics, a built-in microphone, PoE, and IP67 protection.

Designed for indoor and outdoor video surveillance, this compact network camera suits entrances, parking areas, walkways, offices, schools, and other locations requiring wide-angle coverage. Human and vehicle classification helps refine motion events, while tripwire and intrusion functions provide perimeter monitoring. The 2MP outdoor IP bullet camera also supports local microSD storage for installations that need edge recording.

ONVIF Profile S and Profile T interoperability supports integration with compatible network video systems, while IC Now and IC Now Pro provide manufacturer-supported management options. The camera accepts 12 VDC or IEEE 802.3af PoE power, includes a 10/100Base-T Ethernet interface, and supports H.265 and H.264 compression for network-based surveillance workflows.

Key Features

• 2MP Full HD Imaging: Records up to 1920 x 1080 resolution at 25 or 30 frames per second.
• Wide Fixed Lens: The 2.8 mm F1.6 lens provides a 107-degree viewing angle for broad surveillance coverage.
• 98.4 ft Infrared Illumination: Integrated IR illumination supports monitoring in dark environments, including 0 lux operation with the illuminator active.
• Intelligent Detection: Human and vehicle classification works with tripwire, intrusion, and intelligent motion detection functions.
• 120 dB Wide Dynamic Range: WDR, BLC, and HLC processing help manage challenging scenes with uneven lighting.
• Built-In Audio: An integrated microphone captures audio alongside compatible network video streams.
• Flexible Network Storage: Supports FTP, SFTP, and microSD cards with capacities up to 256 GB.
• Indoor and Outdoor Construction: IP67 ingress protection, PoE support, and a -40°F to 140°F operating range suit demanding installations.

Technical Specifications

• Series: Edge
• Camera Type: Indoor/outdoor IP bullet camera
• Image Sensor: 1/2.8-inch CMOS
• Effective Pixels: 1920 x 1080, 2 megapixels
• RAM / ROM: 128 MB / 128 MB
• Scanning System: Progressive
• Minimum Illumination: 0.002 lux at F1.6, color, 30 IRE; 0.0002 lux at F1.6, B/W, 30 IRE; 0 lux with illuminator on
• Illumination Distance: Up to 98.4 ft
• Illumination Control: Auto or manual
• Illumination LEDs: 1
• Illumination Type: IR
• Lens Type: Fixed
• Lens Mount: M12
• Focal Length: 2.8 mm
• Maximum Aperture: F1.6
• Angle of View: 107 degrees
• Close Focus Distance: 2.3 ft
• DORI Detect Distance: 144 ft
• DORI Observe Distance: 57 ft
• DORI Recognize Distance: 28 ft
• DORI Identify Distance: 14 ft
• IVS Functions: Tripwire and intrusion
• Perimeter Protection: Tripwire and intrusion with human and vehicle classification
• Intelligent Motion Detection: Supported
• Video Compression: H.265, H.264, H.264B, MJPEG on sub stream only
• Video Resolutions: 1080p 1920 x 1080; 1.3M 1280 x 960; 720p 1280 x 720; D1 704 x 576 or 704 x 480; VGA 640 x 480; CIF 352 x 288 or 352 x 240
• Main Stream Frame Rate: 1920 x 1080 at 1 to 25/30 fps
• Sub Stream Frame Rate: 704 x 576 at 1 to 25 fps or 704 x 480 at 1 to 30 fps
• H.264 Bit Rate: 32 kbps to 6144 kbps
• H.265 Bit Rate: 12 kbps to 6144 kbps
• Day/Night Modes: Auto ICR, color, B/W
• Backlight Compensation: BLC, HLC, WDR
• Wide Dynamic Range: 120 dB
• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
• Gain Control: Auto or manual
• Noise Reduction: 3D NR
• Audio Compression: G.711a, G.711Mu, PCM, G.726
• Ethernet: RJ-45, 10/100Base-T
• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
• Interoperability: ONVIF Profile S, ONVIF Profile T, CGI
• Maximum User Access: 6 users, 36 M total bandwidth
• Edge Storage: FTP, SFTP, microSD card up to 256 GB
• Web Viewer Support: Internet Explorer, Chrome, Firefox, Safari
• Management Software: IC Now, IC Now Pro
• Smartphone Support: iOS and Android
• Audio Input: Built-in microphone
• Memory Slot: microSD card, up to 256 GB
• Power Supply: 12 VDC or PoE IEEE 802.3af
• Basic Power Consumption: 2.1 W at 12 VDC; 2.4 W with PoE
• Maximum Power Consumption: 4.2 W at 12 VDC; 5.1 W with PoE
• Operating Temperature: -40°F to 140°F
• Operating Humidity: 95% RH or less
• Ingress Protection: IP67
• Casing: Metal and plastic

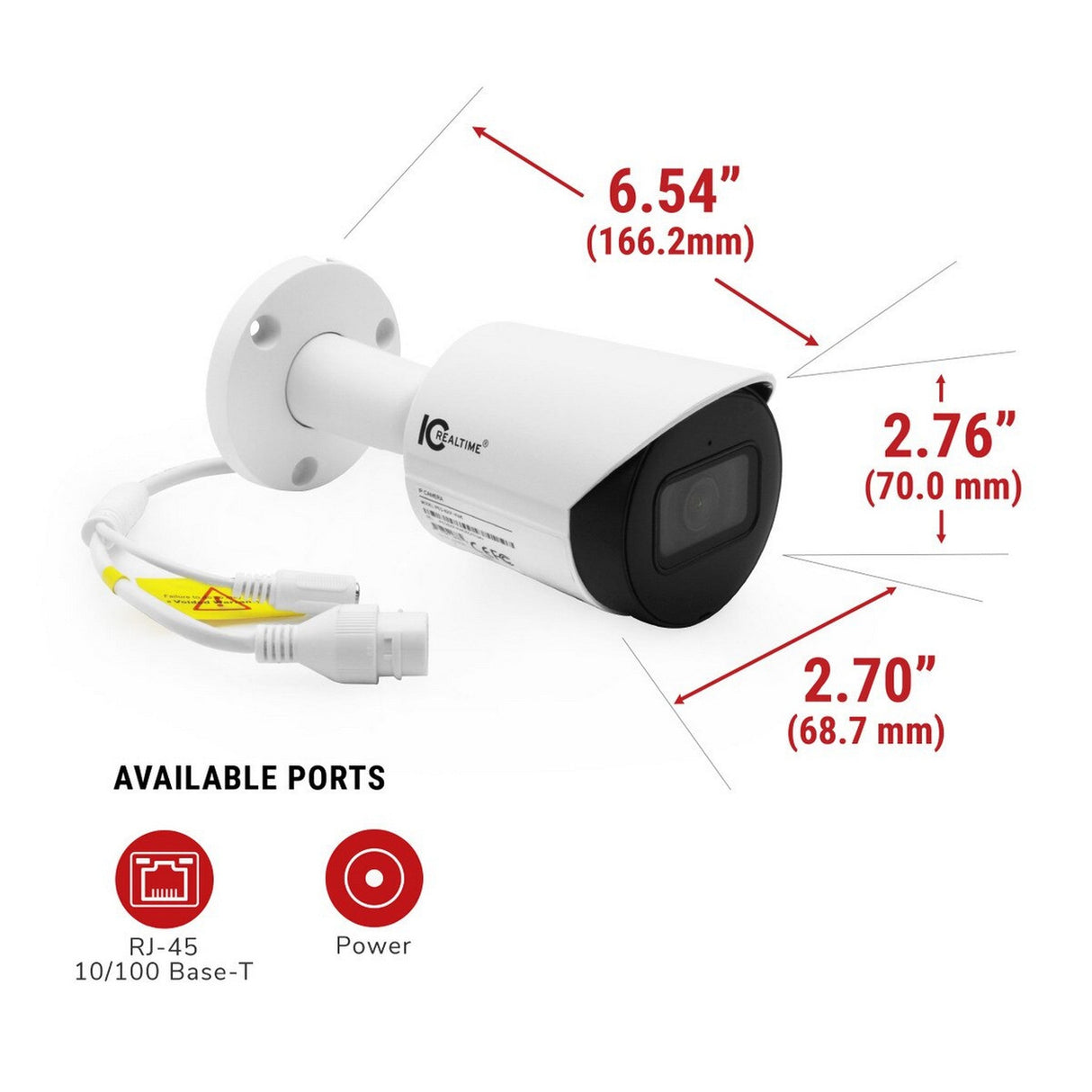

• Dimensions: 6.5 x 2.8 x 2.8 in
• Gross Weight: 1.3 lbs
• Pan Adjustment: 0 to 360 degrees
• Tilt Adjustment: 0 to 90 degrees
• Rotation Adjustment: 0 to 360 degrees
