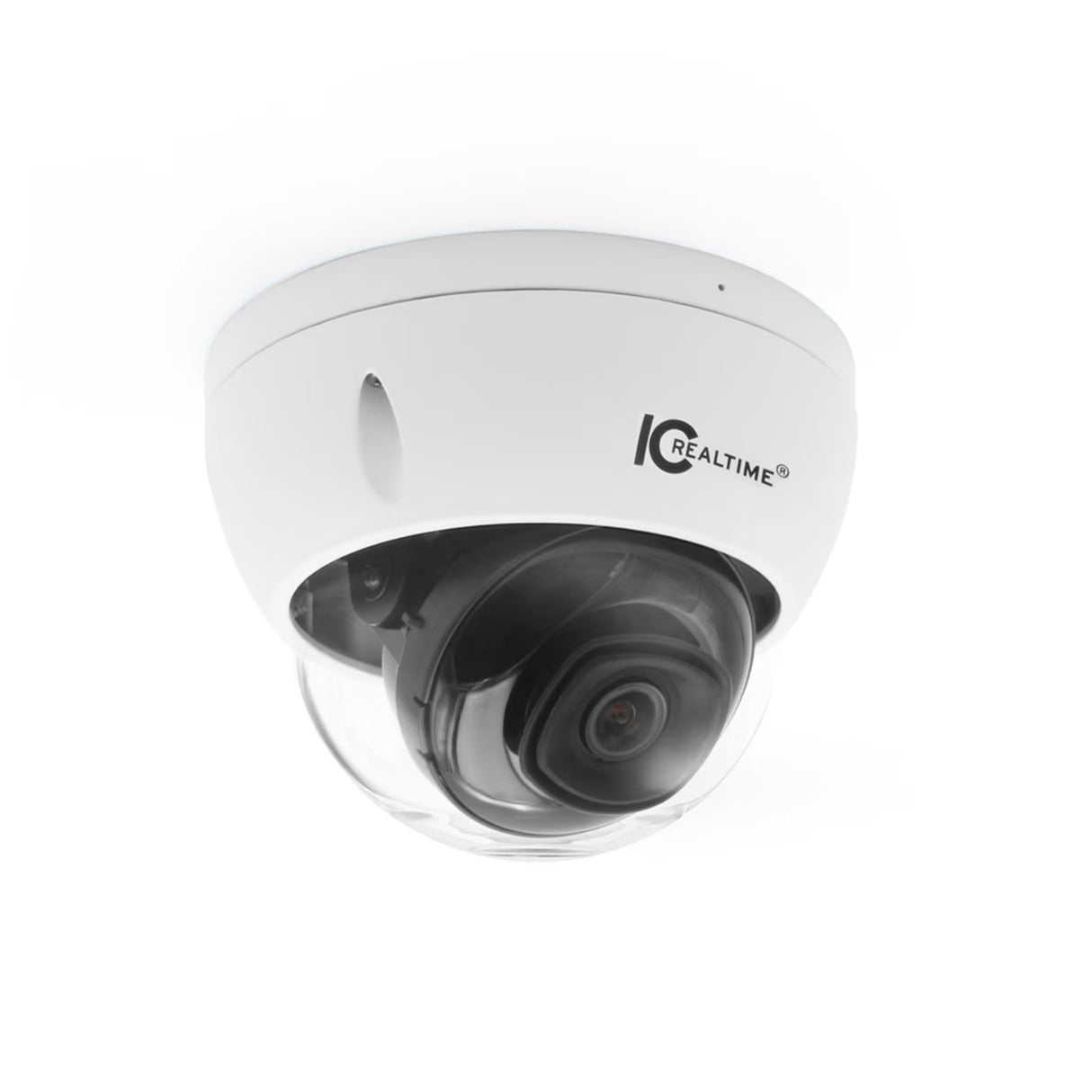

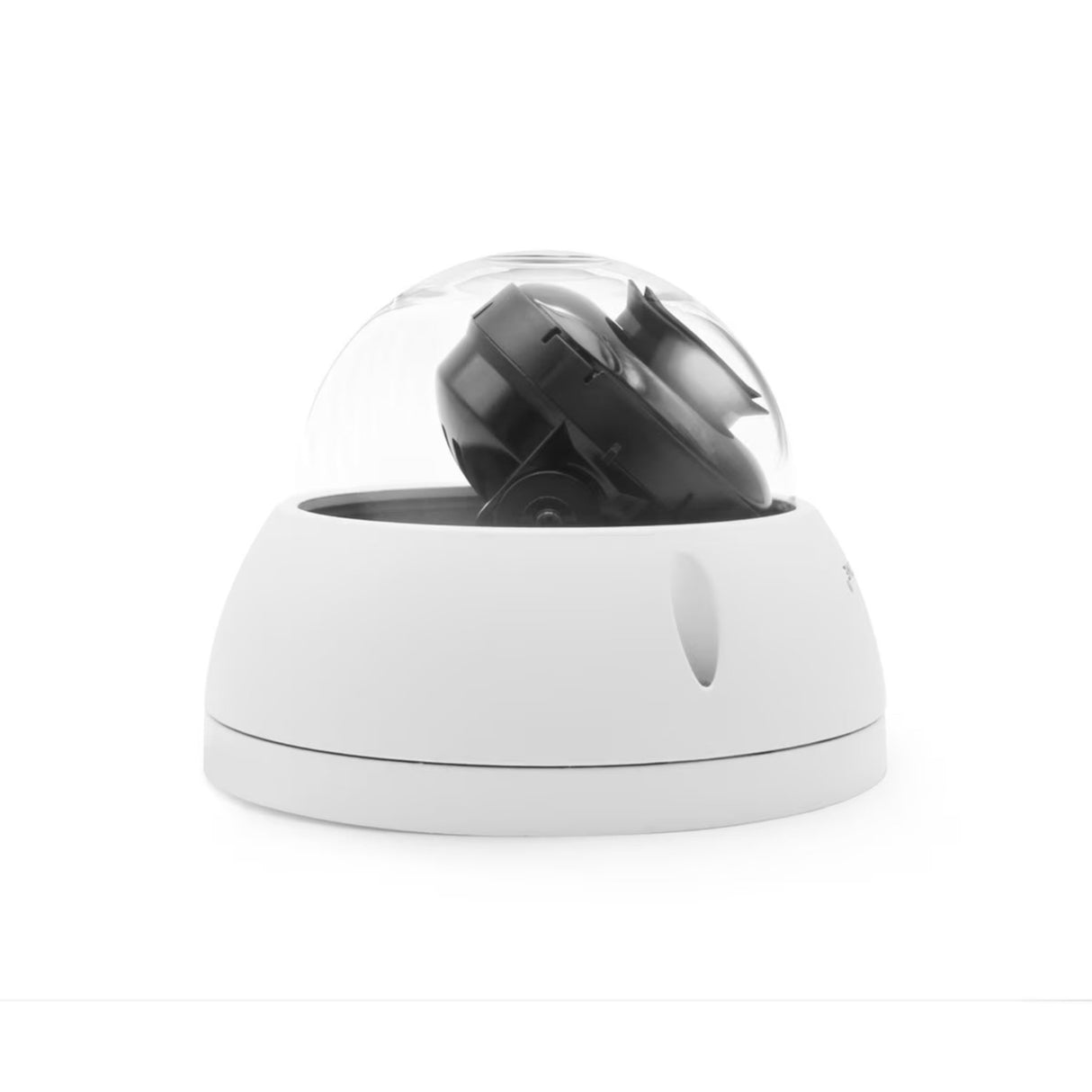

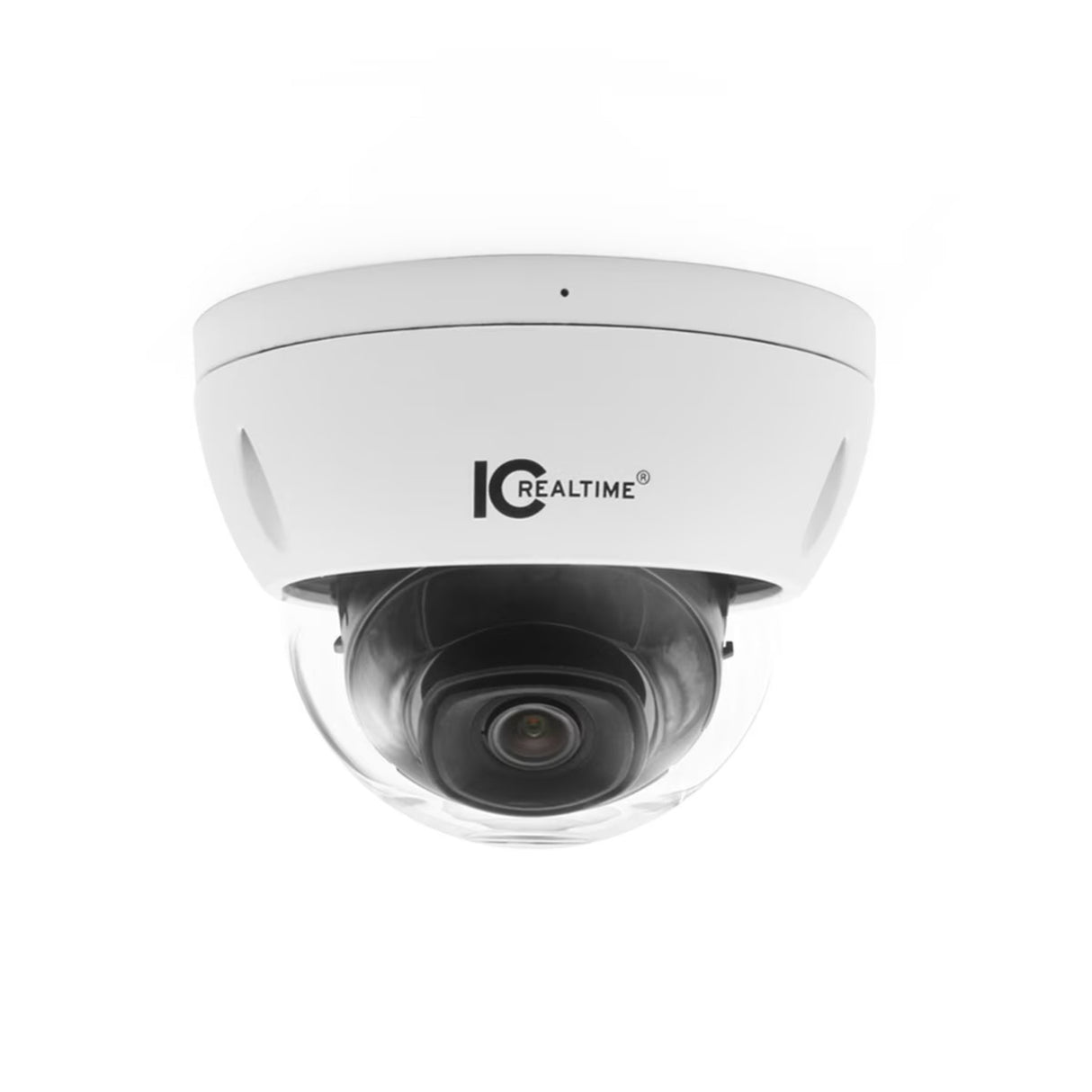

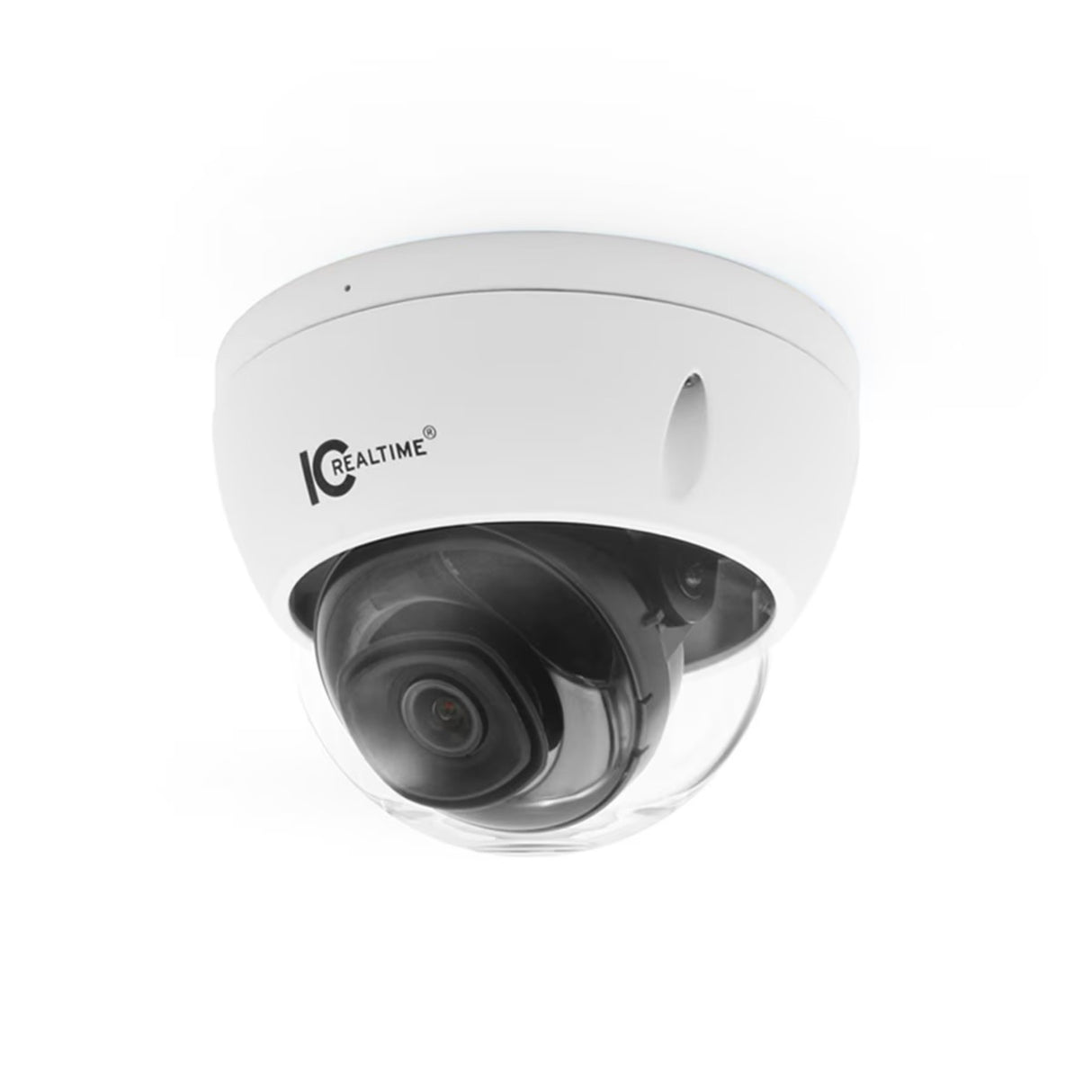

IC Realtime IPEG-D20F-IRW5 2MP Vandal Dome IP Security Camera

IC Realtime IPEG-D20F-IRW5 2MP IP Vandal Dome Security Camera

The IC Realtime IPEG-D20F-IRW5 is a compact 2MP IP vandal dome security camera designed for dependable indoor and outdoor video surveillance. Built for professional security applications, this low-profile dome camera combines Full HD 1080p recording, a wide 106° viewing angle, and Smart IR illumination up to 98.43 feet to help capture clear, usable footage across entryways, hallways, storefronts, offices, and exterior perimeters.

Engineered for demanding environments, the IPEG-D20F-IRW5 features an IP67 weather-resistant and IK10 vandal-resistant metal housing for long-term durability. Its 1/2.8-inch CMOS sensor supports up to 1920 x 1080 resolution at up to 30 fps, while 120 dB WDR, BLC, HLC, and 3D noise reduction help improve image quality in challenging lighting. With PoE capability, ONVIF compatibility, built-in microphone support, local microSD edge storage up to 256GB, and intelligent analytics including perimeter protection and human and vehicle classification, this dome camera is built for flexible, efficient IP surveillance deployments.

Key Features

• Full HD 2MP Video: Captures sharp 1920 x 1080 video at up to 25/30 fps for clear everyday surveillance recording.
• Wide-Angle 2.8mm Fixed Lens: Provides a broad 106° horizontal field of view for wide-area monitoring with fewer blind spots.
• Smart IR Night Vision: Uses IR illumination with a range up to 98.43 feet for dependable low-light and nighttime visibility.
• Advanced Video Compression: Supports H.265, H.264, Smart H.265+, and Smart H.264+ for efficient bandwidth and storage management.
• Intelligent Motion Detection: Enhances event monitoring with smarter detection capabilities for security-focused applications.
• Perimeter Protection Analytics: Includes tripwire and intrusion detection with human and vehicle classification for more actionable alerts.
• Wide Dynamic Range: Features 120 dB WDR along with BLC and HLC to improve visibility in high-contrast lighting environments.
• Built-In Audio Capture: Includes an integrated microphone for added situational awareness.
• Flexible Power Options: Supports both PoE and 12 VDC power for easier integration into new or existing systems.
• Edge Storage Support: Accepts microSD cards up to 256GB for local recording and backup storage.
• Weatherproof and Vandal Resistant: IP67 and IK10 ratings help protect the camera in harsh outdoor and tamper-prone environments.
• System Compatibility: ONVIF compliant and compatible with IC Now, IC Now Pro, and mobile viewing on iOS and Android devices.

Technical Specifications

• Brand: IC Realtime
• Model: IPEG-D20F-IRW5
• Camera Type: IP Indoor/Outdoor Vandal Dome Security Camera
• Image Sensor: 1/2.8-inch CMOS
• Effective Pixels: 1920 x 1080
• Scanning System: Progressive
• Resolution: 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1, VGA, CIF
• Frame Rate: Main Stream: 1920 x 1080 at 1 to 25/30 fps; Sub Stream: 704 x 576 at 1 to 25 fps / 704 x 480 at 1 to 30 fps
• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm
• Maximum Aperture: F1.6
• Angle of View: Horizontal 106°; Vertical 56°
• Close Focus Distance: 2.30 inches
• Minimum Illumination: 0.002 lux at F1.6 (Color, 30 IRE); 0.0002 lux at F1.6 (B/W, 30 IRE); 0 lux with illuminator on
• IR Distance: Up to 98.43 feet
• Illumination LEDs: 3
• Illumination Control: Auto; Manual
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Smart H.265+; Smart H.264+
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 32 kbps to 6144 kbps; H.265: 12 kbps to 6144 kbps
• Day/Night Modes: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR (120 dB)
• White Balance: Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom
• Gain Control: Manual; Auto
• Noise Reduction: 3D NR
• Smart IR: Supported
• Flip: 0° / 90° / 180° / 270°
• Mirror: Supported
• Privacy Masking: 4 areas
• Iris Control: Fixed
• IVS: Tripwire; Intrusion
• Advanced Intelligent Functions: Perimeter Protection with human and vehicle classification; Intelligent Motion Detect
• Audio Compression: G.711a; G.711Mu; G.726; PCM
• Ethernet: RJ-45 (10/100Base-T)
• Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
• Maximum User Access: 6 users (total bandwidth: 36 M)
• Edge Storage: FTP; SFTP; Micro SD card up to 256 GB
• Web Viewer: IE; Chrome; Firefox; Safari
• Management Software: IC Now; IC Now Pro
• Mobile Support: iOS; Android
• Audio I/O: Built-in MIC
• Memory Slot: Micro SD card up to 256 GB
• Power Supply: 12 VDC / PoE
• Power Consumption: Basic: 1.9 W (12 VDC), 2.5 W (PoE); Max: 4.7 W (12 VDC), 5.6 W (PoE)
• Operating Conditions: -40°F to +140°F, less than or equal to 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Metal
• Dimensions: 3.19 x 4.33 inches
• Gross Weight: 1.08 lb
