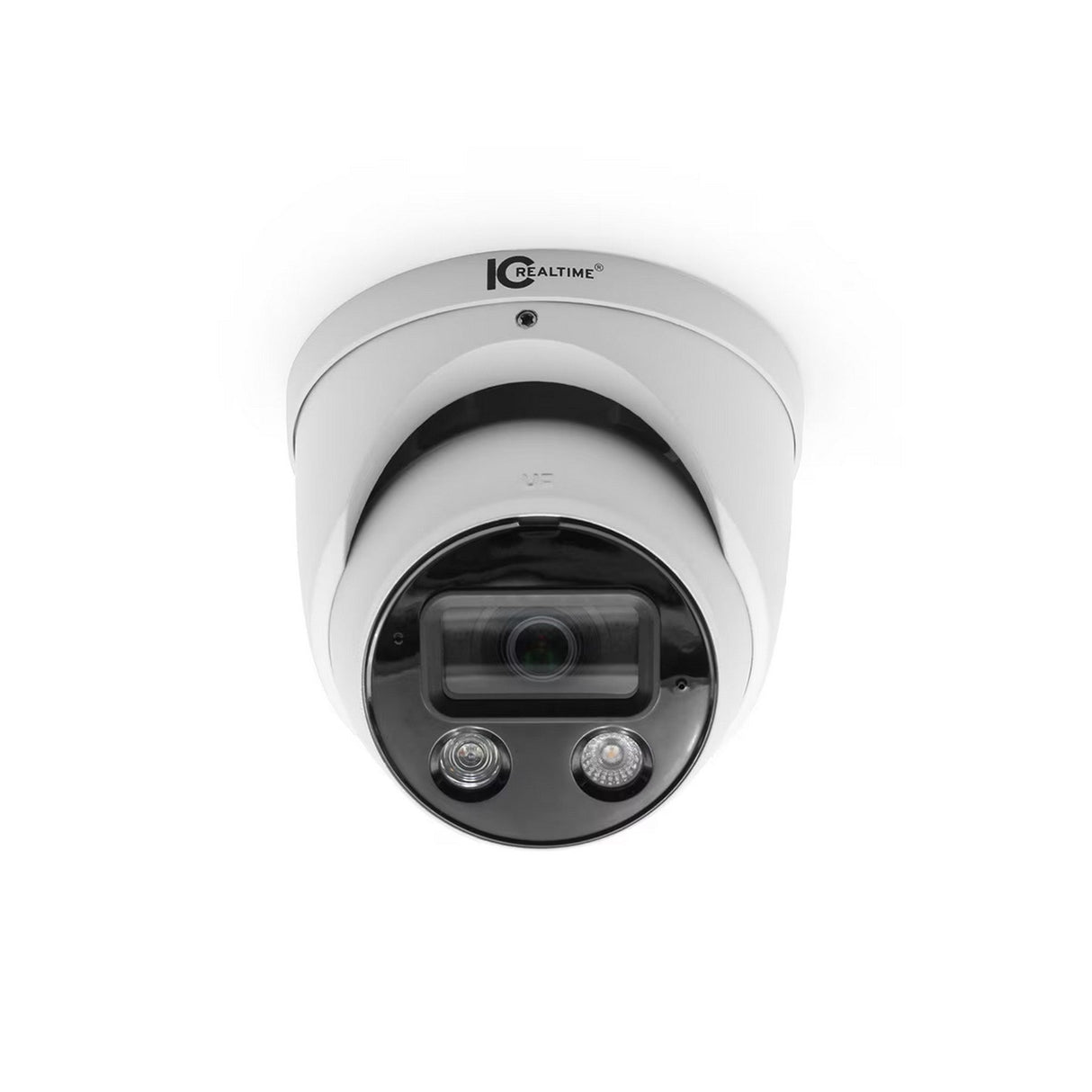

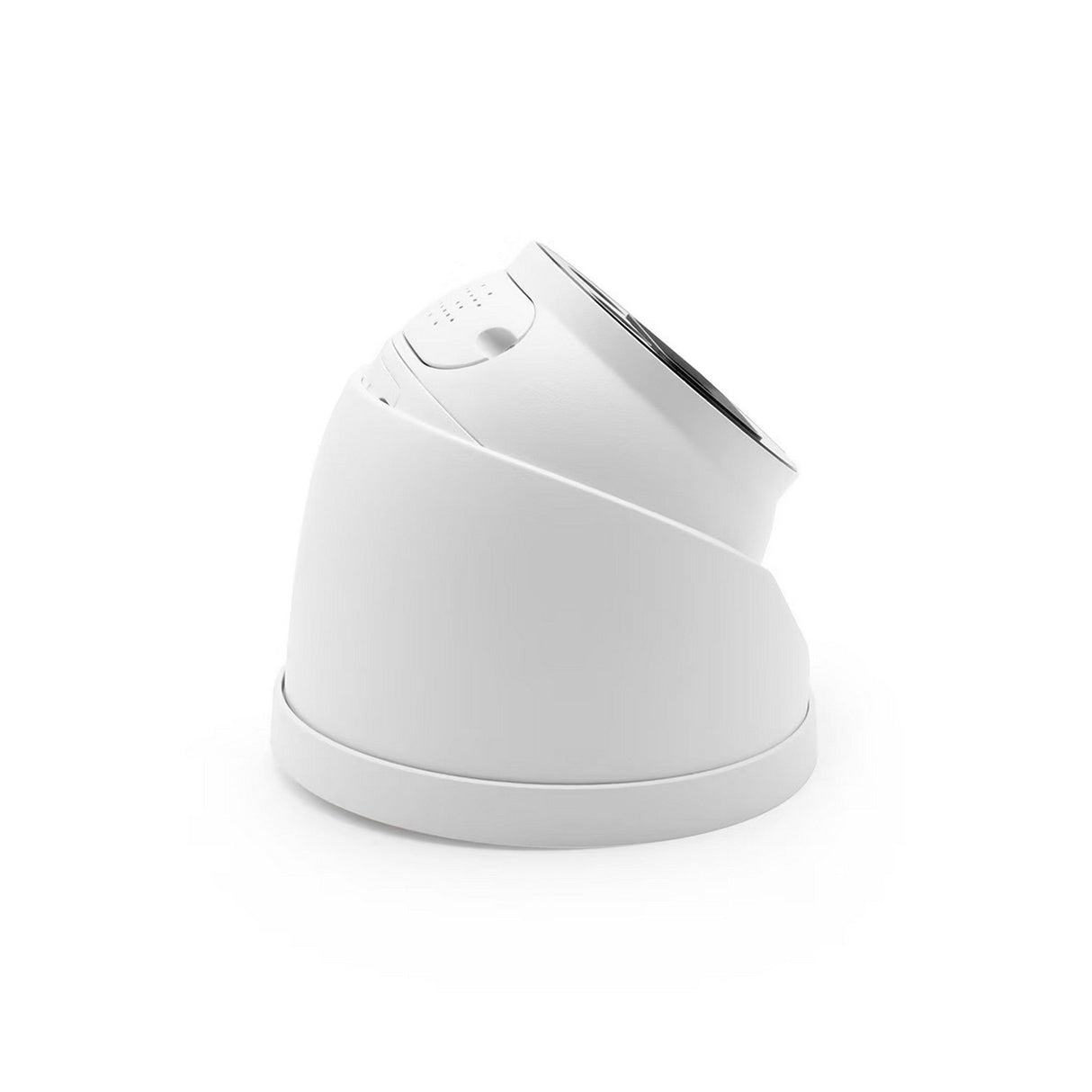

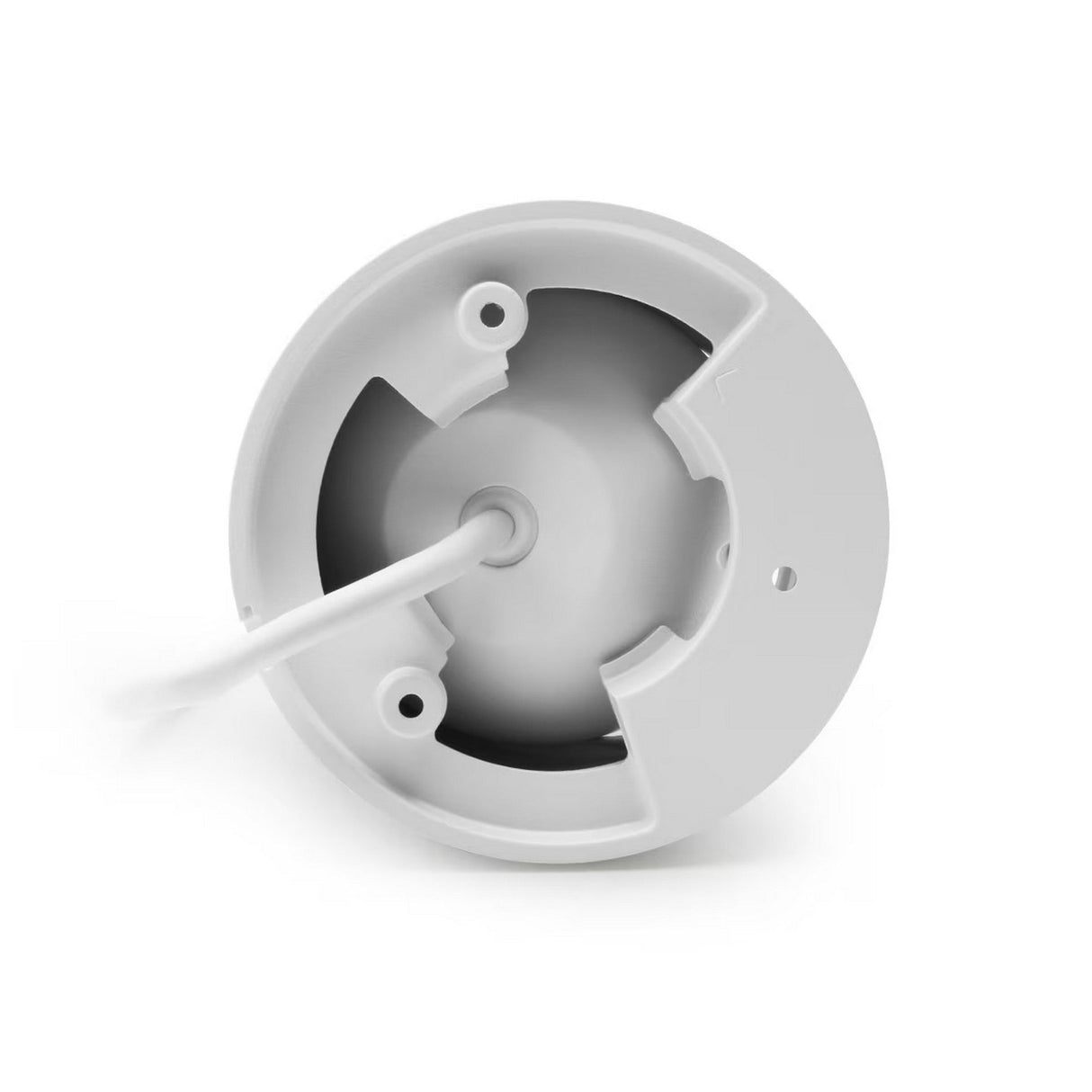

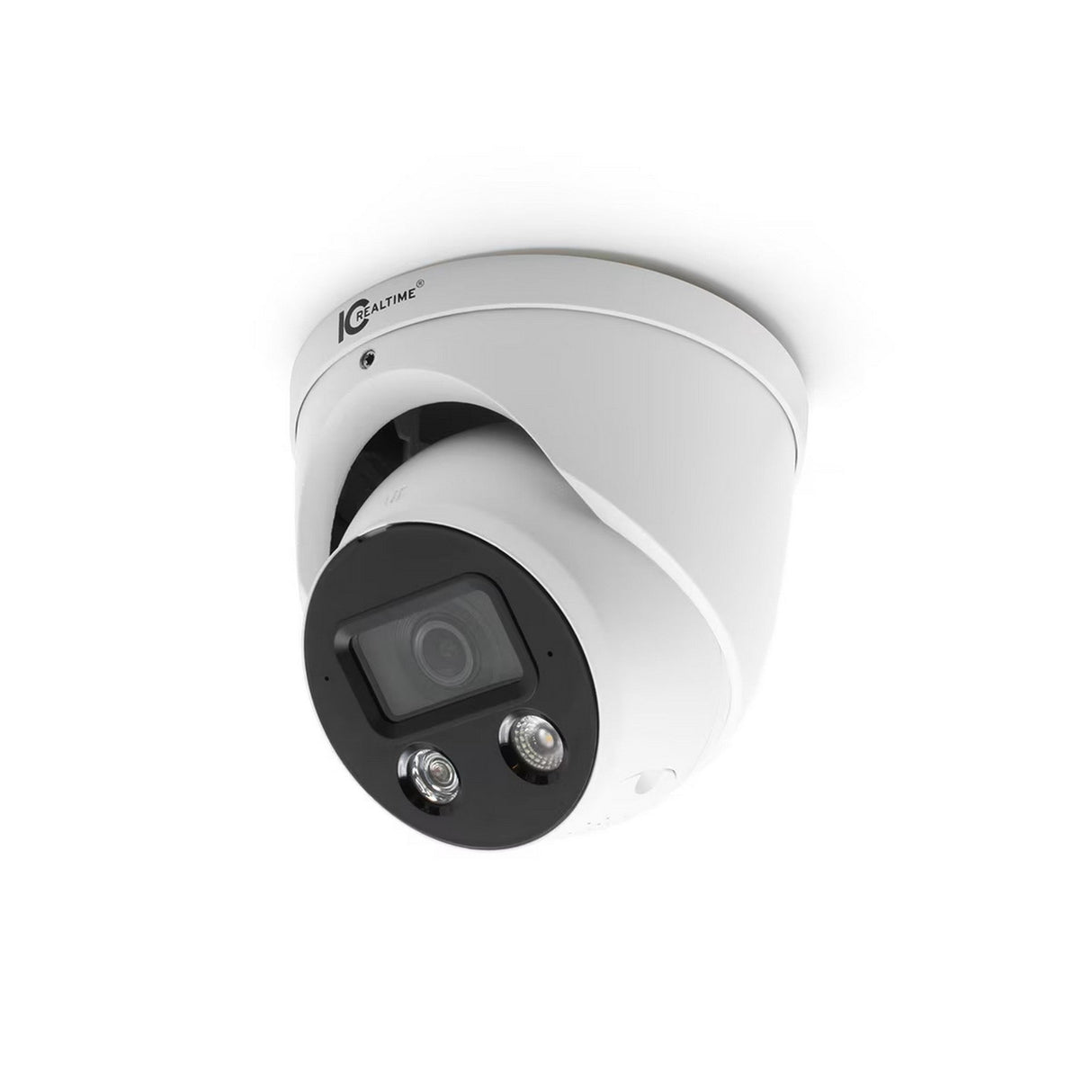

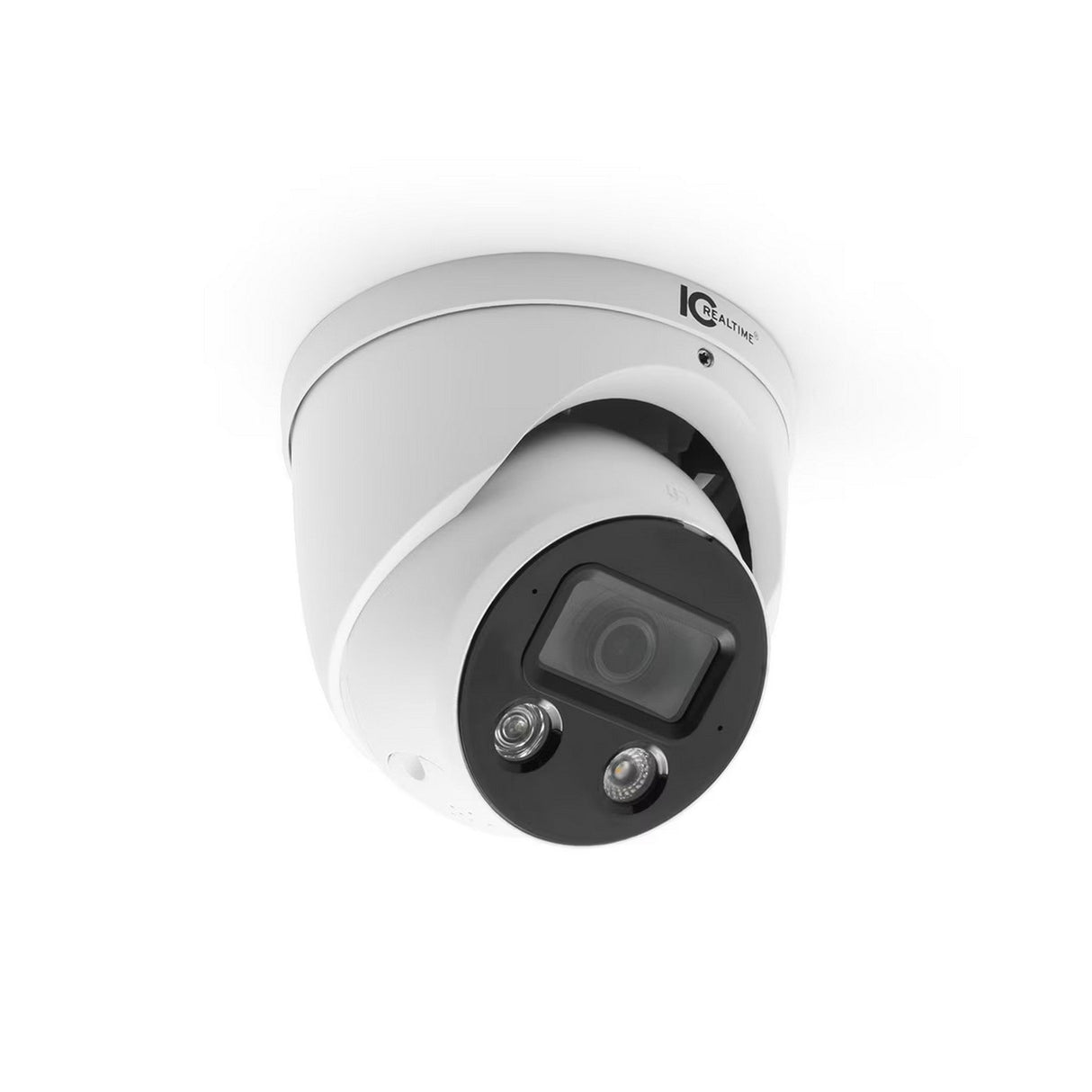

IC Realtime IPMX-E40F-ADW2 4MP Active Deterrence Eyeball Network Camera

The IC Realtime IPMX-E40F-ADW2 is a cutting-edge 4MP eyeball network camera crafted to meet modern security demands for both indoor and outdoor environments. Featuring a robust metal casing and IP67 ingress protection, it is designed to withstand harsh weather conditions. Its advanced Starlight technology ensures exceptional image clarity even in near-darkness, providing unparalleled performance in challenging lighting environments.

One of its key highlights is the three-stage active deterrence system. The camera silently monitors with invisible IR illumination, switches to color video with warm light when motion is detected, and activates red/blue flashing lights and a siren for proactive deterrence. These features make it an exceptional choice for securing properties effectively.

The camera's intelligence capabilities include Perimeter Protection, Intelligent Motion Detection (iMD) 2.0, and Smart NVR integration. These advanced features allow for precise detection of humans and vehicles, filtering out irrelevant triggers such as leaves or light reflections. With its fixed-focal lens, wide field of view, and two-way audio capabilities, the IPMX-E40F-ADW2 offers a versatile and reliable solution for professional surveillance needs.

Key Features

• 4MP resolution with 1/2.7" CMOS image sensor
• Three-stage active deterrence with red/blue flashing lights and siren
• Starlight technology for superior low-light performance
• Intelligent Motion Detection 2.0 for human and vehicle classification
• Perimeter Protection with Tripwire and Intrusion detection
• Built-in microphone and speaker for two-way audio
• Weather-resistant metal casing with IP67 rating
• Supports H.265 and H.264 triple-stream encoding
• Compatible with ONVIF (Profile S/G/T) for seamless integration

Technical Specifications

Camera
Image Sensor: 1/2.7" CMOS
Effective Pixels: 2688 (H) × 1520 (V)
RAM/ROM: 128MB/512MB
Scanning System: Progressive
Minimum Illumination: 0.003 lux @ F1.0 (Color, 30 IRE); 0.0003 lux @ F1.0 (B/W, 30 IRE); 0 lux (illuminator on)
S/N Ratio: > 56 dB
Illumination Distance: Up to 98.43 ft
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 2x Warm White, 2x IR
Camera Illumination Type: IR and White Light

Lens
Lens Type: Fixed-focal
Mount Type: M12
Angle of View: Horizontal: 101°; Vertical: 53°
Close Focus Distance: 4.9 ft
DORI Distance: Detect: 216 ft; Observe: 86 ft; Recognize: 43 ft; Identify: 21 ft

Intelligence
IVS: Tripwire, Intrusion (up to 50 objects)
Advanced Intelligent Functions: Perimeter Protection with recognition of vehicles and people (up to 50 objects)
Intelligent Motion Detect 2.0: Motion detection alarm for humans and vehicles; filters false alarms from leaves and light; compatible with NVR object search
Smart NVR Integration: Enables refined intelligent search, event extraction, and merging to event videos

Video
Compression: Smart H.265+, Smart H.264+, H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
Resolution: 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
Frame Rate: Main stream: 2688 × 1520 @ 1–25/30 fps; Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps; Third stream: 1920 × 1080 @ 1–30 fps
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Day/Night: Color/B/W
Backlight Compensation: BLC / HLC / WDR (120 dB)
White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 areas)
Smart IR: Supported
Flip: 0°/90°/180°/270° (supports 90°/270° with 2688 × 1520 resolution and lower)
Mirror: Off / On
WDR: 120 dB

Audio
Compression: PCM, G.711a, G.711Mu, G.726, G.723

Network
Ethernet: RJ-45 (10/100Base-T)
Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Interoperability: ONVIF (Profile S/G/T); CGI; P2P; RTMP
Max. User Access: 20 users (total bandwidth: 64 Mbps)
Edge Storage: FTP, SFTP, Micro SD card (max. 256 GB), NAS
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smartphone: iOS, Android

Interface
Audio I/O: Built-in dual microphone; 1/1 Audio In/Out (RCA ports)
Alarm I/O: 1 channel in: 5 mA 3V–5V DC; 1 channel out: 300 mA 12V DC
Memory Slot: Micro SD card (max. 256 GB)

Electrical
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: Basic: 3.7 W (12V DC); 4.8 W (PoE)
Max: 8.3 W (12V DC); 8.8 W (PoE)

Environmental
Operating Conditions: -40°F to +140°F; less than 95% RH
Ingress Protection: IP67

Construction
Casing: Metal

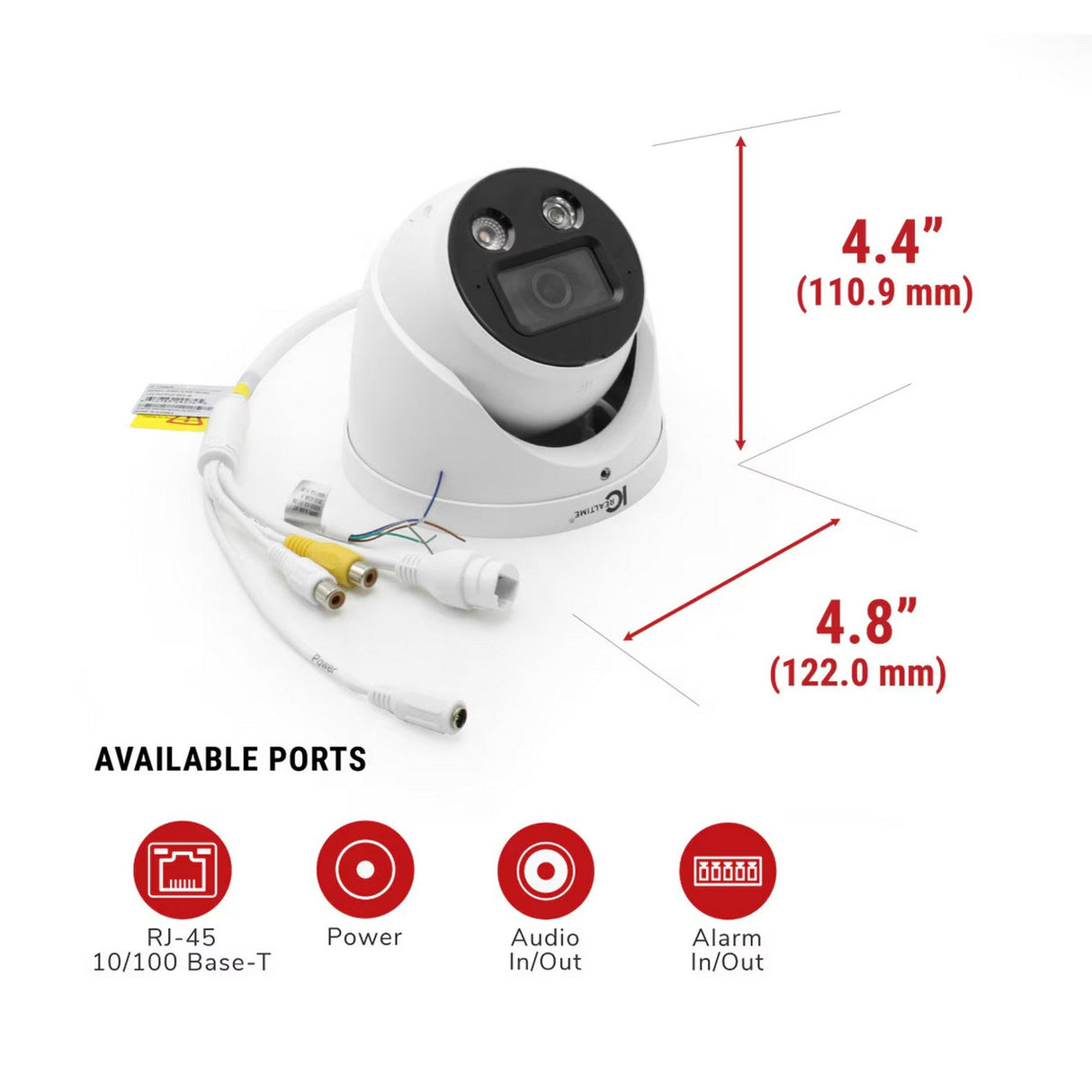

Dimensions: 4.37" × Φ4.80"
Gross Weight: 2.02 lb

Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

What’s Included

• IC Realtime IPMX-E40F-ADW2 Camera
• Mounting Kit
• Quick Start Guide
