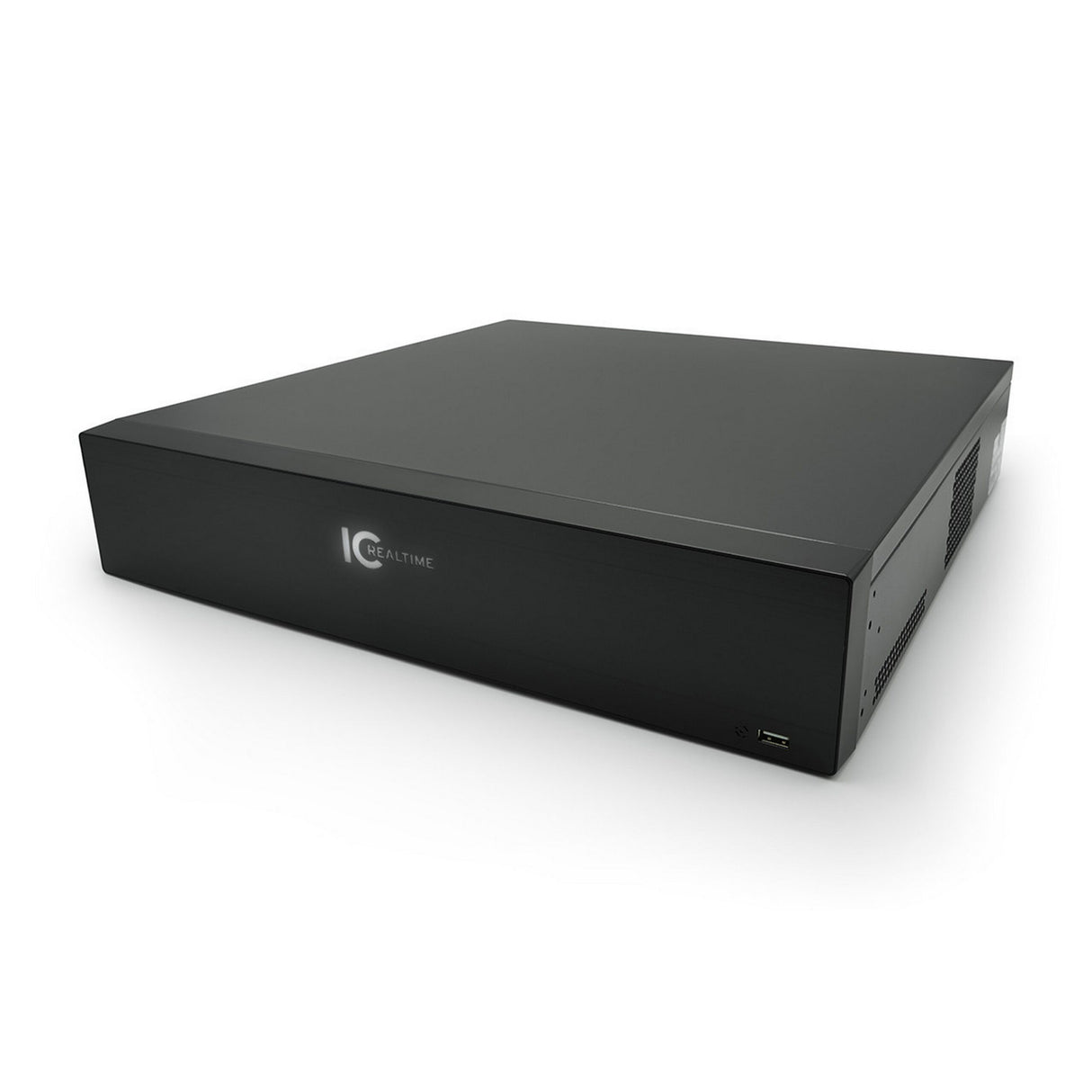

IC Realtime NVR-EL32-2U12MP1 32 Channel 2U 4K Network Video Recorder with 8TB Hard Drive

IC Realtime NVR-EL32-2U12MP1 32 Channel 2U 4K Network Video Recorder with 8TB Hard Drive

In 2022, a new 32 channel NVR necessitates both advanced video technology and substantial processing power to manage 32 video and audio streams. The onboard storage capacity is also a crucial element, especially at this larger 32 channel capacity, along with the ability to handle camera resolutions up to 4K and harness the most advanced features. Ideally, it should all be managed by an intuitive, U.S.-designed on-screen interface featuring the clearest, most advanced on-screen control.

Enter IC Realtime’s new Elite Series member - the NVR-EL32-2U12MP1. This TAA-compliant unit is designed for installations requiring deployment of up to 32 cameras running on remote POE switches, forming a rack-mountable processing powerhouse with significant onboard storage capacity. The NVR-EL32-2U12MP1 is an improvement upon the time-tested NVR-6000K industrial capacity NVR models, boasting updated firmware, improved cybersecurity, and a new ICR OS 4.0 operating system.

IC Realtime's NVR-EL32 also features FlexSmartAi capability, offering Intelligent Video System (IVS) detection and alert capabilities on all 32 channels. The recorder supports camera-based Intelligent Motion Detection (IMD) and allows for configuring tripwires with Perimeter Protection for human and vehicle detection. Additional supported features include heat mapping, face detection, and people counting.

Key Features

• 32 Channels | Up To 12MP | 384Mbps Bandwidth
• 8 HDDs | Up To 10TB/HDD | RAID 0/1/5/6/10 Support
• ICR OS 4.0 | 2 Gigabit RJ-45 | AI+ IVS Support
• 4 USB | Alarm 16/8 | 2 HDMI +1 VGA
• ONVIF 2.4 | 2U | Rack Mountable
• Made In South Korea and Complies with The Trade Agreements Act (TAA)

Specifications

• System: Intel Multi-core Processor, ICR OS 4.0 (Embedded LINUX)
• Display: 2 HDMI (Different Sources), 1 VGA
• Display Resolution: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Fisheye Dewarp: Supported
• Display Split: 1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16
• Display Out Max Decode: 4 channels @ 4K, 16 channels @ 1080p (30 fps)
• IVS: Supported by camera
• Perimeter Protection: Tripwire, Intrusion; recognition of human and vehicle (24 Channels)
• Intelligent Motion Detection: Human/ Vehicle Recognition (32 channels)
• Face Detection/ Recognition, Heat Map, and People Counting: 24 channels
• Video Metadata: 12 channels
• ANPR: License Plate Recognition (8 channels)
• 3D Analysis: Beta (32 channels)
• Supported Camera Types: IP
• IP Camera Input: 32 Channel
• Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Tampering
• Playback: Supports 1/4/9/16 Split view; 128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
• Search Mode: Time /Date, Alarm, MD, and Exact Search (accurate to the second)
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device/Network/eSATA Device
• Audio: Compression: MP2/G726/G729/G722/G723/G711A/G711U/PCM
• Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
• Recording: Compression: H.265/H.264/MJPEG
• Record Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960p, 720p, D1, CIF, QCIF
• Record Rate: 384Mbps
• Record Mode: Manual, Schedule (Regular, MD, Alarm, IVS), Holiday, Stop
• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec
• Storage: 8 SATA III Ports, up to 10 TB capacity for each HDD
• HDD Mode: Single, Raid 0/1/5/10 (Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
• eSATA: 1 eSATA Port
• Network: 2 RJ-45 Ports (10/100/1000Mbps)
• Protocol: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search
• Compatibility: ONVIF Conformant & works with ONVIF compliant IP cameras
• Max. User Access: 128 Users
• Web Viewer: IE, Chrome, Firefox, Edge, Safari
• Management Software: Smart ICRSS, DSS
• Smart Phone: iPhone, iPad, Android
• RS485: 1 Port, for PTZ Control
• USB: 2 USB 2.0, 2 USB 3.0
• Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
• Power Consumption: < 20W (Without HDD)
• Operating Conditions: +14F ~ +131F (-10C ~ +55C), 86 ~ 106kpa
• Storage Conditions: -4F ~ +158F (-20C ~ +70C), 0 ~ 90% RH
• Installation: Desktop or Rack-mounted
• Dimensions: 2U, 17.3” x 17.9” x 3.7” (440mm x 451.08mm x 94.85mm)

Package Contents

• 32 Channel 2U 4K Network Video Recorder
• 8TB Hard Drive (Pre-installed)
• 2U Rack Mount Ears
