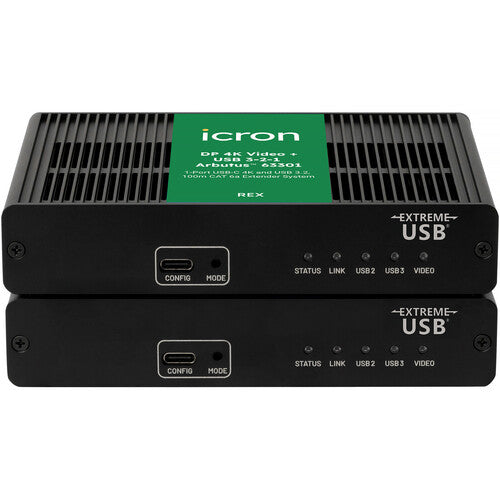

Icron Arbutus 63301 USB-C 4K Video and USB 3.2 Cat 6a Extender
The Icron Arbutus 63301 USB-C 4K video and USB 3.2 Cat 6a extender carries DisplayPort Alt Mode video and USB data up to 330 feet over one Cat 6a or better cable. It supports up to 4Kp60 4:4:4 video while maintaining USB 3.2 Gen 1 performance for a streamlined long-distance connection.
Designed for conference rooms, control rooms, KVM systems, video matrix installations, and medical imaging environments, this USB-C video extension system places computers away from displays and peripherals without sacrificing workflow. The included local and remote extenders create a clean point-to-point link for buyers seeking a 4K USB-C extender over Cat 6a or a professional USB 3.2 extension system.
ExtremeUSB technology provides transparent, hubless extension with no software drivers required. The system supports Windows, macOS, Linux, and ChromeOS, along with all USB transaction types and device classes. HDCP 2.2, EDID override, TAA compliance, and recognized safety and emissions certifications support dependable deployment in professional, institutional, and government AV systems.
Key Features
- Single-Cable Extension: Transmits USB-C video and USB data over one Cat 6a UTP or better cable.
- Long-Distance Performance: Extends compatible signals up to 330 feet through a point-to-point connection.
- Professional 4K Video: Supports DisplayPort Alt Mode video up to 4Kp60 with 4:4:4 color.
- USB 3-2-1 Compatibility: Supports USB 3.2 Gen 1, USB 2.0, and USB 1.1 devices at speeds up to 5 Gbps.
- Remote Device Power: The REX supplies up to 15W to one connected USB-C device.
- Hubless Architecture: Consumes no USB hub tiers while supporting up to 31 downstream devices.
- Driver-Free Installation: Delivers transparent plug-and-play operation without additional software drivers.
- Professional Compliance: Supports HDCP 2.2 and meets TAA, FCC Class A, CE, RCM, UKCA, IEC, UL, cUL, and ICES requirements.
Technical Specifications
General
- Product Type: 1-Port USB-C 4K Video and USB 3.2 Cat 6a Extension System
- Model: Arbutus 63301
- Manufacturer Part Number: 2MW0002NA
- System Components: LEX Local Extender and REX Remote Extender
- Extension Configuration: Point-to-Point
- Maximum Extension Distance: 330 ft
- Extension Cable: Cat 6a UTP or Better
Connections and Power
- USB Connector: 1 x USB-C Receptacle per Extender
- Link Connector: 1 x RJ45 Ethernet Link per Extender
- LEX Power Input: 5V DC, 3A Barrel Jack
- REX Power Input: 5V DC, 5A Barrel Jack
- Available Current at REX: 3A, 15W
USB Support
- USB Standards: USB 3.2 Gen 1, USB 2.0, and USB 1.1
- Maximum USB Data Rate: 5 Gbps
- USB Transactions: Control, Interrupt, Bulk, and Isochronous
- Device Compatibility: All USB Device Types and Classes
- Host Compatibility: OHCI, UHCI, EHCI, and xHCI
- Maximum Downstream Devices: Up to 31
- USB Hub Tiers Consumed: 0
- Operating System Compatibility: Windows, macOS, Linux, and ChromeOS
Video Support
- Video Interface: DisplayPort Alt Mode over USB-C
- Maximum Video Format: Up to 4Kp60 4:4:4
- Color Formats: RGB 8-Bit or 10-Bit; YCbCr 4:4:4 and 4:2:2
- Lane Operation: 4, 2, or 1 Lane
- Maximum Lane Rate: HBR3, 8.1 Gbps
- Display Control: DisplayPort MCCS
- EDID Support: EDID Override
- HDCP Version: 2.2
Mechanical and Environmental
- Dimensions per Extender: 3.9" L x 5.4" W x 1.0" H
- Weight per Extender: 0.7 lbs
- Package Weight: 3.1 lbs
- Enclosure Material: Black Anodized Aluminum
- Operating Temperature: 32°F to 104°F
- Storage Temperature: -4°F to 158°F
- Operating Humidity: 20% to 80%, Non-Condensing
- Storage Humidity: 10% to 90%, Non-Condensing
Compliance and Warranty
- Certifications: FCC Class A, CE, RCM, UKCA, IEC, UL, cUL, and ICES-003 Issue 7
- TAA Compliance: Yes
- Country of Origin: Taiwan
What's In the Box
- 1 x Icron Arbutus 63301 LEX Local Extender
- 1 x Icron Arbutus 63301 REX Remote Extender
- 2 x International Power Adapters
- 2 x Regional Power Cords
Required Cables: Cat 6a UTP or better cable and USB-C cables are not included.
