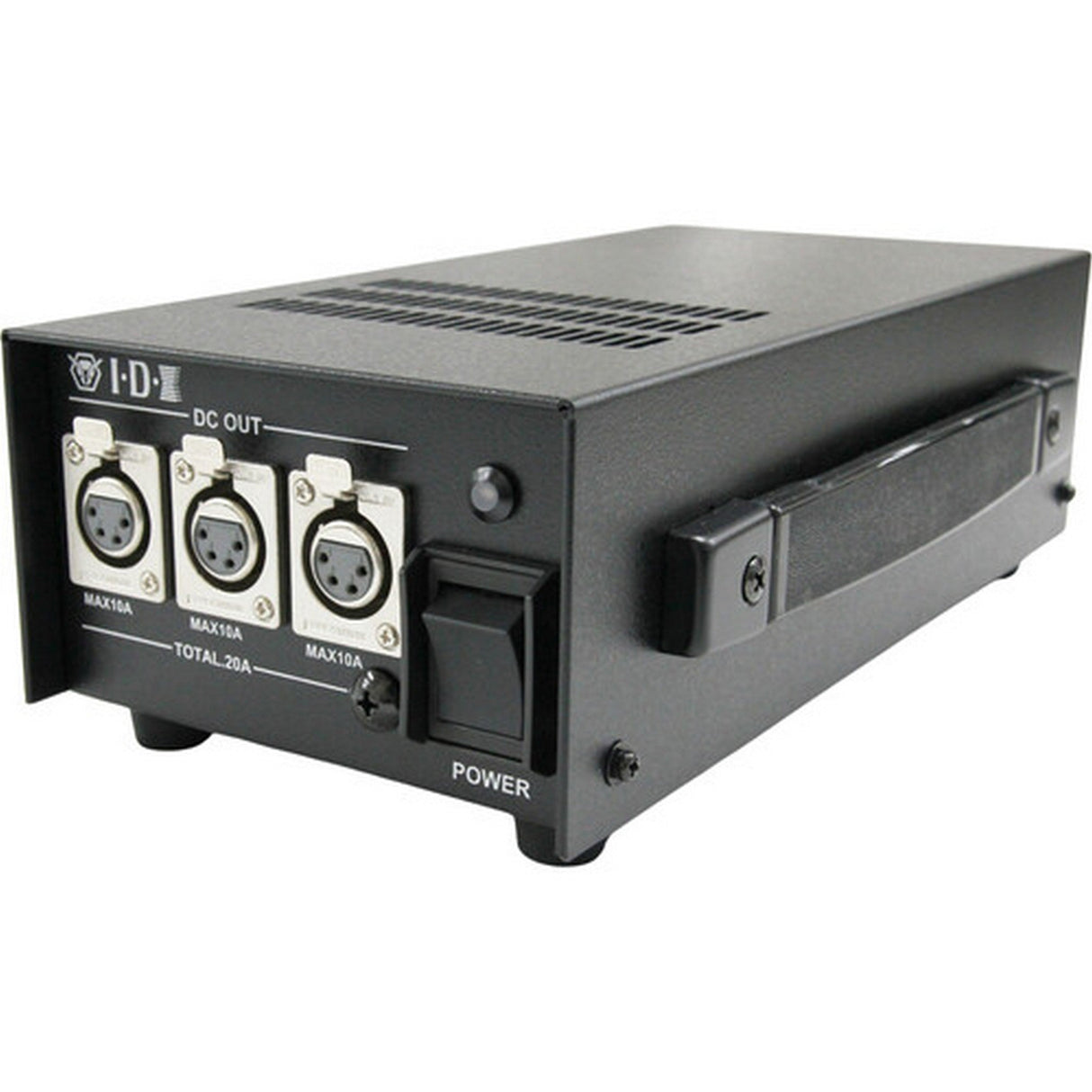

IDX IA-310N 15V 300W AC Adapter Power Supply

IDX IA-310N 15V 300W AC Adapter Power Supply

The IDX IA-310N 15V 300W AC Adapter Power Supply provides high-capacity DC power for professional video production equipment. It delivers up to 300W at 15V DC through three female 4-pin XLR outputs, with each connector supporting up to 10A and a combined maximum output current of 20A.

Designed as the next-generation successor to the IA-300a, the IA-310N raises total output capacity from 210W to 300W and increases combined output current from 13.9A to 20A. Its three-output configuration makes it well suited for powering cameras, production monitors, lighting equipment, and other compatible 15V devices from a single AC power source. This 300W production power supply is particularly useful for studio installations, remote interview systems, and compact production setups requiring multiple powered devices.

The IDX IA-310N maintains a familiar three-connector 4-pin XLR design while providing substantially more available power for demanding production workflows. It accepts 100 to 220 VAC, 50/60 Hz input power and supplies a nominal 15V DC output. With a compact chassis measuring approximately 10.04" deep and weighing 3.97 lb, it provides a practical centralized power solution for professional video environments where reliable multi-device DC distribution is required.

Key Features

• 300W Total DC Output: Supplies up to 15V DC at 20A for demanding professional production equipment.
• Three 4-Pin XLR Outputs: Provides three female 4-pin XLR connectors for distributing power to multiple compatible devices.
• Up to 10A Per Connector: Each DC output supports a maximum current of 10A within the system's combined 20A limit.
• Higher-Capacity IA-300a Successor: Increases total output from 210W to 300W and combined current capacity from 13.9A to 20A.
• Multi-Device Production Power: Supports compatible cameras, monitors, lighting, and other professional video equipment.
• Flexible AC Input: Operates from 100 to 220 VAC at 50/60 Hz for integration into professional production environments.
• Compact Production Design: Combines substantial output capacity with a chassis approximately 10.04" deep and 3.97 lb in weight.

Technical Specifications

• Product Type: AC adapter power supply
• Input Voltage: 100 to 220 VAC, 50/60 Hz
• Power Consumption: 340W / 340VA maximum
• Nominal Output: 15V DC, 20A, 300W maximum
• DC Outputs: Three female 4-pin XLR connectors
• Maximum Output Current per Connector: 10A
• Maximum Combined Output Current: 20A
• Operating Temperature: 32 to 104°F
• Dimensions: 4.95" W x 2.95" H x 10.04" D
• Weight: Approximately 3.97 lb
