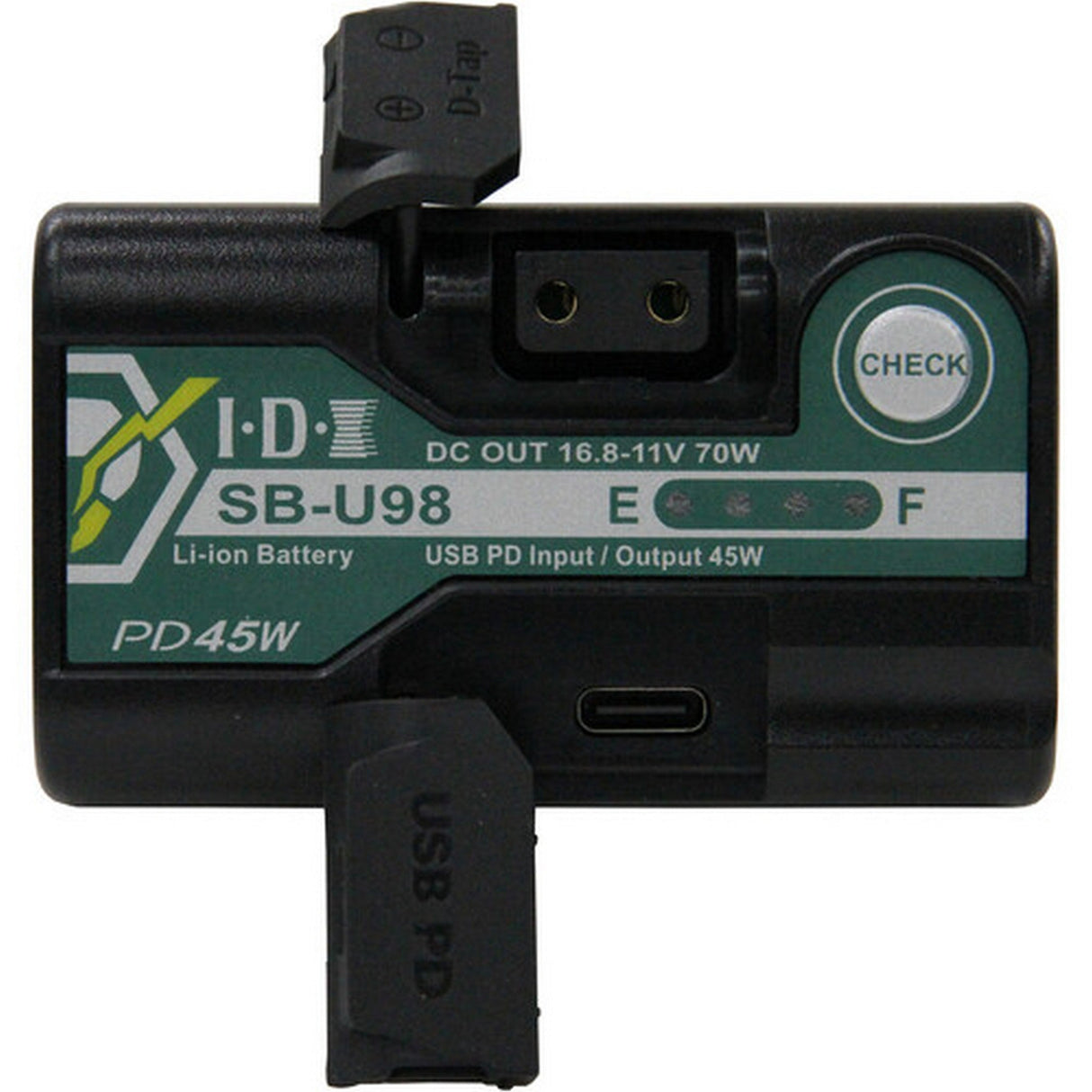

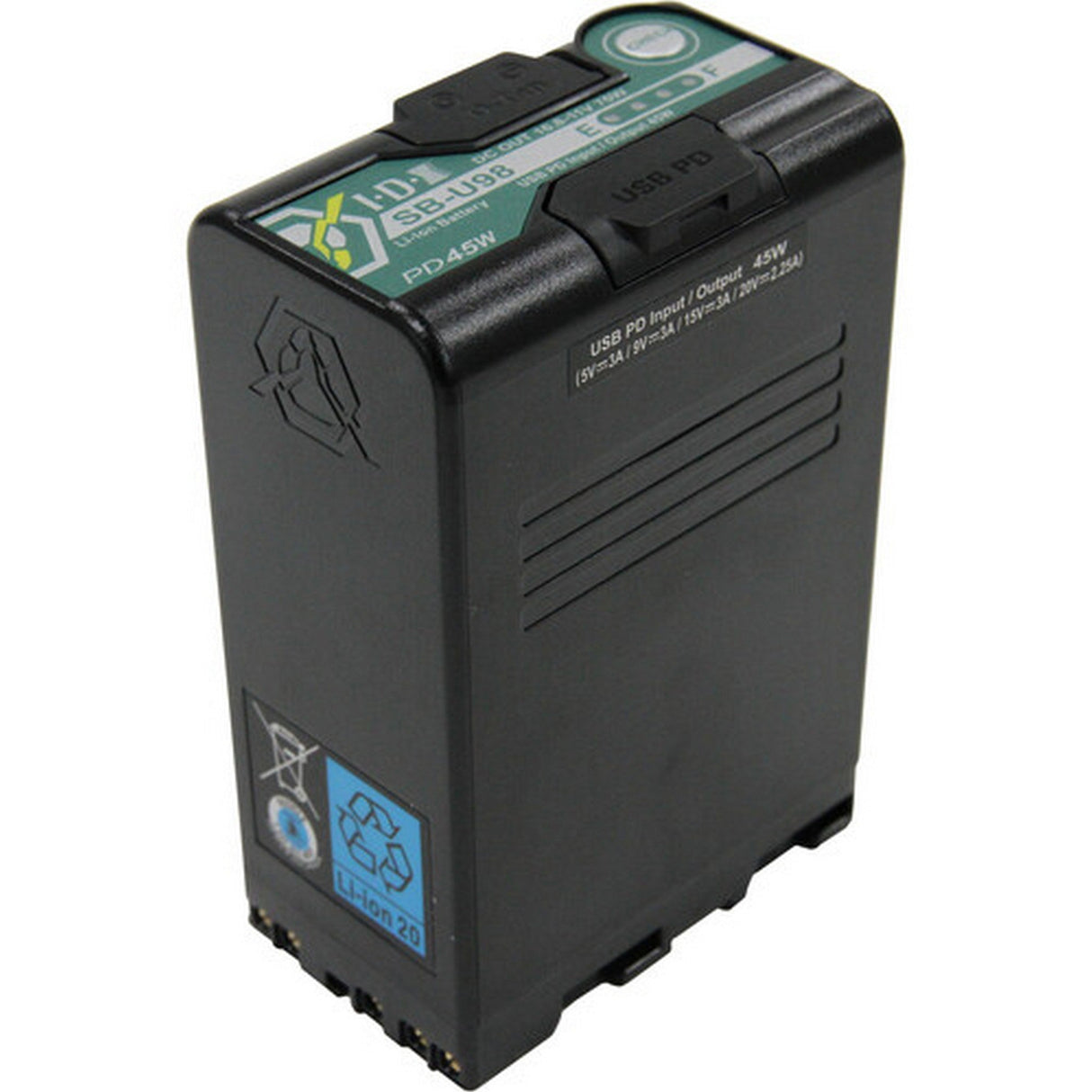

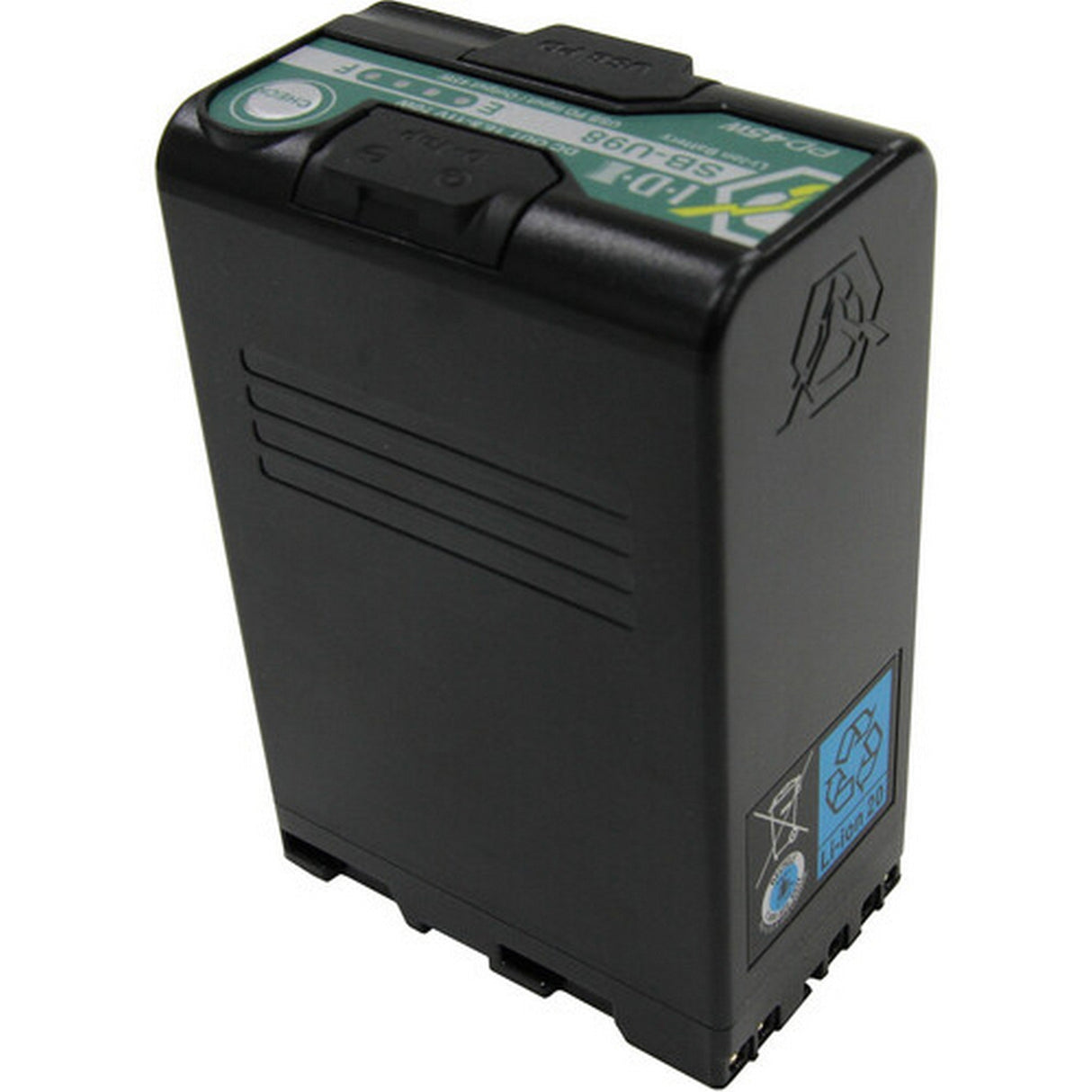

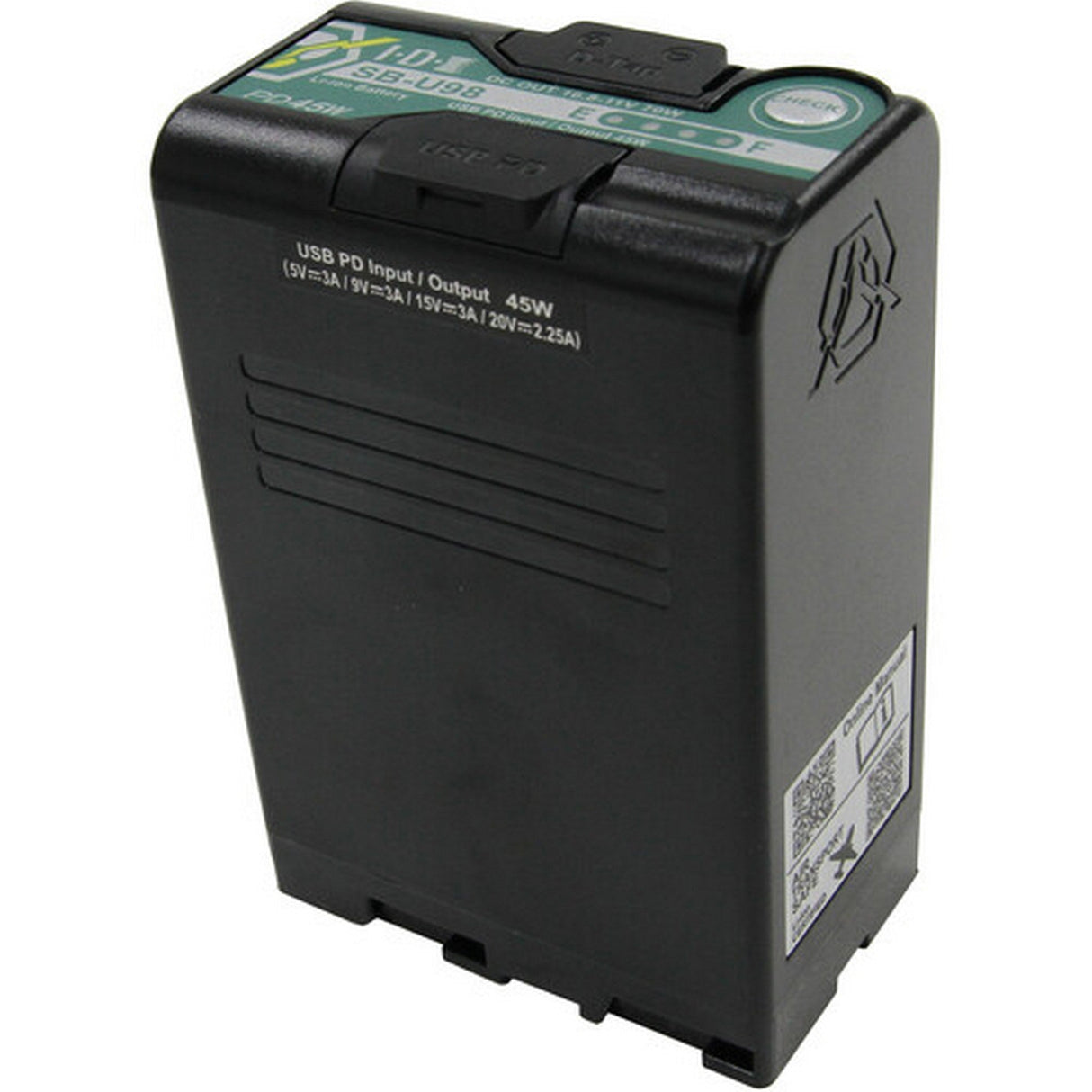

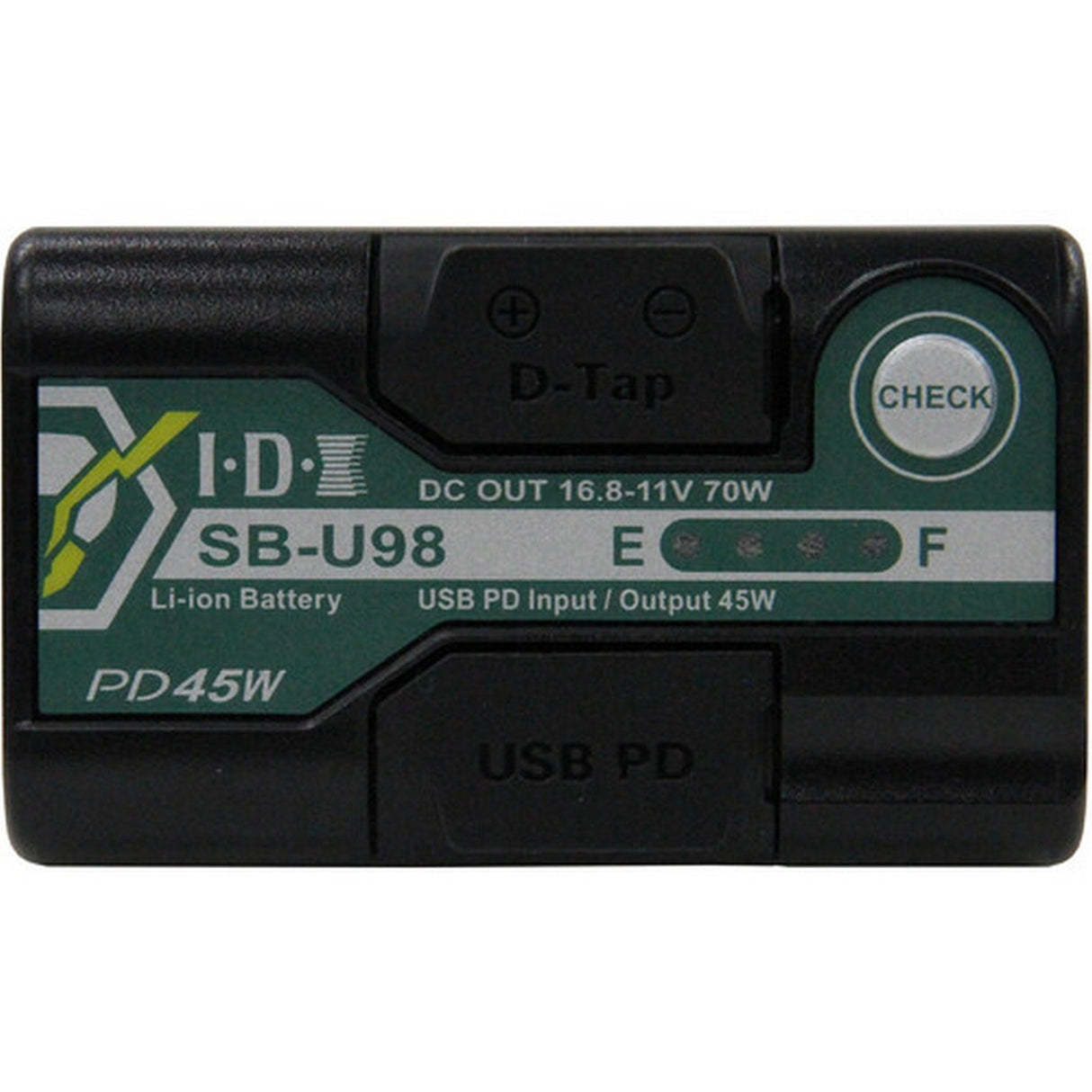

IDX System Technology SB-U98-PD Sony BP-U Battery with USB-C PD

IDX System Technology SB-U98-PD Sony BP-U Battery

The IDX System Technology SB-U98-PD Sony BP-U Battery is a 14.4V lithium-ion power pack built for professional Sony BP-U camera systems, with 96Wh / 6.6Ah capacity, a D-Tap accessory output, and a bidirectional USB-C Power Delivery port. It supports camera power, accessory power, and USB-C charging in one compact field battery.

This battery suits ENG, documentary, event, and location-production crews that need a high-capacity Sony BP-U battery with flexible accessory power. The 70W main and D-Tap output can support compatible camera rigs, while USB-C PD delivers up to 45W for supported devices. A four-LED gauge provides at-a-glance remaining-capacity monitoring during shoots.

Compatibility includes Sony PXW-FX9, PXW-FX6, FS7, FS5, and additional PXW/PMW-series cameras using the BP-U interface. Protection circuitry guards against overcharge, overdischarge, and overcurrent conditions, while the battery has passed UN 38.3 transport testing. USB-C PD charging can replenish the pack at up to 45W, with an approximate 170-minute charge time using a suitable PD charger.

Key Features

• 96Wh BP-U Power: Provides 6.6Ah capacity at a nominal 14.4V for extended professional camera operation.
• USB-C Power Delivery: Bidirectional USB-C supports battery charging and up to 45W output for compatible devices.
• D-Tap Accessory Output: Powers compatible monitors, wireless systems, and other production accessories directly from the battery.
• 70W Maximum Main Output: Supports demanding BP-U camera configurations with discharge current up to 6.4A at 11V.

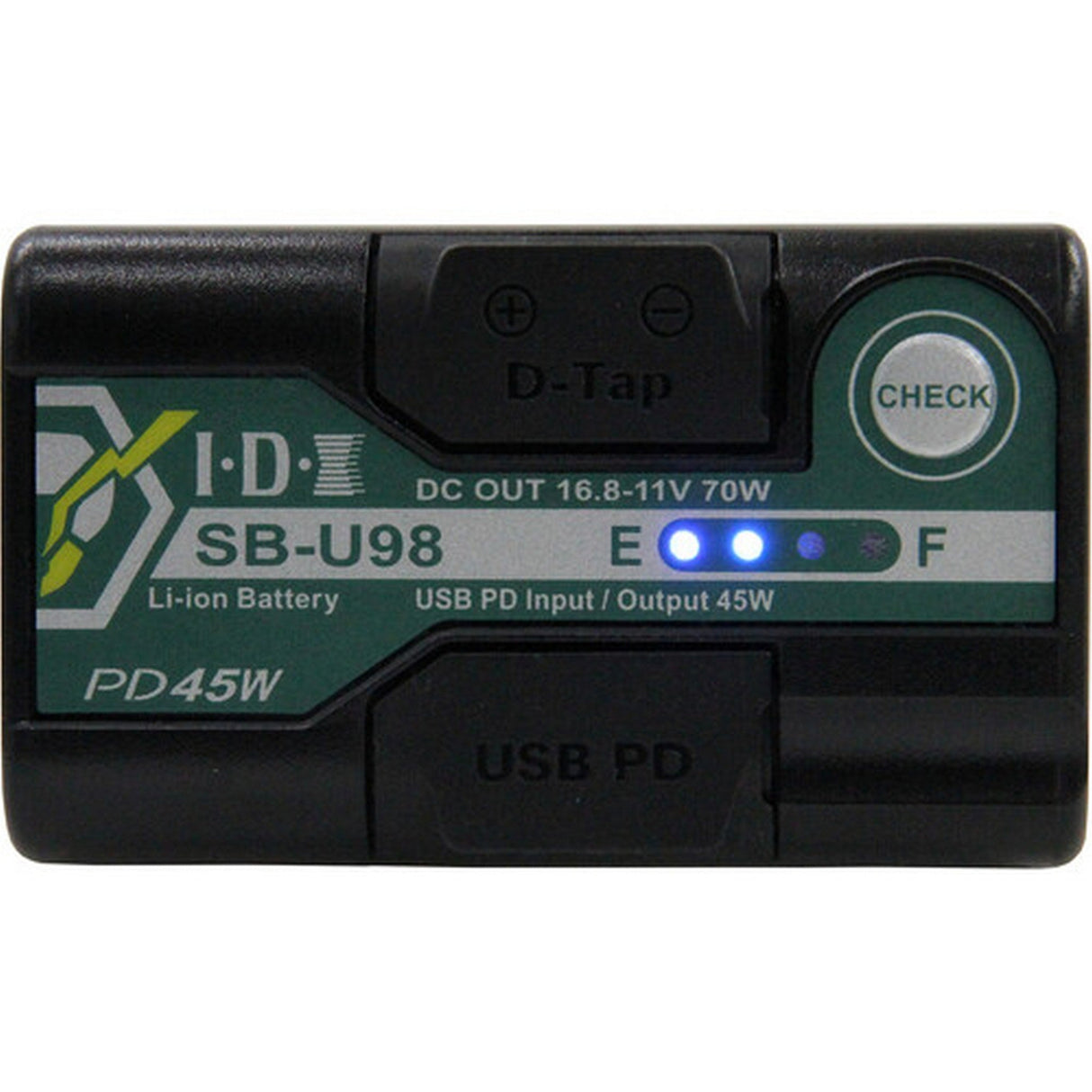

• Four-LED Power Gauge: Provides quick visual monitoring of remaining battery capacity in the field.
• Professional Sony Compatibility: Supports compatible PXW-FX9, PXW-FX6, FS7, FS5, and PXW/PMW-series cameras.
• Integrated Protection: Internal circuitry protects against overcharge, overdischarge, and high-load overcurrent conditions.
• USB-C Fast Charging: Supports approximately 170-minute charging at up to 45W with a suitable USB-C PD charger.

Technical Specifications

• Model: SB-U98-PD
• Battery Type: Sony BP-U-type rechargeable lithium-ion battery
• Capacity: 96Wh / 6.6Ah
• Nominal Voltage: 14.4V DC
• Maximum Output Voltage: 16.8V DC
• End Voltage: 11V
• Maximum Output: 70W
• Maximum Discharge Current: 6.4A at 11V
• Main Connector Output: 70W maximum; 4.2A at 16.8V to 6.4A at 11V
• D-Tap Output: 70W maximum; 4.2A at 16.8V to 6.4A at 11V
• USB-C: Power Delivery input/output, 45W maximum
• USB-C PD Profiles: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• Simultaneous Main/D-Tap and USB-C Output: PD45W + 50W, PD36W + 60W, PD27W + 70W, or PD15W + 70W
• Power Connections: 1 x D-Tap output, 1 x USB-C PD input/output
• Battery Indicator: 4-stage LED power gauge
• Protection: Overcharge, overdischarge, and overcurrent protection
• USB-C PD Charging Power: Up to 45W
• Approximate USB-C PD Charge Time: 170 minutes with a suitable PD charger
• Compatible Cameras: Sony PXW-FX9, PXW-FX6, FS7, FS5, and compatible PXW/PMW-series cameras
• Compatible IDX Chargers: MC-2U, UC-PD1, UC-PD2
• Transport Testing: UN 38.3 tested
• Dimensions: 1.6" W x 4.1" H x 2.7" D
• Weight: 1.1 lb

What's In the Box

• IDX System Technology SB-U98-PD Sony BP-U Lithium-Ion Battery
