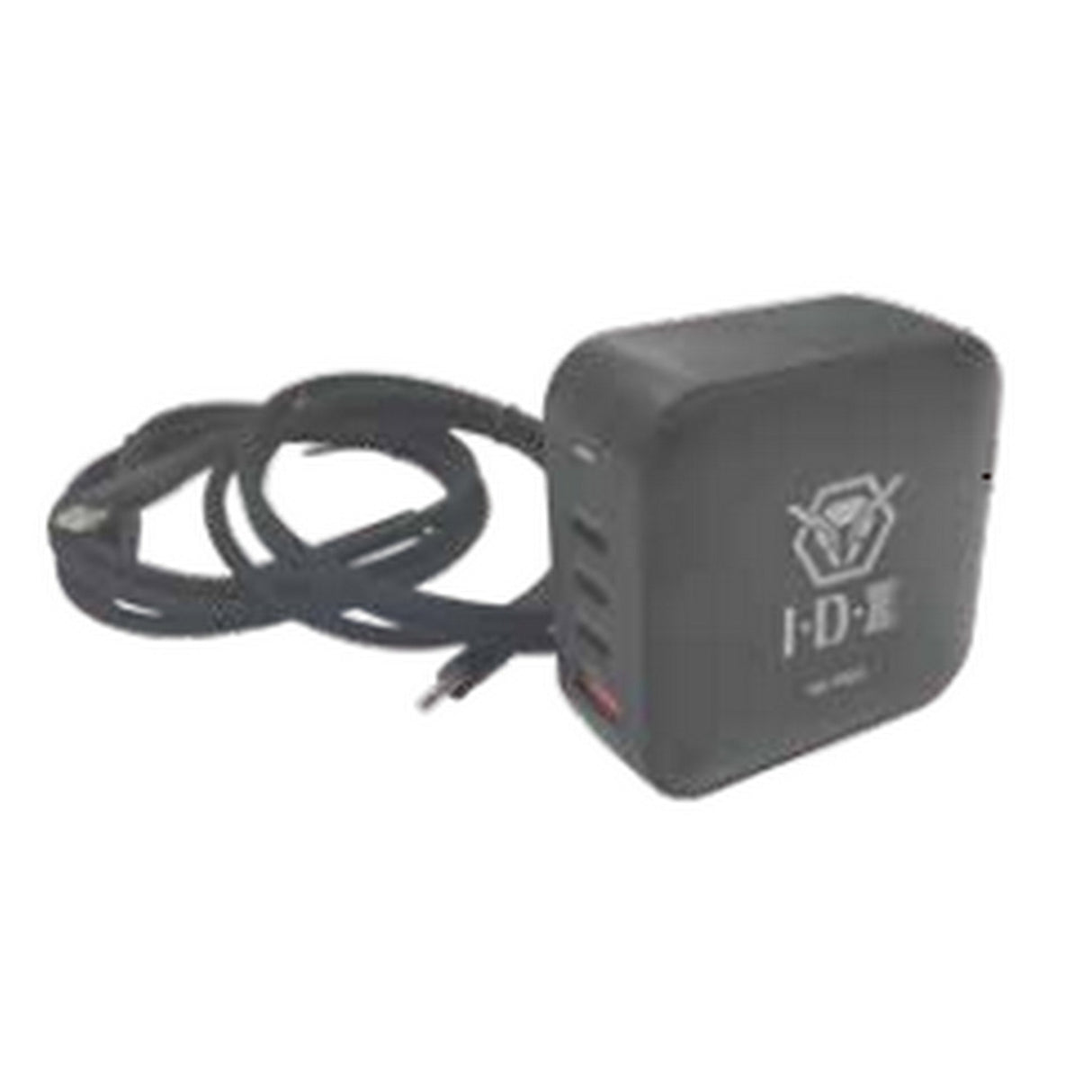

IDX UC-PD5 3-Channel 140W USB Power Delivery Charger

IDX UC-PD5 3-Channel 140W USB Power Delivery Charger

The IDX UC-PD5 3-Channel 140W USB Power Delivery Charger provides three USB-C charging ports and one USB-A port in a compact power solution. A single USB-C port can deliver up to 140W, allowing the charger to support compatible IDX USB PD batteries alongside laptops, smartphones, tablets, and other USB Power Delivery devices.

Designed for production crews, mobile professionals, and users carrying multiple USB-powered devices, the UC-PD5 reduces the need for separate battery, laptop, and phone chargers. Its three USB-C outputs provide different maximum power levels, while the USB-A connection adds support for additional equipment. Two included high-capacity USB-C cables and an international plug adapter further simplify travel and field use.

The charger accepts 100 to 240V AC input at 50/60 Hz for operation across a broad range of electrical systems. Integrated protection circuits guard against over-voltage, over-current, short-circuit, and over-temperature conditions. With a compact enclosure weighing approximately 0.6 lb, the UC-PD5 provides high-output charging without adding unnecessary bulk to a production or travel kit.

Key Features

• 140W Maximum USB-C Output: USB-C1 delivers up to 140W for compatible high-power USB PD devices.
• Three USB-C Ports: Provides separate USB-C outputs rated up to 140W, 100W, and 65W during single-port operation.
• Additional USB-A Output: Supplies up to 30W through the dedicated USB-A port.
• Multi-Device Charging: Powers compatible IDX batteries, laptops, smartphones, tablets, and other USB PD equipment.
• Universal AC Input: Accepts 100 to 240V AC at 50/60 Hz for use across multiple regions.
• Integrated Protection: Includes over-voltage, over-current, short-circuit, and over-temperature protection.
• Travel-Ready Accessories: Includes two USB Type-C cables and an international plug adapter.

Technical Specifications

• Brand: IDX
• Model: UC-PD5
• Product Type: 3-channel USB Power Delivery charger
• AC Input: 100 to 240V AC, 50/60 Hz
• USB-C1 Maximum Output: 140W variable, single-port operation
• USB-C2 Maximum Output: 100W variable, single-port operation
• USB-C3 Maximum Output: 65W variable, single-port operation
• USB-A Maximum Output: 30W variable, single-port operation
• DC Connectors: 3 x USB Type-C, 1 x USB Type-A
• Operating Temperature: 32°F to 77°F
• Operating Humidity: 20% to 80% RH
• Protection Circuits: Over-voltage, over-current, short-circuit, over-temperature
• Dimensions (W x H x D): 2.8" x 2.8" x 1.2"
• Weight: 0.6 lb
• Included USB Type-C Cables: 2
• USB Type-C Cable Rating: 28V / 5A
• USB Type-C Cable Length: 39.4" each
• International Plug Adapter: Included

What's In the Box

• IDX UC-PD5 USB Power Delivery Charger
• 2 USB Type-C 28V / 5A Cables, 39.4" Each
• International Plug Adapter
