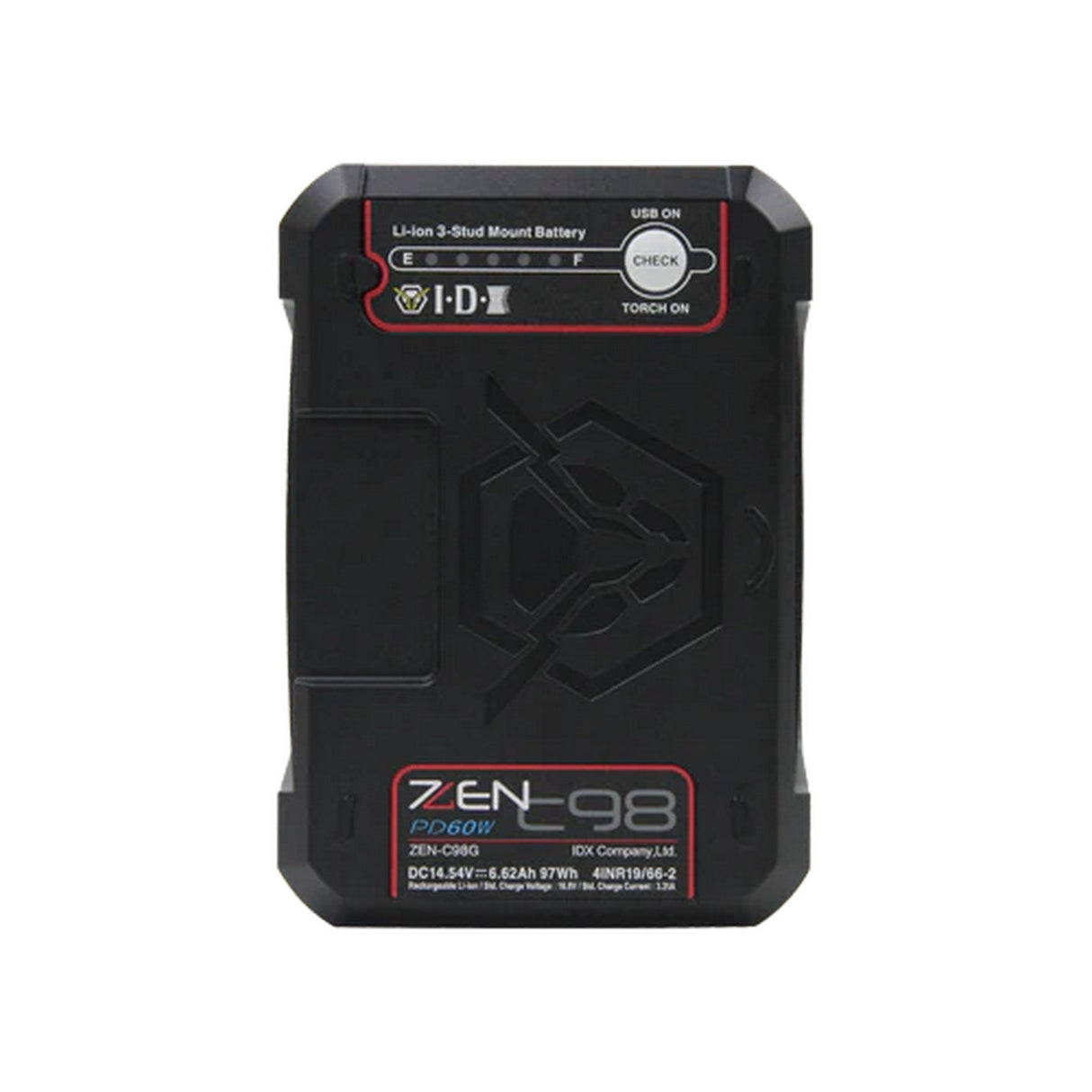

IDX ZEN-C98G 97Wh High-Load Li-Ion 3-Stud Mount Battery with D-Tap/USB-C
The ZEN-C98G 3-Stud Mount battery line, the ZENITH Series. The ZEN-C98G provides a robust 97Wh capacity with the ability to handle max draw at 12.7A/140W loads, as well as two built-in D-Tap outputs capable of taking an 80W load for powering common on-board accessories. USB-C PD (Power Delivery) port for two-way power and charging when used with the new UC-PD1 compact charger. Cube style for use with cinema cameras. An antiviral and antimicrobial body for hygienic peace of mind.
Technical Specifications
Capacity
97Wh (14.5V/ 6.6Ah)
Max Output Voltage
16.8V DC
Nominal Voltage
14.54V DC
Max Discharge Current
12.7Aā”
D-Tap
80W each
USB-C PD
Input/Output Max. 60W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A)
End Voltage
11V
Battery Protection
Over charge, Over discharge, over current
Ambient Temperature
To charge: 32 Degrees F ~ 104 Degrees F (50 Degrees F ~ 86 Degrees F recommended)
To discharge: -4 Degrees F ~ 113 Degrees F (50 Degrees F ~ 104 Degrees F recommended)
To store: 32 Degrees F ~ 104 Degrees F (three months)
Dimensions
3.46(W) x 4.96(H) x 2.70(D) inches
Weight
1.54 lbs approx.
