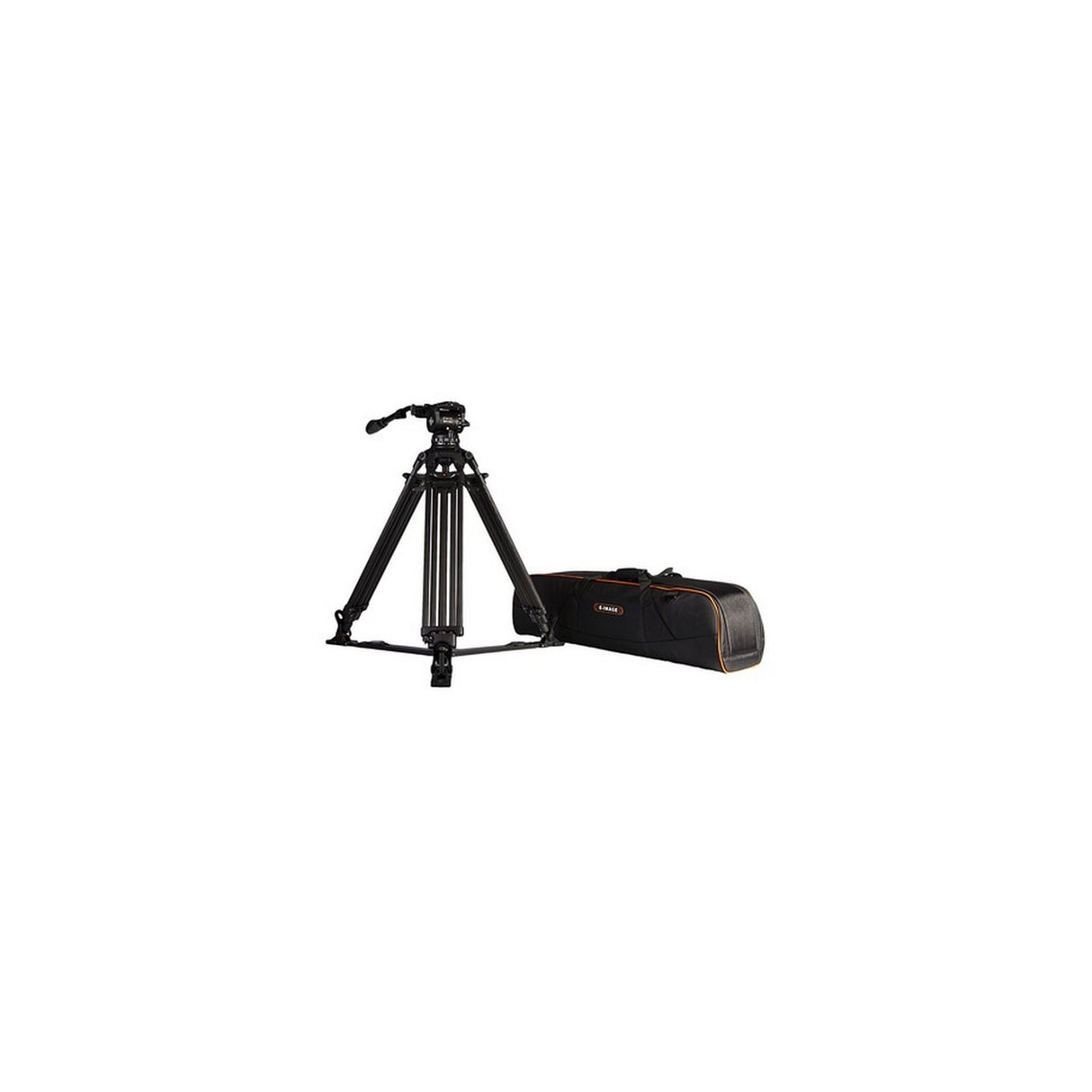

Ikan EG10C2L Carbon Fiber 2 Stage Tripod with GH10L Head Transport Bag
Ikan EG10C2L Carbon Fiber 2 Stage Tripod with GH10L Head Transport Bag
The EG10C2L Two Stage Carbon Fiber Tripod System is designed and built for professional videographers and cinematographers who want real quality at an affordable price.
The system delivers field-tested reliability, solid construction and all the features required for professional performance.
The EG10C2L's features, includes the E-Image Mono-Lock design, and a 7 step counterbalance that delivers reliable performance that rises above competitors in its price range and class.
The KIt'supports cameras and accessories weighing up to 22 pounds. The GC102 tripod is made of lightweight carbon fiber, has a 100mm bowl, and the legs are a twin tube design with two stages. The Mono-Lock feature allows for quick height adjustments of both stages with one twist. The EG10C2L extends to a maximum height of 68" and a minimum height of 23.5". Included are both floor spreader and adjustable mid-level spreader with feet providing extra security and stability on different terrains.
The GH10L head has a 0-3-stepped Tilt drag system and a 1-7 stepped counterbalance system providing maximum adjustability for differently configured payloads of up to 22 pounds. A professional fluid pan with stepped settings of 0-3 provides further adjustability to meet every shooting contingency. The head incorporates an illuminated bubble level, and a 1/4-20 threaded mounting point. A padded carry bag with shoulder and backpack straps is included with the kit.
Key Features
- Supports 22lbs 10kgs
- 100mm ball
- 2 Stage Leg Design with Mono-Lock
- Height Range 23.5" to 68"
- 0-3 Drag Adjustment Settings
- 1-7 Counter Balance Settings
- 1/4"-20 Accessory Socket for Monitor Arm
- Separate Pan/Tilt Locks
- Both Mid-Level Spreader with Feet and Ground Spreader Included
- Illuminated Spirit Level
- Heavy Duty Padded Bag with Shoulder Strap
Technical Specifications
General
Load Capacity:
22 lb (10 kg)
Tripod Height
Maximum Height:
Floor Spreader Closed: 66" (167.6 cm)
Floor Spreader Extended: 67.5" (151.1 cm)
Minimum Height:
Floor Spreader Closed: 31.5" (80.0 cm)
Floor Spreader Extended: 22.5" (57.2 cm)
Transport Range:
34.5" (87.6 cm)
Tilt Range:
-60 to 90°
Leveling Bubble/Illuminated:
Yes/Yes
Weight:
12 lb (7.3 kg)
Head
Counter Balance System:
7 counter balance settings
Quick Release/Wedge Plate:
Easy Lock System
Balance Plate:
Easy Lock
Tilt Range:
-60 to 90°
Tilt Drag:
3-steps plus 0
Tilt Lock:
Yes
Pan Drag:
3-steps plus 0
Pan Lock:
Yes
Legs
Material:
Carbon Fiber
Head Attachment Fitting:
100mm Bowl
Leg Stages/Sections:
2/3
Leg Lock Type:
Mono-Lock - rotating lever
Spiked/Retractable Feet:
Spiked Feet
Shipping Dimensions:
39.25 x 9.5 x 9.75"
Shipping Dimensions (Metric):
99.7 x 24.13 x 24.77 cm
Shipping Weight:
22 lbs
Shipping Weight (Metric):
10 kg
UPC Code:
847983010356
WHAT'S INCLUDED:
F3 Tripod Rubber Feet
GB2 Telescoping Handle
GC102 Tripod Legs
GH10L Fluid Head
GS01 Mid-Level Spreader
GS02 Ground Spreader
T30 Tripod Bag
