Ikan LBF60Z-POE-3L-1SU Lyra PoE Fresnel Bundle - Black

Ikan LBF60Z-POE-3L-1SU Lyra PoE Fresnel Bundle

The Ikan LBF60Z-POE-3L-1SU Lyra PoE Fresnel Bundle is a three-light bi-color studio lighting package with a Netgear Ultra60 PoE++ 802.3bt 380W unmanaged switch. Each 60W PoE++ Fresnel zoom light supports Art-Net, sACN, Q-SYS control, RJ45 network power, and an adjustable 30° to 60° beam angle.

Built for studio, film, TV production, broadcast spaces, podcast rooms, conference environments, and installed AV systems, this kit simplifies multi-light deployment through networked power and DMX-over-IP control. For buyers looking to purchase an Ikan Lyra PoE Fresnel kit, build a Q-SYS compatible lighting system, or add a three-light studio Fresnel bundle, it delivers flexible control with clean cable management.

Each included LBF60Z-POE fixture provides 2700K-6500K bi-color adjustment, 97 CRI, passive cooling, an LCD screen, and a manual zoom Fresnel lens for narrow spot or wider flood coverage. Available color options include Black and White, allowing the bundle to match dark studio grids, bright architectural spaces, and installed AV environments without changing the core product title.

Key Features

• Three-Light PoE Fresnel Bundle: Includes three 60W Lyra PoE bi-color Fresnel zoom fixtures for coordinated studio lighting.
• Included PoE++ Switch: Comes with a Netgear Ultra60 PoE++ 802.3bt 380W unmanaged switch for supported network power distribution.
• Single-Cable Operation: Uses RJ45 PoE++ for power and DMX-over-IP control through compatible Cat6 cabling.
• Art-Net and sACN Control: Integrates with professional DMX-over-IP lighting systems for broadcast, studio, and AV workflows.
• Q-SYS Compatible: Supports Q-SYS Designer Plugin control for conference rooms, classrooms, and integrated AV systems.
• Manual Zoom Fresnel Lens: Adjusts from a 30° spot to a 60° flood for flexible beam shaping.
• Bi-Color Output: Provides adjustable 2700K-6500K color temperature for warm, neutral, and daylight-balanced lighting.
• Quiet Passive Cooling: Runs without fan noise for studios, podcasting, education, and sound-sensitive spaces.

Technical Specifications

• Product Type: Three-Light PoE Bi-Color Studio Fresnel Zoom LED Bundle
• Model: LBF60Z-POE-3L-1SU, LBF60Z-POE-WH-3L-1SU
• Available Color Options: Black or White

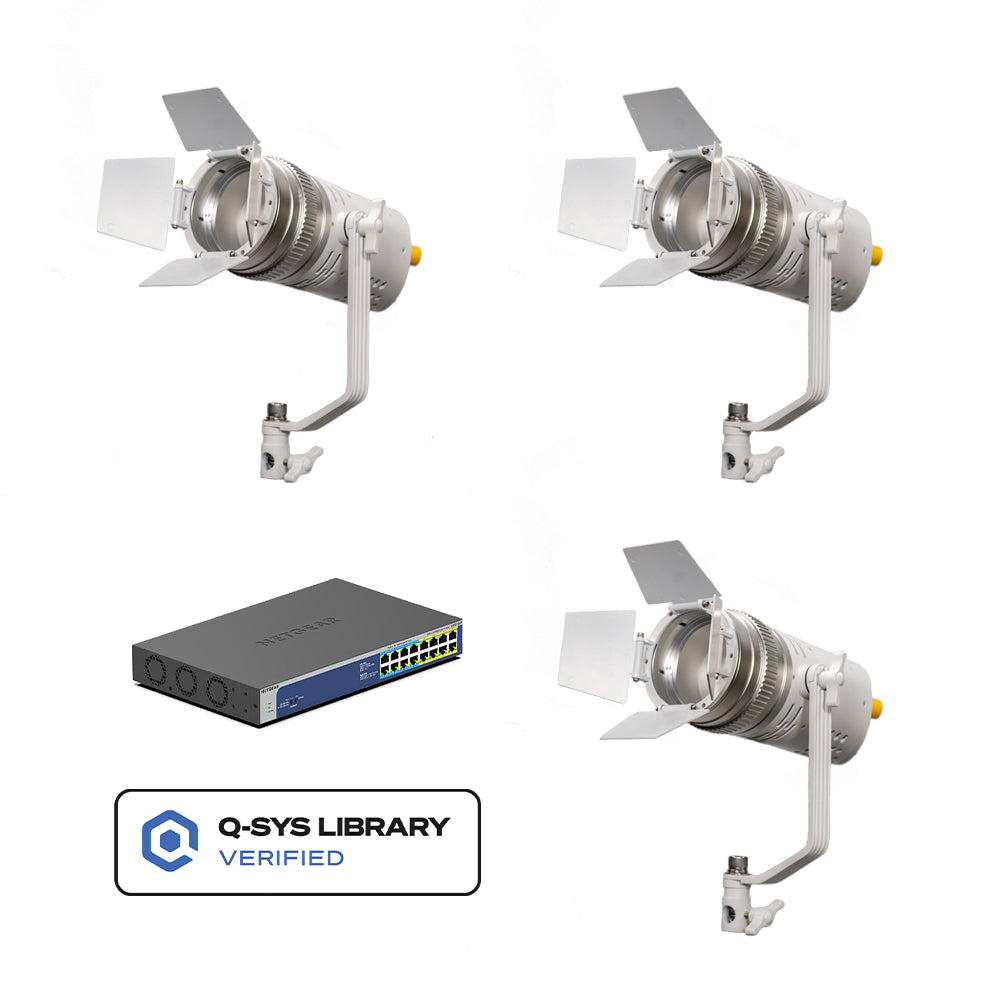

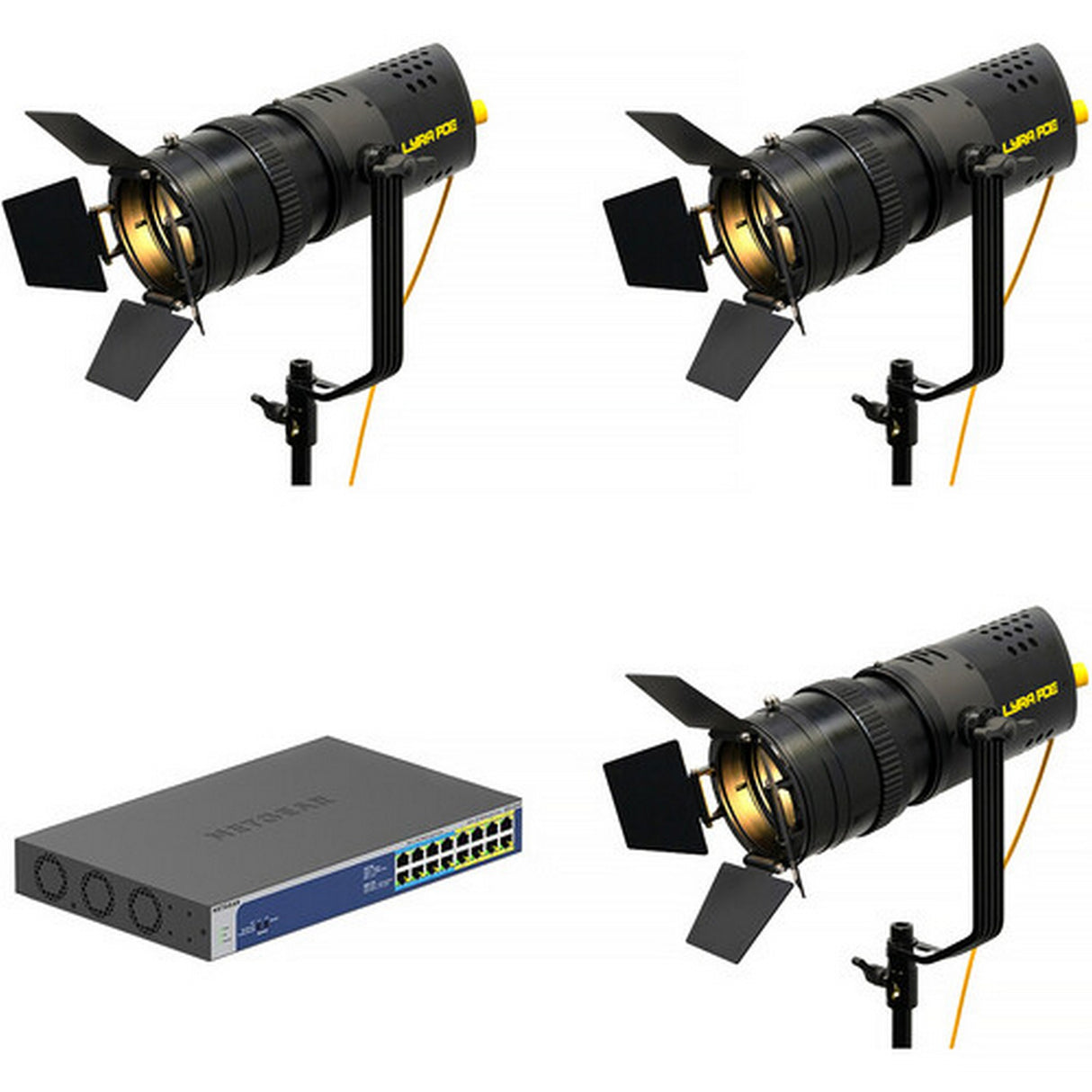

• Bundle Configuration: 3 x LBF60Z-POE fixtures with 1 x Netgear Ultra60 PoE++ 802.3bt 380W unmanaged switch
• Fixture Type: Fresnel zoom LED light
• Number of Lights: 3
• Light Source: CoB LEDs
• Power Consumption Per Fixture: 60 W
• Color Temperature: Bi-color 2700K-6500K
• Beam Angle: 30° to 60°
• Lens: 30° to 60° adjustable
• CRI: 97
• Dimming Range: 0-100%
• DMX Control: Art-Net or sACN
• Q-SYS Compatibility: Q-SYS Designer Plugin compatible
• Network and Power Input: RJ45
• Additional Power Connection: USB Type-C threaded barrel coaxial power connection
• PoE Standard: IEEE 802.3bt Type 3 PoE++
• Required Cable: Cat6 RJ45 24AWG or better
• Power Input: 110-220 VAC
• Operating Voltage: 48 VDC
• Frequency: 50/60 Hz
• Power Supply: Input 110-220 VAC; output 48 VDC at 1.25 A, not included
• Power Loss Behavior: Last scene hold
• Cooling: Passive
• LED Lifetime: 70,000 hours
• Display: LCD screen
• Build Material: Heavy-duty resin plastic and metal

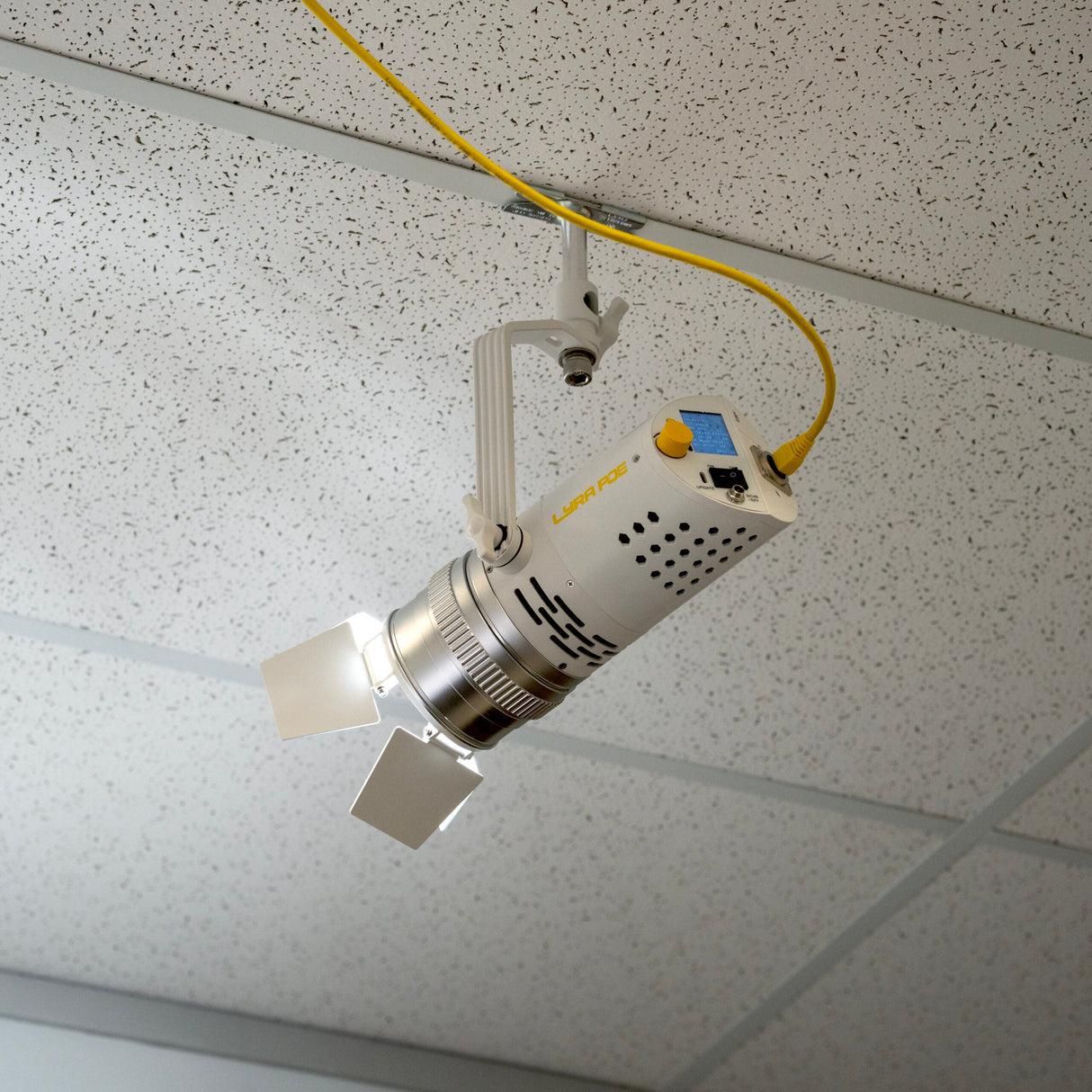

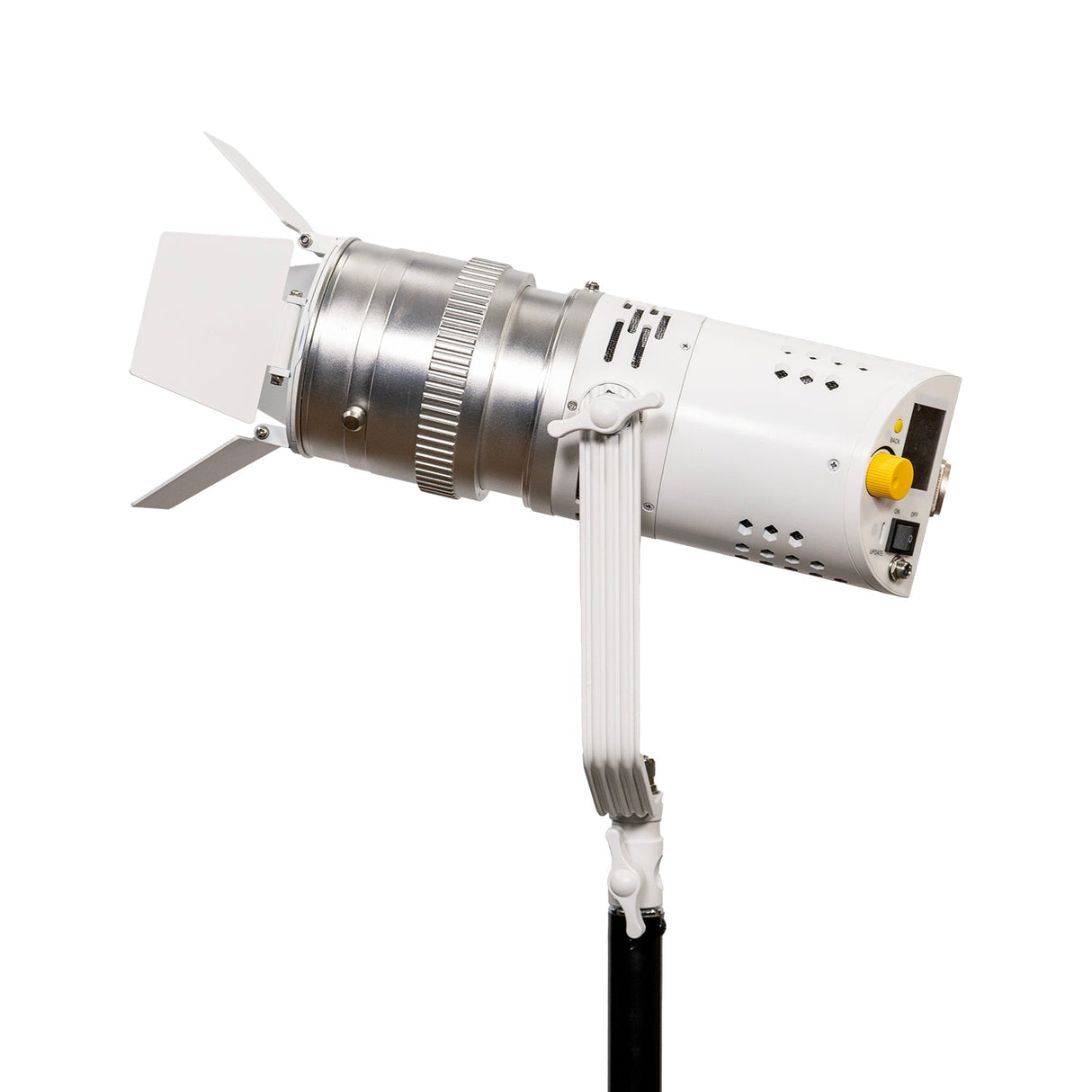

• Mounting: Yoke; supports standard stage clamps and stand use
• Combo Pin: Baby 5/8" and Junior 1-1/8" combo pin with 90° offset
• Barn Doors: Removable
• Illumination Dimensions: 3.25" diameter
• Operating Temperature: 10°F to 110°F
• Fixture Dimensions: 14.3" x 4.2" x 5.8"
• Fixture Weight: 3.6 lbs

What's Included

• 3 x Ikan LBF60Z-POE Lyra PoE Bi-Color Studio Fresnel Zoom LED Light
• 3 x Yoke
• 3 x Barn Doors
• 3 x Combo Pin
• 3 x Safety Wire
• 1 x PoE++ 380W Unmanaged Ultra60 Switch
