Ikan LBX16-POE-3MIX-1S Lyra PoE Bi-Color LED Light & Switch Bundle - Black

Ikan LBX16-POE Lyra PoE Bi-Color LED Light & Switch Bundle

The Ikan LBX16-POE Lyra PoE Bi-Color LED Light and Switch Bundle combines one LBX16-POE panel, two LBX8-POE panels, a Netgear 720W PoE++ switch, and Light Deck control software in one network-ready lighting package. Available in standard and white colorway variants, both configurations provide the same lighting system with a finish choice for different production and installation environments.

Each Lyra fixture uses Ethernet connectivity to simplify installations requiring both power and DMX-over-IP control. The LBX16-POE supports IEEE 802.3bt Type 4 PoE++, while the included LBX8-POE fixtures use Type 3. ArtNet and sACN support allows the system to integrate into IP-based lighting networks without requiring separate conventional DMX cabling. Q-SYS compatibility further supports centralized intensity and color-temperature control.

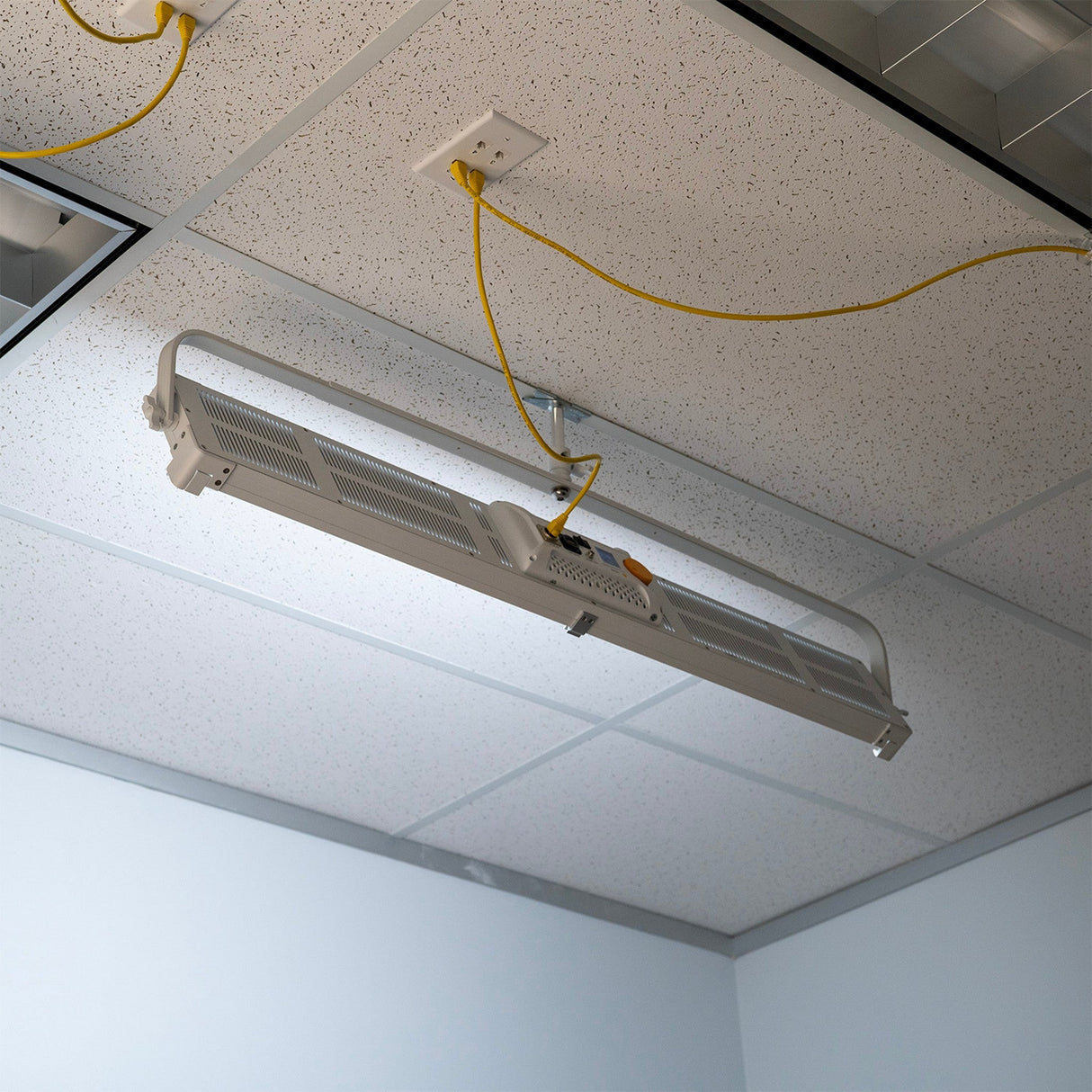

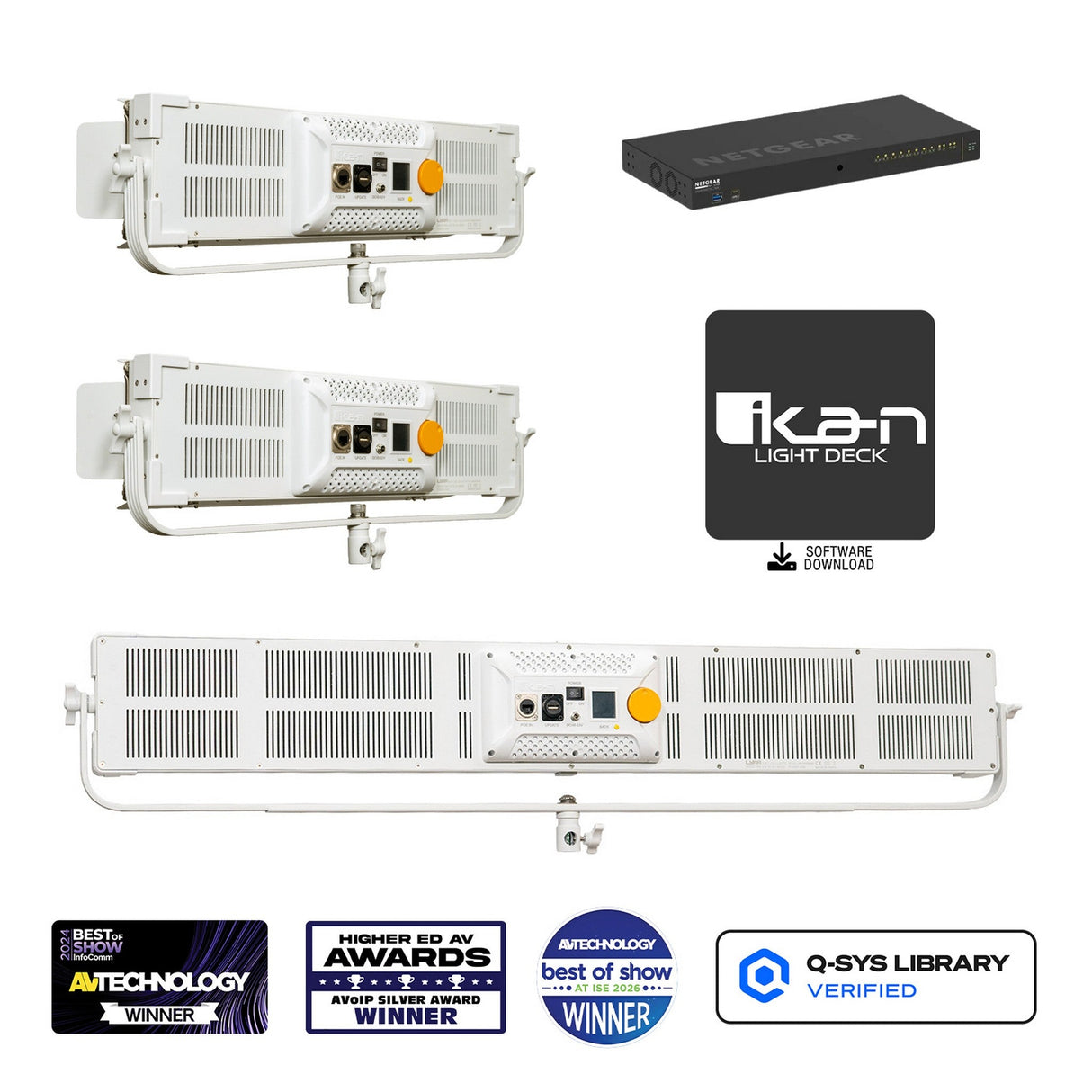

The low-profile Lyra panels provide broad 110-degree illumination suited to broadcast studios, podcast rooms, classrooms, conference rooms, houses of worship, and other professional AV spaces. Passive fanless cooling supports noise-sensitive environments, while the included mounting hardware provides installation flexibility. The white LBX16-POE-WH-3MIX-1S variant offers the same bundle configuration in a white finish for spaces where lighter-colored fixtures better complement ceilings, walls, and architectural interiors.

Key Features

• Two Colorway Variants: Choose the standard LBX16-POE-3MIX-1S or white LBX16-POE-WH-3MIX-1S configuration.

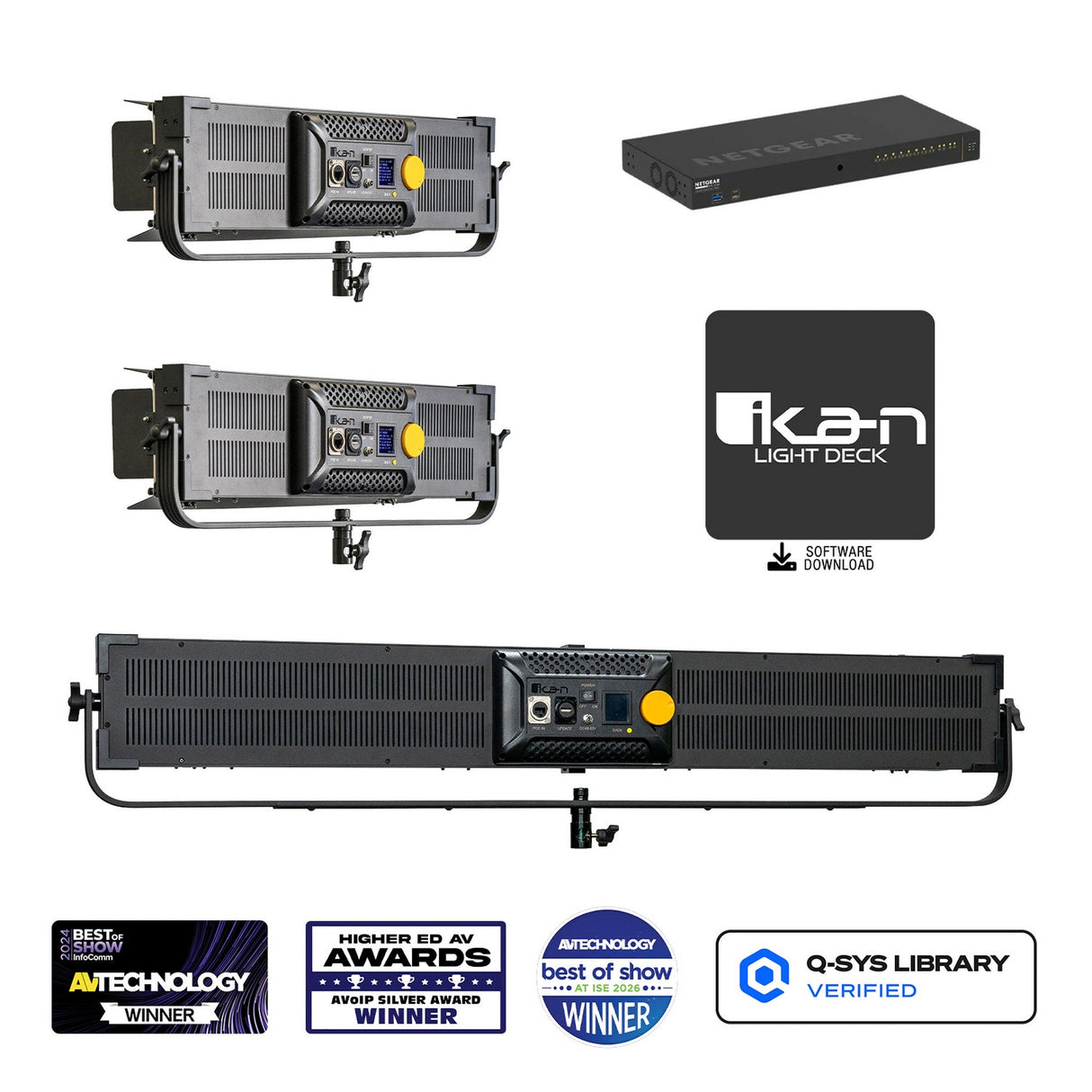

• Three-Fixture Lighting Bundle: Includes one LBX16-POE panoramic panel and two LBX8-POE low-profile panels.
• PoE++ Network Switch: Includes a Netgear IEEE 802.3bt PoE++ switch with a stated 720W power budget.
• Ethernet Power and Control: Lyra PoE fixtures support network-based power and lighting control through RJ45 connectivity.
• ArtNet and sACN: Supports common DMX-over-IP protocols for professional networked lighting environments.
• Q-SYS Compatible: Supports integration through the Q-SYS Designer plugin for intensity and color-temperature control.
• Wide 110-Degree Beam: Produces broad illumination for studios, conference rooms, classrooms, and installed AV applications.
• Passive Cooling: Fanless fixture operation helps maintain quiet conditions in recording and broadcast environments.

Technical Specifications

Bundle

• Standard Variant SKU: LBX16-POE-3MIX-1S

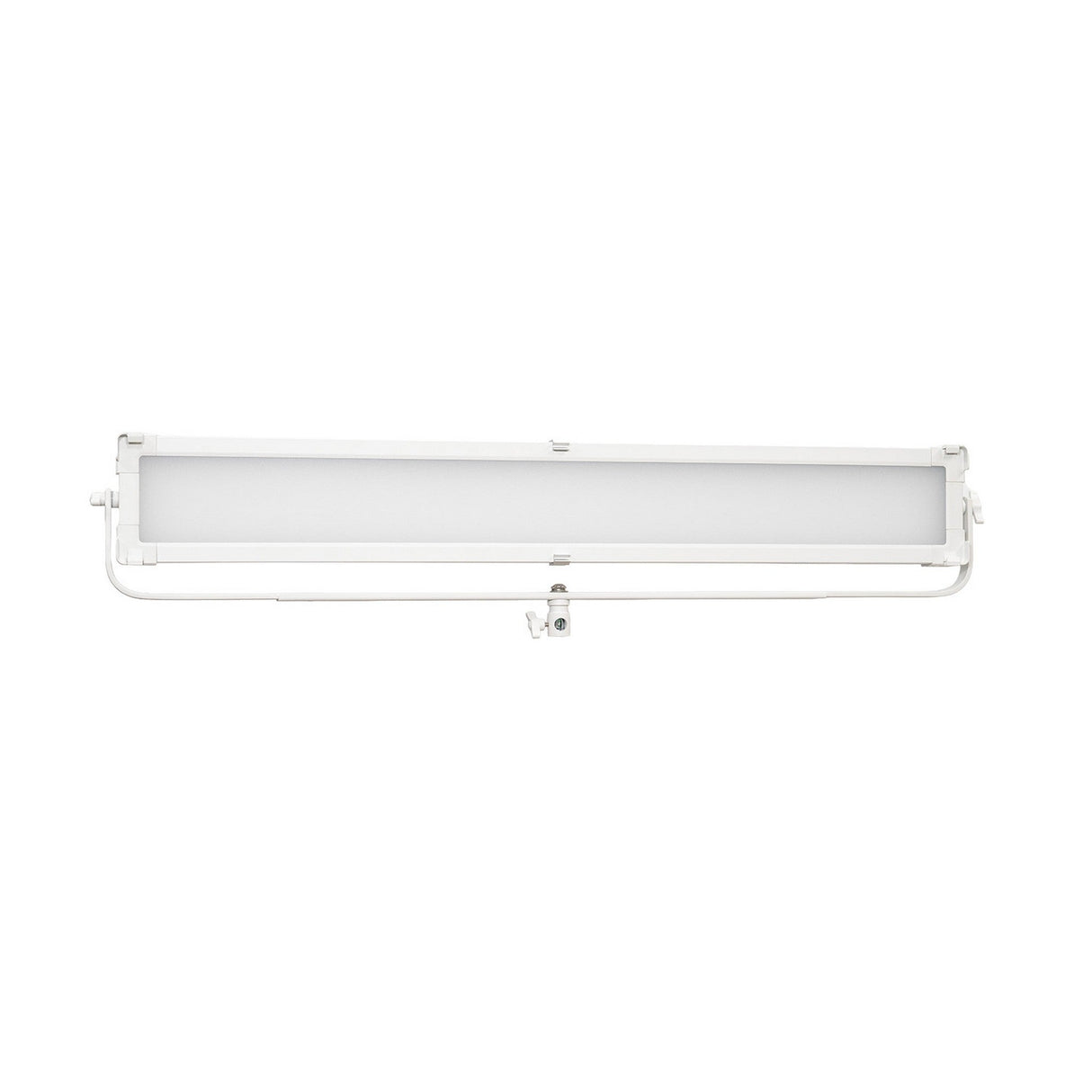

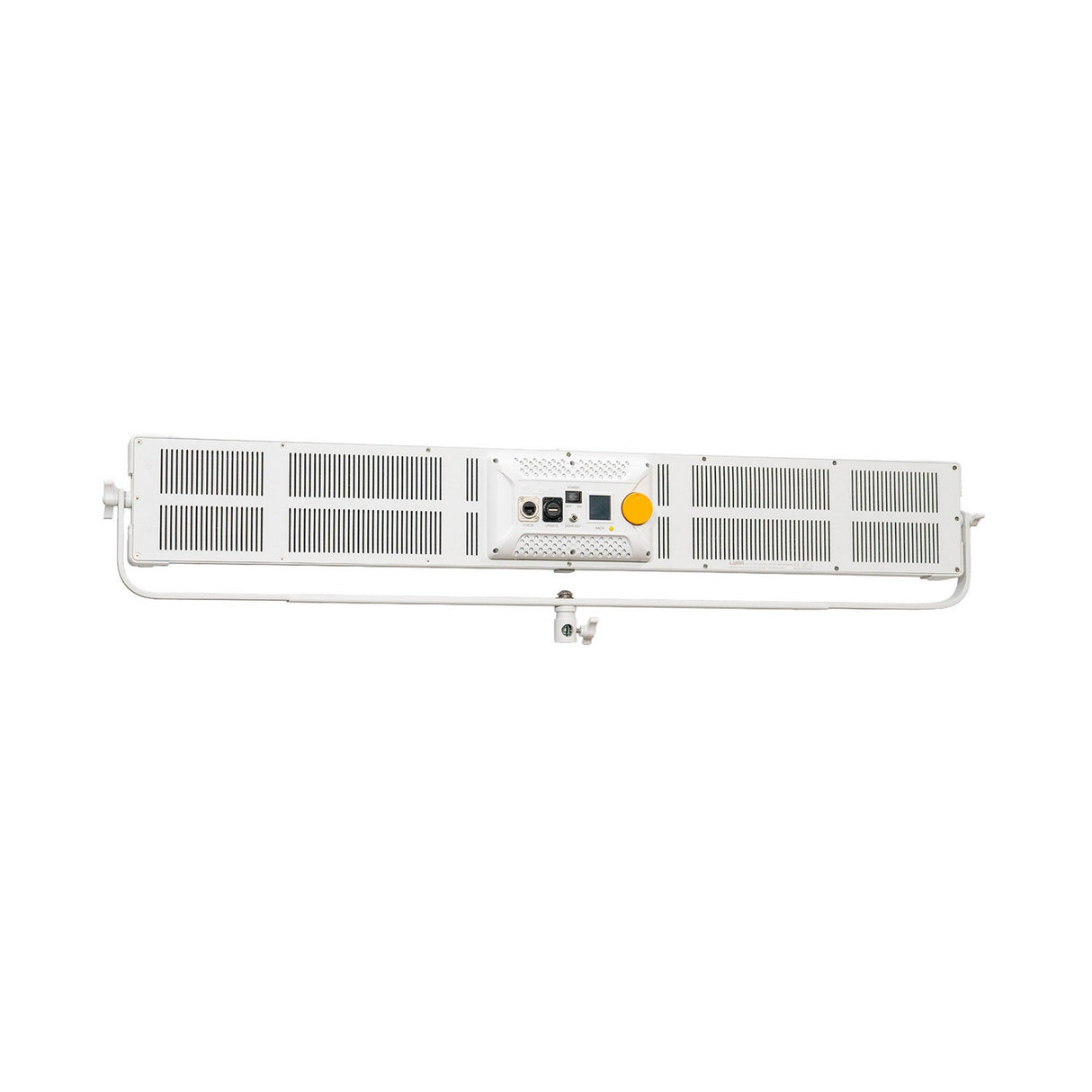

• White Variant SKU: LBX16-POE-WH-3MIX-1S
• Color Variants: Standard and White
• Fixture Configuration: 1 x LBX16-POE and 2 x LBX8-POE
• Included Network Switch: Netgear PoE++ 802.3bt 720W switch
• Included Control Software: Light Deck DMX Software
• Control Protocols: ArtNet and sACN DMX-over-IP
• Q-SYS Compatibility: Q-SYS Designer plugin compatible
• Professional Installation: Required
• Shipping Weight: 45 lb
• Shipping Dimensions: 48 x 12 x 6 inches

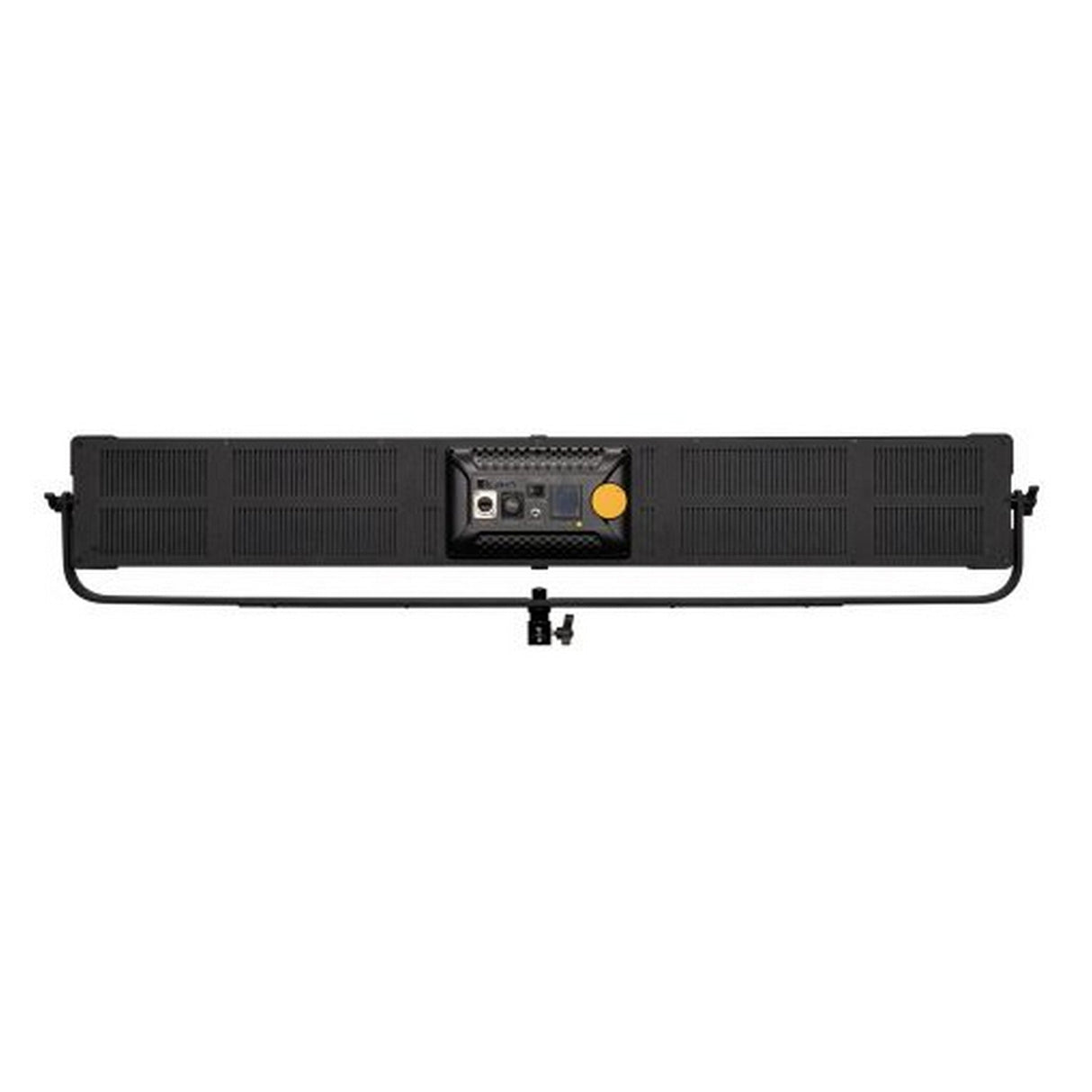

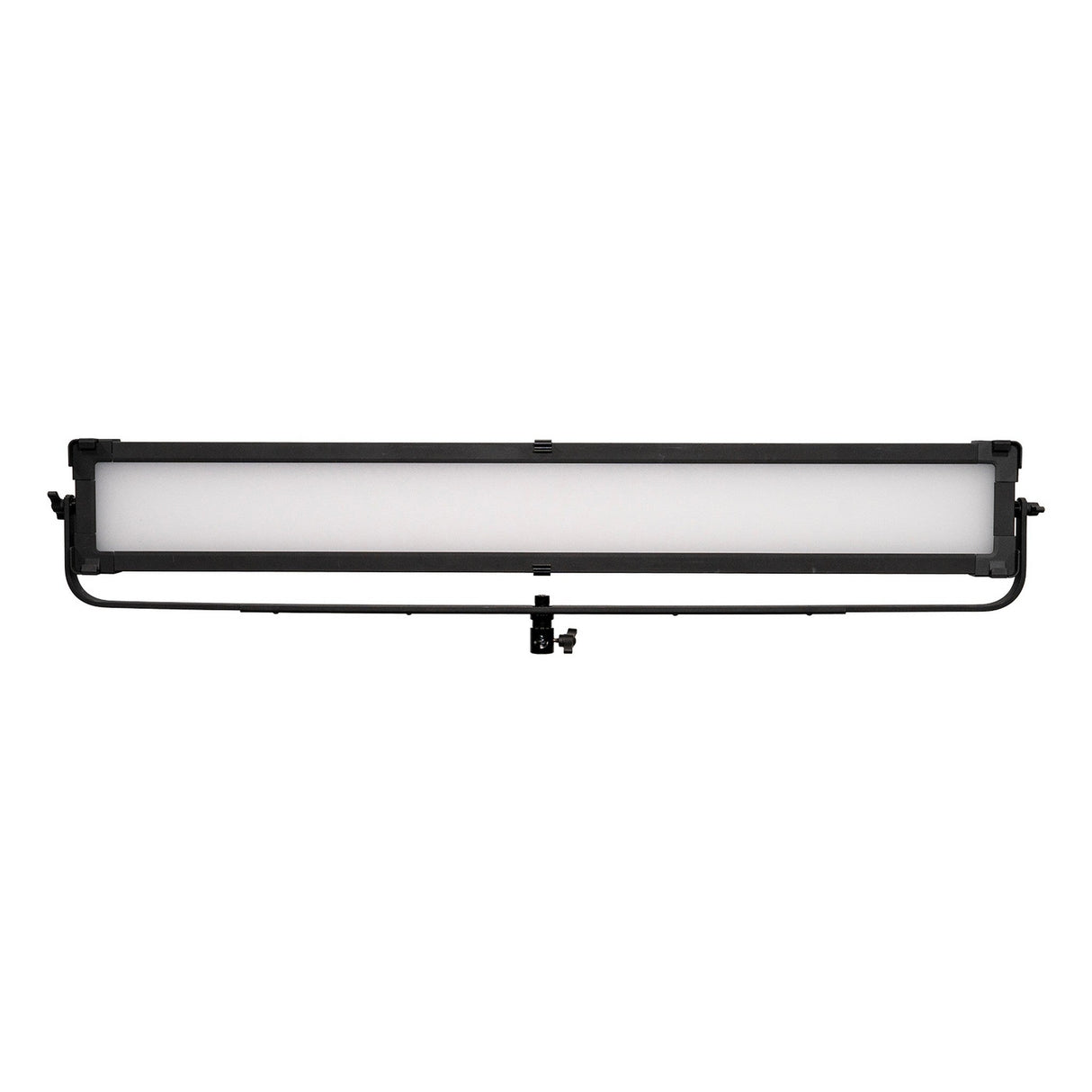

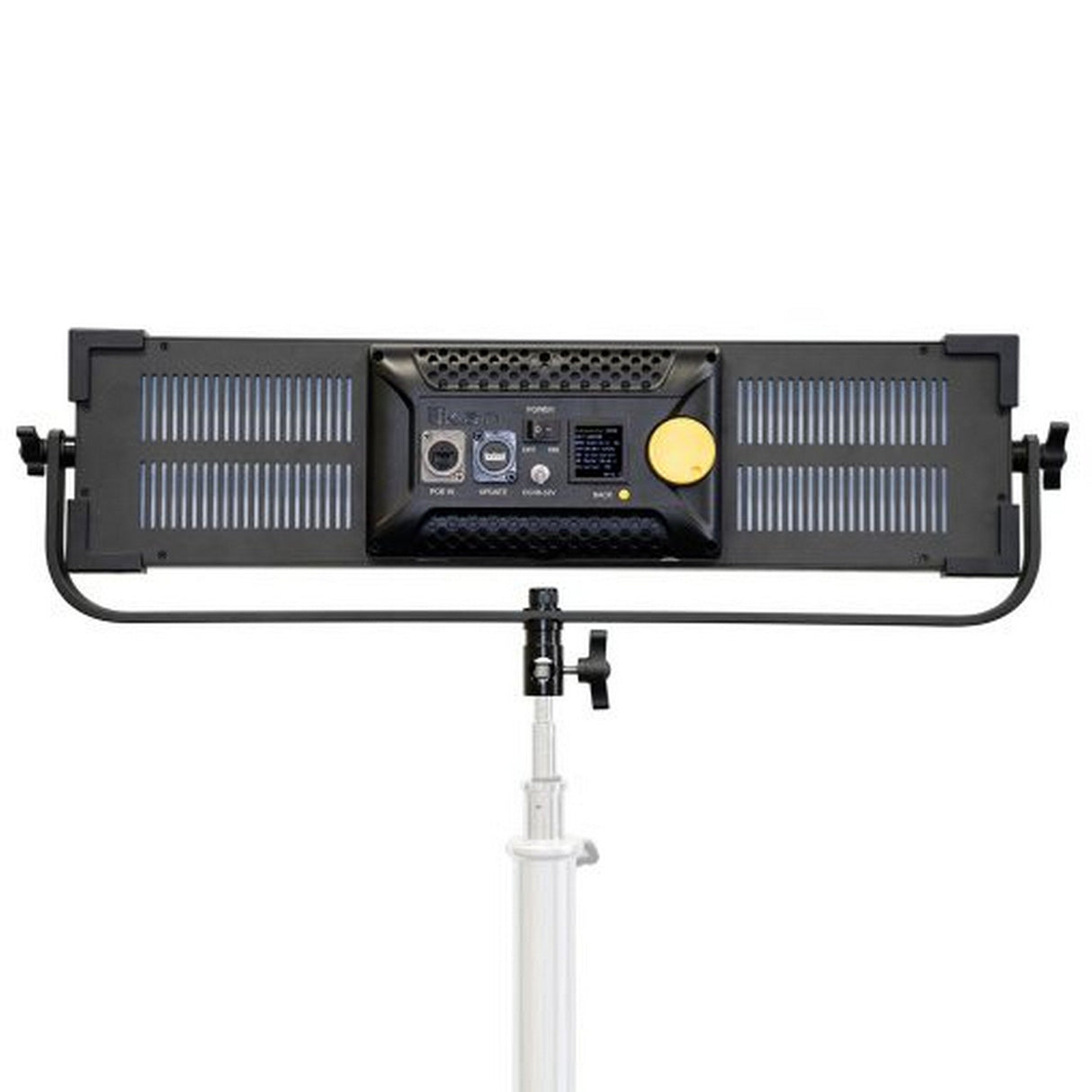

LBX16-POE

• Fixture Type: LED panel
• LED Type: COB
• Color Temperature: 2700K-6500K
• Beam Angle: 110 degrees
• CRI: 98
• TLCI: 99
• Illumination Dimensions: 40.5 x 4 inches
• Fixture Dimensions: 44 x 7 x 3 inches
• Fixture Weight: 10 lb
• Build Material: Heavy-duty resin plastic and metal
• Lens: Permanent 1/2-stop soft diffusion panel
• Mounting: Yoke with baby 5/8-inch and junior 1-1/8-inch combo pin with 90-degree offset

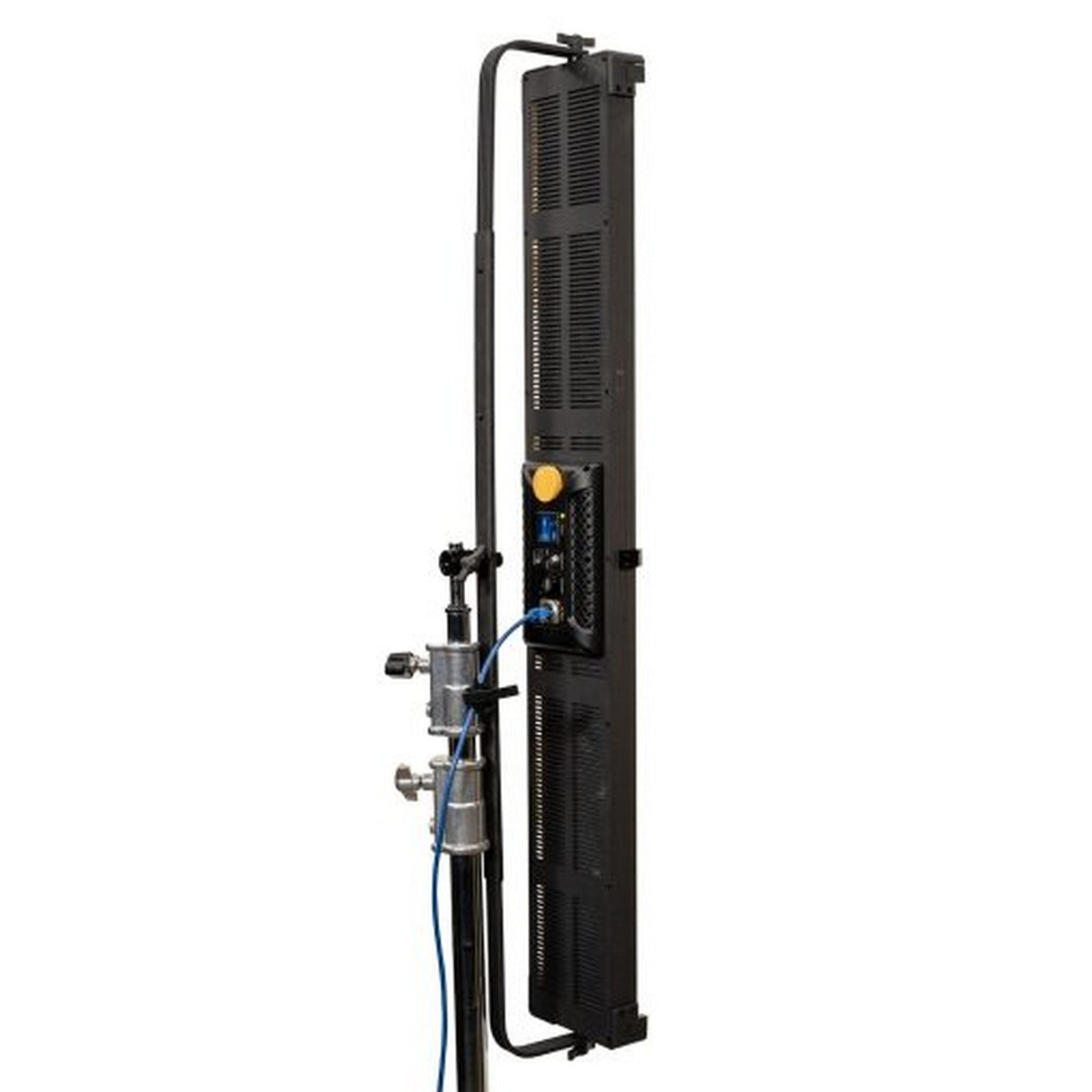

• Stand and Grid Mounting: Supports standard stage clamps and stand use
• Barn Doors: Optional
• Accessory Mounting: Corner clips support optional barn doors and egg crates
• Power Input: 110-220VAC
• Operating Voltage: 48VDC
• Frequency: 50/60 Hz
• Maximum Power Consumption: 85W
• Watt Equivalent: 850W
• PoE Standard: IEEE 802.3bt Type 4 PoE++
• PoE++ Ports: 1
• Power Loss Behavior: Last Scene Hold
• Power Supply Specification: Input 110-220VAC; output 48VDC at 3.12A
• Power Supply: Not included

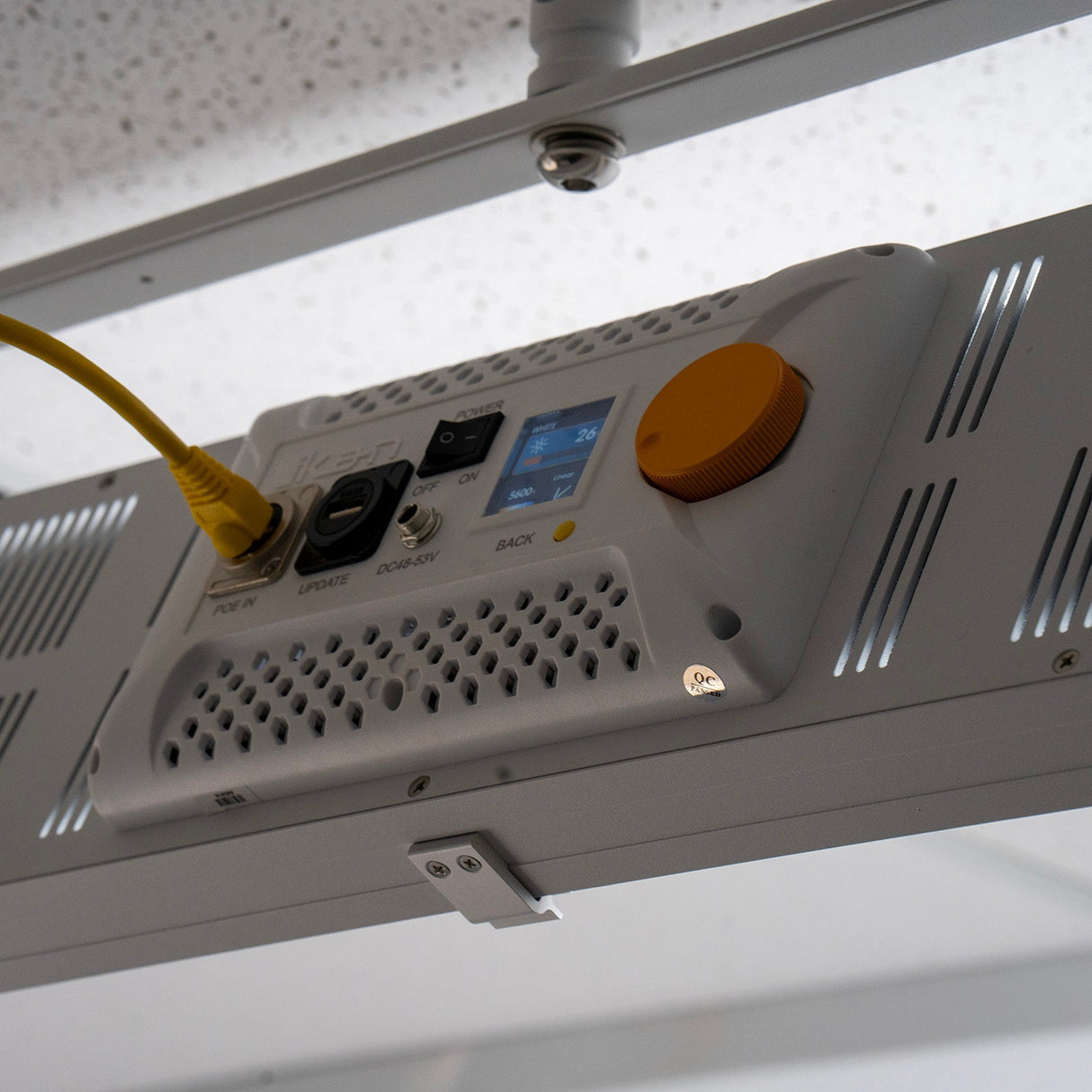

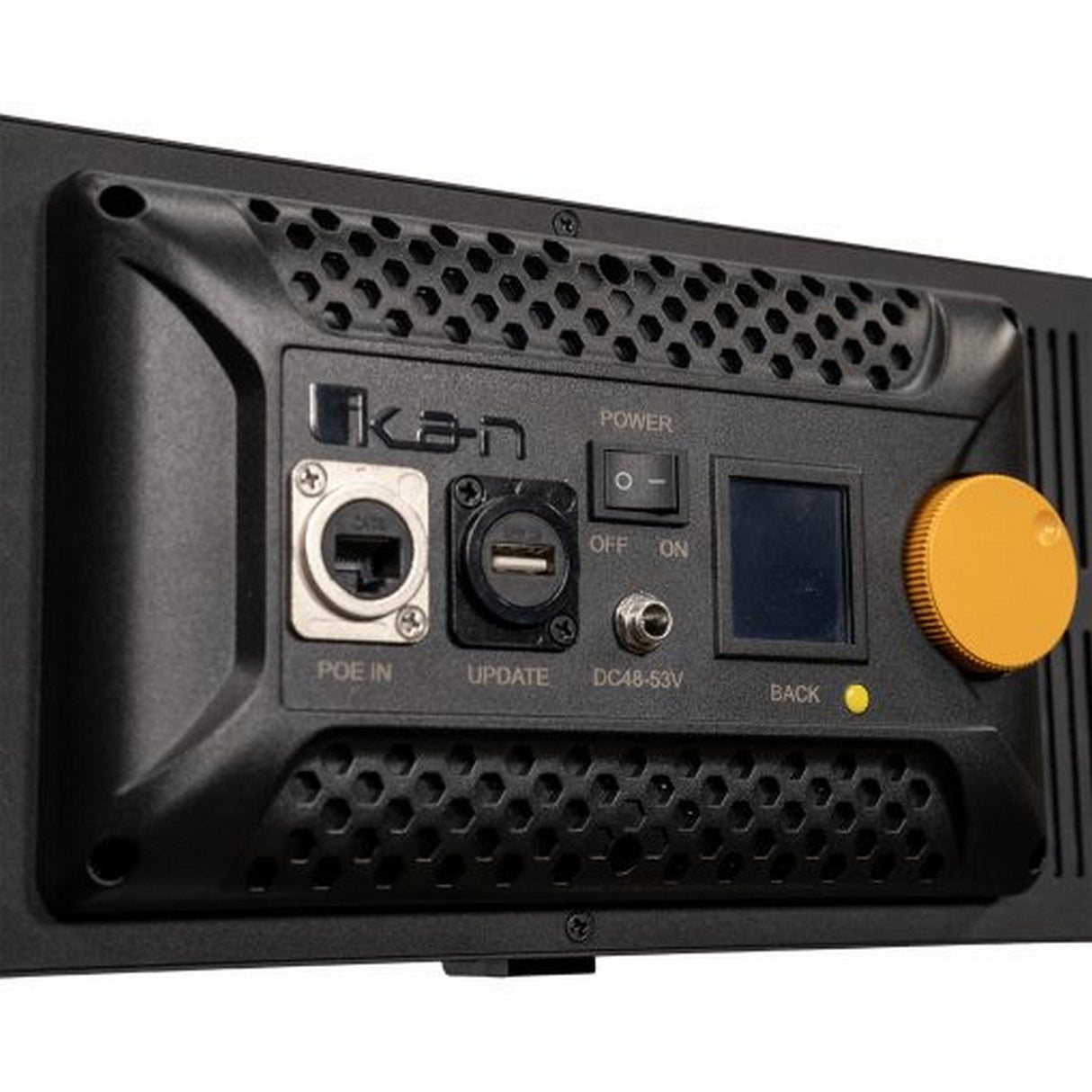

• Input/Output Ports: RJ45 and USB Type-A
• DMX: ArtNet and sACN via RJ45
• Dimming Range: 0-100% in 1% increments
• Cooling: Passive
• LED Lifetime: 70,000 hours
• Display: LCD screen
• Operating Temperature: 10-110 degrees F
• Patent: 12,477,643

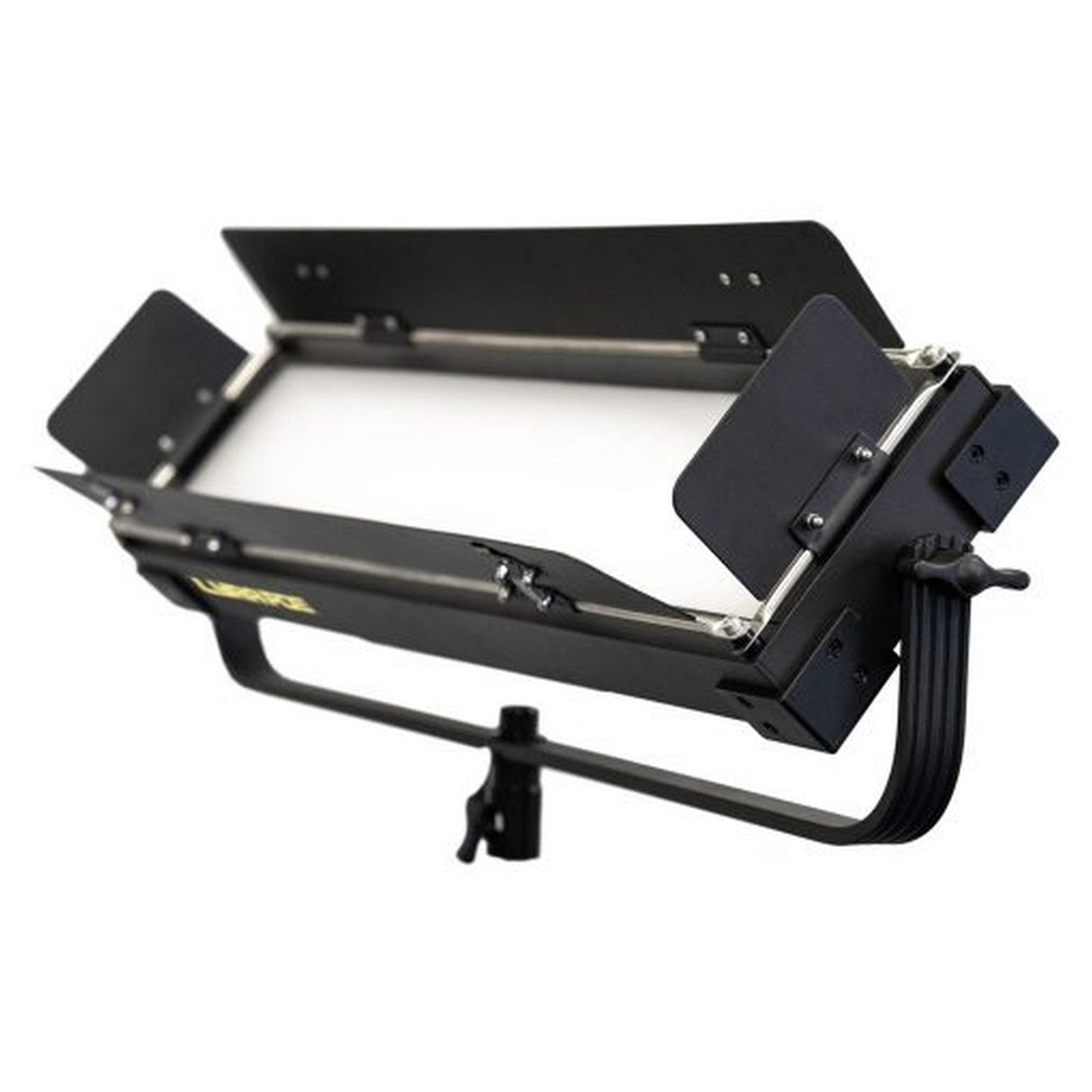

LBX8-POE

• Quantity: 2
• Fixture Type: LED panel
• Color Temperature: 3200K-5600K
• Beam Angle: 110 degrees
• CRI: 97
• Panel Dimensions: 20 x 4 inches
• Fixture Dimensions: 24.5 x 7 x 1.9 inches
• Fixture Weight: 4.9 lb each
• Mounting: Baby 5/8-inch and junior 1-1/8-inch combo pin
• Barn Doors: Built in
• DMX: ArtNet and sACN
• Watt Equivalent: 500W
• Power Consumption: 50W
• PoE Standard: IEEE 802.3bt Type 3
• PoE++ Ports: 1 per fixture

Network Control

• Ethernet Connection: RJ45
• Recommended Ethernet Cable: Cat6 RJ45 24AWG or better
• Web GUI: Provides access to ArtNet and sACN settings, DMX addresses, universes, and configured IP address settings
• Q-SYS Designer Control: Supports intensity and color-temperature control for up to 256 lights per universe through the compatible plugin

What's In the Box

• 1 x LBX16-POE fixture
• 2 x LBX8-POE fixtures
• 1 x PoE++ Switch
• 1 x Light Deck DMX Software
• 3 x Yokes, installed
• 3 x Combo Pins
• 3 x Safety Wires
• 1 x Manual
