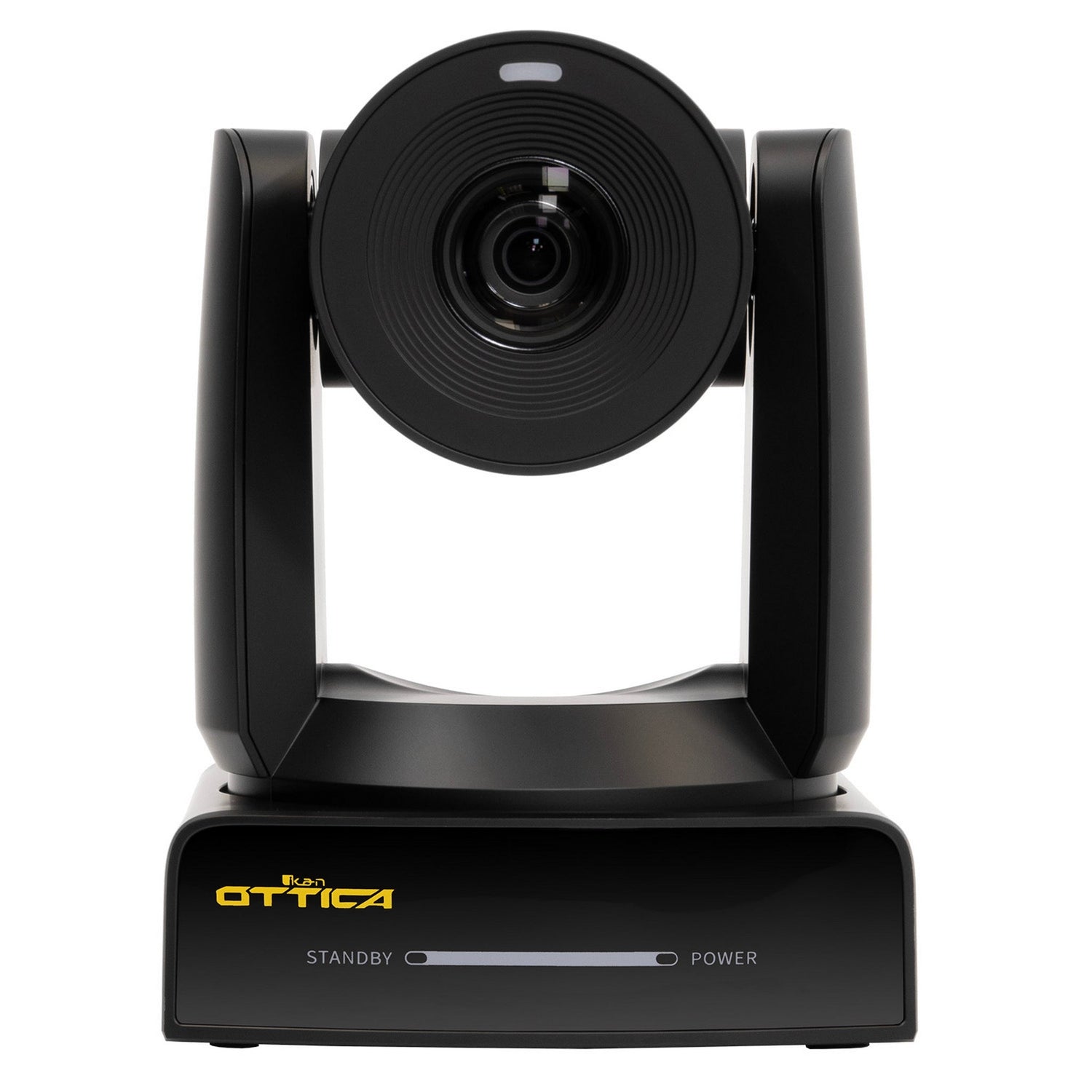

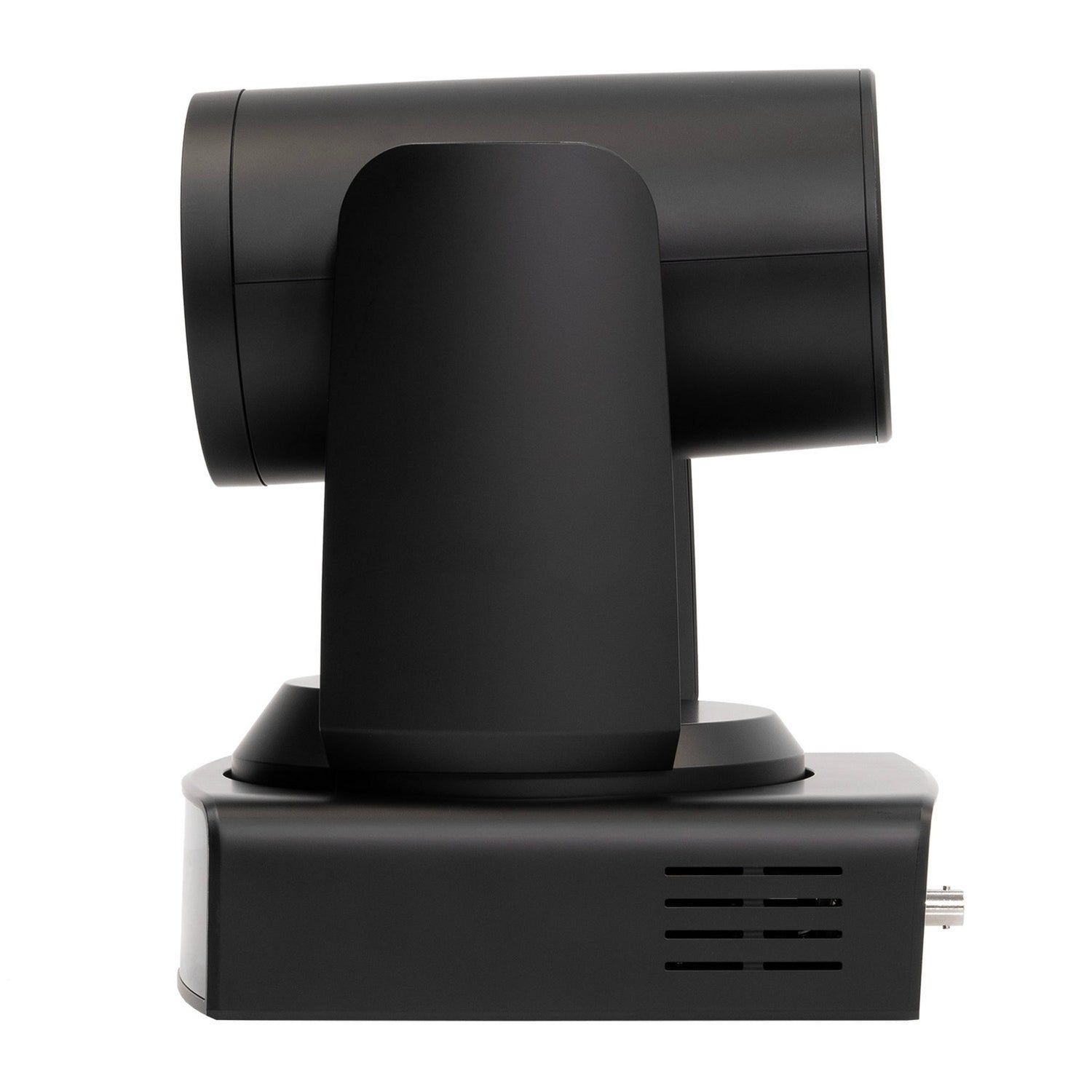

Ikan OTTICA-4K-30X NDI HX3 30x PTZ Camera 4K 60p with AI Tracking and POE
The OTTICA NDI HX3 PTZ Camera delivers professional-grade video with its 30× optical zoom and full 4K at 60 frames per second. Designed for large venues, live streaming, broadcast, and AV workflows, this camera supports NDI|HX3 along with multiple video outputs and control protocols to adapt to many setups.
Built-in AI tracking and auto framing provide hands-free subject tracking, while silent motors, fast autofocus, and varifocal lens (7.1-210mm) ensure sharp, stable images even under dynamic conditions. It also features blackout mode for teleprompter-friendly operation and tally/light support via NDI or HTTP API.
The camera is versatile and reliable, ideal for studios, houses of worship, corporate video, or any multi-camera AV environment. With PoE support, a broad range of connectivity (HDMI, SDI, RJ45, RS-232/485, audio in), and a 2-year warranty, it offers a lot of flexibility and durability for continuous use.
Key Features
- 30× Optical Zoom: Varifocal lens covering 7.1–210 mm for wide to tight shots.
- 4K/60p Video Output: High resolution, high frame rate across HDMI, SDI, and network outputs.
- AI Tracking & Auto Framing: Subject detection followed by automatic framing; works with face recognition.
- NDI|HX3 Support: Low latency AVoIP protocol; includes tally over NDI or HTTP API.
- Multiple Control Options: IP VISCA, RS‑232, RS‑485, Pelco D/P, ONVIF, IR Remote, UVC, plus web GUI.
- Blackout Mode: Turn off indicator/tally lights for teleprompter use.
- Silent PTZ Motor & Fast Autofocus: Smooth, precise, low noise movement.
- Wide Pan/Tilt Range: ±170° pan; ‑30° to +90° tilt.
Technical Specifications
- Sensor: 1/1.8″ CMOS, 8.42 effective MP
- Lens / Zoom: 30× optical, varifocal 7.1‑210mm, f/1.61‑f/5.19
- Digital Zoom: 16×
- Minimum Illumination: 0.5 lux @ f/1.8, AGC on
- Shutter Speed: 1/30s ~ 1/10000s
- White Balance: Auto, Indoor, Outdoor, One‑Push, Manual, VAR
- Noise Reduction: 2D & 3D noise reduction, SNR > 55 dB
- Field of View (Horizontal): ~59.2° to ~2.5°
- Field of View (Vertical): ~34.6° to ~1.4°
- Pan / Tilt Range: Pan ±170°, Tilt ‑30° to +90°
- Pan / Tilt Speed: Pan 1.7°‑100°/s; Tilt 1.7°‑69.9°/s
- Preset Positions: 255
- Preset Accuracy: 0.1°

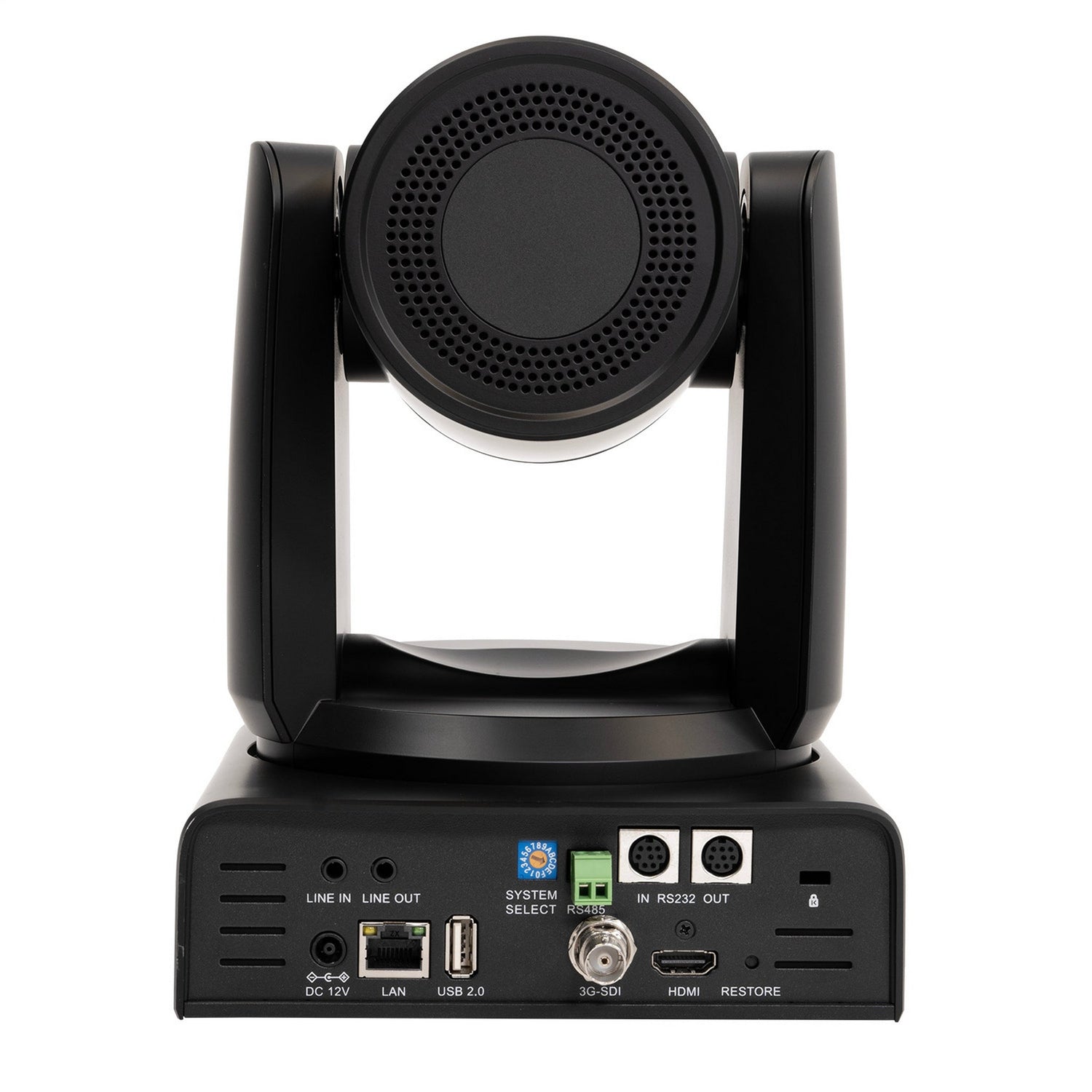

- Outputs / Interfaces: HDMI 2.0; 3G‑SDI; RJ45; USB2.0 Type‑A; USB3.0 Type‑B; RS‑232; RS‑485; 3.5 mm audio in
- Video Compression / Network Protocols: H.264, H.265, MJPEG; NDI|HX2/HX3, SRT, RTSP, RTMP(s), ONVIF, DHCP
- Power: DC 12V / PoE+ (802.3at), Max ~18 W
- Operating Temperature: 0 °C ~ 40 °C
- Storage Temperature: ‑40 °C ~ 60 °C
- Dimensions: 6.7" × 7.7" × 9.0" (17 × 19.6 × 22.8 cm)
- Net Weight: 4.41 lbs (2.0 kg)
- Shipping Weight: 9 lbs

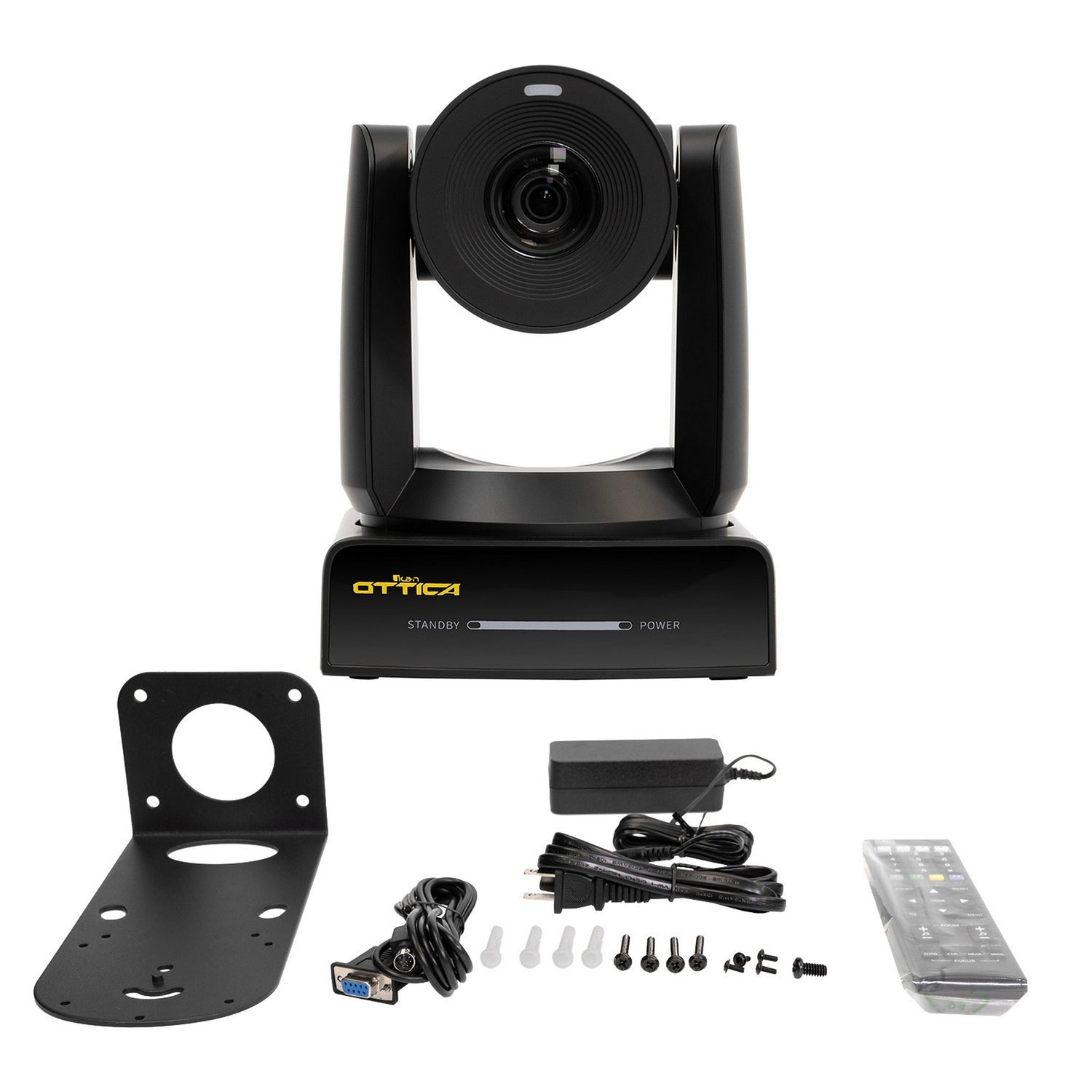

What’s in the Box
- 1x OTTICA PTZ Camera
- 1x Power Adapter
- 1x Power Cable
- 1x 1x RS‑232 Cable
- 1x Remote Control
- 1x Wall Mount & Screws
- 1x User Manual
