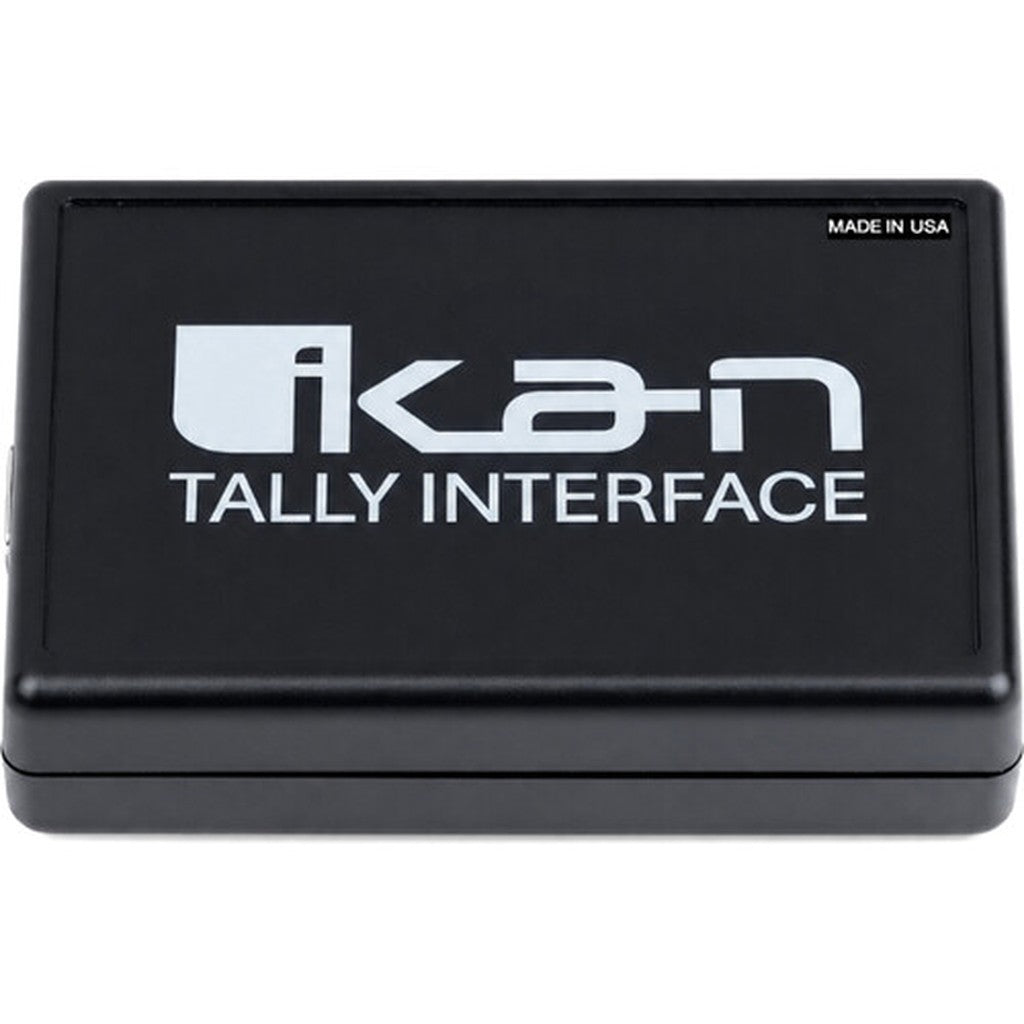

Ikan TI-OC-DAT-15-4 Datavideo 4-Camera 15-Pin Tally Router

Ikan TI-OC-DAT-15-4 Datavideo 4-Camera 15-Pin Tally Router

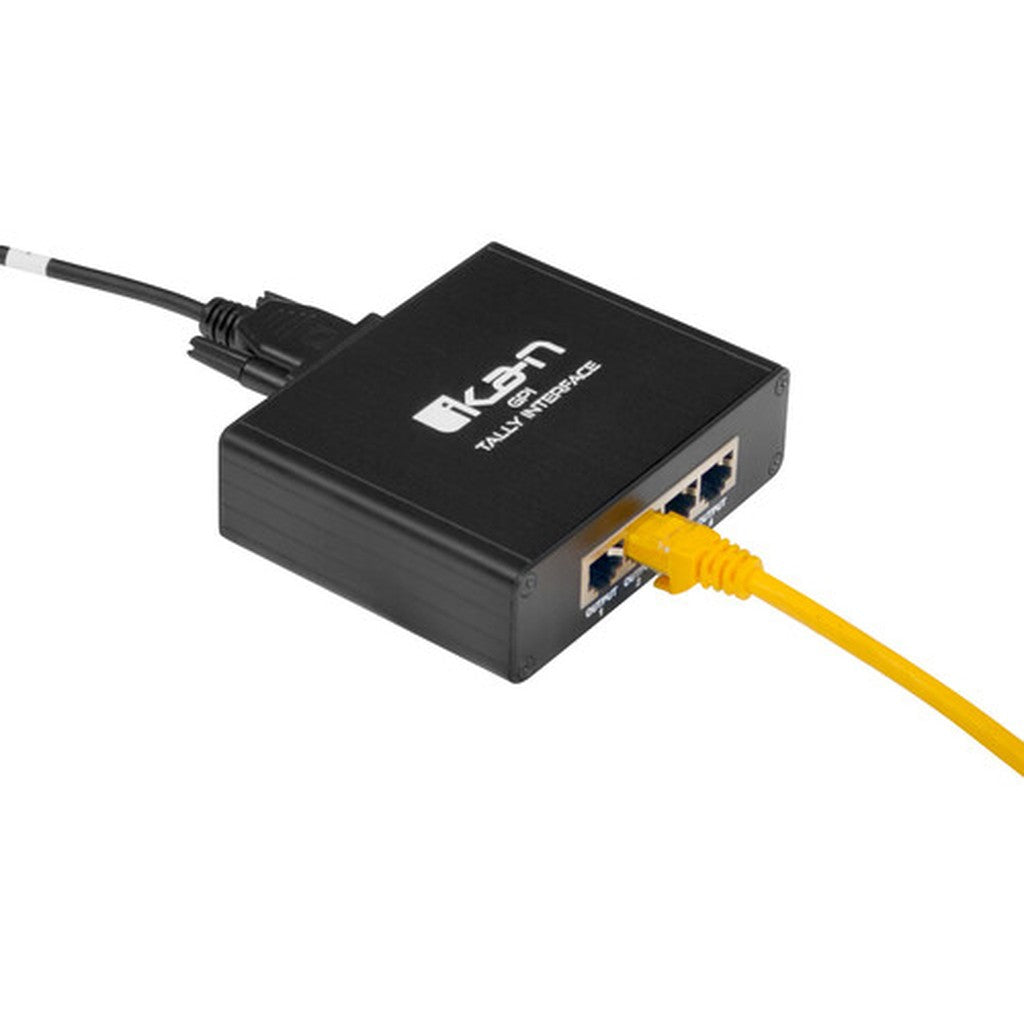

The Ikan TI-OC-DAT-15-4 15-pin Datavideo tally router converts a compatible switcher’s open-collector tally output into four RJ45 feeds for Ikan tally lights. It delivers real-time red program and green preview status for up to four cameras, helping talent and operators identify the live and next sources without software or IP configuration.

Designed for broadcast studios, houses of worship, corporate AV, education, and live-event production, this four-camera tally interface simplifies adding clear on-air cues to a Datavideo workflow. The included DB9-to-DB15 cable connects the router to supported 15-pin switchers, while four standard Ethernet cable runs carry individual tally signals to compatible lights. Its plug-and-play hardware design reduces setup time and avoids custom wiring.

Compatibility includes the Datavideo HS-1200, HS-1300, SE-500, SE-600, SE-650, SE-700, SE-1200MU, SE-2000, and SHOWCAST 100. The interface uses open-collector signaling with red for program and green for preview on every output. A compact black ABS enclosure, 5VDC power input, and labeled camera outputs support dependable integration in control rooms, mobile systems, classrooms, and permanent AV installations.

Key Features

• Four-Camera Tally Distribution: Provides four individually labeled RJ45 outputs for connecting up to four Ikan tally lights.
• Bi-Color Status Indication: Carries red program and green preview tally signals to help crews identify live and next cameras.
• Datavideo DB15 Compatibility: Includes the dedicated cable required for supported Datavideo switchers with 15-pin tally connections.
• Plug-and-Play Operation: Establishes hardware-based tally communication without software, drivers, custom wiring, or IP configuration.

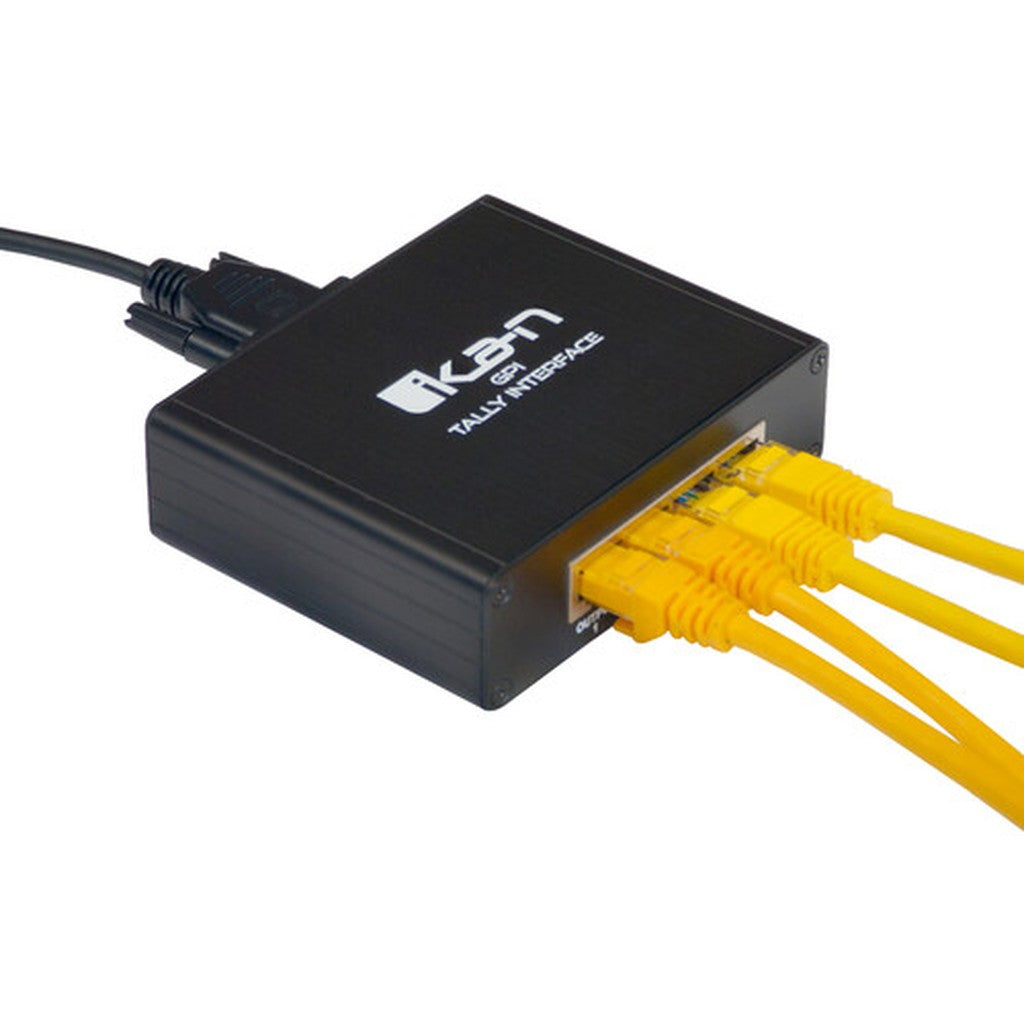

• Standard Ethernet Cabling: Supports commonly available Ethernet cables between the router outputs and compatible Ikan tally lights.
• Open-Collector Protocol: Interfaces directly with the supported switcher’s open-collector program and preview tally signals.
• Compact Production Design: Fits easily into broadcast control rooms, mobile production systems, educational studios, and installed AV environments.

Technical Specifications

• Brand: Ikan
• Model: TI-OC-DAT-15-4
• Product Type: Datavideo tally router and interface
• Supported Camera Positions: Up to 4

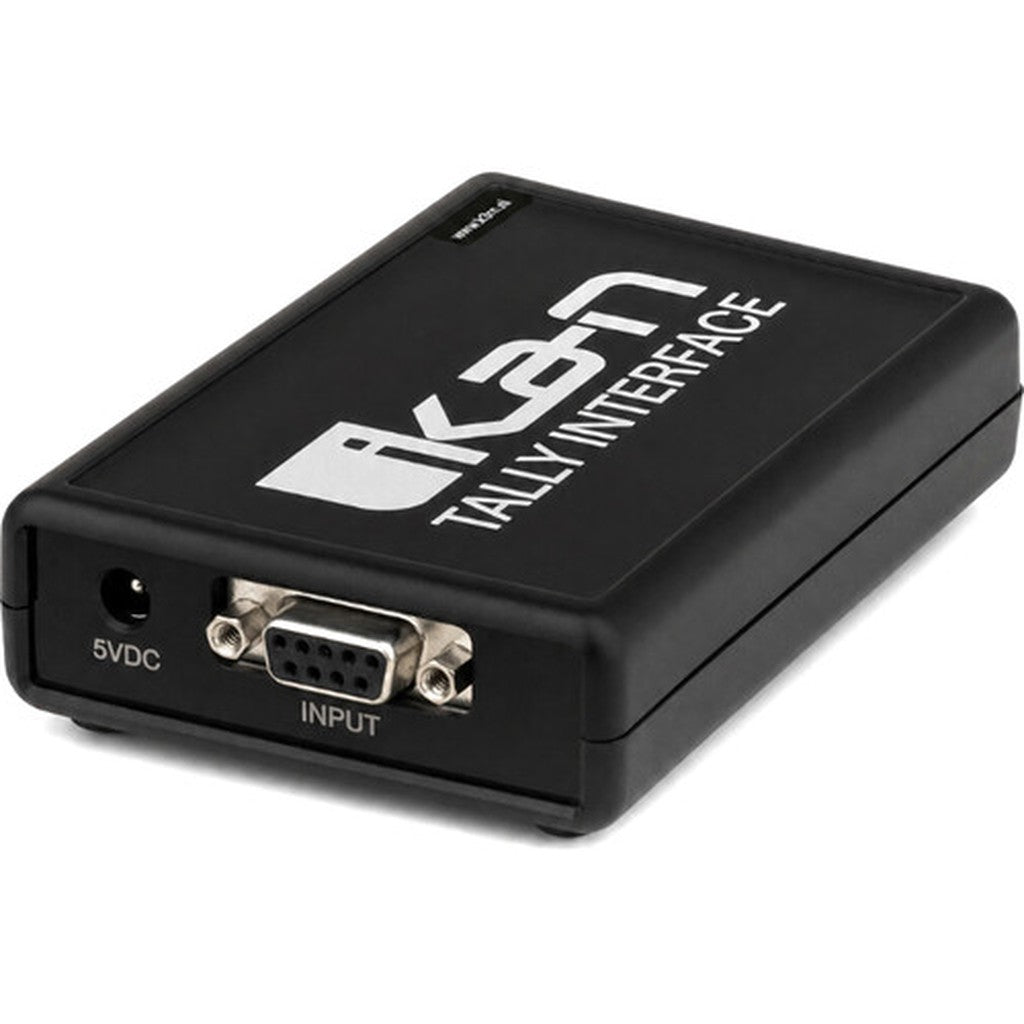

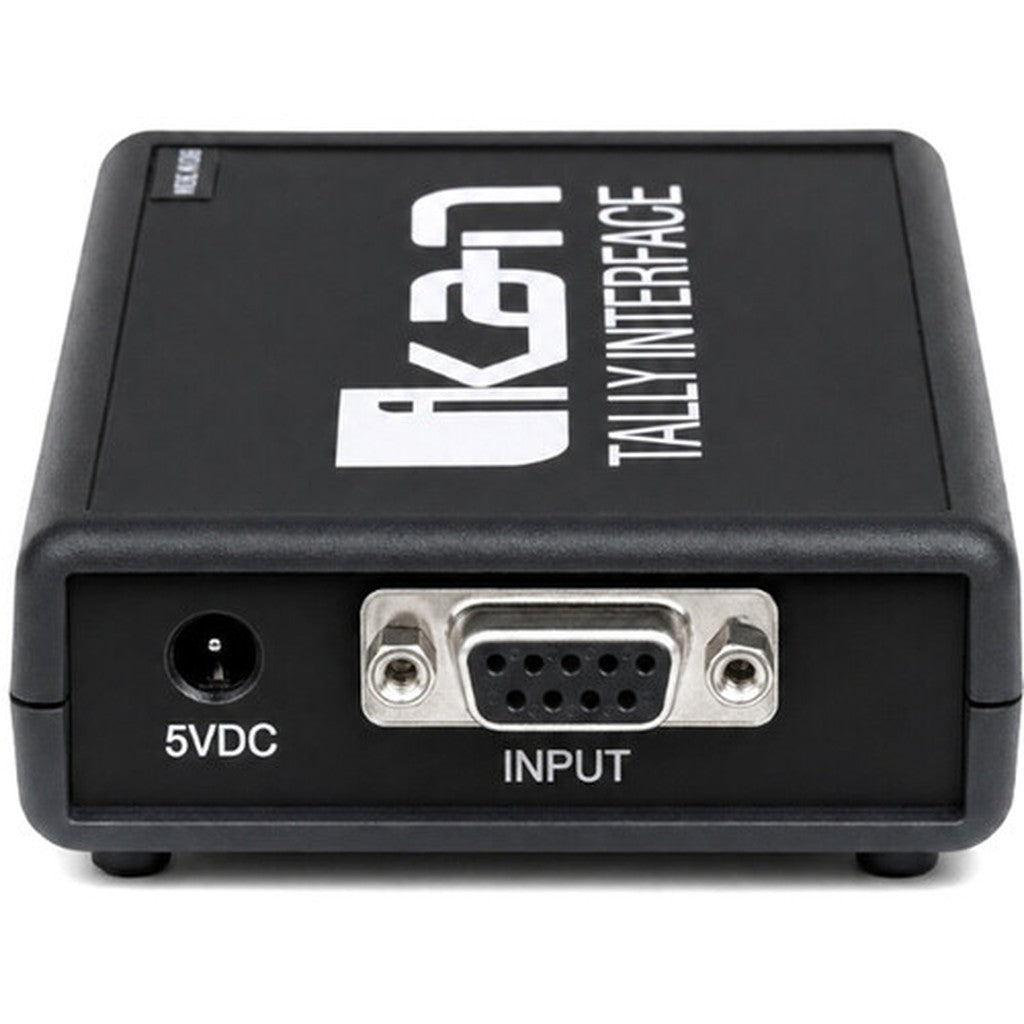

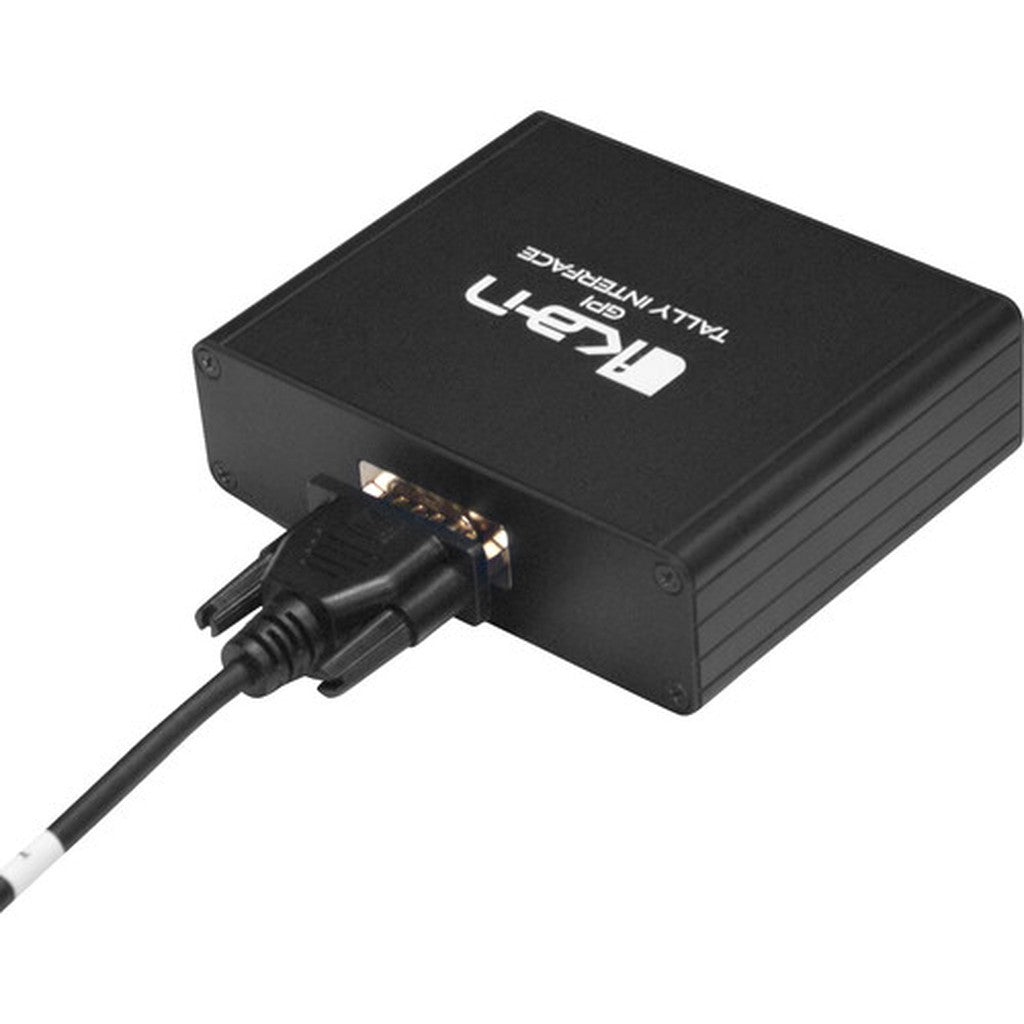

• Interface Input Connector: DB9 female
• Switcher Connector: DB15 through included switcher cable

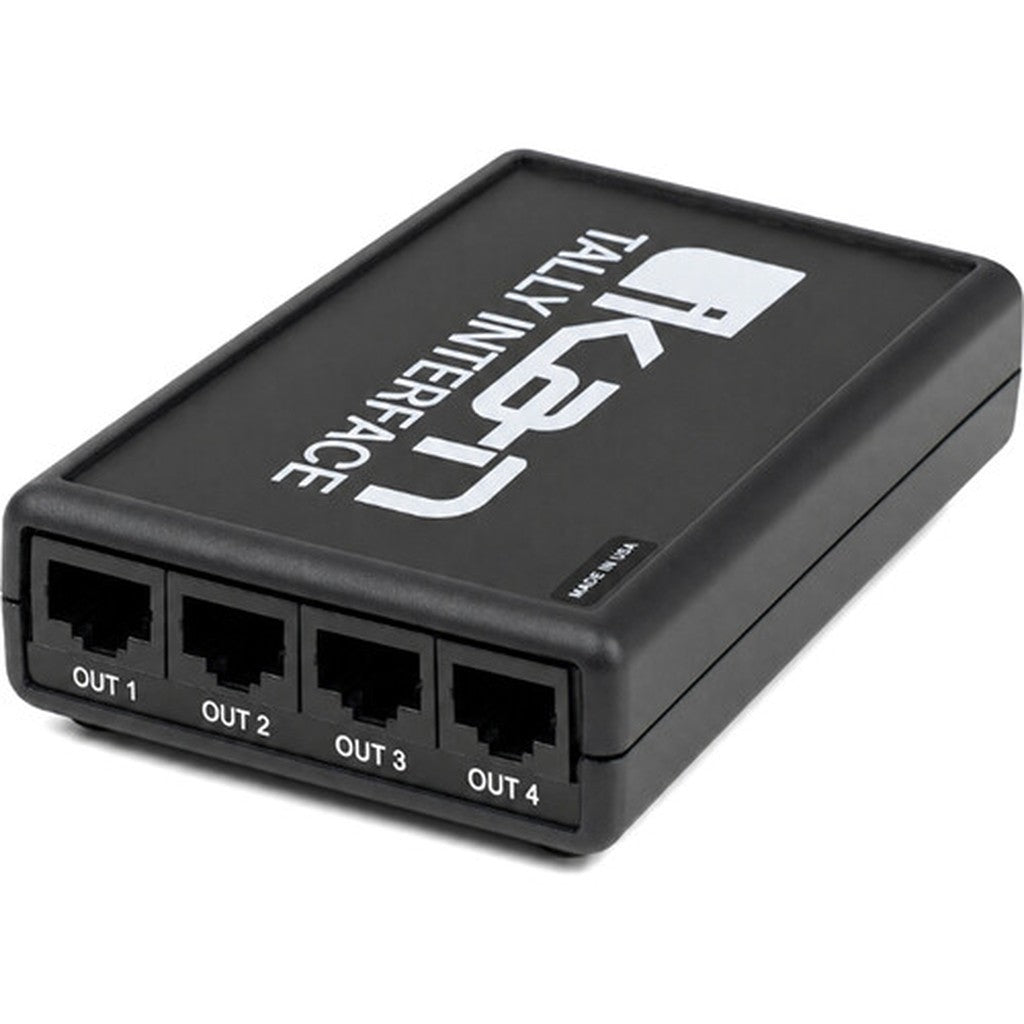

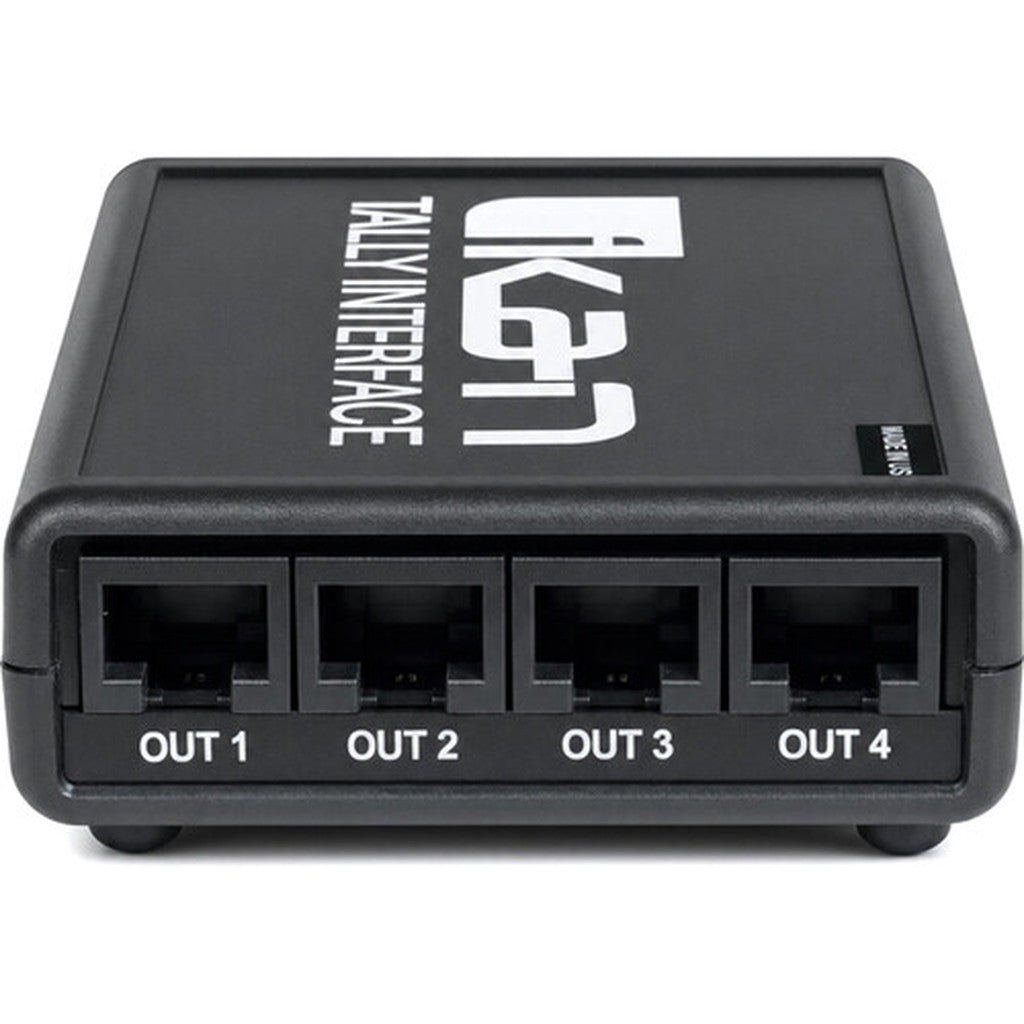

• Output Connectors: 4 x RJ45
• Tally Protocol: Open collector
• Tally Indications: Program red and preview green per output

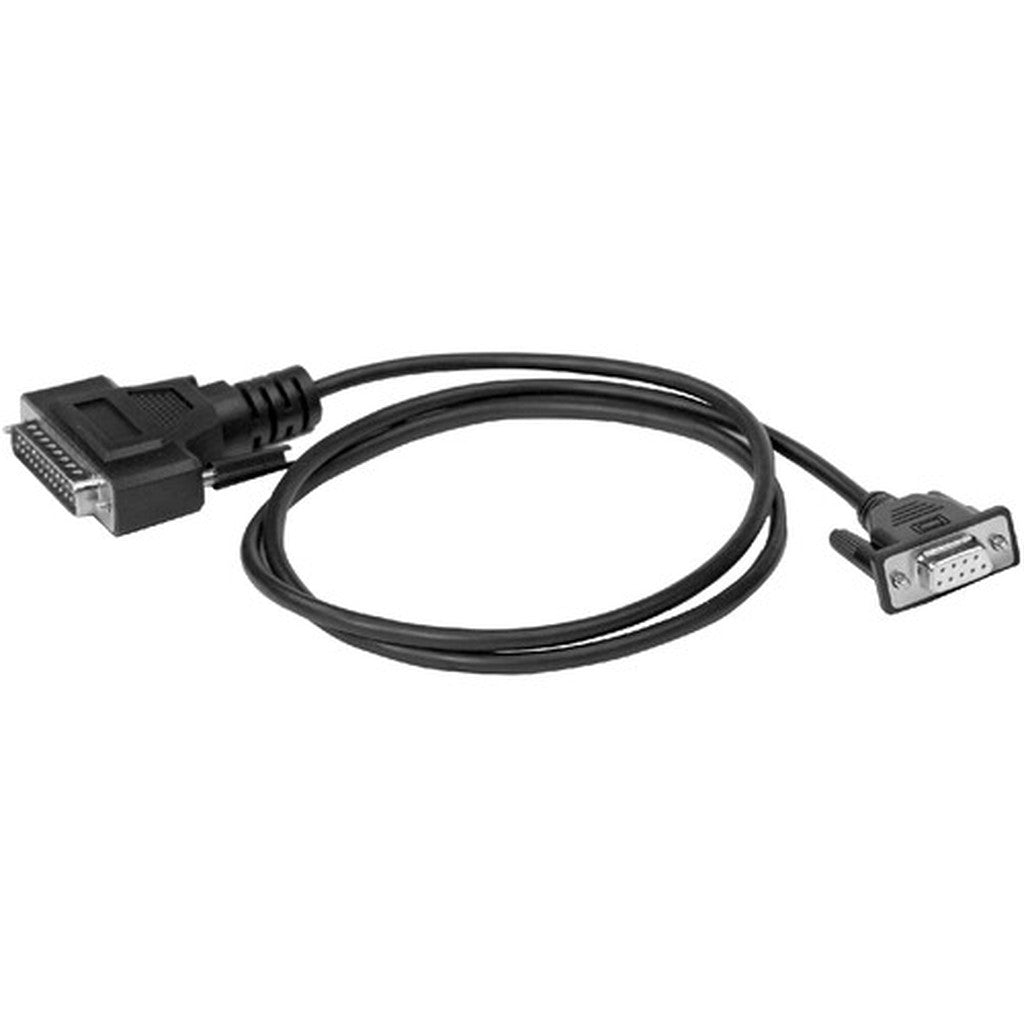

• Included Switcher Cable: TI-CBL-OC-DAT15
• Switcher Cable Length: 36" (3')
• Power Requirement: 5VDC, 750mA
• Power Connector: 5.5mm barrel jack
• Enclosure Material: ABS plastic
• Enclosure Color: Black
• Product Dimensions: 4.13" x 3.07" x 1.57"
• Product Weight: Approximately 1 lb
• Shipping Dimensions: 7" x 7" x 7"
• Shipping Weight: 2 lbs
• Country of Origin: United States

Compatible Datavideo Switchers

• HS-1200
• HS-1300
• SE-500
• SE-600
• SE-650
• SE-700
• SE-1200MU
• SE-2000
• SHOWCAST 100

What's In the Box

• 1 x Ikan tally interface
• 1 x TI-CBL-OC-DAT15 switcher connection cable
• 1 x 5VDC power adapter
