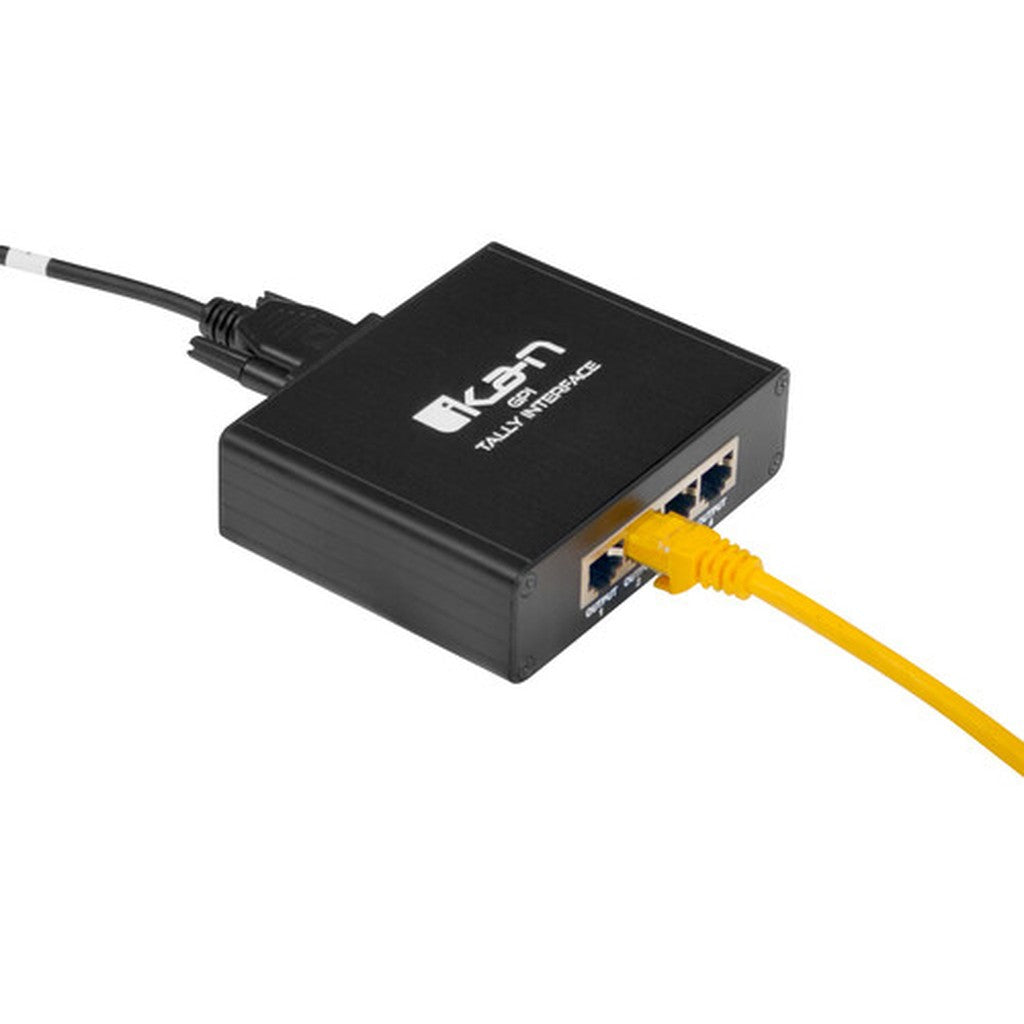

The Ikan TI-OC-ROL-15-4 Roland 15-pin tally interface links compatible Roland video switchers with an Ikan monitor tally system for up to four cameras. It distributes real-time switcher status through four RJ45 outputs, helping camera operators, presenters, and production crews immediately identify the active or upcoming camera source.

This four-camera tally router provides a practical solution for broadcast studios, houses of worship, corporate production rooms, educational facilities, and live-event systems. The included 15-pin switcher cable establishes a direct connection to supported Roland hardware, while standard Ethernet cables carry individual signals to compatible Ikan tally lights. Plug-and-play operation eliminates custom wiring, drivers, software installation, and IP configuration.

The interface supports Roland V-40HD, V-440HD, V-800HD, V-800HD MKII, and V-1600HD switchers. Its compact aluminum enclosure suits permanent control rooms and portable production kits. V-440HD users can access red program and green preview indicators by connecting to the appropriate tally port and enabling a compatible bi-color tally mode within the switcher menu.

Key Features

• Four-Camera Tally Distribution: Provides four dedicated RJ45 outputs for connecting up to four compatible Ikan tally lights.

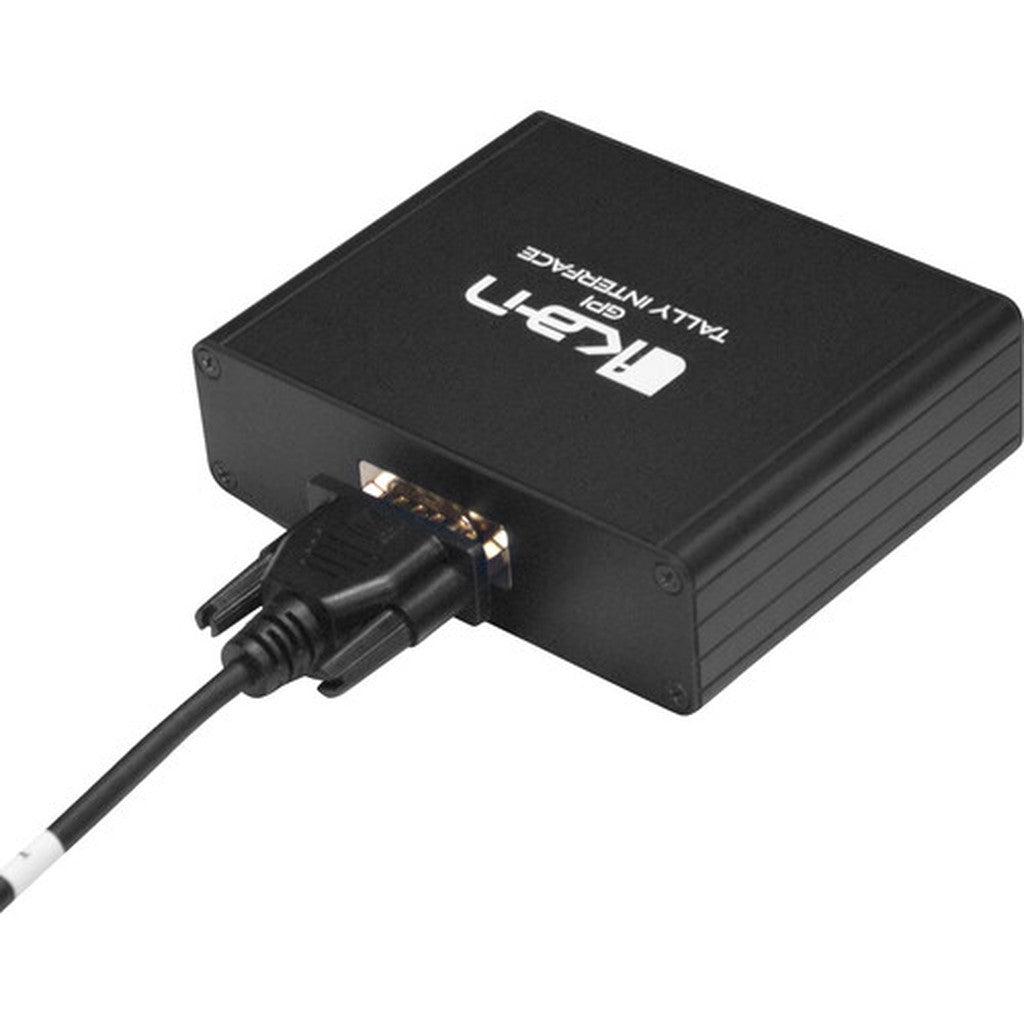

• 15-Pin Roland Integration: Connects directly to supported Roland switcher tally ports through the included connection cable.
• Immediate Camera Identification: Delivers visual tally cues that help talent and production crews identify selected camera sources.

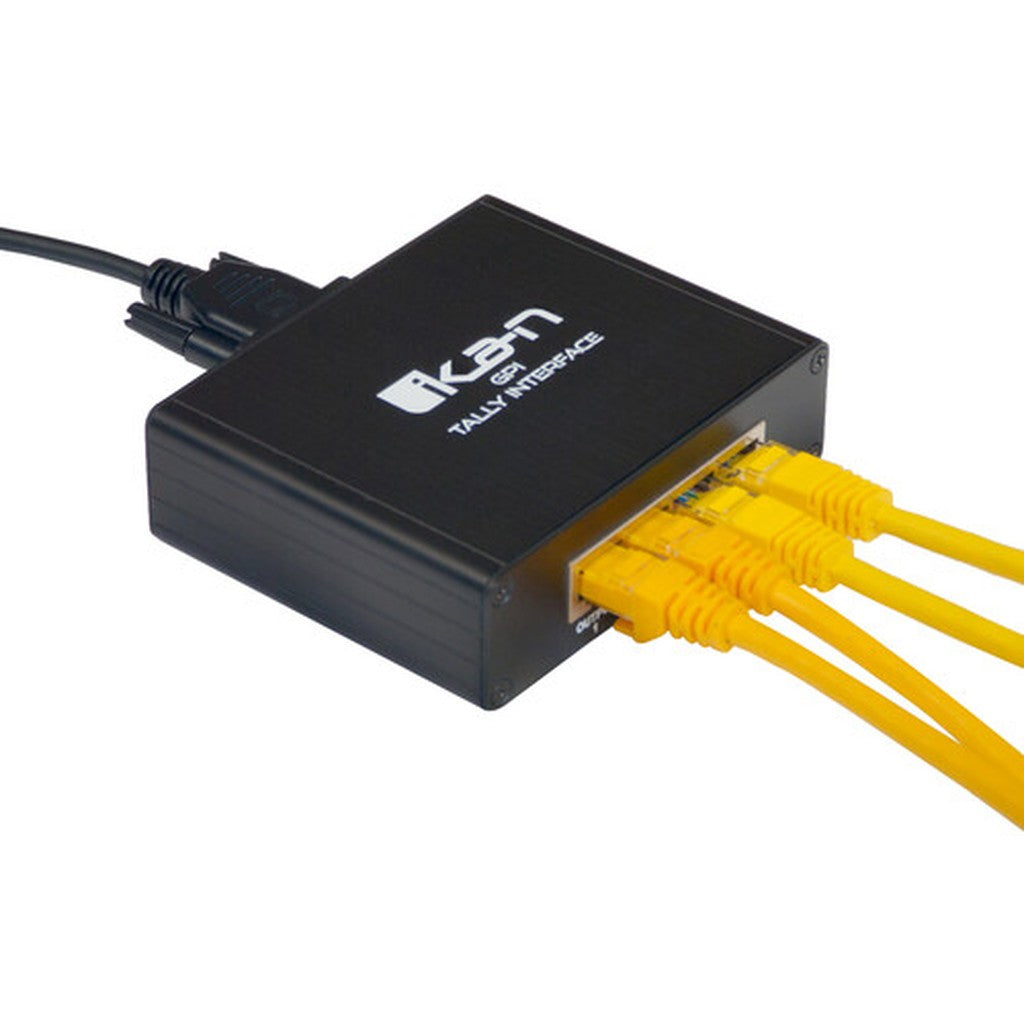

• Standard Ethernet Cabling: Uses commonly available Ethernet cables between the interface and each connected tally light.
• Plug-and-Play Installation: Establishes tally communication without software, drivers, custom programming, or network configuration.

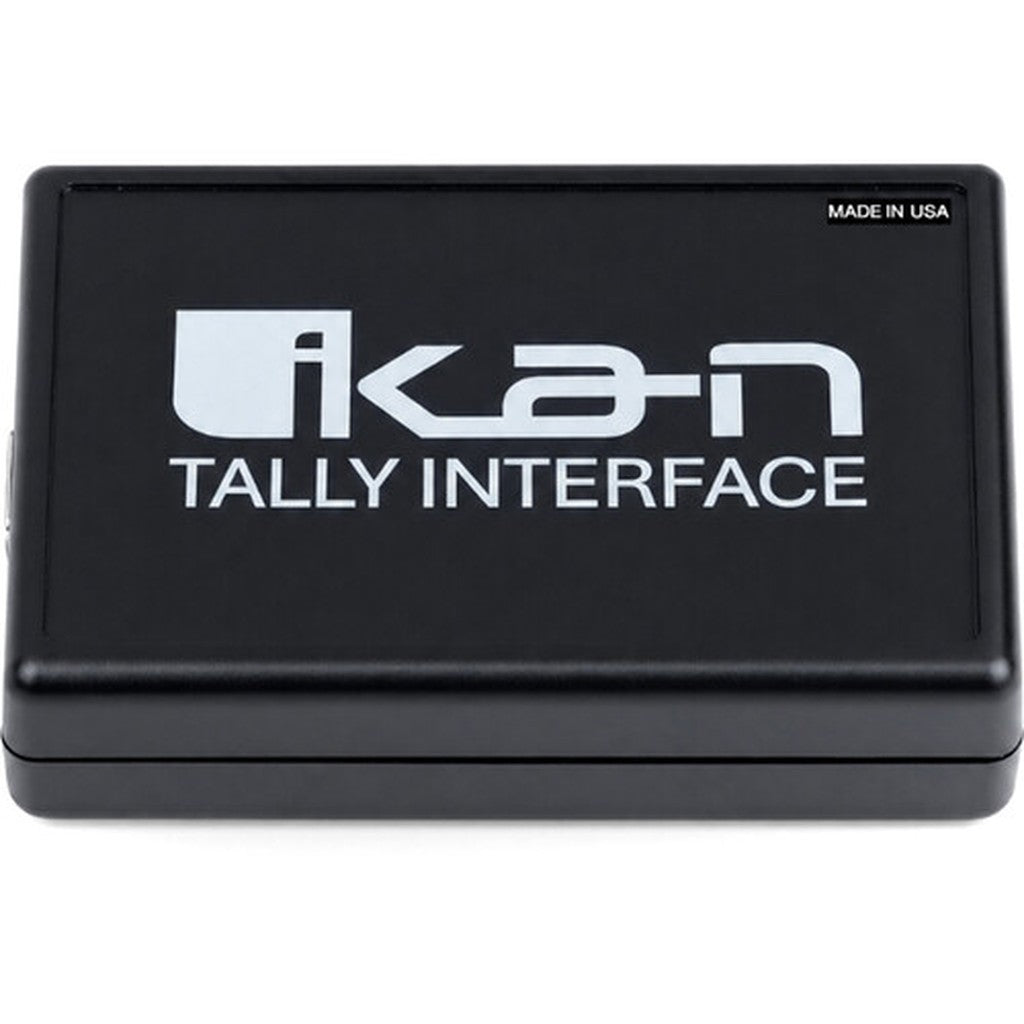

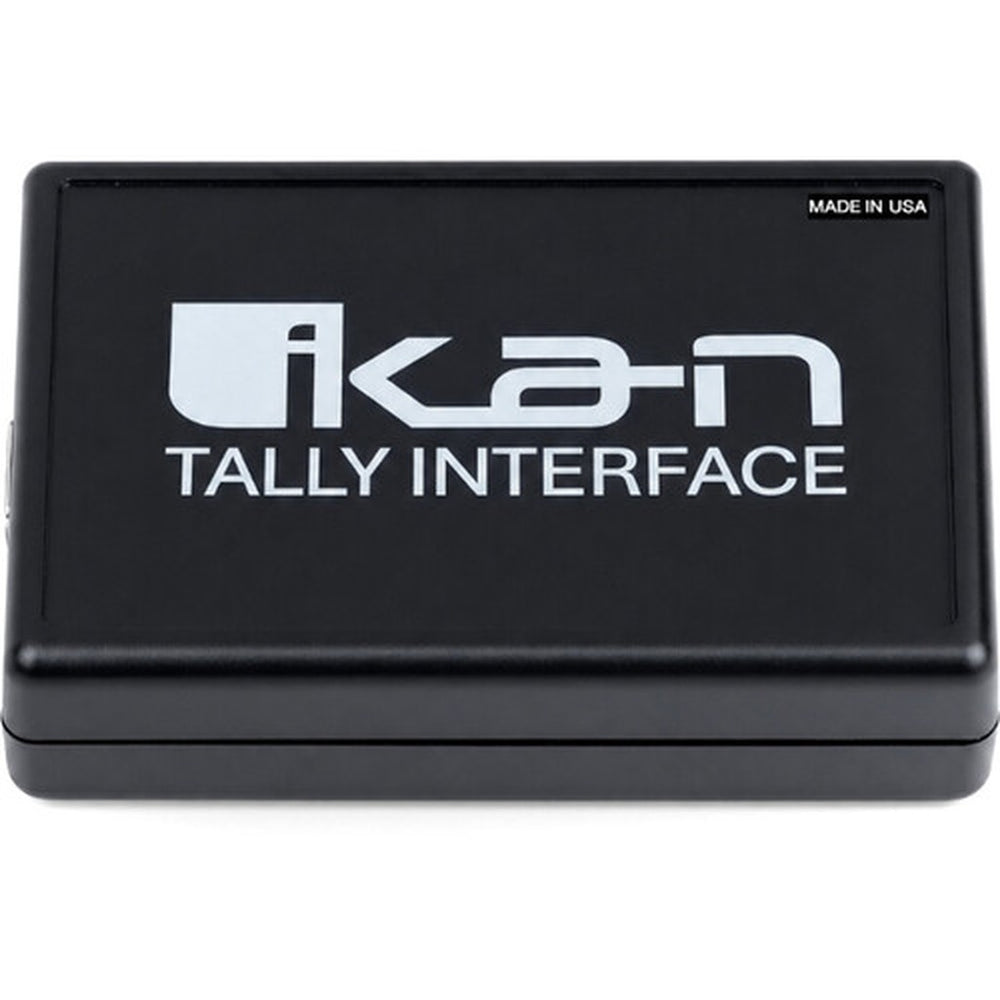

• Compact Aluminum Enclosure: Provides durable construction for installed studios, mobile systems, and live production environments.
• Production-Ready Package: Includes the Roland switcher connection cable and power adapter required for installation.

Technical Specifications

• Brand: Ikan
• Model: TI-OC-ROL-15-4
• Product Type: Tally interface and router
• Supported Camera Positions: Up to 4
• Compatible Switchers: Roland V-40HD, V-440HD, V-800HD, V-800HD MKII, and V-1600HD
• Switcher Tally Connection: 15-pin connection through included cable

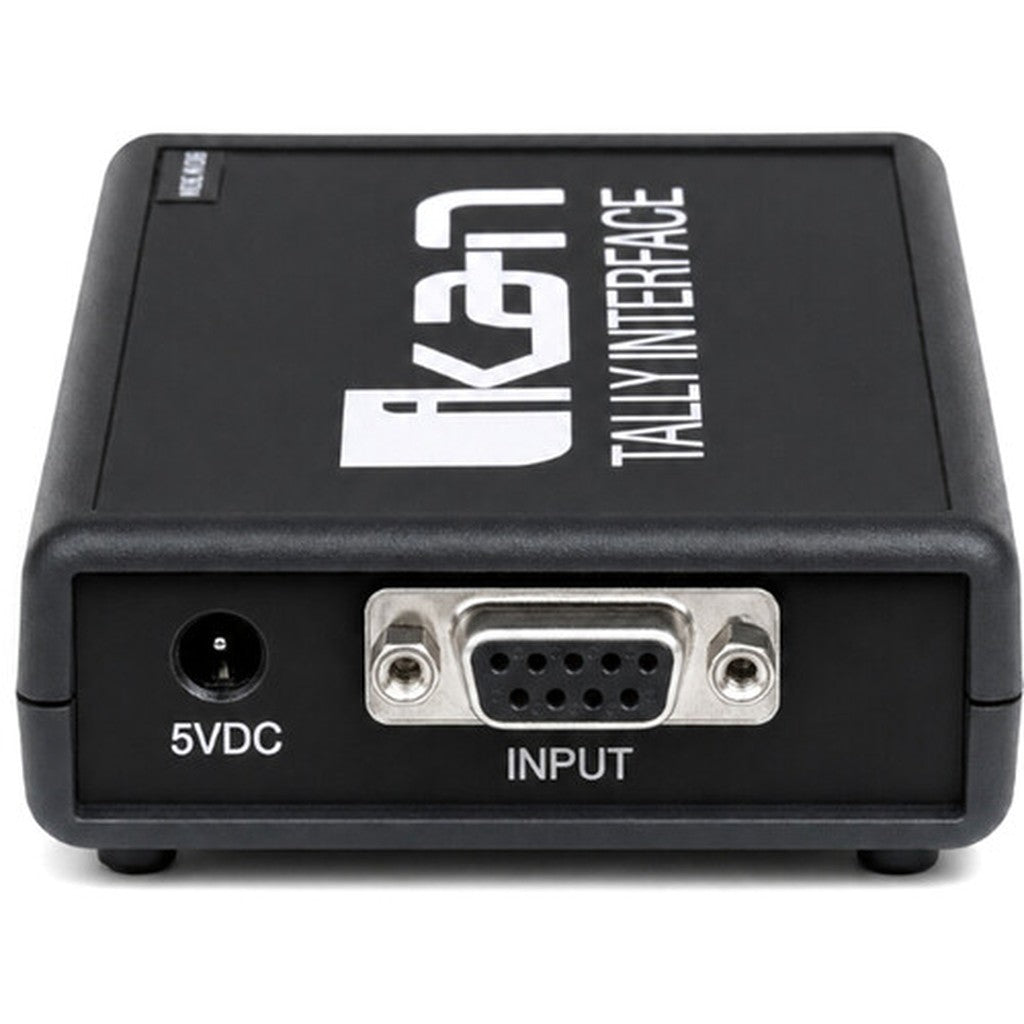

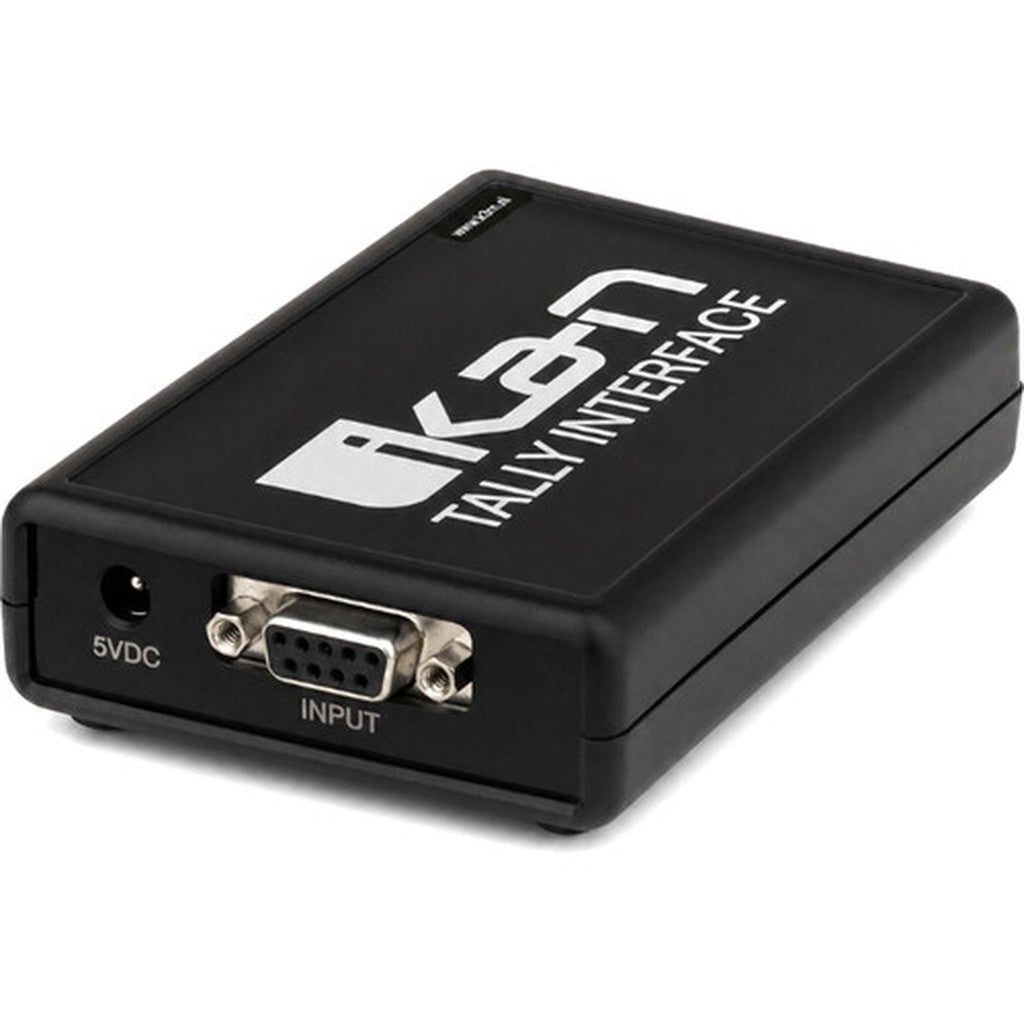

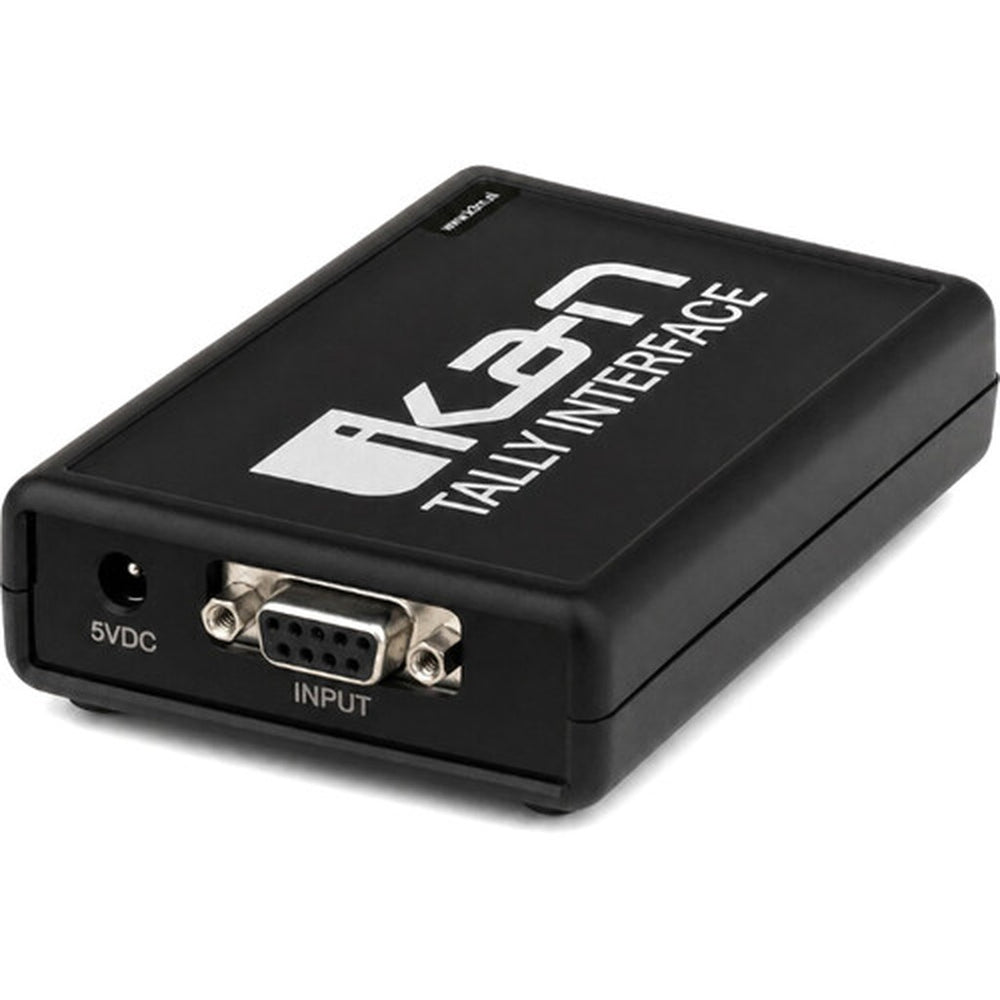

• Interface Input Connector: DB9

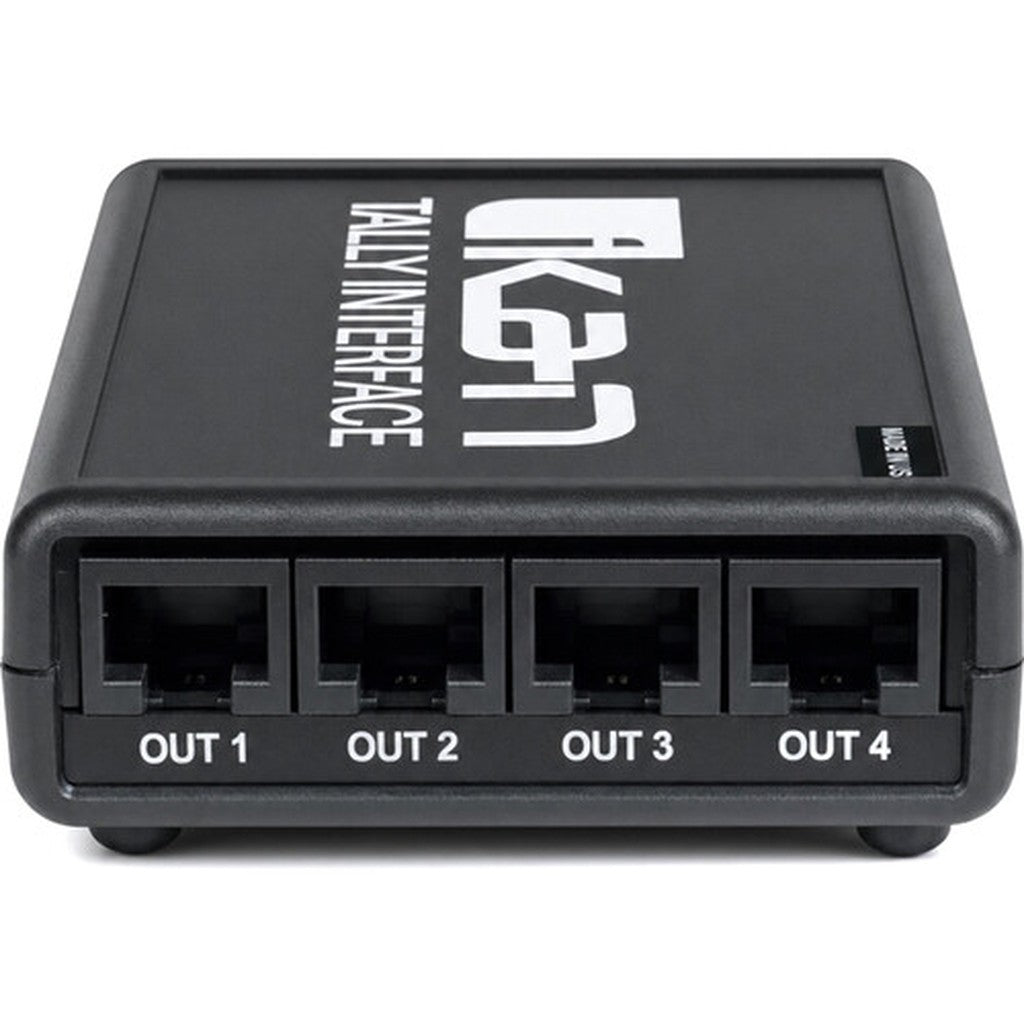

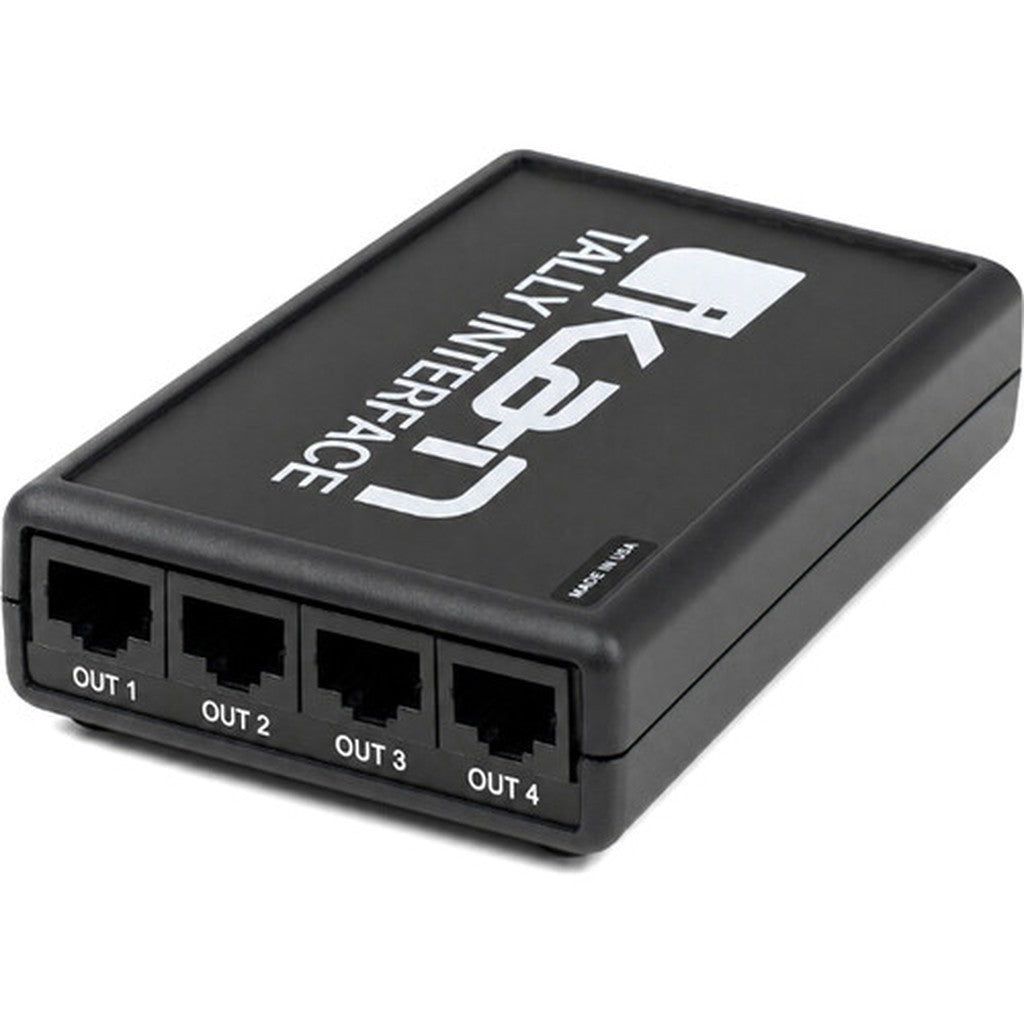

• Output Connectors: 4 x RJ45
• Output Cable Compatibility: Standard Ethernet cables
• Switcher Cable Length: 41"
• Build Material: Aluminum
• Product Dimensions: 3.25" x 4" x 1.33"
• Product Weight: 1 lb
• Shipping Dimensions: 7" x 7" x 7"
• Shipping Weight: 2 lbs

Roland V-440HD Setup

• Tally Port: Connect the included cable to the TALLY HD port when switching HD or RGB sources.
• Bi-Color Tally: Select Type 4, Type 5, or Type 6 under System > 12. Tally Signal to enable red program and green preview indicators.

What's In the Box

• Ikan TI-OC-ROL-15-4 Tally Interface

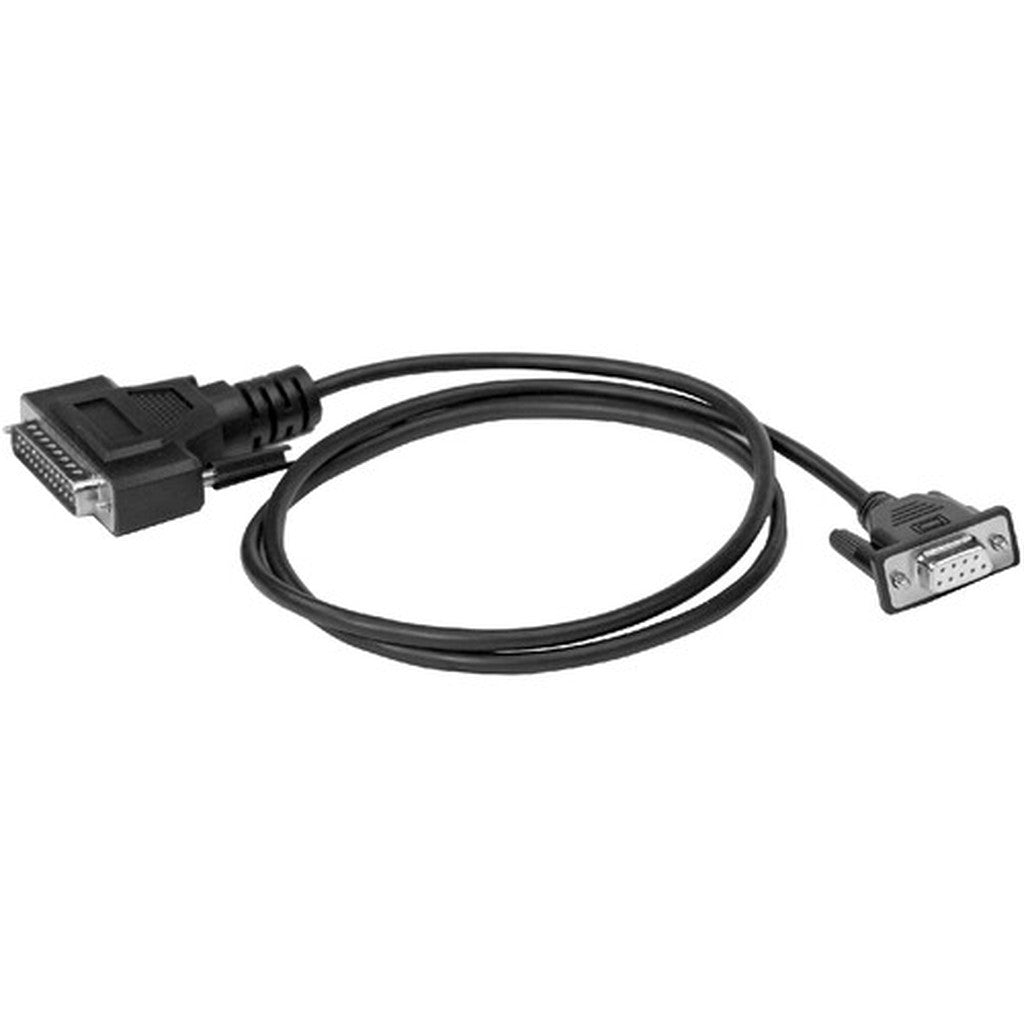

• Roland Switcher Connection Cable
• Power Adapter
