Ikan TI-OC-ROL-25-4 Tally Router for Roland Switchers, 25-Pin, 4-Camera

Ikan TI-OC-ROL-25-4 Tally Router for Roland Switchers, 25-Pin, 4-Camera

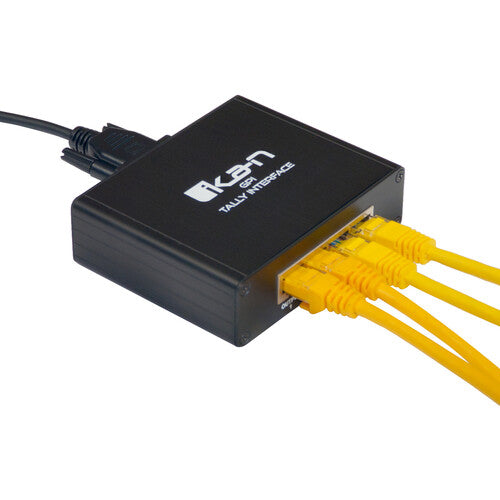

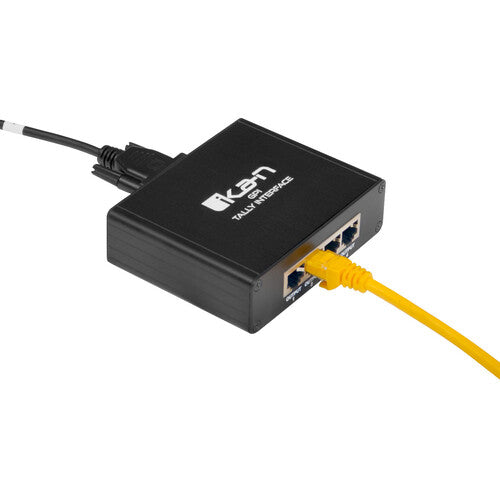

The Ikan TI-OC-ROL-25-4 tally router links a compatible Roland switcher’s 25-pin tally output to as many as four Ikan tally lights. It distributes real-time program and preview status through four RJ45 outputs, giving operators, talent, and crew clear red and green camera-state cues without software, drivers, or IP configuration.

Designed for broadcast studios, corporate AV, houses of worship, classrooms, and live-event production, this four-camera tally router provides a direct hardware workflow for teams that need reliable camera status. Standard Ethernet cable runs simplify placement across the set, while the included DB9-to-DB25 connection cable makes installation fast and repeatable. Each output maps to one camera position for straightforward system organization.

The open-collector interface supports Roland V-60HD, V-80HD, V-160HD, V-600UHD, VR-6HD, and VR-120HD switchers. Program sources illuminate red, preview sources illuminate green, and simultaneous states can appear amber during a transition. Its compact ABS enclosure, dedicated 5 VDC power input, and plug-and-play architecture suit permanent control rooms and portable multicamera production systems.

Key Features

• Four-Camera Tally Distribution: Routes program and preview signals to as many as four Ikan tally lights.
• Direct Roland Integration: Connects to compatible Roland switchers through the included DB9-to-DB25 tally cable.
• Four RJ45 Outputs: Provides one dedicated output for each assigned camera position.
• Standard Ethernet Cabling: Supports convenient cable runs between the router and compatible Ikan tally lights.
• Program and Preview Indicators: Delivers red program and green preview status for immediate visual identification.
• Transition Indication: Displays amber when program and preview signals are active simultaneously during supported transitions.
• Plug-and-Play Operation: Requires no software, drivers, custom wiring, or IP network configuration.
• Compact ABS Enclosure: Fits neatly into control rooms, production racks, and portable switching systems.

Technical Specifications

• Model: TI-OC-ROL-25-4
• Product Type: Open-collector tally router
• Camera Capacity: Up to 4 cameras
• Compatible Switchers: Roland V-60HD, V-80HD, V-160HD, V-600UHD, VR-6HD, and VR-120HD

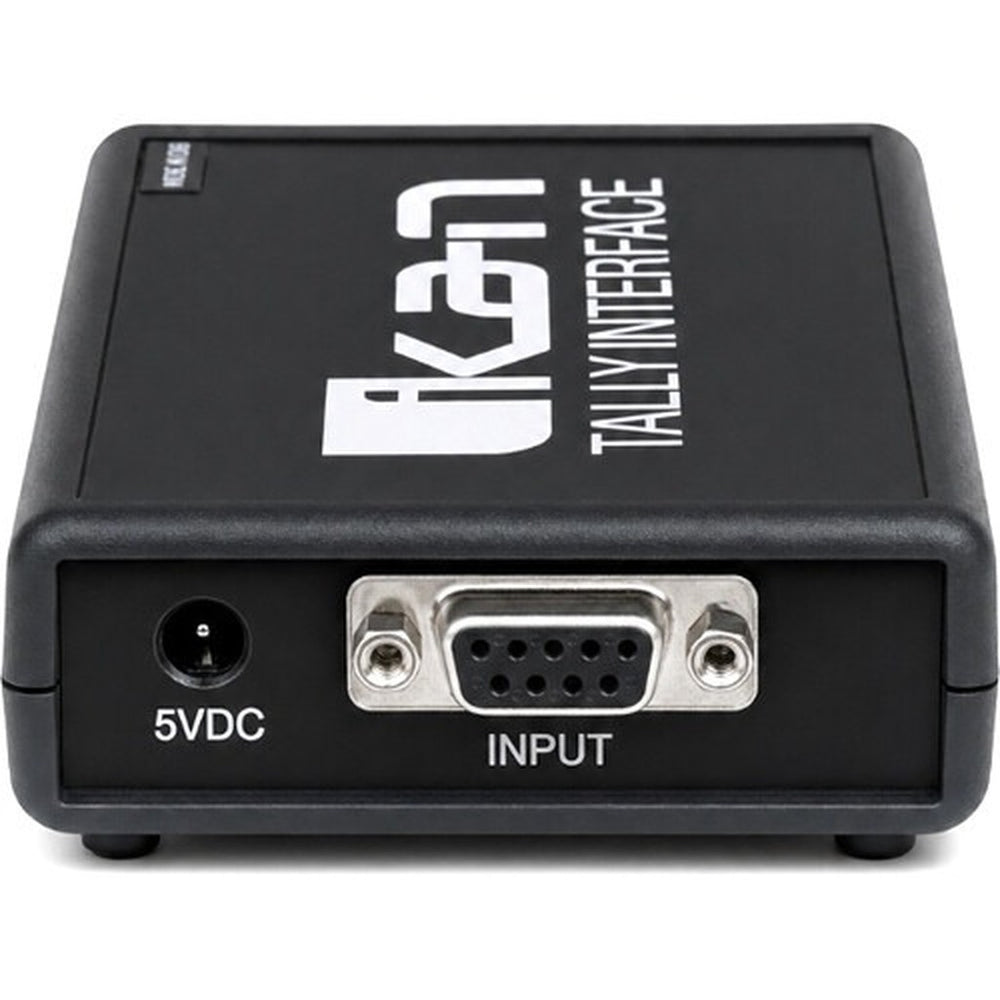

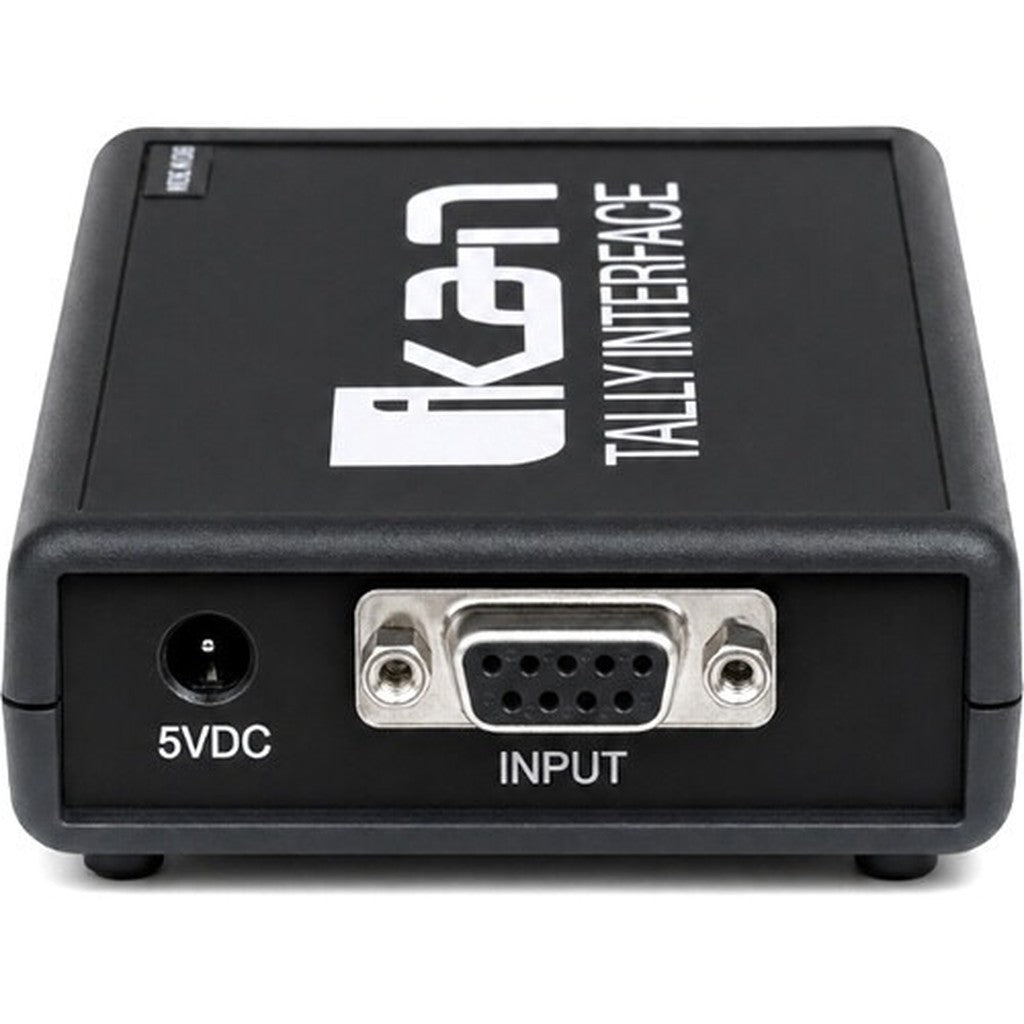

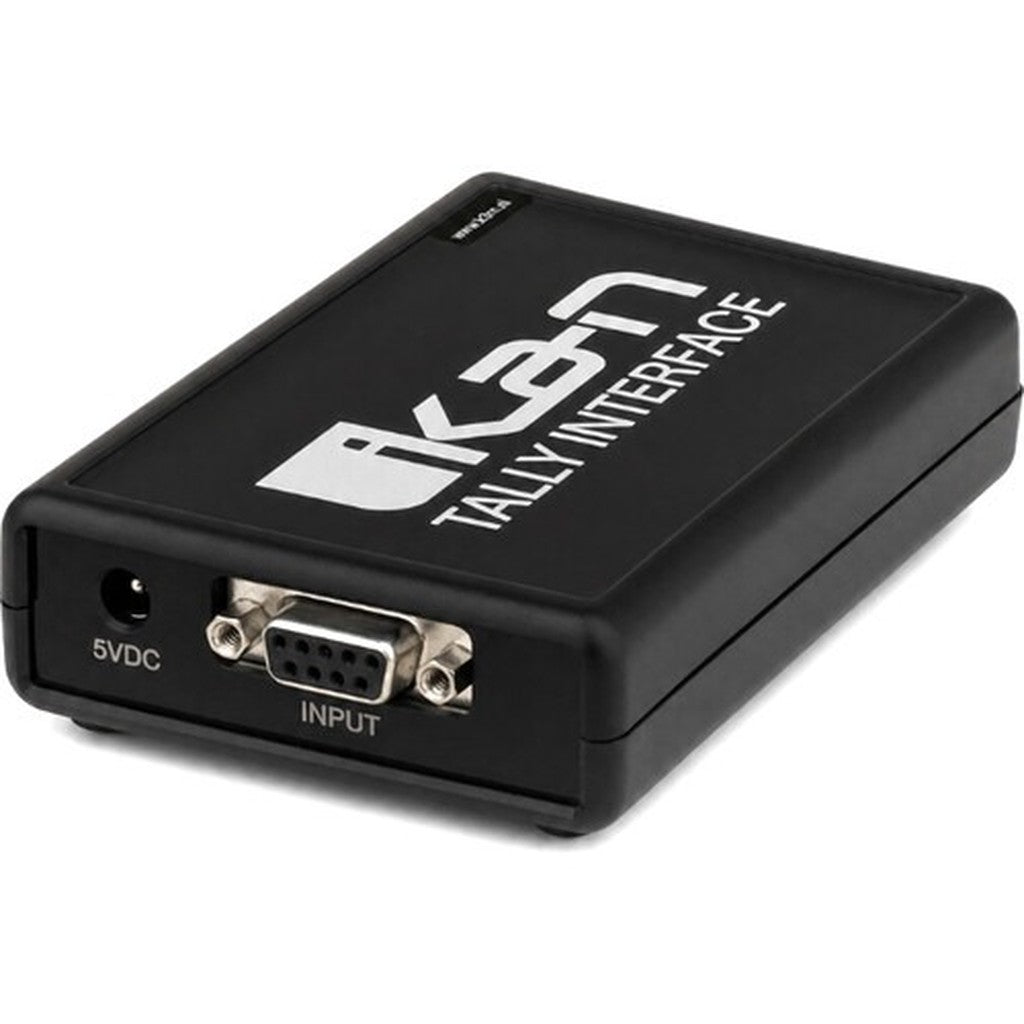

• Interface Input: 1 x DB9 female
• Switcher-Side Connector: DB25

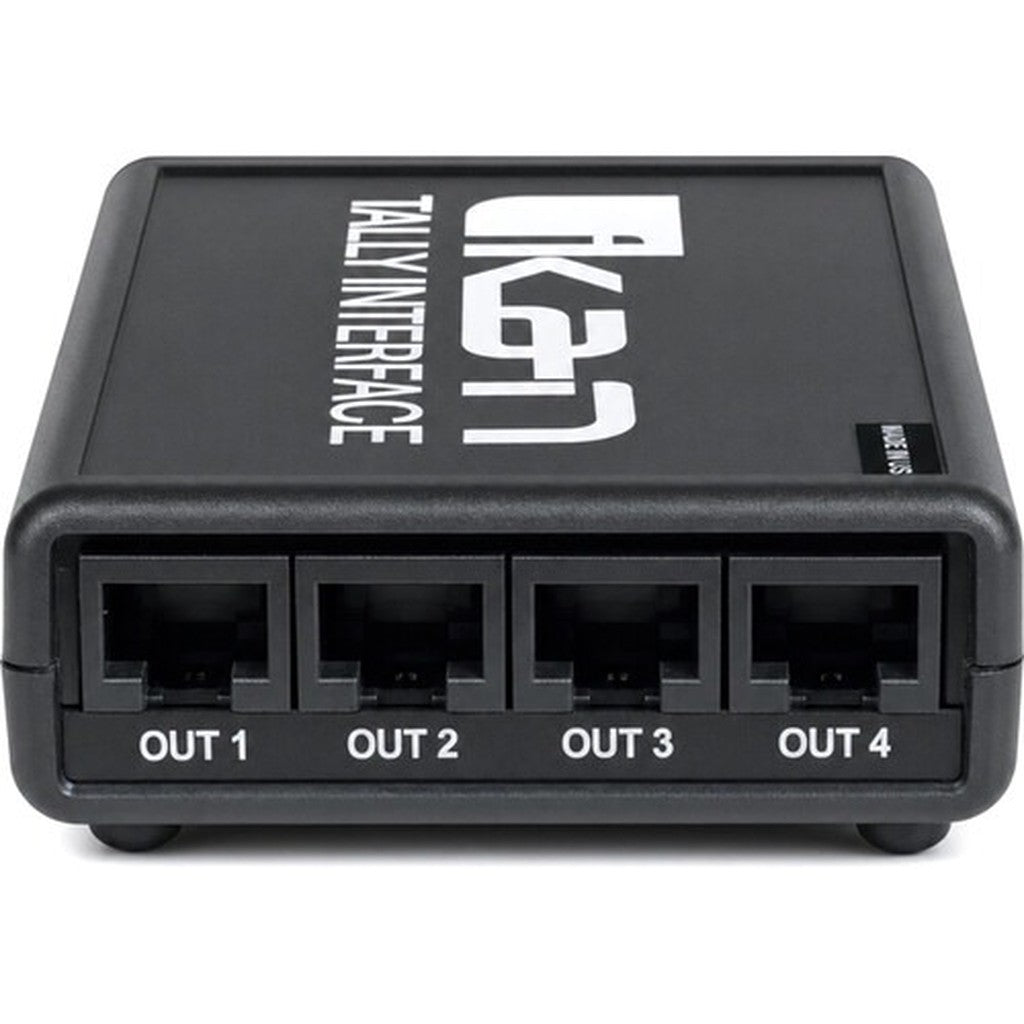

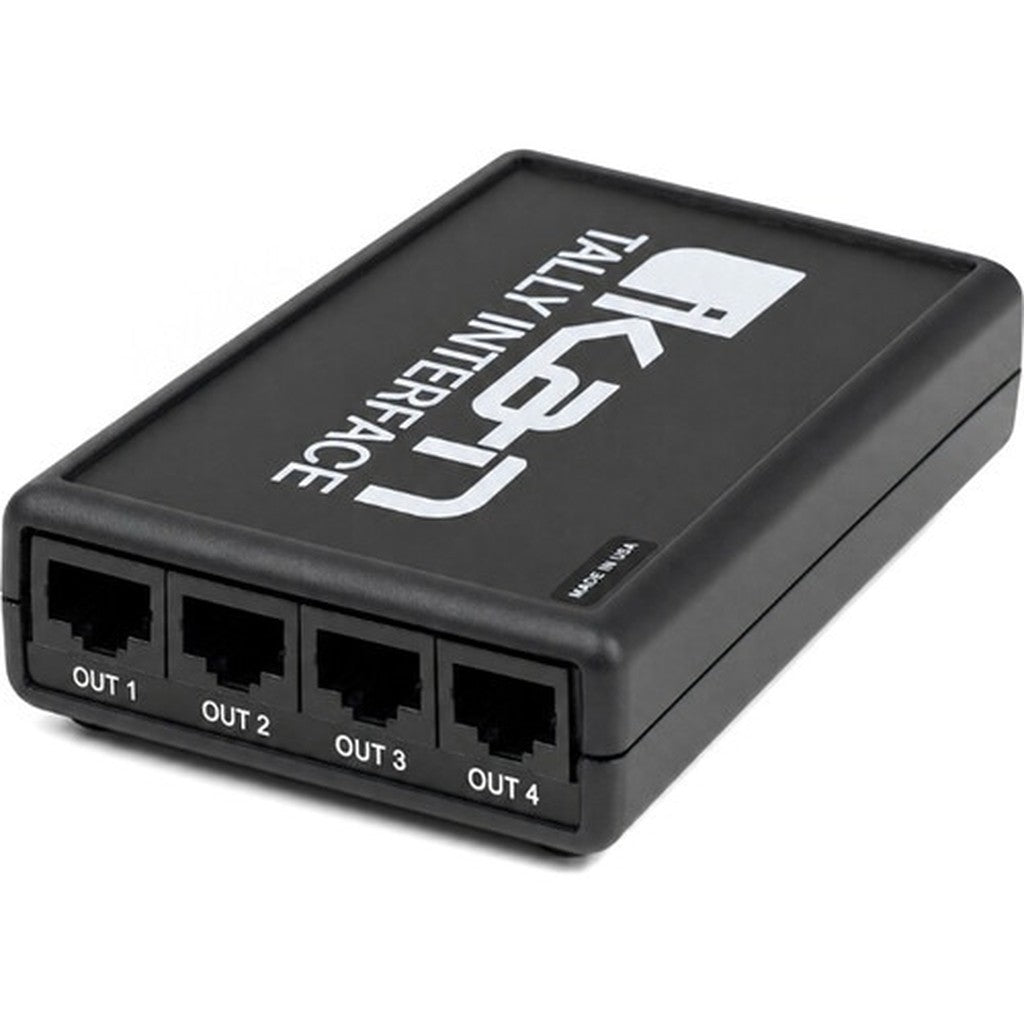

• Output Connectors: 4 x RJ45
• Tally Protocol: Open collector
• Tally Indications: Red program, green preview, and amber simultaneous program/preview
• Switcher Connection Cable: 36" DB9-to-DB25 cable
• Power Requirement: 5 VDC, 750 mA
• Enclosure Material: Black ABS plastic
• Dimensions: 4.13" x 3.07" x 1.57"
• Weight: 1 lb

What's In the Box

• Ikan TI-OC-U Open-Collector Tally Interface

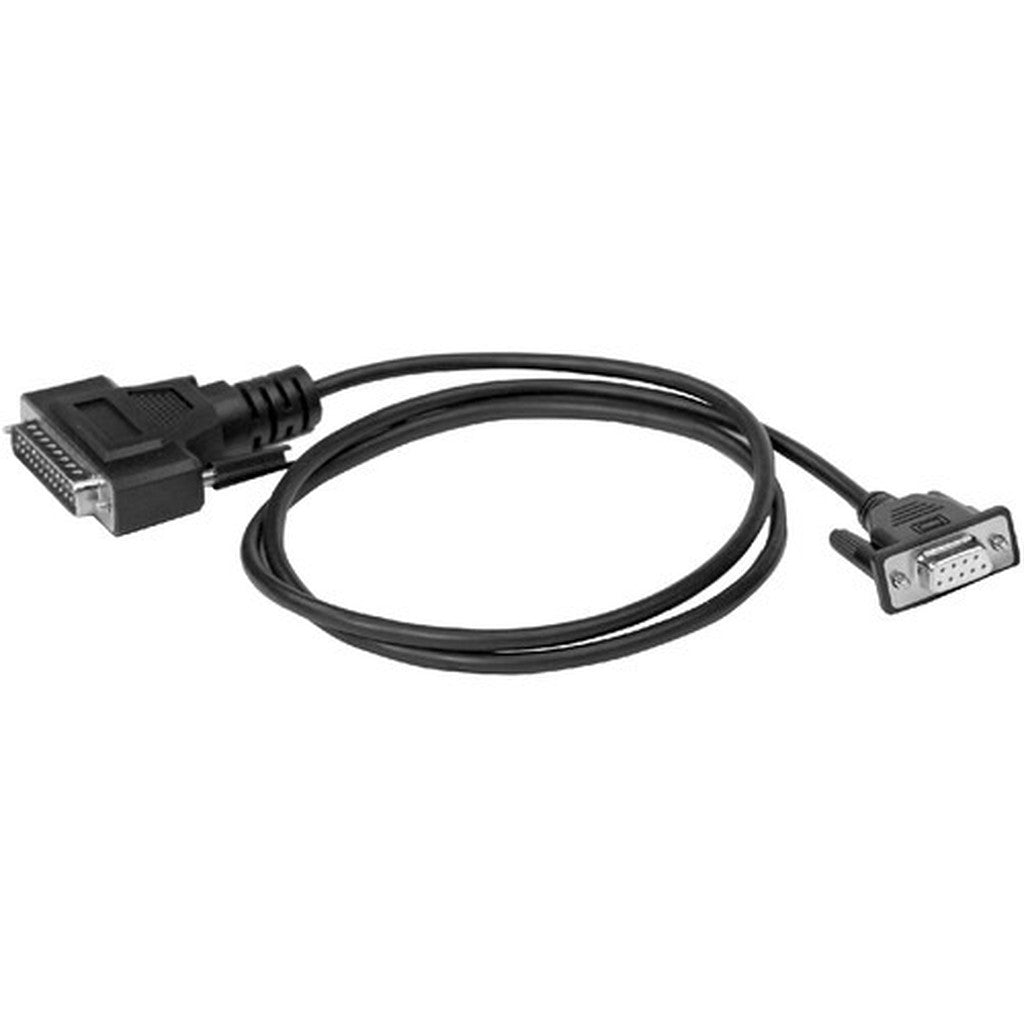

• TI-CBL-OC-ROL-25 DB9-to-DB25 Switcher Connection Cable
• 5 VDC, 750 mA Power Adapter
