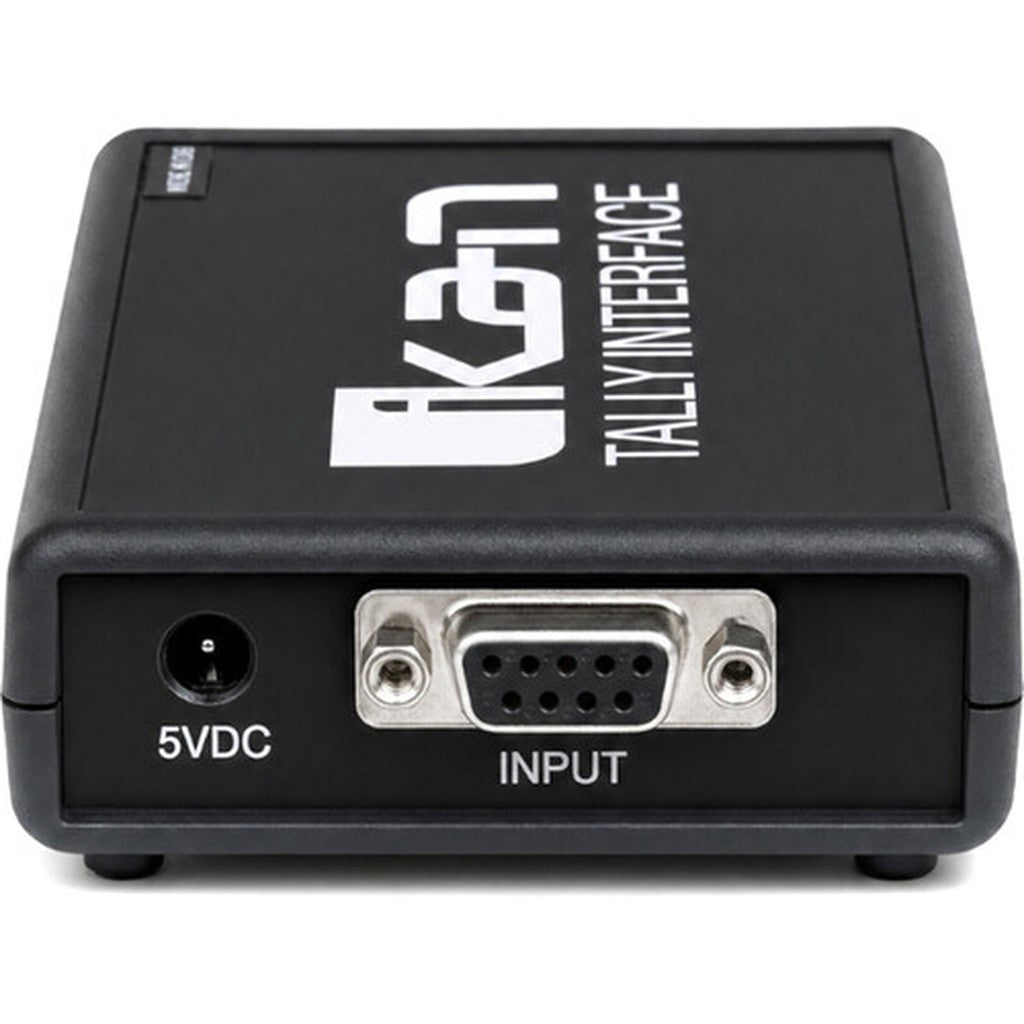

Ikan TI-OC-ROS-25-4 Tally Router for Ross Switchers, 15-Pin, 4-Camera

Ikan TI-OC-ROS-25-4 Tally Router for Ross Switchers, 15-Pin, 4-Camera

The Ikan TI-OC-ROS-25-4 tally router connects compatible Ross switchers directly to as many as four Ikan tally lights. It converts open-collector program and preview signals into real-time red and green camera cues through four RJ45 outputs, requiring no software, custom wiring, drivers, or IP network configuration.

This four-camera Ross switcher tally interface supports broadcast studios, corporate AV, houses of worship, classrooms, and live-event production. Standard Ethernet cables simplify light placement across a studio or venue, while the included DB9-to-DB25 cable creates a direct hardware connection. The plug-and-play design makes it a practical tally solution for permanent control rooms and portable production systems.

The TI-OC-ROS-25-4 supports Ross Carbonite Ultra, Carbonite Ultra Solo, Carbonite Ultra 60, Graphite, Ultrix, and Ultrix Acuity switchers using the compatible DB25 tally pinout. Program sources illuminate red, while preview sources illuminate green after the appropriate tally assignments are configured in Ross DashBoard. Its compact ABS enclosure and dedicated 5 VDC power supply provide dependable integration for professional multicamera workflows.

Key Features

• Four-Camera Tally Distribution: Routes program and preview status to as many as four Ikan tally lights.
• Direct Ross Switcher Integration: Connects to compatible Carbonite, Graphite, and Ultrix tally ports using the included cable.
• Four RJ45 Outputs: Provides one dedicated connection for each assigned camera position.

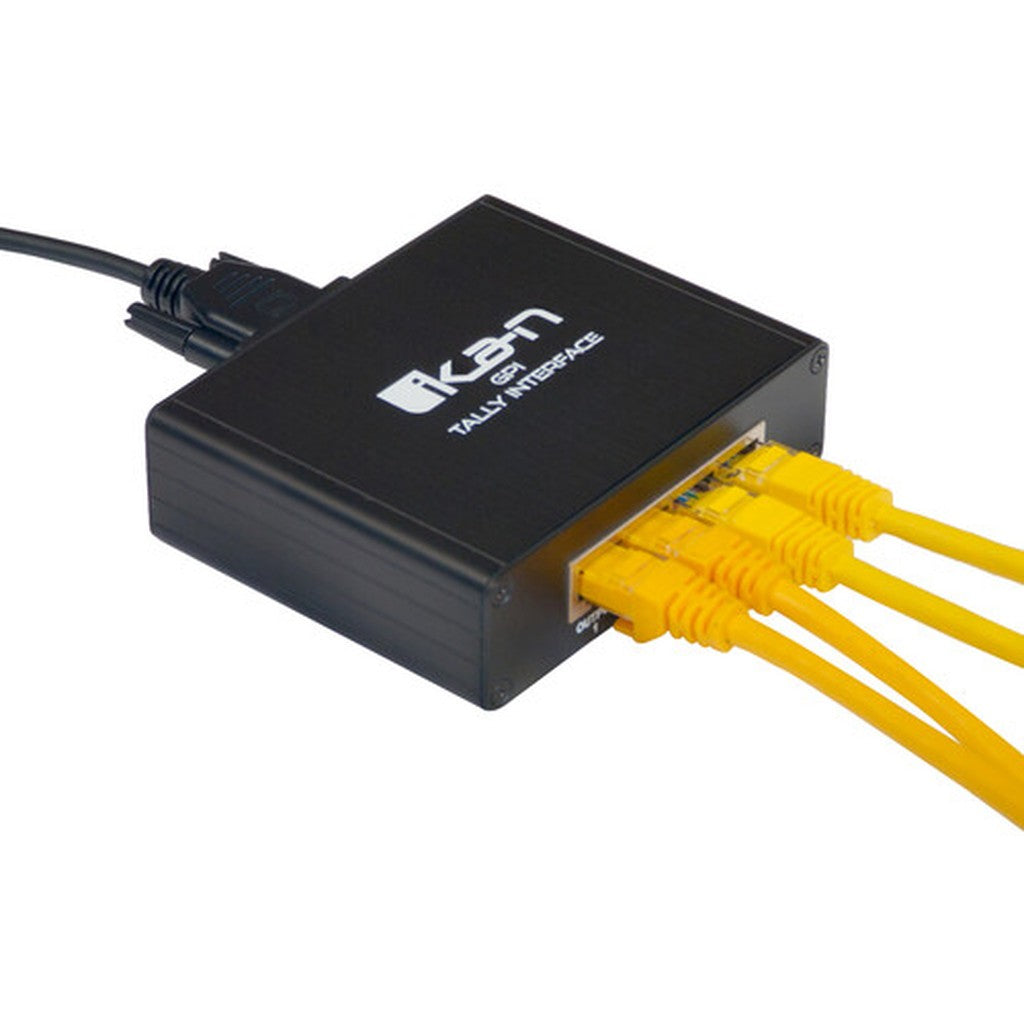

• Standard Ethernet Cabling: Simplifies tally-light placement without requiring proprietary extension cables.
• Program and Preview Indicators: Delivers red on-air and green preview cues for clear camera identification.
• Assignable Tally Operation: Works with camera and bus assignments configured through Ross DashBoard.
• Plug-and-Play Installation: Requires no software, drivers, custom wiring, or IP setup.
• Compact ABS Enclosure: Fits easily into studio control rooms and portable production systems.

Technical Specifications

• Model: TI-OC-ROS-25-4
• Product Type: Open-collector tally router
• Camera Capacity: Up to 4 cameras
• Compatible Switchers: Ross Carbonite Ultra, Carbonite Ultra Solo, Carbonite Ultra 60, Graphite, Ultrix, and Ultrix Acuity
• Compatibility Note: Carbonite Black and standalone Acuity switchers are not supported by this bundle

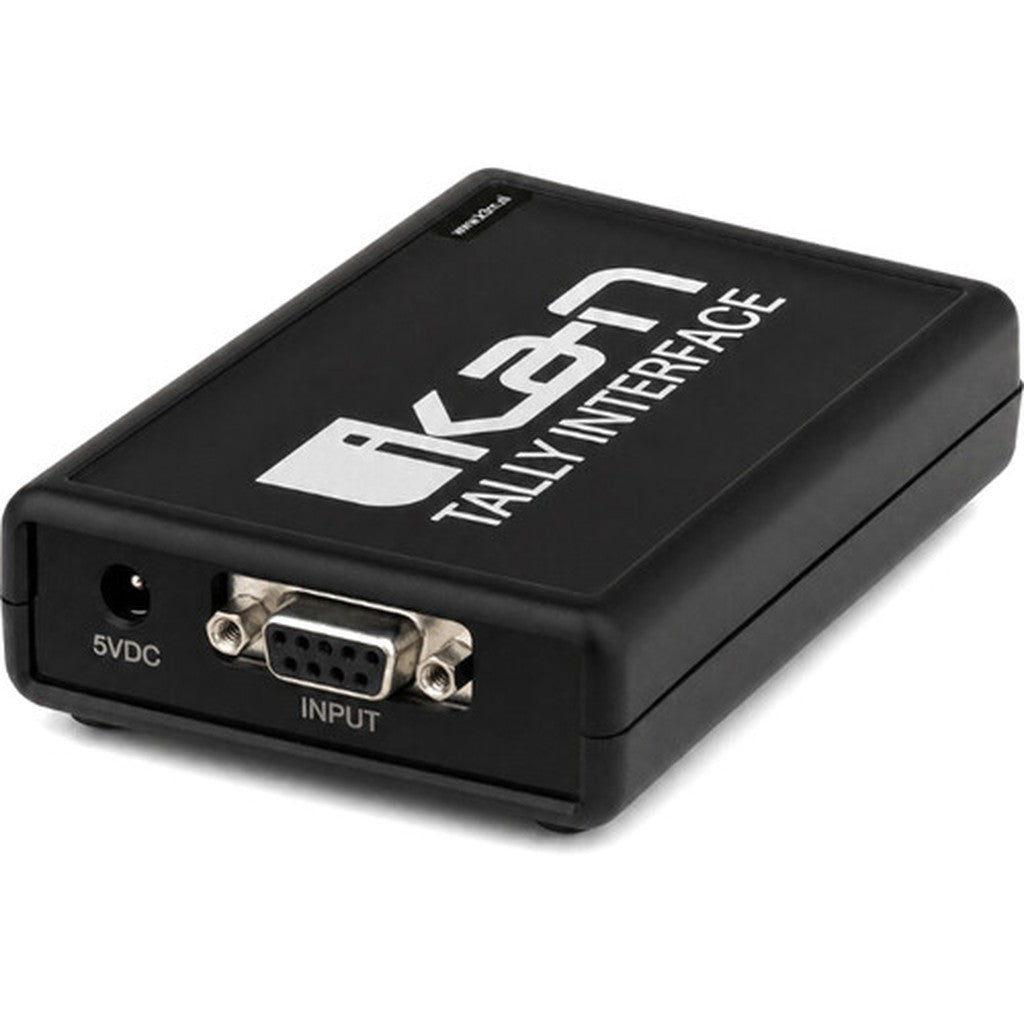

• Interface Input: 1 x DB9 female
• Switcher-Side Connector: DB25 with Carbonite and Ultrix pinout

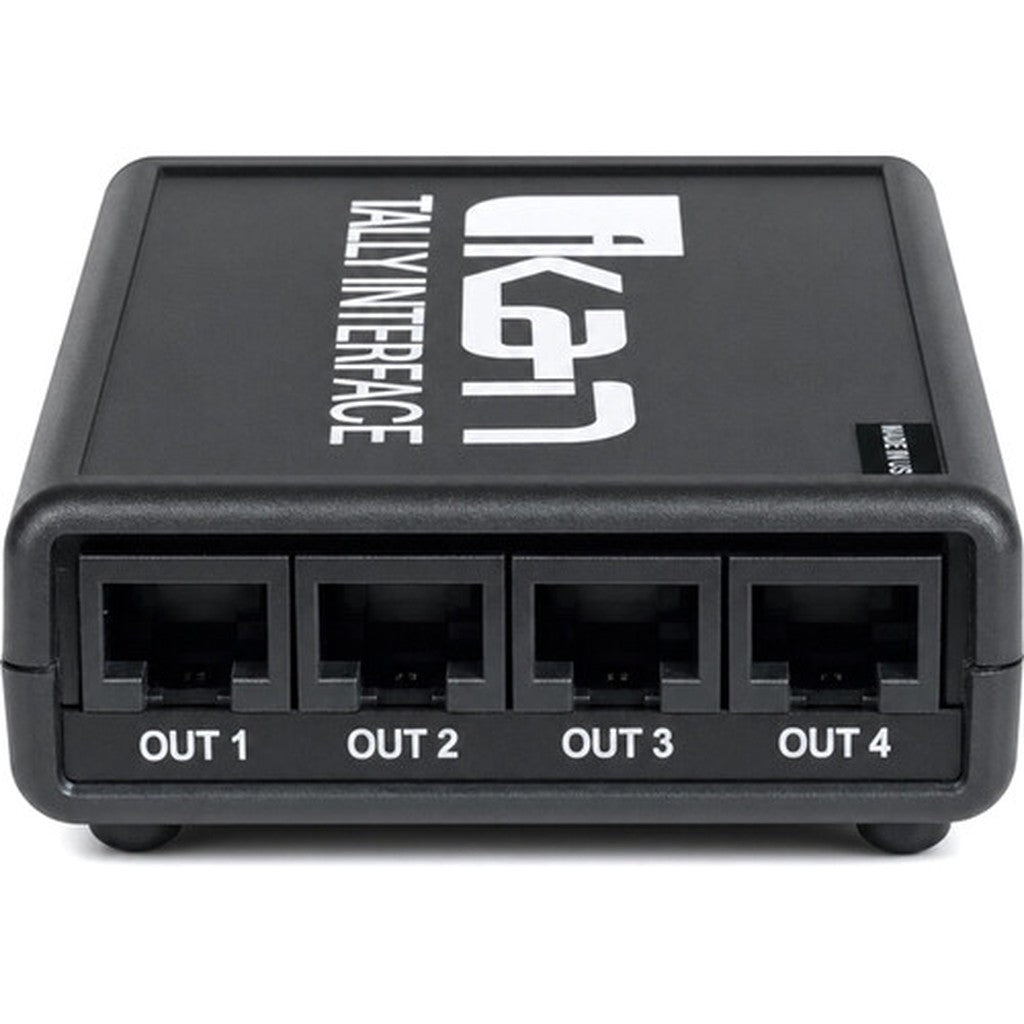

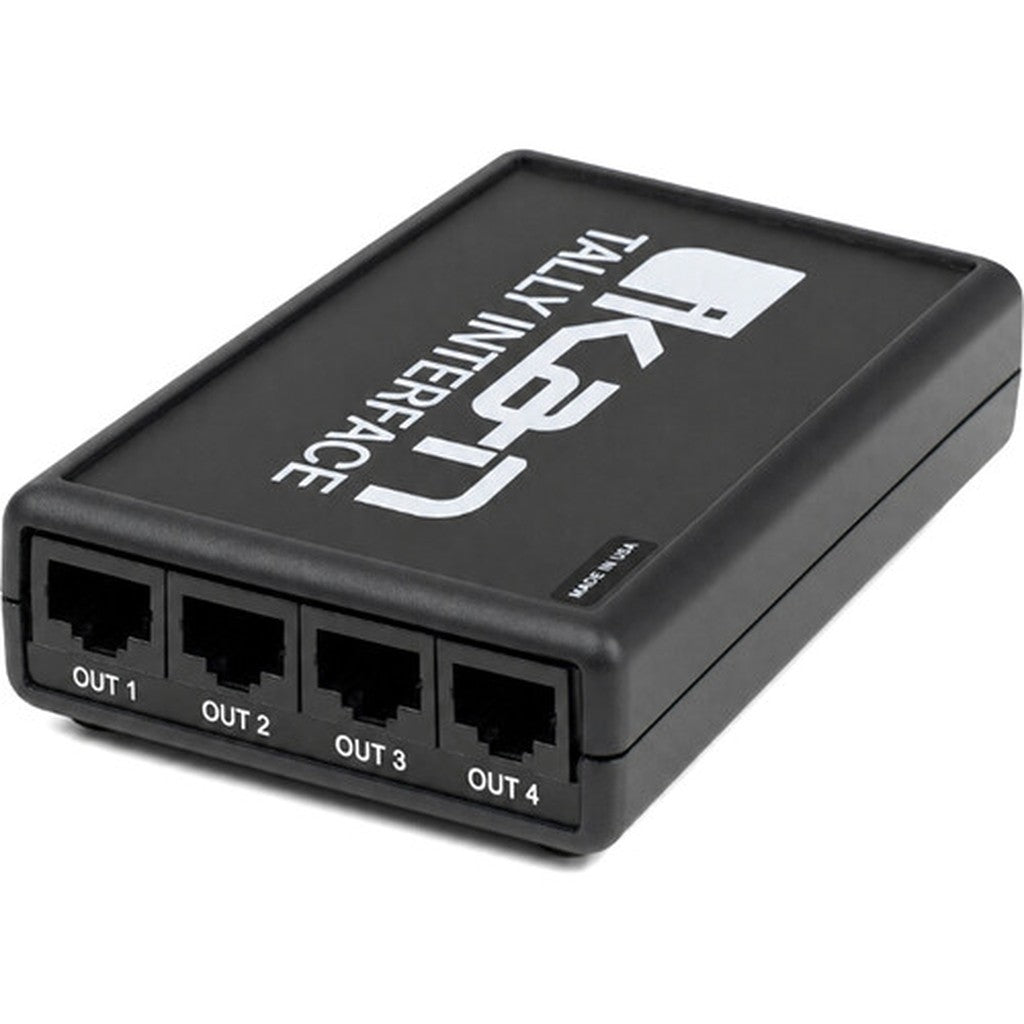

• Output Connectors: 4 x RJ45
• Tally Type: Open collector with program and preview status per output
• Tally Indications: Red program and green preview

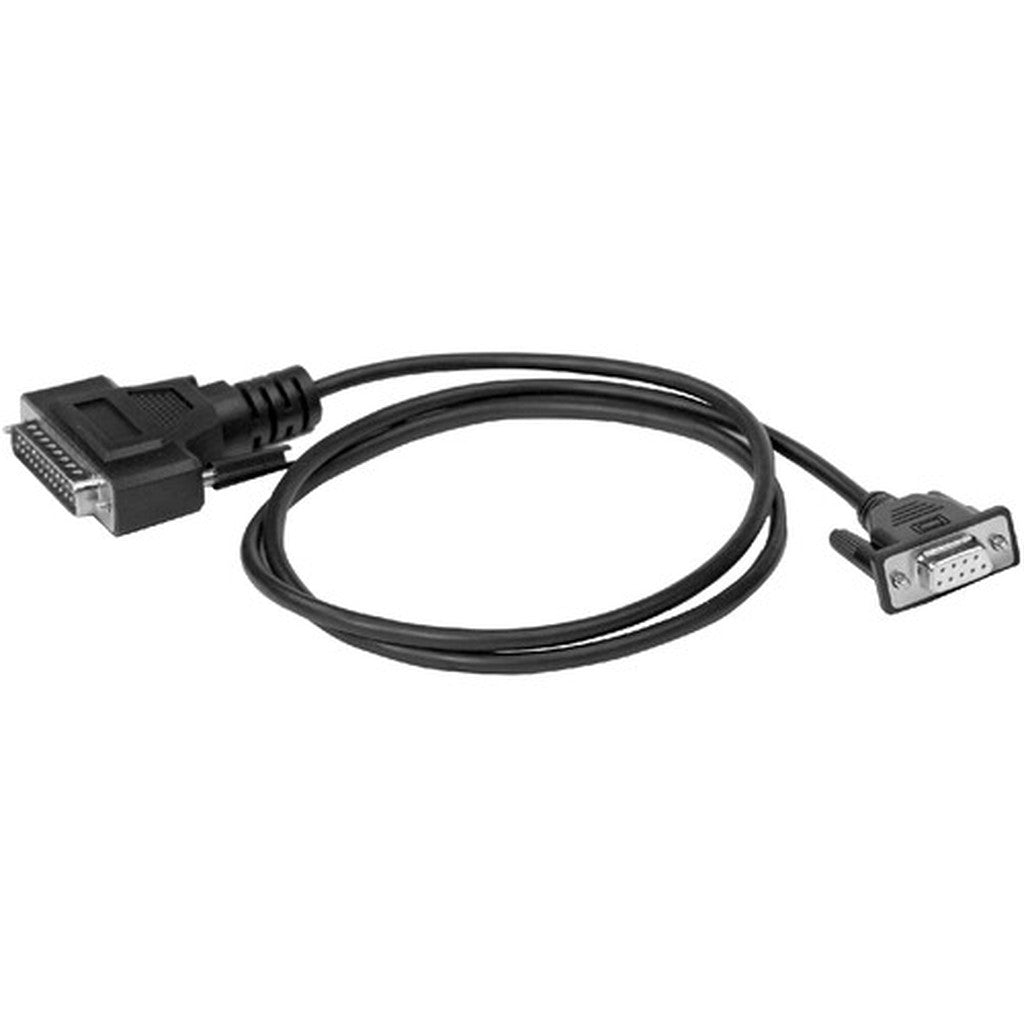

• Switcher Cable: 36" DB9-to-DB25 cable
• Power Supply: 5 VDC, 750 mA
• Power Connector: 0.22" barrel jack

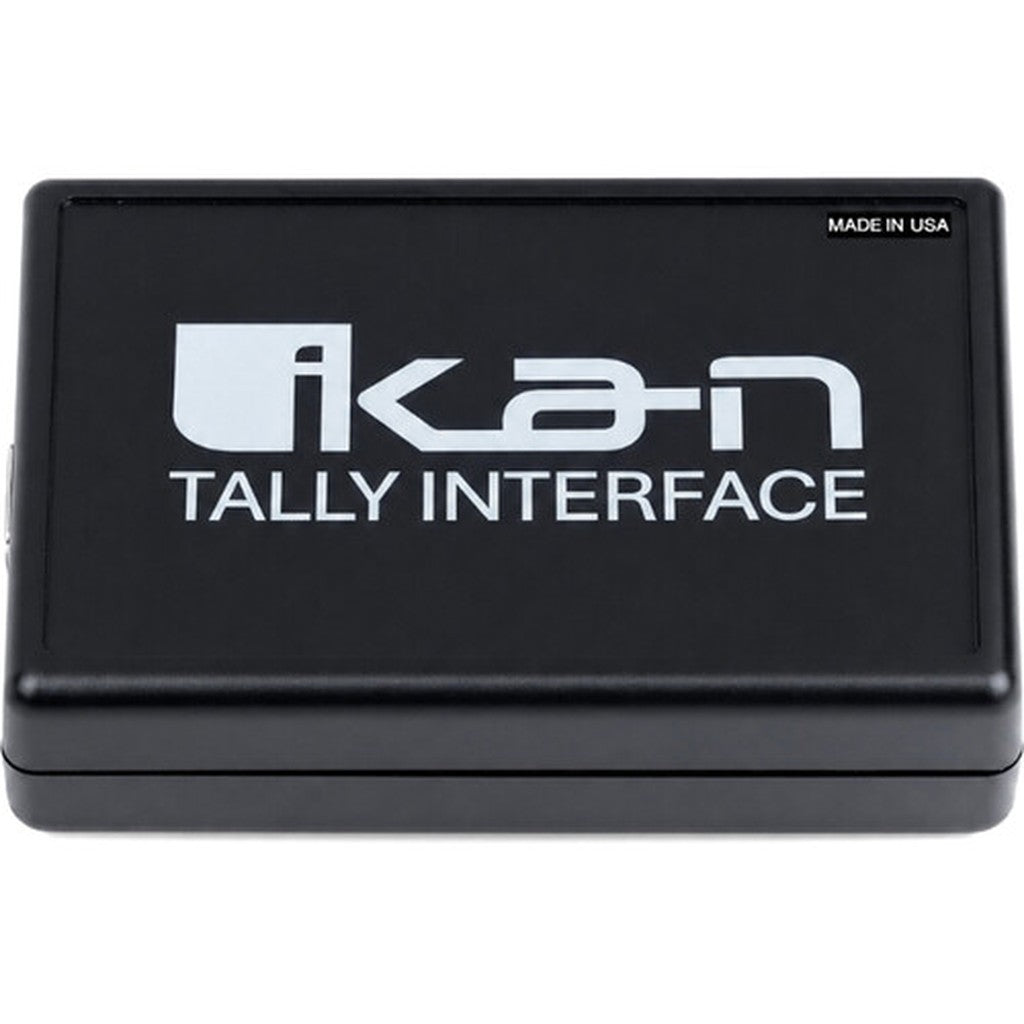

• Enclosure Material: ABS plastic
• Dimensions: 4.13" x 3.07" x 1.57"
• Weight: Approximately 1 lb
• Shipping Dimensions: 7" x 7" x 7"
• Shipping Weight: 2 lbs
• Country of Origin: United States

What's In the Box

• Ikan Open-Collector Tally Interface
• DB9-to-DB25 Ross Switcher Connection Cable
• 5 VDC Power Adapter
