Ikan TI-OC-ROS-25A-4 Tally Router for Ross Acuity Switchers, 25-Pin, 4-Camera

Ikan TI-OC-ROS-25A-4 Tally Router for Ross Acuity Switchers, 25-Pin, 4-Camera

The Ikan TI-OC-ROS-25A-4 tally router connects a standalone Ross Acuity switcher directly to as many as four Ikan tally lights. Its dedicated Acuity-pinout cable carries program and preview signals to four RJ45 outputs, providing immediate red, green, and transition cues without software, drivers, custom wiring, or IP configuration.

This four-camera tally interface supports broadcast studios, corporate AV facilities, houses of worship, educational production spaces, and live-event control rooms. Standard Ethernet cable runs simplify tally-light placement around the studio, while the direct DB25 switcher connection streamlines installation. Operators can assign each output to a camera position for an organized multicamera workflow.

The open-collector interface displays red when a camera is on program and green when it is selected for preview. During a mix or wipe, simultaneous red and green signals may produce an amber indication. Ross tally assignments are configured through DashBoard, including the On-Preview bus required for green status. The dedicated two-bank Acuity pinout ensures correct operation with standalone Ross Acuity systems.

Key Features

• Standalone Ross Acuity Compatibility: Uses a dedicated cable designed for the switcher’s unique two-bank DB25 tally pinout.
• Four-Camera Tally Distribution: Routes tally signals to as many as four compatible Ikan tally lights.
• Program and Preview Status: Provides red program and green preview indications for clear camera identification.
• Transition Indication: Can display amber when program and preview signals activate simultaneously during a transition.
• Four RJ45 Outputs: Assigns one standard Ethernet connection to each camera position.
• Direct Hardware Integration: Connects the interface to the Ross Acuity tally port through the included DB9-to-DB25 cable.
• Plug-and-Play Architecture: Requires no drivers, software installation, custom cabling, or network addressing.
• Compact Enclosure: Fits easily into fixed control rooms and portable multicamera production systems.

Technical Specifications

• Model: TI-OC-ROS-25A-4
• Product Type: Open-collector tally router
• Compatible Switcher: Ross Acuity standalone
• Camera Capacity: Up to 4 cameras
• Interface Input: 1 x DB9 female
• Switcher Connector: DB25 with standalone Acuity two-bank pinout
• Output Connectors: 4 x RJ45
• Tally Protocol: Open collector
• Tally Indications: Red program, green preview, and amber simultaneous program/preview
• Included Switcher Cable: TI-CBL-OC-ROS25M-A
• Switcher Cable Type: DB9-to-DB25 Acuity-pinout cable
• Switcher Cable Length: 36"
• Power Requirement: 5 VDC, 750 mA
• Power Connector: 0.22" barrel jack
• Enclosure Material: Black ABS plastic
• Dimensions: 4.13" x 3.07" x 1.57"
• Weight: Approximately 1 lb
• Shipping Dimensions: 7" x 7" x 7"
• Shipping Weight: 2 lbs
• Country of Origin: United States

What's In the Box

• Ikan TI-OC-U Open-Collector Tally Interface

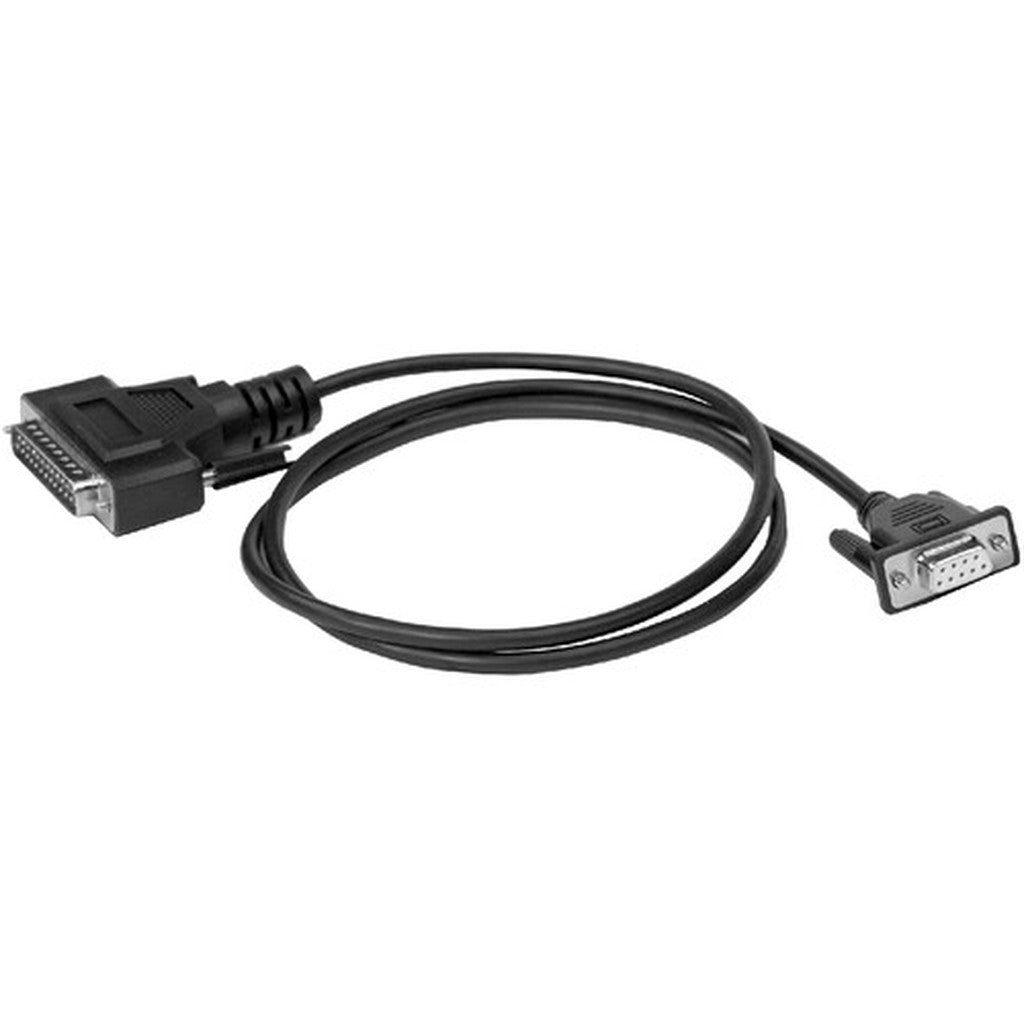

• TI-CBL-OC-ROS25M-A DB9-to-DB25 Acuity Switcher Cable
• 5 VDC, 750 mA Power Adapter
