Ikan TI-ROL-4 Tally Router for Roland V-1200HD, 4-Camera

Ikan TI-ROL-4 4-Camera Tally Router for Roland V-1200HD, 4-Camera

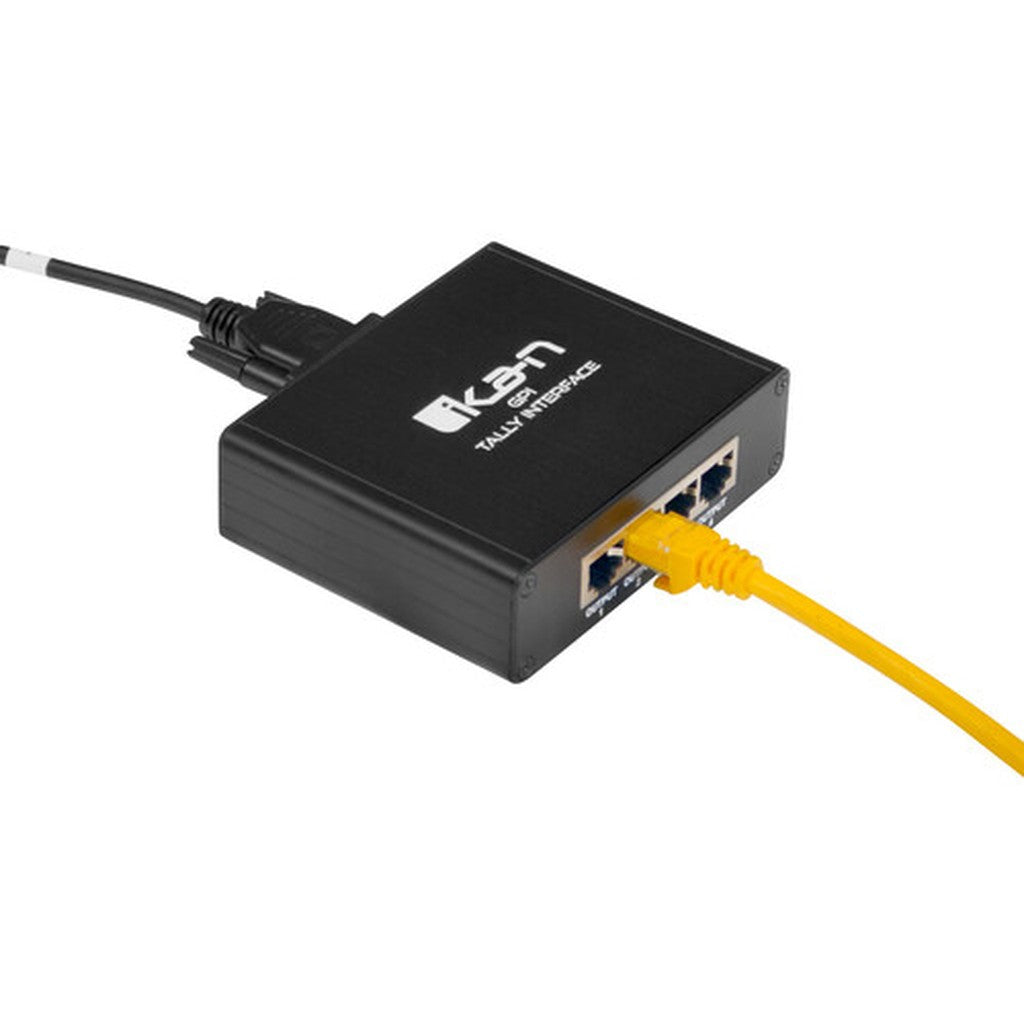

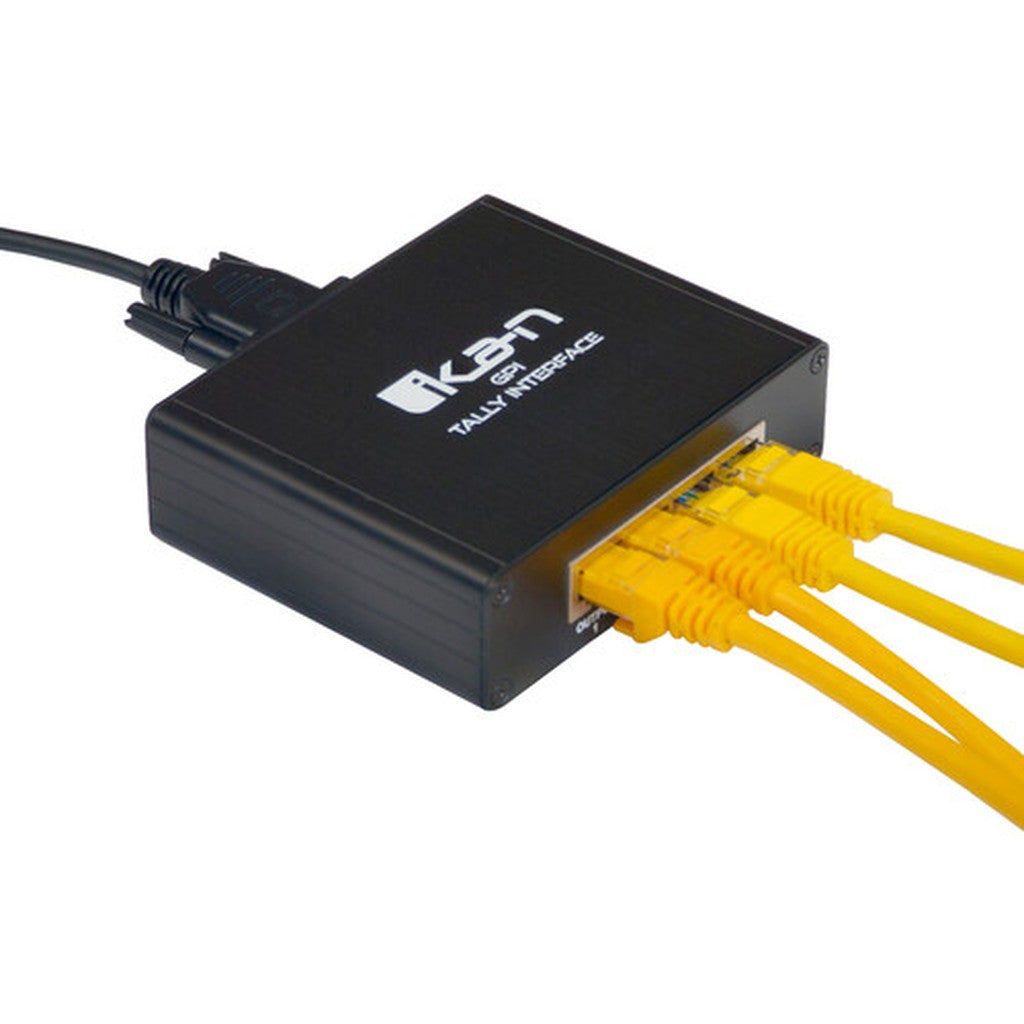

The Ikan TI-ROL-4 4-camera tally router connects a Roland V-1200HD switcher to as many as four compatible Ikan tally lights. Four RJ45 outputs distribute real-time red program cues, helping camera operators, presenters, and production crews immediately identify which camera is currently live.

Designed for broadcast studios, corporate video facilities, houses of worship, classrooms, and live-event control rooms, this Roland tally interface creates a direct hardware link between the switcher and connected monitor tally lights. Standard Ethernet cables simplify equipment placement throughout the production space, while the included switcher cable eliminates custom wiring and adapters.

The plug-and-play architecture requires no software, drivers, or complex system configuration. When an operator selects a camera on the switcher, the corresponding tally light illuminates red to indicate program status. A compact aluminum enclosure protects the internal connections while fitting neatly into permanent control rooms, mobile production systems, and multicamera streaming setups.

Key Features

• Four-Camera Tally Distribution: Connects as many as four compatible Ikan monitor tally lights to one switcher.
• Roland V-1200HD Integration: Provides a direct connection to the switcher’s dedicated tally output.
• Four RJ45 Outputs: Assigns a separate tally connection to each supported camera position.
• Red Program Indication: Clearly identifies the camera currently selected for the live program output.
• Standard Ethernet Cabling: Simplifies monitor placement without requiring proprietary extension cables.
• Plug-and-Play Operation: Requires no drivers, software installation, or additional system configuration.
• Included Connection Cable: Eliminates the need to fabricate a custom switcher tally cable.
• Aluminum Enclosure: Provides durable protection for fixed and portable production environments.

Technical Specifications

• Model: TI-ROL-4
• Product Type: Tally router and interface
• Switcher Compatibility: Roland V-1200HD
• Supported Cameras: Up to 4
• Tally Function: Program status
• Tally Indication: Red

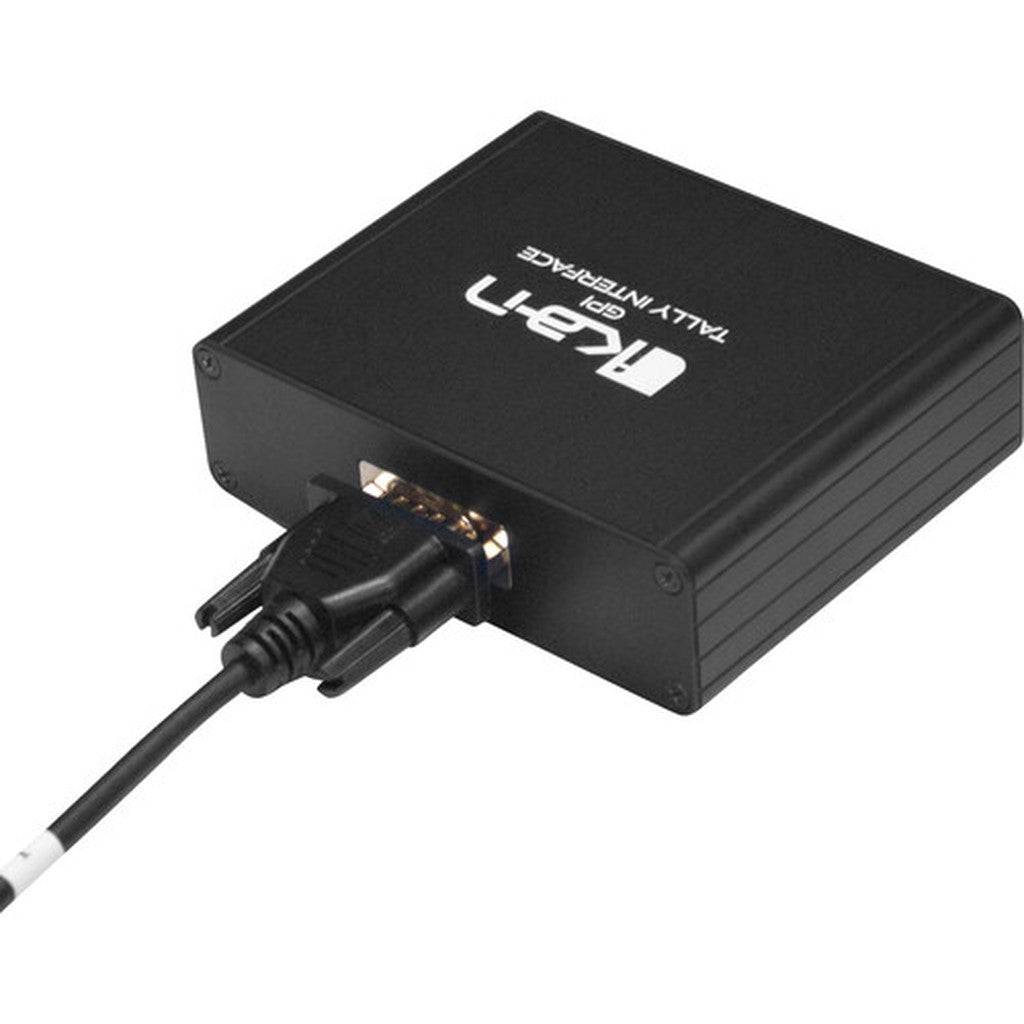

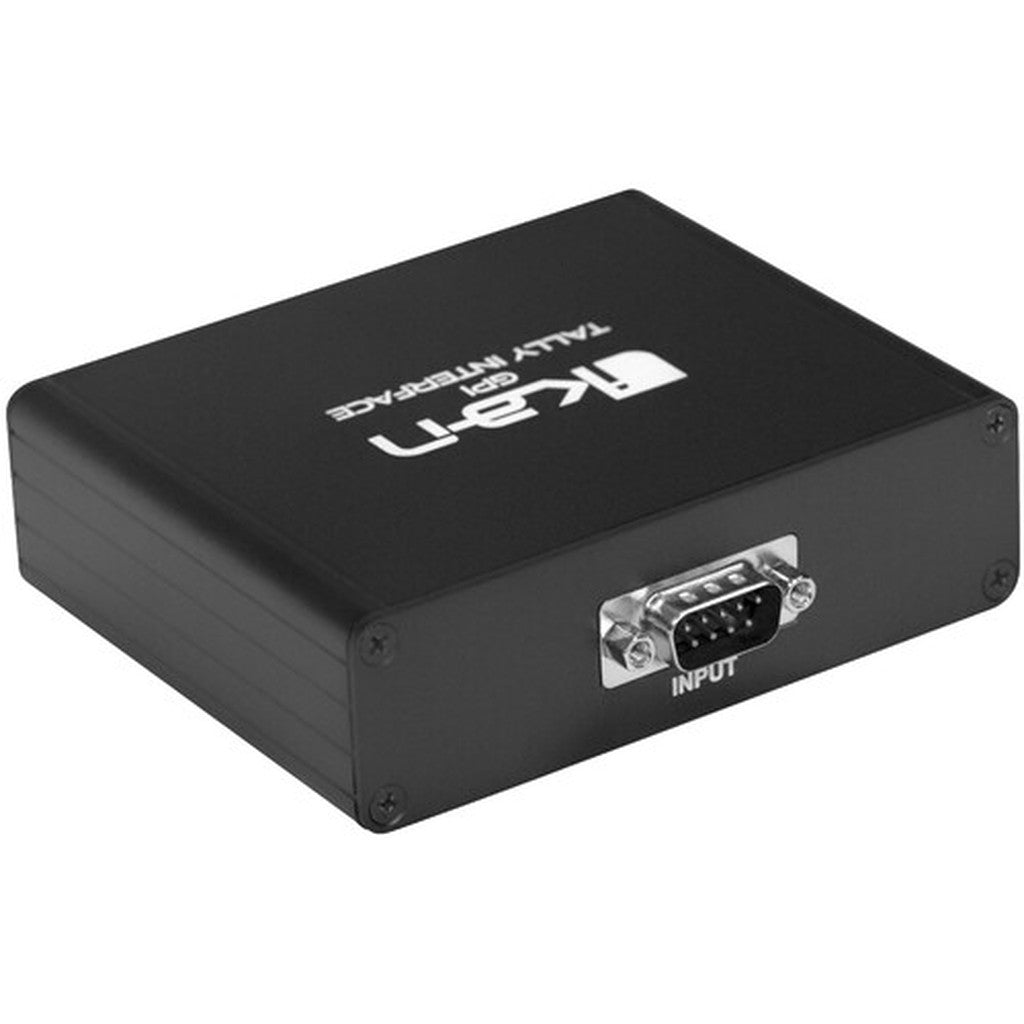

• Input Connector: 1 x DB9

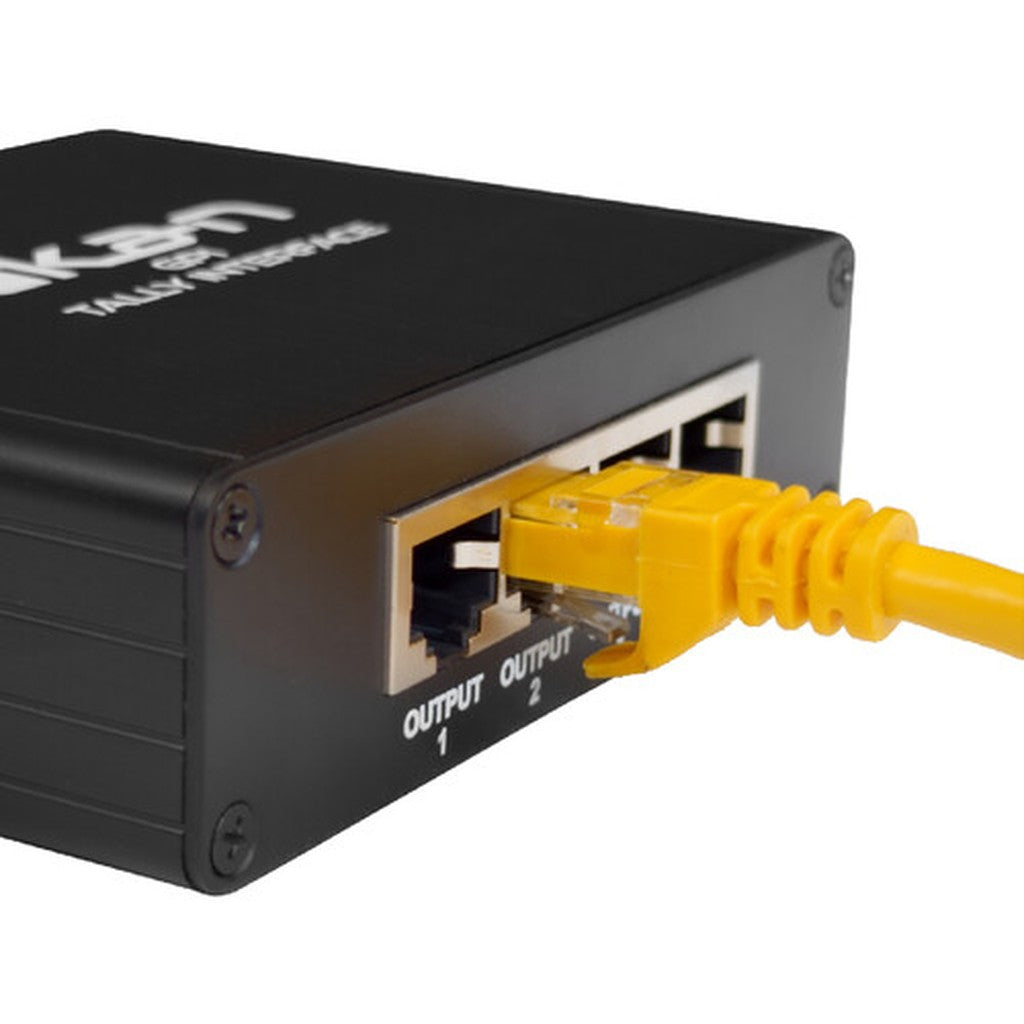

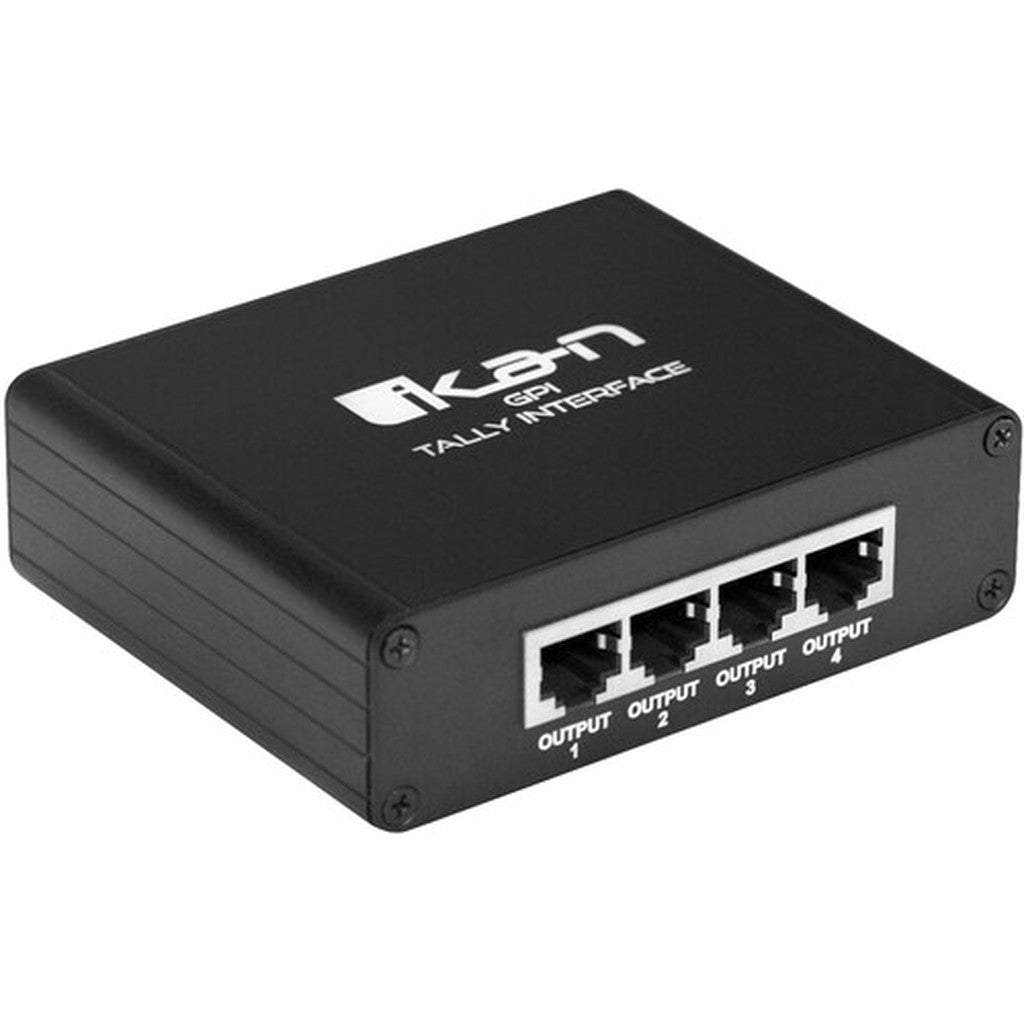

• Output Connectors: 4 x RJ45
• Monitor Connection Cable Type: Standard Ethernet cable
• Switcher Connection Cable Length: 41"
• Installation: Plug-and-play
• Color: Black
• Construction Material: Aluminum
• Dimensions: 4" x 3.25" x 1.33"
• Weight: 1 lb
• Shipping Dimensions: 7" x 7" x 7"
• Shipping Weight: 2 lbs

What's In the Box

• Ikan TI-ROL-4 Tally Router

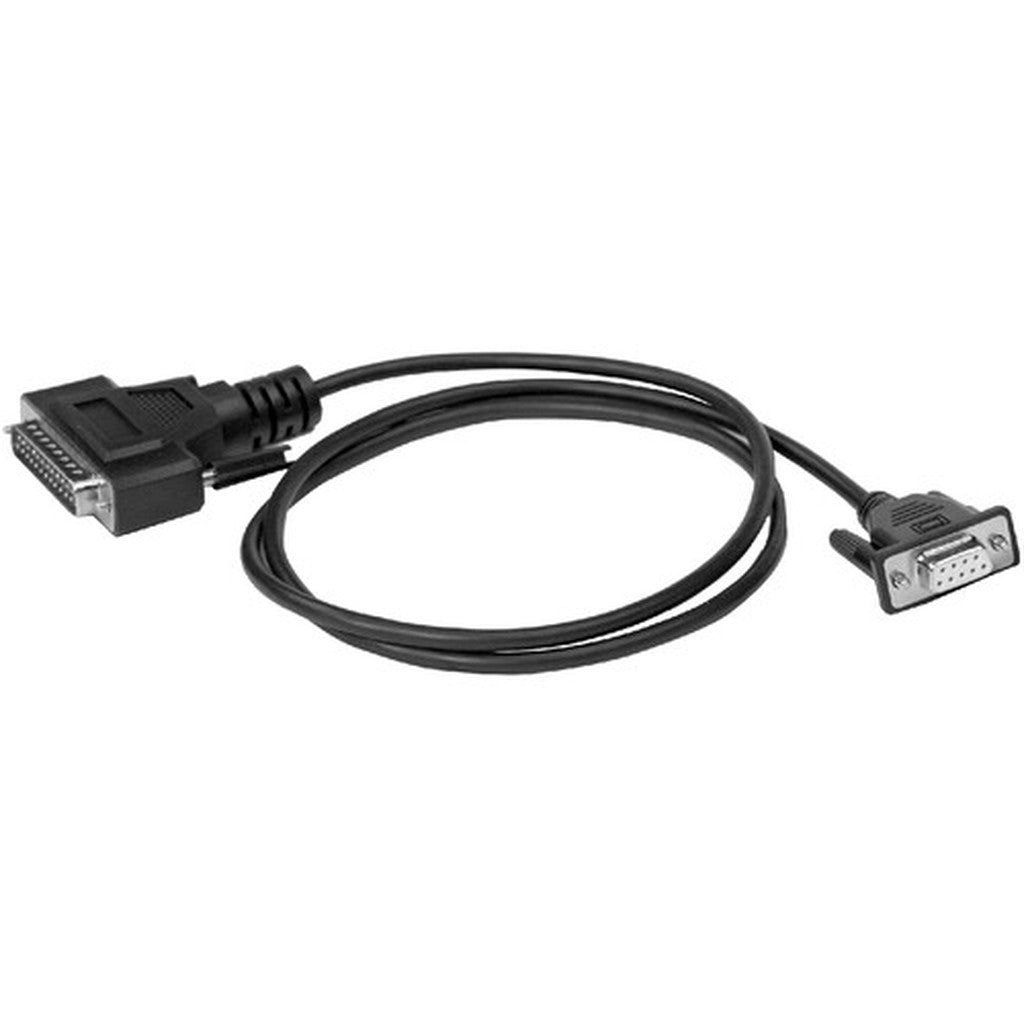

• Roland Switcher Connection Cable
• Power Adapter
