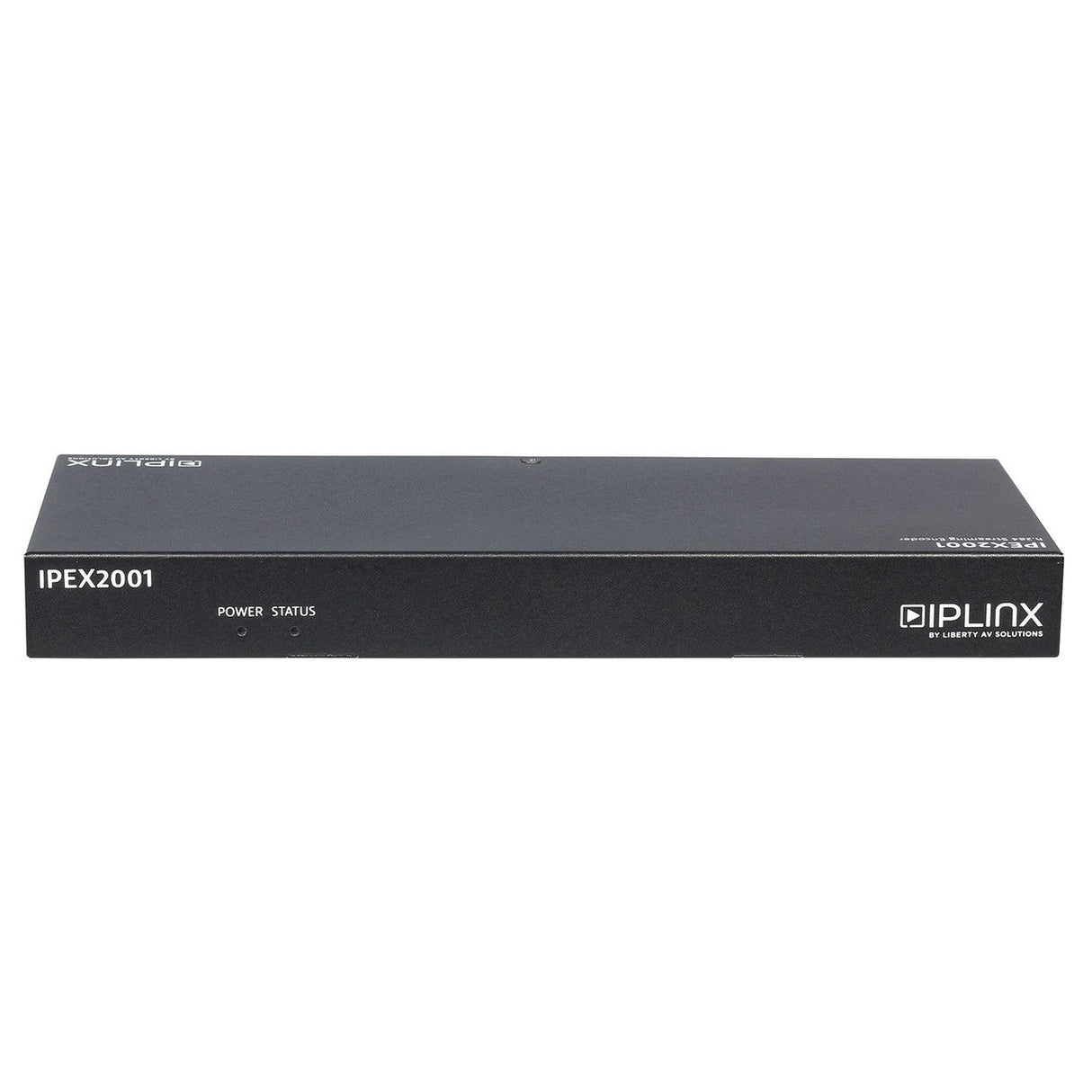

IPLinx IPEX2001 HDMI Over IP Encoder Scalable 1080P Solution

The IPEX2001/2002 transmits HDMI video and audio over a gigabit IP network using h.264 AVC encoding with a data rate up to 30 Mbps. The IPEX2001 supports video signals up to 1920x1200 at 60 Hz. The IPEX2001 outputs two video streams: one large IP stream at the native content resolution and a smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad. An analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content. The IPEX2001/2002 supports PoE and can be powered remotely by compatible power source equipment, such as a PoE Ethernet switch, eliminating the need for a nearby power outlet. Encoding control provides adjustments for encoding bit rate and quality. The RS232 port operates in a pass-through capacity to control a third party device such as a projector.

Key Features

• Transmits HDMI video and audio over a gigabit IP network using H.264 AVC encoding with a data rate up to 30 Mbps
• Supports video signals up to 1920x1200 at 60 Hz
• One large IP stream at the native content resolution
• One smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad
• An analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content
• Supports PoE
• Can be powered remotely
• Encoding control provides adjustments for encoding bit rate and quality
• RS232 port operates in a pass-through capacity
• One complete IPLinx 2000 series system will require the use of one IPEXCB control interface no matter how many encoders / decoders are used
• Free 3rd party control drivers available for download

Technical Specifications

Video Resolutions
SMPTE: 480p, 576p, 720p, 1080i, 1080p
VESA: Resolutions up to 1920x1200
Color Depth: 24, 30, 36 bit
Video Compliance: HDMI 1.3 and HDCP 1.3
Embedded Audio: Up to PCM 6 channel, Dolby Digital, and DTS
ARC (Audio Return Channel): No
HEC (HDMI Ethernet Channel): No
CEC (Consumer Electronics Control): Yes
Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Maximum Distance (point to point): 100 m (328 ft)
Cable Requirements: Category 5e or greater with TIA/EIA-568B crimp pattern
Encoding Data Rate: 64 Kbps to 3s0 Mbps
Encoding Method: CRB or VBR
End to End Latency
Low Latency/Quality Mode: 79 ms
High Quality Mode: 250 ms
Maximum Supported Encoders: 999
Maximum Video Wall Size: 16 x 16
IP Controller: IPEXCB
Compatible Decoders: IPEX2002, IPEX2003MV
