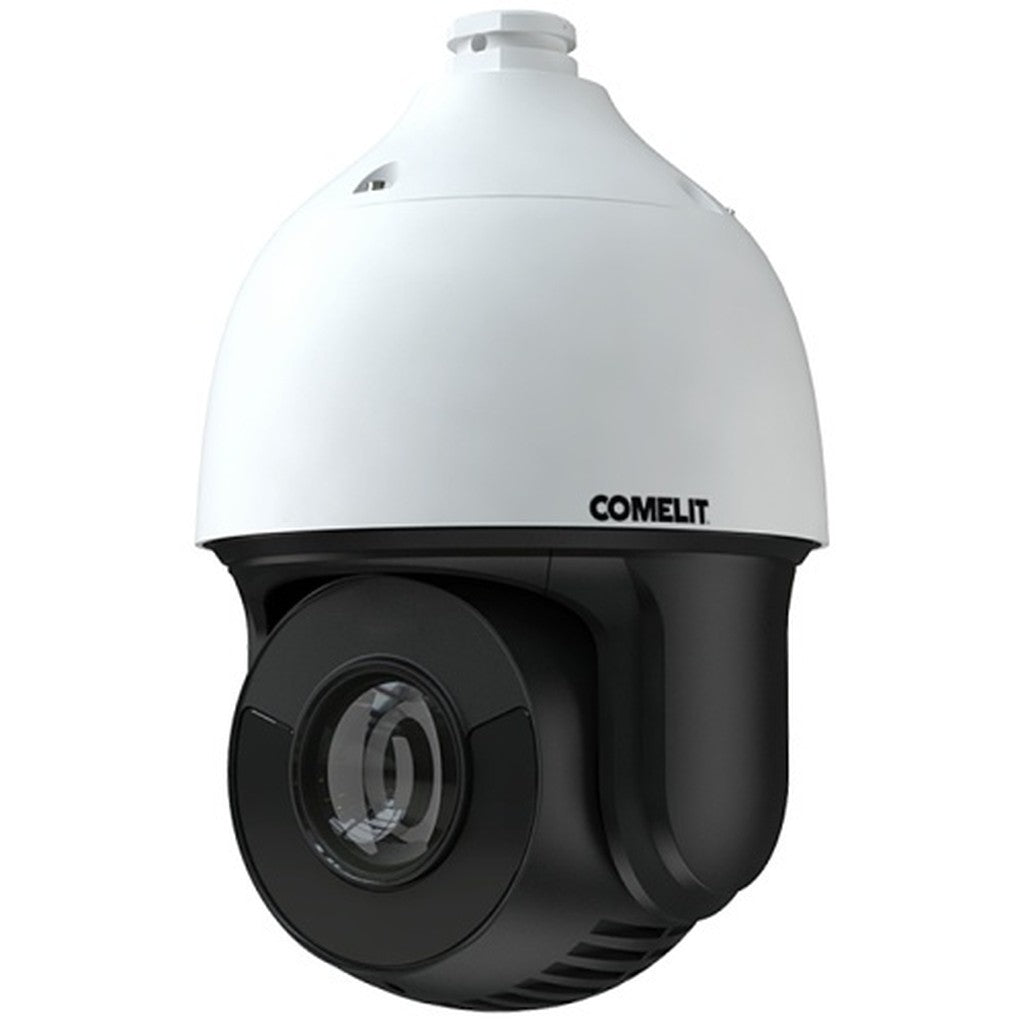

Comelit IPPTZA08Z37A 8MP 37x PTZ IP Camera

Comelit IPPTZA08Z37A 8MP 37x PTZ IP Camera

The Comelit IPPTZA08Z37A 8MP 37x PTZ IP Camera is an Advance Series speed dome camera for long-range IP surveillance. It combines 4K 8MP video at 30 fps, a 6-222 mm motorized lens, 37x optical zoom, Smart IR to 984.3', WDR 120 dB, and PoE installation.

Designed for professional CCTV systems, this Comelit PTZ IP camera fits campuses, parking lots, commercial buildings, industrial sites, perimeter security, and wide-area monitoring. Use it when you need an 8MP PoE PTZ security camera with smart tracking, long-distance zoom, Micro SD recording, analytics, audio I/O, and alarm I/O.

The IP67 die-cast aluminum speed dome enclosure, IK10 metal housing, Smart H.265/H.264 compression, triple streaming, motion detection, and human or vehicle analytics support dependable surveillance performance. Browser viewing, Comelit CCTV mobile app control, and Comelit CCTV Manager software help simplify managed IP video deployments.

8MP 37x PTZ IP Camera Features

• 4K 8MP Resolution: Captures 3840 x 2160 surveillance video at up to 30 fps for detailed security monitoring.
• 37x Optical Zoom: Uses a 6-222 mm motorized varifocal lens for long-distance identification and flexible scene control.
• Smart Tracking: Automatically follows detected activity to help maintain visual awareness across large monitored areas.
• Long-Range Smart IR: Provides infrared illumination up to 984.3' for nighttime and low-light surveillance.
• Human and Vehicle Analytics: Supports line crossing, region entrance, region exit, region intrusion, and people or vehicle counting.
• Audio and Alarm I/O: Includes one audio input, one audio output, two alarm inputs, and two alarm outputs.
• Micro SD Edge Storage: Supports Micro SD cards up to 256GB for onboard recording, with the card sold separately.
• Outdoor-Rated Protection: IP67 weather resistance and IK10 metal housing support demanding surveillance environments.

Technical Specifications

• Product Type: PTZ IP camera
• Brand: Comelit
• Model: IPPTZA08Z37A
• ADI Part Number: CU-IPTZ08Z37
• Product Name: Advance Series 8MP PTZ IP Camera, 37x Optical Zoom, 4K at 30 fps, White
• Product Series: Advance
• Category: CCTV camera
• Camera Type: PTZ IP speed dome camera
• Housing Type: Speed dome
• Camera Sensor: 1/1.8" CMOS Ultra Starlight
• Lens Type: Motorized
• Lens: 6-222 mm optical varifocal
• Optical Zoom: 37x
• Effective Pixels: 3840 x 2160
• Video Resolution: 4K, 8MP
• Frame Rate: 30 fps
• Horizontal Field of View: 59° to 2°
• Vertical Field of View: 34° to 1.1°
• Diagonal Field of View: 67° to 2.3°
• Electronic Shutter: 1/1 to 1/100000 second
• Sensitivity: 0.005 lux color, 0 lux black-and-white with IR LED on
• Signal-to-Noise Ratio: Greater than 50 dB
• Video Transmission: Triple streaming
• Video Compression: Smart H.265, H.264+, H.264
• Audio Compression: G711A/U
• Bit Rate Range: 0.06 to 16 Mbit/s
• Supported Protocols: DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP/IP, UDP, UPnP, DNS, SNMP, IEEE 802.1x, ONVIF Profile-S, ONVIF Profile-G, ONVIF Profile-T
• ONVIF Compatibility: Profile-S, Profile-G, Profile-T
• Firmware Update: Network firmware updating supported
• Simultaneous Connections: 16 live connections
• Remote Browser Viewing: Edge, Firefox, Chrome, Safari
• Remote Mobile Control: Comelit CCTV app
• Management Software: Comelit CCTV Manager
• Latest Firmware Version Listed: 5.1.1.0.57271
• Main Functions: 3D-DNR, BLC, Defog
• Motion Detection: Yes
• Video Analytics: Scene change detection, video tampering detection, line crossing detection with human and vehicle classification, region entrance detection, region exit detection, region intrusion detection with human and vehicle classification, vehicle counting, people counting, and smart tracking
• Privacy Zones: 8
• Back Light Compensation: BLC, HLC
• Digital Effects: Mirror horizontal, mirror vertical, 180° rotation, saturation, brightness, contrast, sharpness, image flip
• Wide Dynamic Range: WDR 120 dB
• Enhanced DNR Control: 3D-DNR
• White Balance Control: Automatic, indoor, manual, outdoor
• Automatic Gain Control: Yes
• Camera Titling: Yes
• IR LED Lighting Distance: 984.3'
• Vandal Resistance Rating: IK10 metal housing
• IP Protection Rating: IP67
• Alarm Inputs/Outputs: 2 inputs, 2 outputs
• Audio Inputs/Outputs: 1 input, 1 output
• LAN Output Type: Ethernet 10/100 Mbit/s RJ45
• Local Storage: Micro SD card support up to 256GB, card not included
• Supply Voltage: 24V DC or 24V AC ±25%
• Power Supply Type: PoE or external power supply
• PoE Standard: IEEE 802.3bt Class 6
• Maximum Absorption: 48 W
• DORI Detection Distance: 453.4' to 14084.7'
• DORI Observation Distance: 179.8' to 5597.1'
• DORI Recognition Distance: 90.6' to 2816.9'
• DORI Identification Distance: 45.3' to 1408.5'
• Finishing Material: Die-cast aluminum
• Product Color: Black and white
• Width: 8.66"
• Depth: 8.66"
• Height: 14.09"
• Product Weight: 13.23 lbs
• Operating Temperature: -22°F to 140°F
• Operating Humidity: 25% to 95% RH maximum
• Wall Support: Included
• Compliance: NDAA compliant
• Compatible Accessories: CMA-PTZA, AMAJB-A, PMAJB-A
• UPC: 802390342667

What's In the Box

• Comelit IPPTZA08Z37A PTZ IP Camera
• Power Supply Unit
• Wall Bracket
