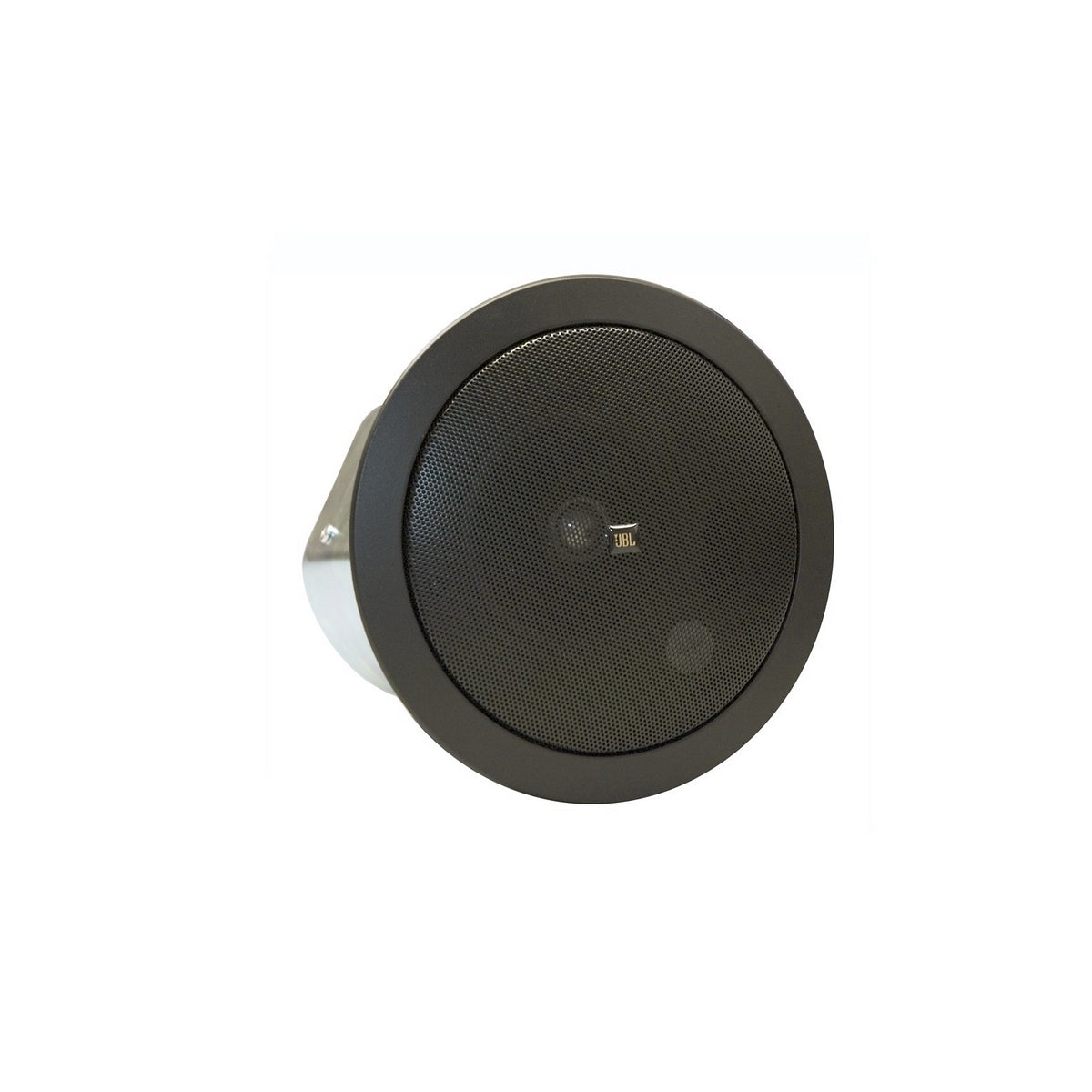

JBL C24CT-BK | Control 24CT Background Foreground Ceiling Loudspeakers BLACK (pair)
The JBL C24CT-BK Control 24CT Background Foreground Ceiling Loudspeakers are designed to deliver exceptional audio quality in a compact form factor, making them ideal for various applications including medium volume paging and background music in environments such as restaurants, professional offices, and retail spaces. This pair of ceiling speakers offers flexibility and ease of installation, even without ceiling access, thanks to the built-in voltage transformer. It also supports expanding your audio system by easily integrating with other High/Mid response Control Contractor Systems for a more adaptable and robust setup.
The JBL Control 24CT-BK features a robust 4.5" woofer with an injection-molded graphite cone and butyl rubber surround for superior low-frequency performance. The 1/2" polycarbonate tweeter ensures extended high-frequency response and smooth overall frequency performance. With an extremely wide 150° coverage and a shallow 4" depth, these speakers are optimized for uniform sound distribution. Whether you're enhancing your current audio system or setting up a new one, these loudspeakers provide the reliability and quality JBL Professional is known for.
Key Features
- 30 Watts power capability
- 25W Multi-tap transformer for 70V and 100V systems
- 4.5" (115mm) woofer, injection molded graphite cone with butyl rubber surround
- Extremely wide 150° coverage
- Shallow 4" (100mm) depth
- 1/2" (12mm) polycarbonate tweeter for extended response
- Smooth frequency response
- Packaged with grille, back can, and tile rails for fast installation
Specifications
- Active or Passive: Passive
- Frequency Response: 85Hz to 25KHz
- Power Capacity: 30 Watts Program (C24C Micro)
- Maximum Sound Pressure Level (SPL): 94dB @ 1 m (3.3'), 8W tap
- Nominal Sensitivity: 86dB SPL @ 1 m (3.3')
- Transformer Taps: 70V: taps: 30W, 15W, 7.5W, 3.7W 100V: taps: 30W, 15W, 7.5W
- Crossover: 3.5KHz
- Low Frequency Driver: 4.5" (115mm) IMG (injection molded graphite), 1" (24mm) Voice coil
- High Frequency Driver: 0.5" (12mm) polycarbonate
- Enclosure Material: Formed Steel
- Input Connections: Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of back can
- Color: Black
- Dimensions: Outside Dimensions: (H x W) 4.2 x 7.7" (106 x 195mm) 4.1" (105mm) front of ceiling tile to back of the back can
- Weight: 4.4 lb (2.0kg) each
Package Contents
- 2 x JBL C24CT-BK Control 24CT Ceiling Loudspeakers
- Grille
- Back can
- Tile rails
