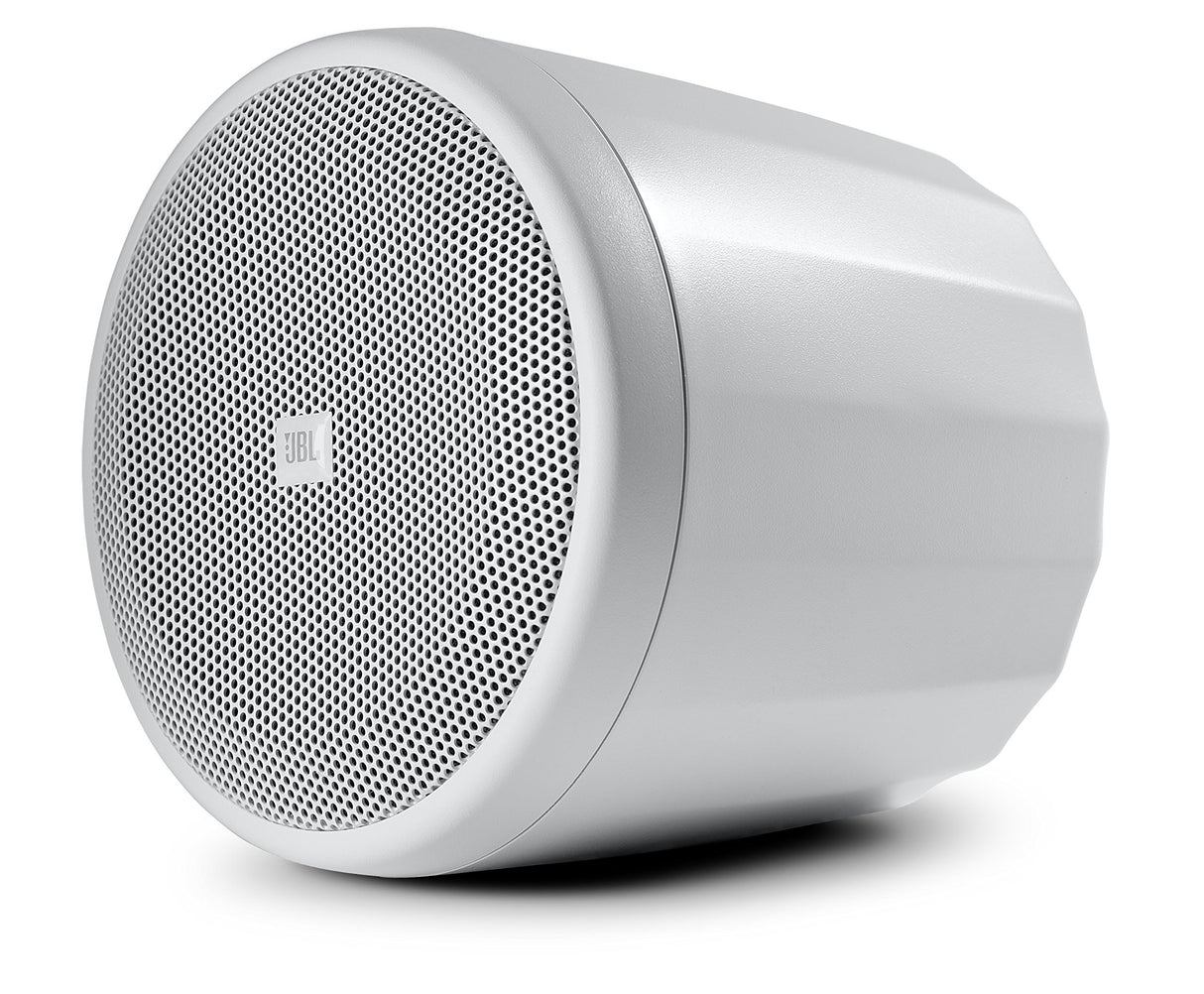

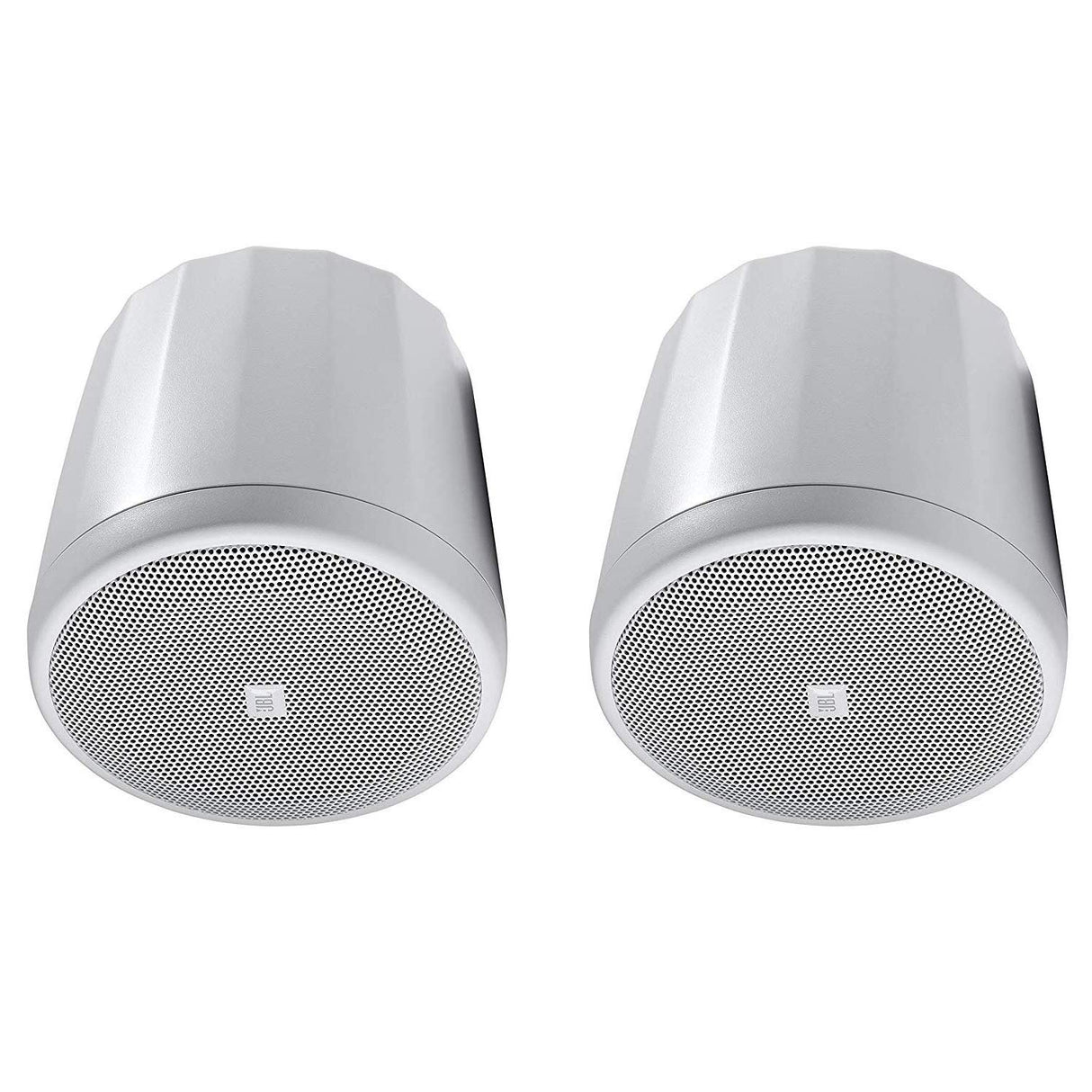

JBL C62P-WH Control 62P Ultra Compact Mid High Satellite Pendant Speaker WHITE (pair)

The JBL Control 62P-WH (White) is an ultra-compact mid high satellite pendant-type loudspeaker for open architecture ceilings and other locations where a pendant form factor is desired. Ideal for visually sensitive applications, Control 62P's small driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, 2 or 4 pcs of Control 62P can be driven from the satellite output of a Control 50S/T surface-mount subwoofer (mounted on a wall) or Control 40CS/T in-ceiling subwoofer.

The system's 60 mm (2.5 in) driver features a polypropylene-coated cone and 20 mm (3/4 in) copper clad aluminum voice coil with vented Nomex coil-former for high power handling and long-term reliability. The high sensitivity, wide bandwidth design provides high-fidelity sound quality with enhanced long-term sound level capability.

Key Features

• Ultra-compact design is ideal for visually-sensitive applications where small speakers are needed
• 2" driver delivers high-quality mid/high frequency sounds, perfect for speech or music applications
• Full grille protects the driver and gives the speaker a sleek look
• 20W power handling capability and a 16 ohm impedance for compatibility with a variety of installation sound systems
• Up to 4 Control 62P speakers can be driven from a Control 50S/T or 40CS/T subwoofer for wide-bandwidth performance
• Control 62P can be intermixed with Control 52 and 42C surface and in-ceiling speakers for a customized installation

Technical specs

Frequency Response (-10 dB)
150 Hz - 20 kHz
Frequency Range (±3 dB)
200 Hz - 17 kHz
Power Capacity
50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)
30 Watts Continuous Program Power (100 hrs)
15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity
87 dB (4.0 V, 1 W)
84 dB (2.83 V)
Nominal Coverage Angle
140Deg. (+25Deg./-50Deg.)
Directivity (Q)
4.7
Directivity Index (DI)
6.2 dB
Rated Maximum SPL @ 1m
97 dB continuous pink noise, 103 dB peak
Rated Impedance
16 ohms (no transformer taps)
Recommended High-Pass Frequency
150 Hz
Driver
60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (3/4 in) copper clad aluminum voice coil with vented Nomex coil-former
Enclosure Material High impact polystyrene
Grille
Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating
Color
White
Dimensions (Diameter x Height)
128 x 121 mm (5.1 x 4.8 in) to top of cabinet
141 mm (5.6 in) to top of suspension bracket.
Weight
0.7 kg (1.5 lbs)
