JBL CBT 100LA-1 Constant Beamwidth Technology Line Array Column Loudspeaker BLACK
Free Shipping
Low In Stock
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

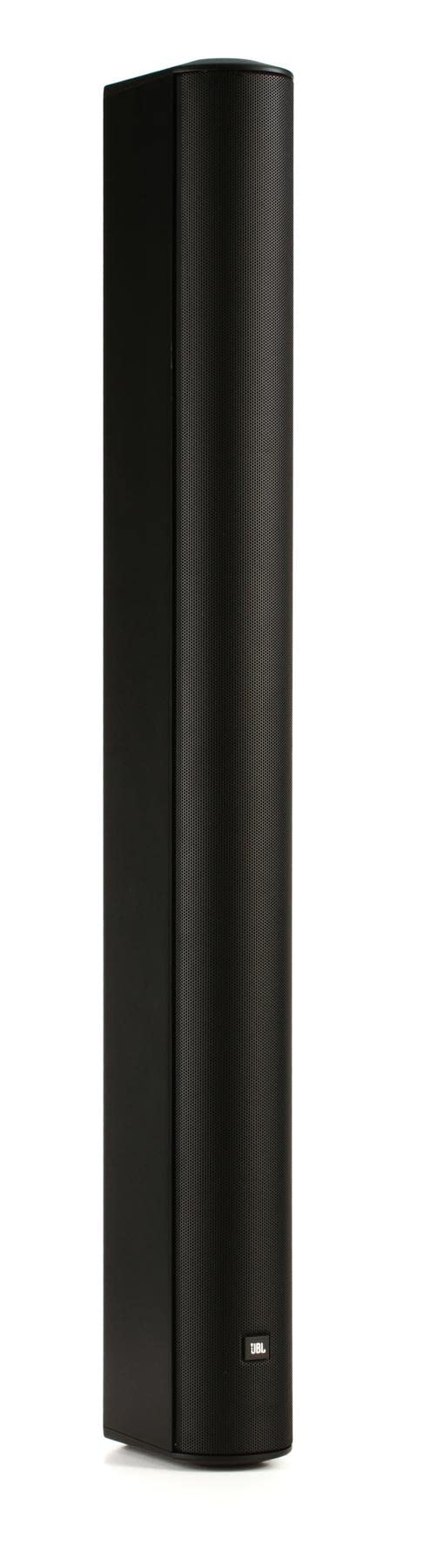

JBL CBT 100LA-1 Constant Beamwidth Technology Line Array Column Loudspeaker - Black
The JBL CBT 100LA-1 in black is a professional-grade passive column loudspeaker designed for superior sound clarity and consistent vertical coverage. Utilizing JBL’s patent-pending Constant Beamwidth Technology™, this loudspeaker provides a breakthrough in pattern control consistency, reducing typical vertical beaming and out-of-coverage lobing common in traditional column speakers. Equipped with sixteen 50 mm (2 inch) full-range drivers with dual neodymium magnets and copper-capped pole pieces, it delivers powerful and distortion-minimized audio output suitable for spaces such as lecture halls, conference rooms, churches, and outdoor venues. Its weather-treated, fiberglass reinforced ABS cabinet and rust-resistant aluminum grille ensure durability in harsh conditions, making it ideal for both indoor and outdoor installations.
Key Features
- Constant Beamwidth Technology™: Ensures constant directivity up to the highest frequencies while reducing out-of-coverage lobing for superior pattern control.
- Vertical Coverage Switchable: Easily switch between 40° for medium-throw and 15° for long-throw applications to suit varied venue requirements.
- Switchable Voicing: Offers a flat frequency response in music mode and a mid-range presence boost in speech mode for enhanced intelligibility.
- Dynamic SonicGuard™ Protection: Limits low-frequency excursion dynamically to minimize distortion and protect drivers from damage caused by overpowering.
- Installation Flexibility: Includes swivel (pan/tilt) wall mount bracket and multiple M6 insert points for third-party mounting or suspension with eyebolts.
- Durability: Weather-treated drivers, fiberglass reinforced ABS cabinet, stainless steel external screws, and painted aluminum grille for outdoor durability.
- Built-in Transformer: Equipped with 70V/100V transformer taps and 8-ohm direct capabilities to fit various amplifier setups.
Specifications
● System
○ Drivers: Sixteen 50 mm (2 in) full-range drivers with dual neodymium magnets and copper-capped pole pieces
○ Frequency Range (-10 dB): 80 Hz – 20 kHz
○ Vertical Coverage:
■ Narrow Mode: 15° (2 kHz - 16 kHz)
■ Broad Mode: 40° (1 kHz - 16 kHz)
○ Horizontal Coverage: 1.5° (average, 1 kHz - 4 kHz)
○ Sensitivity (2.83V@1m):
■ Narrow Speech Mode: 96 dB (2 kHz - 14 kHz)
■ Narrow Music Mode: 93 dB (300 Hz - 18 kHz)
■ Broad Music Mode: 93 dB (300 Hz - 18 kHz)
■ Broad Speech Mode: 90 dB (300 Hz - 18 kHz)
○ Nominal Impedance: 8 ohms (in Thru mode)
○ Power Capacity:
■ Continuous: 325 W (1300W peak), 2 hours
■ Continuous (8 ohm): 200 W (800W peak), 100 hours
○ Maximum SPL:
■ Narrow Speech Mode: 121 dB continuous average (127 dB peak)
■ Narrow Music Mode: 118 dB continuous average (124 dB peak)
■ Broad Music Mode: 118 dB continuous average (124 dB peak)
■ Broad Speech Mode: 115 dB continuous average (121 dB peak)
○ Transformer Taps: 120W, 60W, 30W (15W at 70V only), and 8Ω Thru via switch
Package Contents
- JBL CBT 100LA-1 Column Loudspeaker: 1 unit in black finish
- Wall Mount Bracket: Swivel pan/tilt wall bracket included for flexible aiming and installation
- Mounting Hardware: Multiple M6 insert points for compatibility with third-party brackets and suspension eyebolts
- Documentation: User manual and installation guide included
