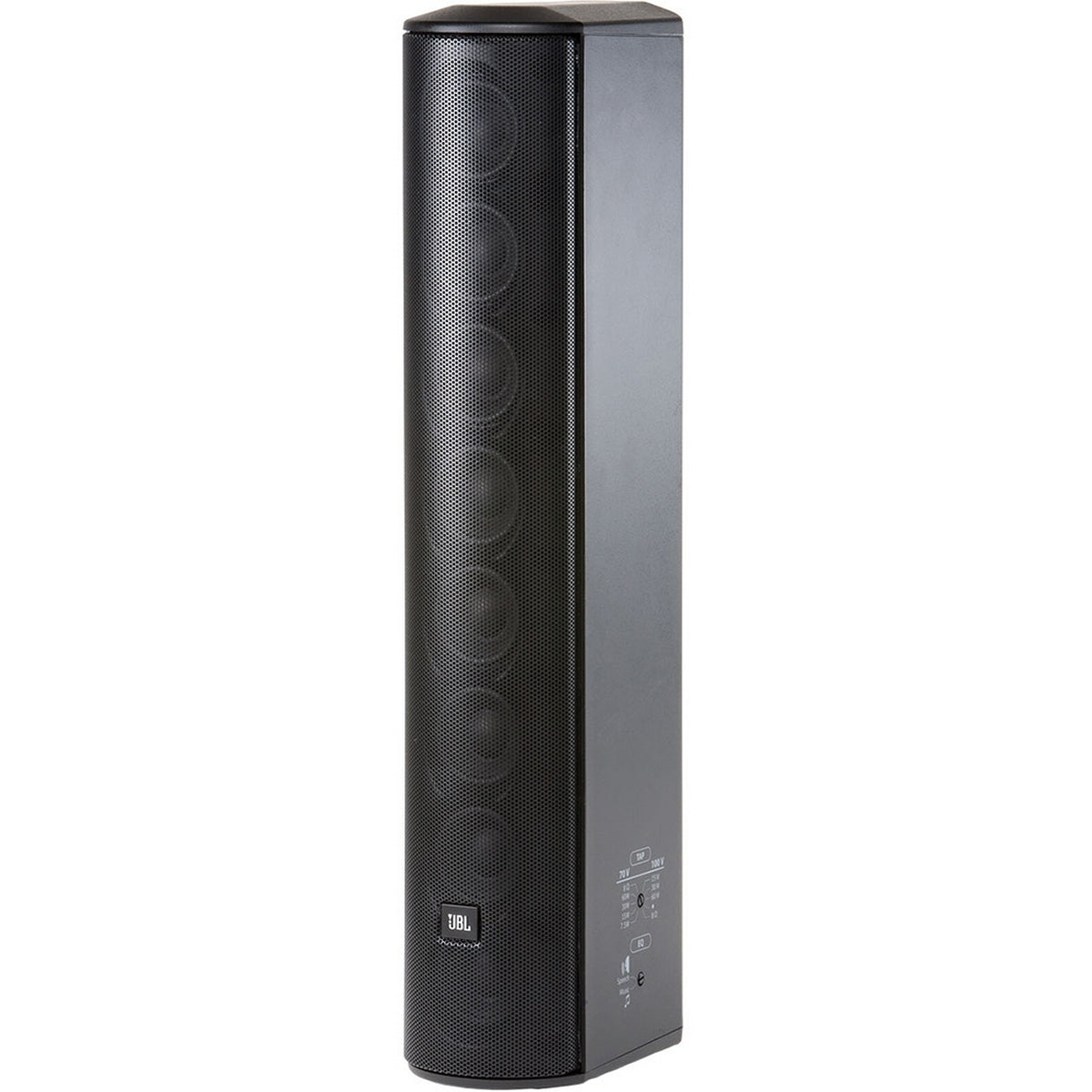

JBL CBT 50LA-LS CBT 50LA-LS Constant Beamwidth Technology Line Array Column Loudspeaker BLACK

The CBT 50LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

Key Features

• Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• EN54-24 Compliant (when installed with included MTC-PC2 panel cover).
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard overload protection
• Built-in 70V/100V transformer, plus 8 ohm direct capability.
• Swivel (pan) / tilt wall bracket included.

Technical specs

Components

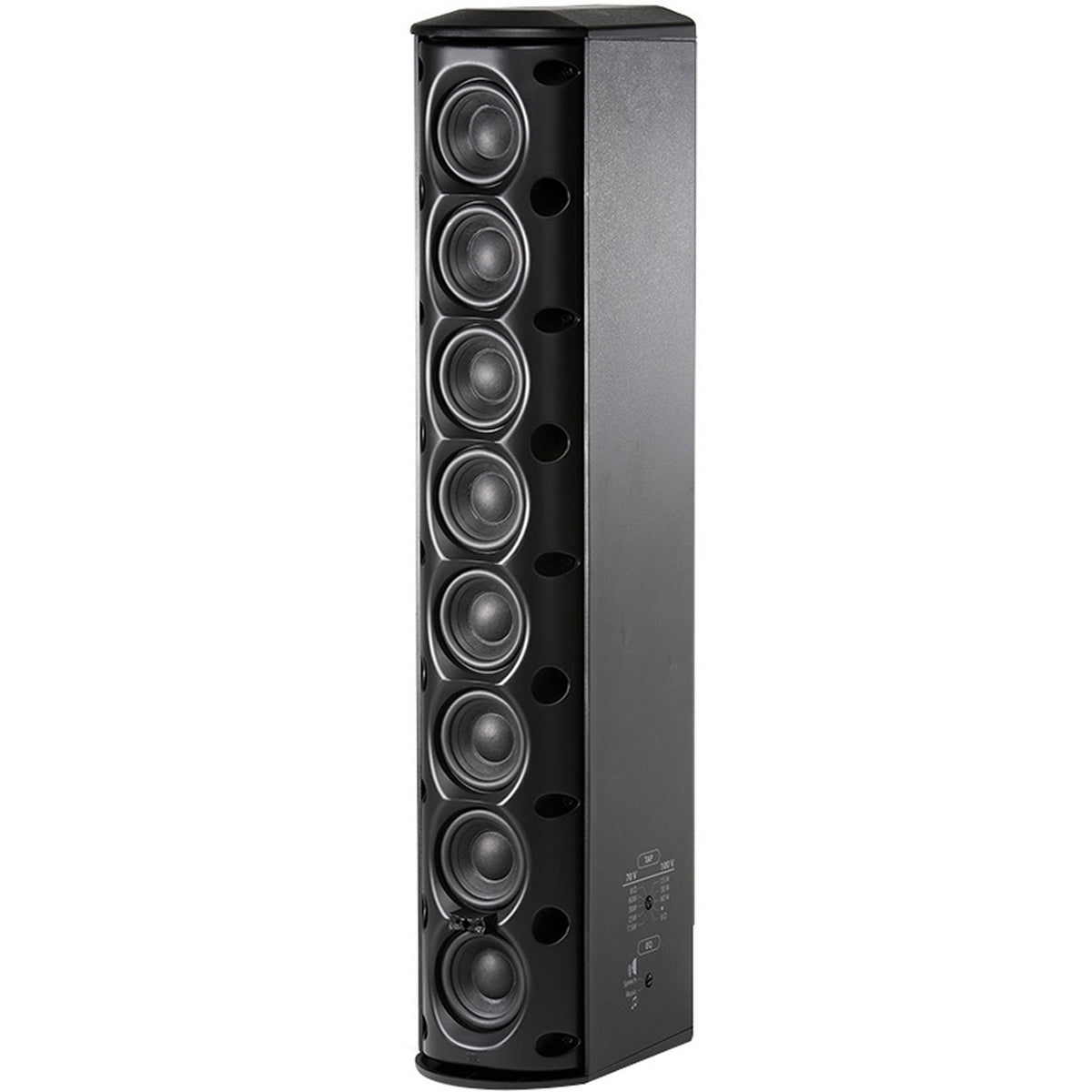

Eight 50 mm
(2 in) Full-Range
Frequency Range (-10 dB)
120 Hz - 20 kHz
Coverage Pattern
Vertical 20° (1.5 kHz - 16 kHz, ±10°)
Horizontal 150° (ave, 1 kHz - 4 kHz, ±20°)
Sensitivity (2.83V@ 1m)
93 dB (speech mode, 2 kHz - 14 kHz)
89 dB (music mode, 300 Hz - 18 kHz)
Nominal Impedance
8 ohms
Power Capacity
(8 ohm setting)
150W (600W peak), 2 hrs
100 W (400W peak), 100 hrs
Max SPL
Speech mode: 115 dB cont ave (121 peak)
Music mode: 111 dB cont ave (117 peak)
70V/100V Transformer Taps
60W, 30W, 15W, (7.5W at 70V only), and 8 thru, via switch
Enclosure
Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors
Black
Insert Points
Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Safety Agency Rating
EN54-24:2008 certified (Certificate No. 0359-CPR-00238), when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of
IEC60849/EN60849.
Dimensions (H x W x D)
528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
Net Weight
4.1 kg (9.0 lb)
Included Accessories
Swivel (pan) / tilt wall bracket
MTC-PC2 terminal panel cover
Optional Accessories
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand.
