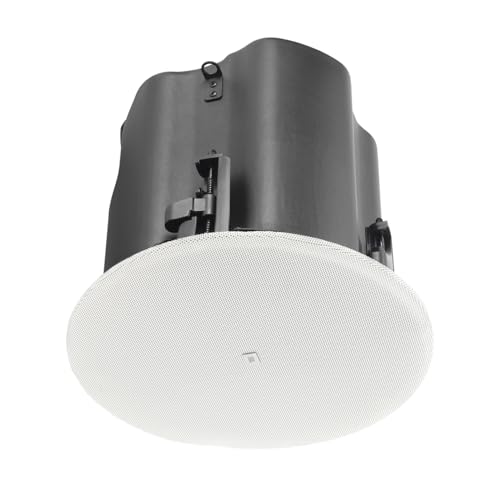

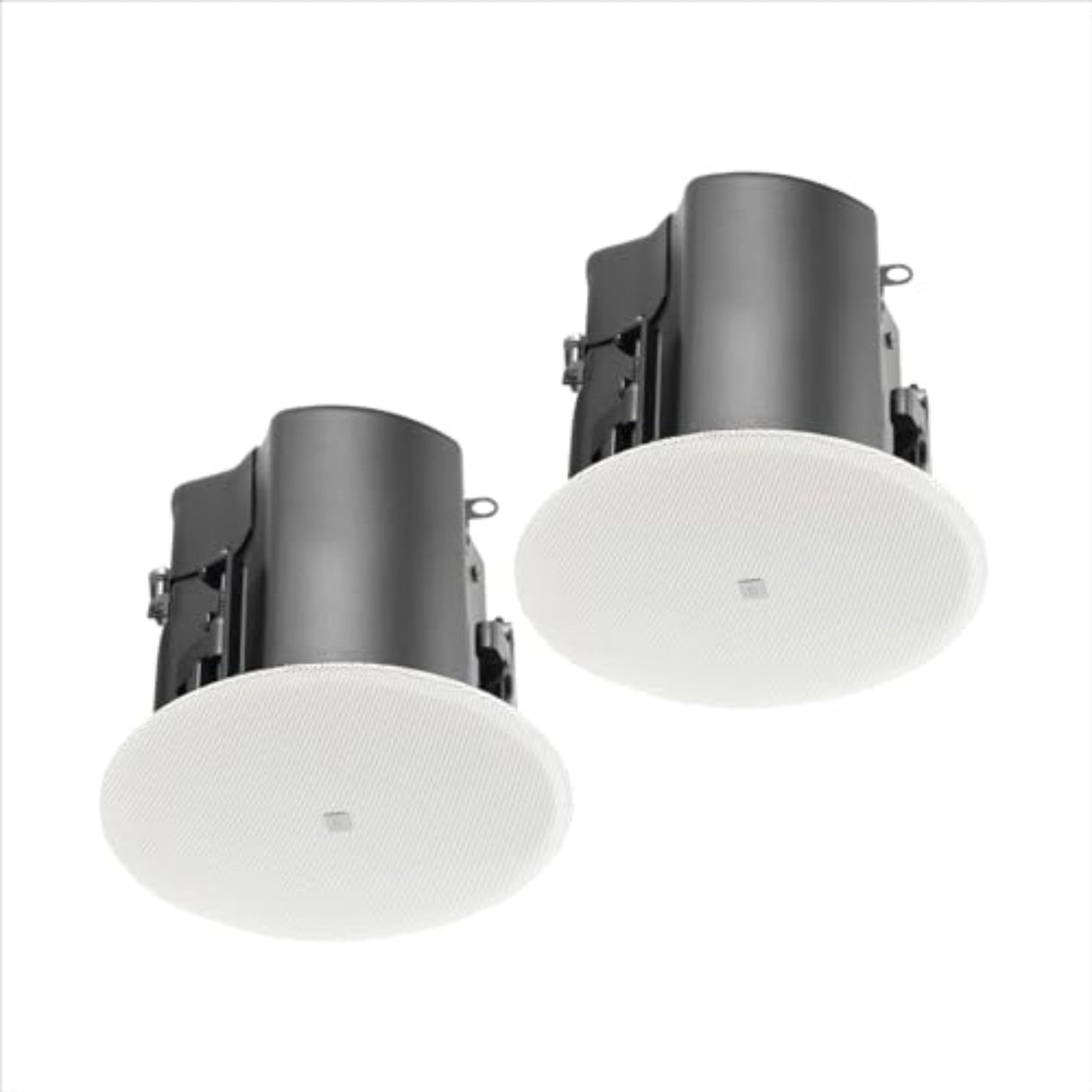

JBL Control 416C/T 6.5-Inch 2-Way Coaxial Ceiling Loudspeaker 70V/100V (Pair)

JBL Control 416C/T 6.5-Inch 2-Way Coaxial Ceiling Loudspeaker

The JBL Control 416C/T is a 6.5-inch two-way coaxial ceiling loudspeaker from the Control 400 Standard Coverage Series, delivering 61 Hz to 20 kHz frequency response, 50 watts of continuous power handling, and combined 70V/100V and low-impedance operation - replacing the legacy Control 16C/T with improved installation features and modern aesthetics.

Built for retail stores, corporate offices, education facilities, and hospitality environments, the Control 416C/T pairs a coaxially mounted 165 mm woofer with a 20 mm soft-dome tweeter for smooth, full-bandwidth music and speech reproduction. The built-in multi-tap transformer enables flexible distributed audio wiring, while the low-impedance direct input supports conventional amplifier channels.

All Control 400 Series models are engineered with installer-friendly features: terminal covers with top and side cable entry, captive hand-screws for tool-free securing, and a captive dogear mounting system compatible with a wide range of ceiling thicknesses. The full-face magnetic grille is paintable and includes an integrated safety tether, meeting UL 1480A, UL 2043, NFPA 90A, and NFPA 70 requirements for plenum-rated installations.

Key Features

• 6.5-Inch Two-Way Coaxial Driver: Coaxially mounted 165 mm woofer and 20 mm soft-dome tweeter deliver wide-bandwidth, point-source performance.
• 50 W Continuous Power Handling: Ample headroom for foreground music, background music, and clear speech paging.
• Combined 70V/100V and Direct Operation: Integrated multi-tap transformer with low-impedance input supports both distributed and direct system architectures.
• 120-Degree Coverage: Wide conical dispersion provides consistent level and tonality throughout the listening space.
• Paintable Magnetic Grille: Full-face, bezel-less magnetic grille with safety tether accepts standard paint for seamless ceiling integration.
• Plenum-Rated: UL 1480A and UL 2043 listed for safe operation in air-handling ceiling plenum spaces.

Technical Specifications

• LF Driver: 165 mm (6.5 in) woofer
• HF Driver: 20 mm (0.75 in) soft-dome tweeter
• Frequency Range: 61 Hz - 20 kHz
• Power Handling: 50 W continuous
• Coverage: 120 degrees conical
• Transformer: 70V/100V multi-tap with low-impedance direct operation
• Series: Control 400 Standard Coverage
• Replaces: JBL Control 16C/T
• Sold As: Pair
• Safety Certifications: UL 1480A, UL 2043, NFPA 90A, NFPA 70

What's Included

• (2) JBL Control 416C/T Ceiling Loudspeakers
• Mounting Hardware
• White Round Paintable Magnetic Grilles
