JBL EON208P 8 Inch 300W Bluetooth 2 Way PA Speakers

Bring legendary JBL sound quality to your stage with the EON208P all-in-one portable PA system. Featuring a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8” two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity allows you to stream audio from your mobile device. Thanks to 300 watts of power, you’ll have enough volume to be heard loud and clear. Plus, the compact and lightweight form factor makes transportation easyyou can carry the entire system with one hand.

Key Features

• 300 Watt Amplifier
• 8 Inch two way stereo speakers

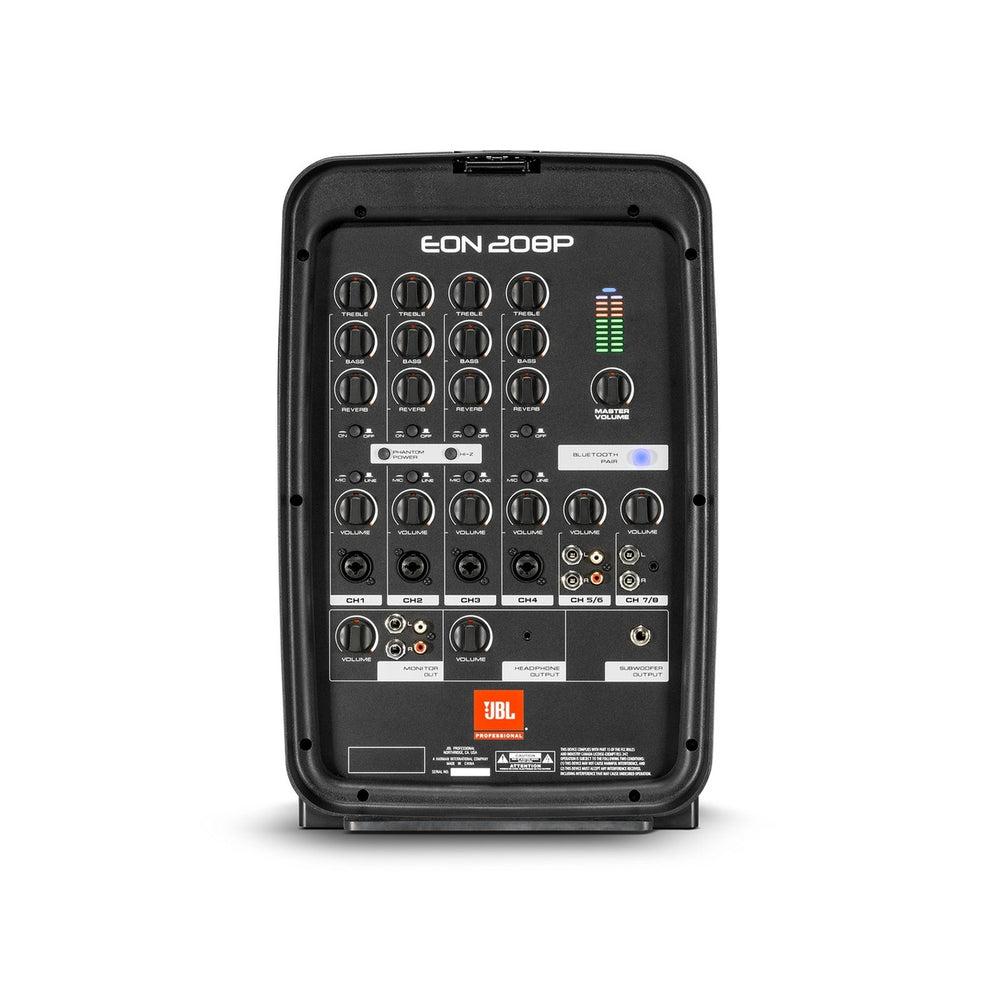

• 8 channel mixer for a variety of applications, Channels 1-4 can accept either a ¼" instrument cable or an XLR cable and have volume, reverb, treble and bass control
• Channels 1-3 allow for both phantom power and Hi-Z input, Channels 5 & 6 accept either a stereo pair of ¼ inch TRS plugs or stereo RCA cables
• Channels 7 & 8 accept a stereo 3.5mm input for mobile devices like phones, tablets or Bluetooth streaming audio from any compatible device
• Bluetooth connectivity for streaming audio
• Compact all in one design with convenient carrying handle

Technical Specifications

GENERAL
Dimensions (W × D × H)
15.6 x 30.3 x 22.5 in
System Type
Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output
121 dB peak
Frequency Range (-10 dB)
60 Hz - 20 kHz
Frequency Response (+/-3 dB)
70 Hz - 18 kHz
AC Input
100-120 V, 220-240 V 50/60 Hz
Amp Design
Class D
System Power Rating
300 W (2x 150 W stereo)
Output Connector
2 x 1/4" TS (unbalanced) amplifier outputs
Channels
1-4
Phantom Power
CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection
CH3 has a Hi-Z selection switch used for guitar signal input
Treble/Bass EQ
Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter
On-board DSP limiting
LF Driver
1x JBL 8" (203mm) woofer
HF Driver
1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern
100° horizontal x 60° vertical
Crossover Frequency
2 kHz
Crossover Type
2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure
Polypropylene
Suspension/Mounting
36 mm pole socket
Handles
One on top
Speaker Grille
Powder-coated perforated steel
Shipping Package?HxWxD?
22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)
Net Weight
38.8 lbs (17.6 kg)
AUDIO SPECIFICATIONS
Monitor Out
one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
Headphone Out
3.5mm stereo jack
Subwoofer Out
1/4" balanced TRS jack
