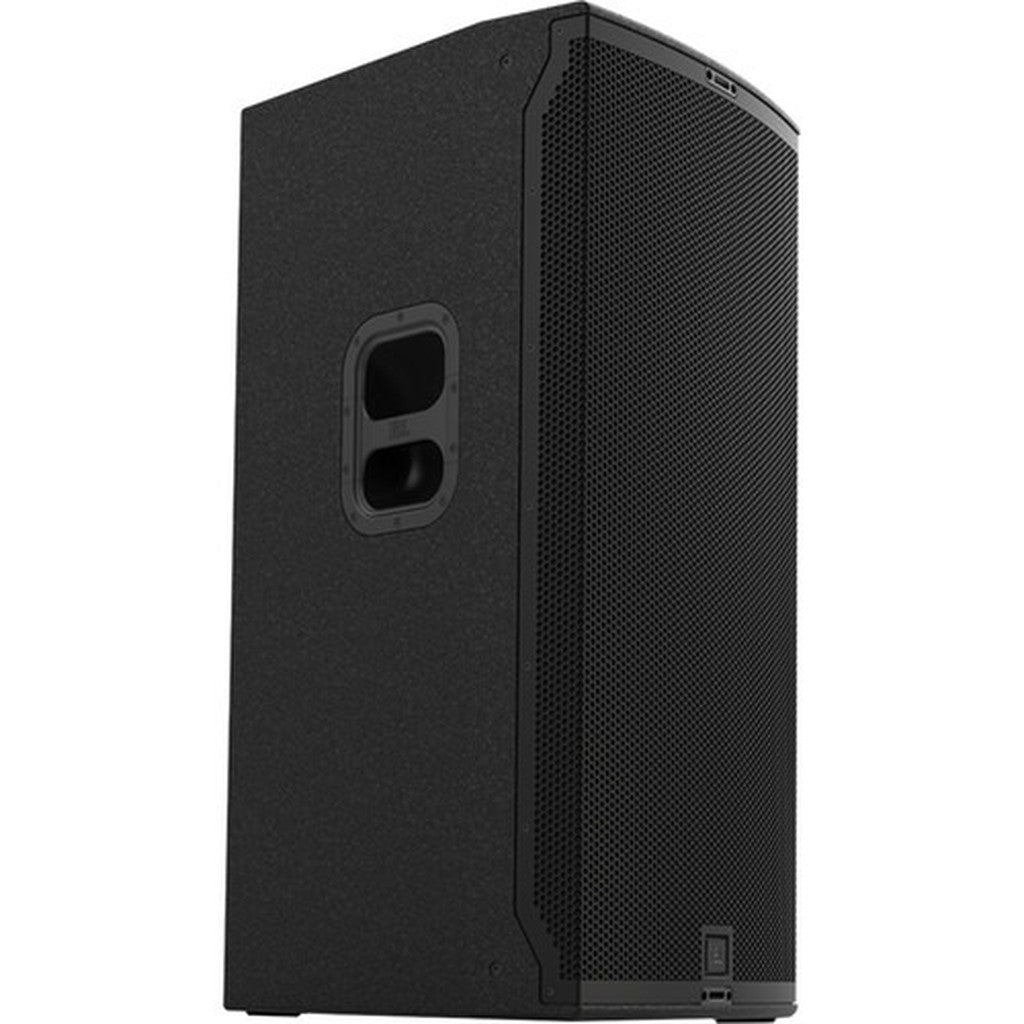

JBL SRX922 Dual 12-Inch Powered 3-Way Point-Source Loudspeaker

JBL SRX922 Dual 12-Inch Powered 3-Way Point-Source Loudspeaker

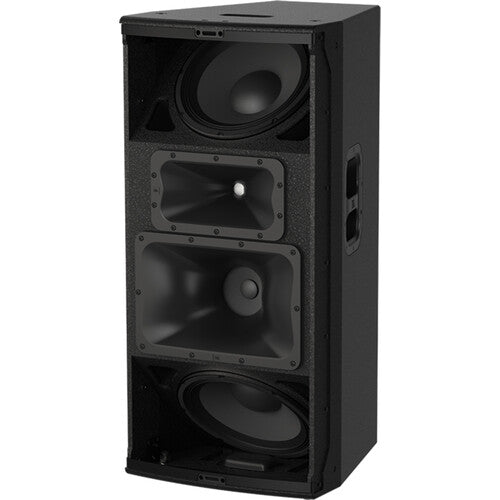

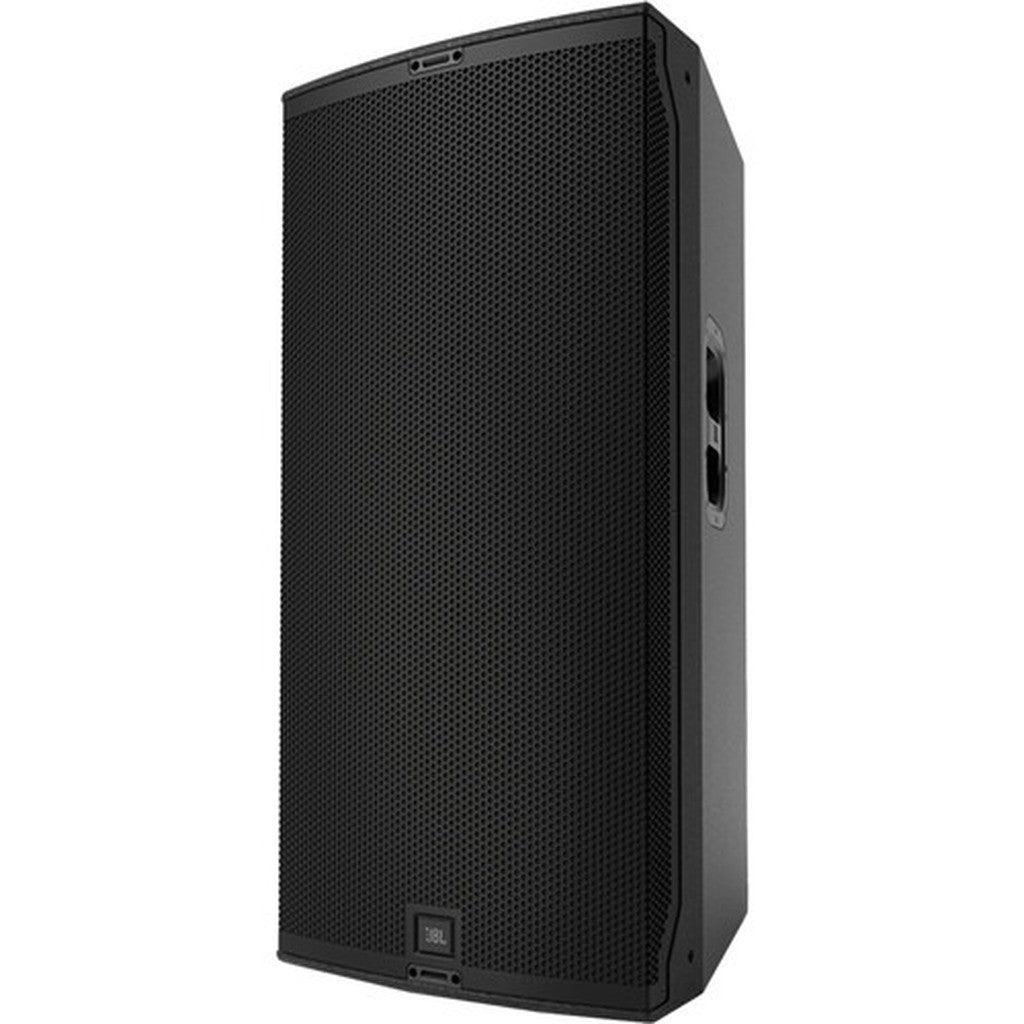

The JBL SRX922 powered point-source loudspeaker is a compact, acoustically three-way system engineered for high-output sound reinforcement and precise directivity control. Dual 12-inch woofers, a horn-loaded midrange driver, and a compression driver deliver up to 138 dB peak SPL with consistent 90° horizontal by 60° vertical coverage.

This dual 12-inch powered PA speaker suits touring artists, rental companies, DJs, houses of worship, theaters, and installed venues. Its symmetrical low-frequency section provides increased headroom, while the dipole woofer arrangement improves vertical pattern control. Four flared ports extend low-frequency performance, making the SRX922 a powerful full-range speaker for live production and permanent installations.

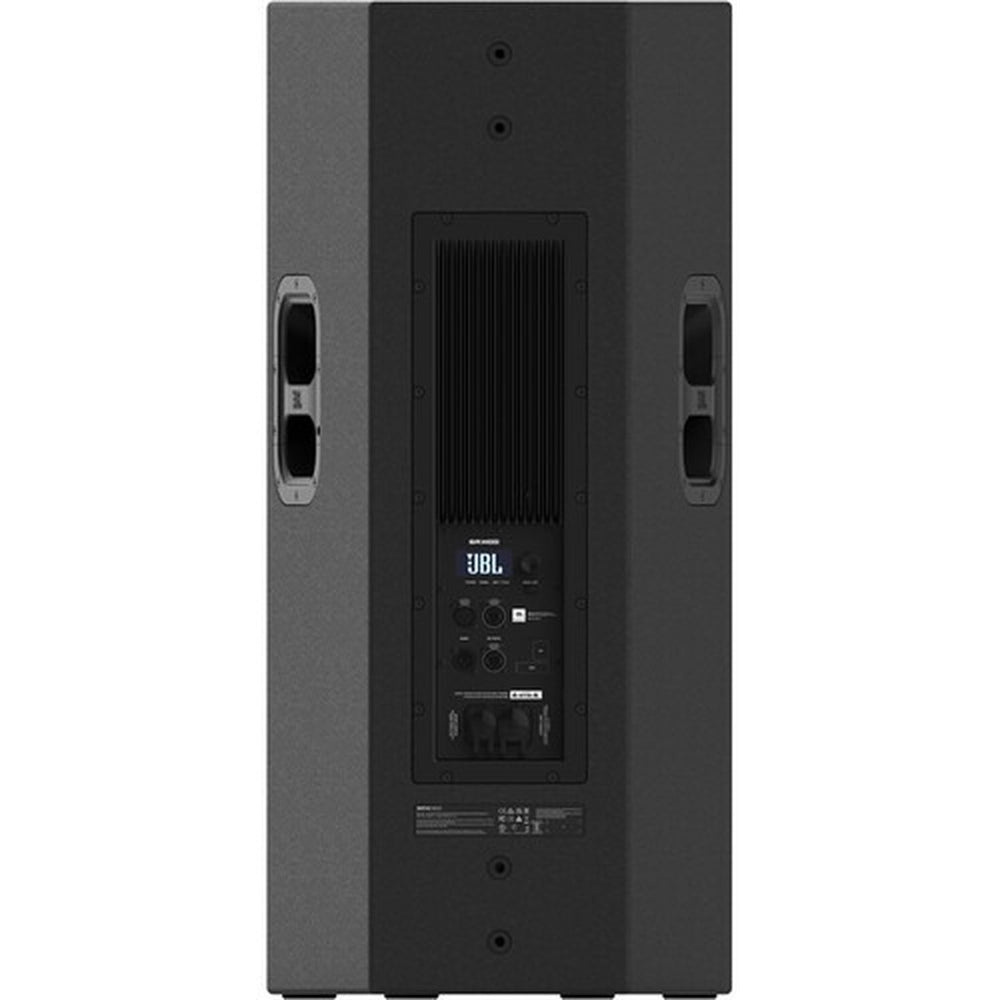

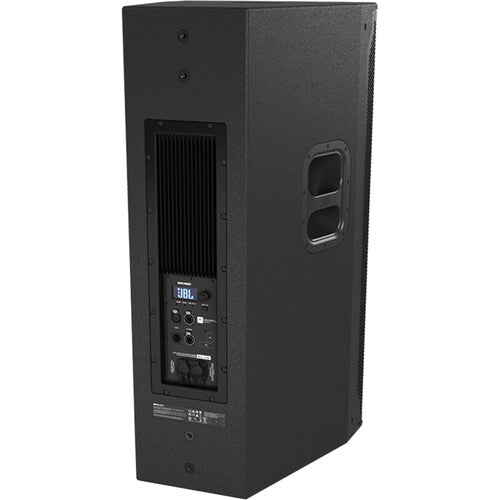

Integrated Class-D amplification and onboard DSP create a streamlined, plug-and-play system without external amplifier racks. The rear LCD provides direct access to configuration tools, 24 adjustable filters, and up to 2,000 ms of delay. HControl Ethernet networking and JBL Performance software support centralized configuration, preset management, device grouping, and real-time system monitoring.

Key Features

• Acoustically Three-Way Design: Separates low-, mid-, and high-frequency reproduction for controlled output and detailed sound.

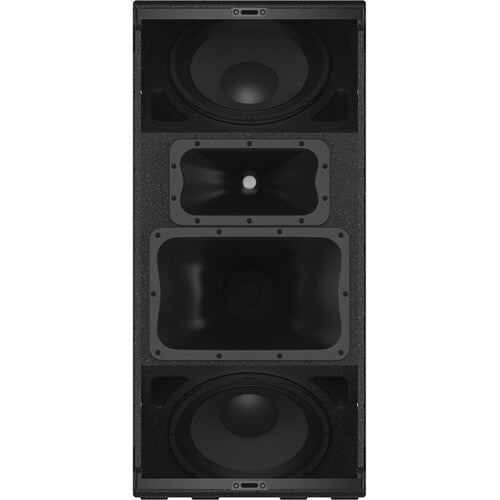

• Dual 12-Inch Woofers: A symmetrical dipole configuration increases low-frequency headroom while improving vertical directivity.
• Horn-Loaded Midrange: The dedicated 6.5-inch mid-frequency driver improves vocal clarity and lets the woofers operate efficiently.
• Progressive Transition Waveguides: Dual waveguides provide smooth, predictable 90° x 60° audience coverage.
• Integrated Class-D Amplification: Delivers 1,100 watts continuous and 1,600 watts peak without an external power amplifier.
• Advanced Loudspeaker DSP: Includes 24 user-adjustable filters, FIR processing, LevelMax limiting, and 2,000 ms of delay.
• Networked System Management: Dual etherCON ports support HControl Ethernet and convenient device daisy-chaining.
• Professional Rigging Options: Eight QuickLink M10 attachment points support suspended and ground-stacked configurations.

Technical Specifications

System Performance

• System Type: Powered point-source loudspeaker
• Speaker Configuration: Acoustically three-way
• Enclosure Type: Bass-reflex
• Frequency Range: 40 Hz to 17 kHz at -10 dB
• Frequency Response: 48 Hz to 17 kHz at -3 dB
• Maximum Peak Output: 138 dB SPL
• Coverage Pattern: 90° horizontal x 60° vertical
• Subwoofer Integration Preset: 80 Hz high-pass preset for SRX900 subwoofers
• Low-Frequency Porting: Four large flared ports

Transducers

• Low-Frequency Drivers: Two 12-inch woofers
• LF Voice Coils: Dual 3-inch voice coils
• LF Magnet Material: Ferrite

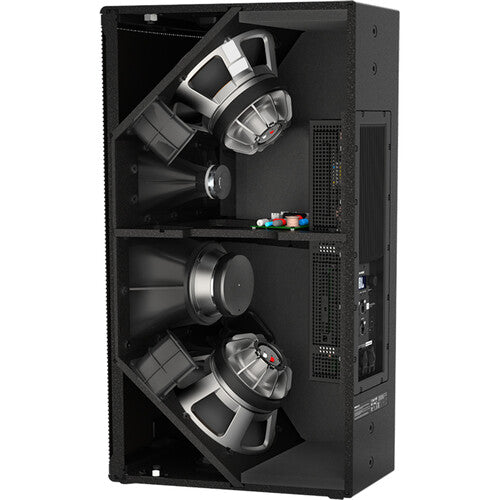

• Low-Frequency Configuration: Symmetrical dipole arrangement
• Mid-Frequency Driver: One 6.5-inch horn-loaded cone driver
• MF Voice Coil: 1.5 inches
• MF Magnet Material: Ferrite
• High-Frequency Driver: One horn-loaded compression driver
• HF Exit Size: 1 inch
• HF Voice Coil: 1.5 inches
• HF Magnet Material: Neodymium

Amplifier

• Amplifier Type: Class-D
• Total Continuous Power: 1,100 watts
• Total Peak Power: 1,600 watts
• LF Continuous Power: 550 watts
• LF Peak Power: 800 watts
• MF/HF Continuous Power: 550 watts
• MF/HF Peak Power: 800 watts
• Thermal Management: External heat sinks
• Power-Saving Function: Automatic low-power mode when no audio signal is present

Digital Signal Processing and Control

• DSP Resolution: 24-bit
• User-Adjustable Filters: 24
• Maximum Alignment Delay: 2,000 ms
• Processing: Parametric EQ, delay, FIR filtering, preset management, and loudspeaker-management tools
• Protection: LevelMax excursion, RMS, and thermal limiting

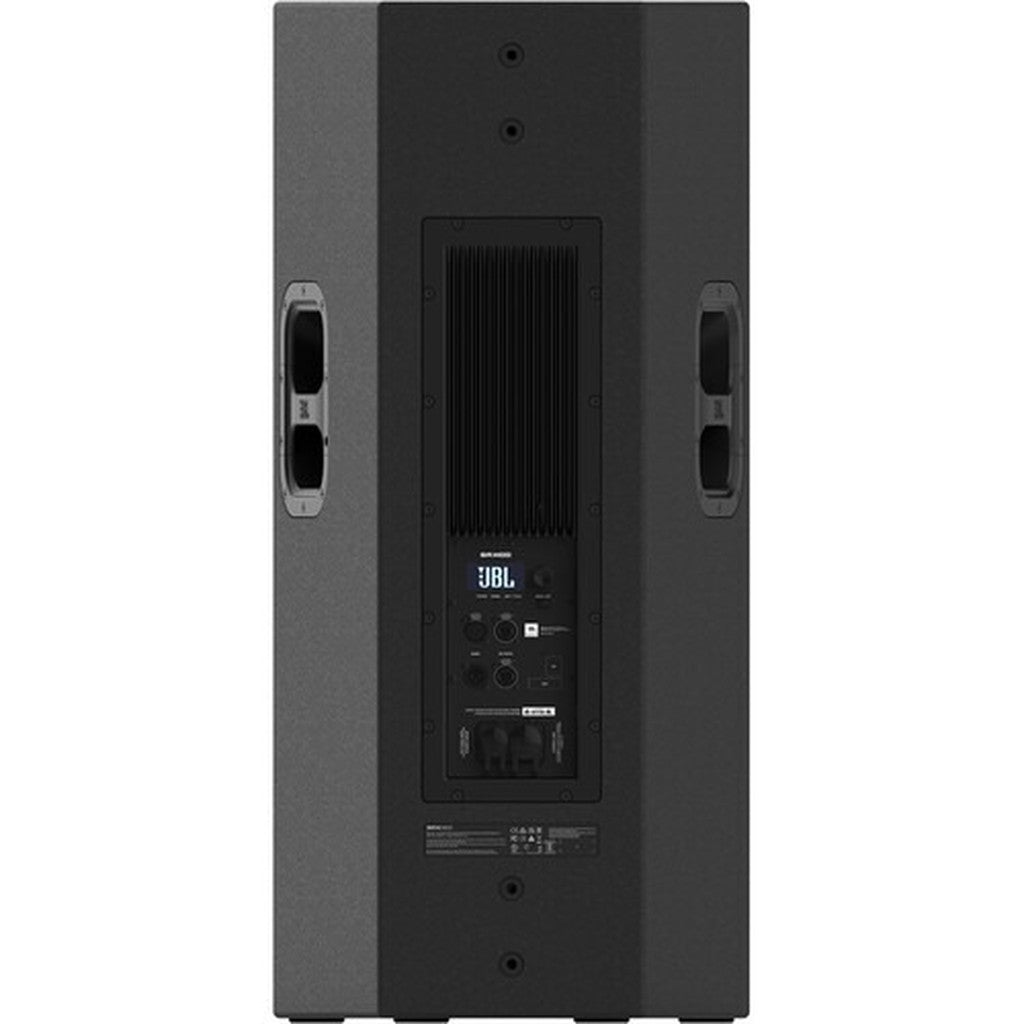

• User Interface: Rear-panel LCD and physical controls
• System-Control Software: JBL Performance
• Acoustic-Prediction Software: JBL Venue Synthesis
• Supported Control Platforms: Windows, macOS, and iPadOS

Audio and Network Connections

• Audio Connections: Two 3-pin XLR line input/output connectors
• Network Connections: Two etherCON/RJ45 Ethernet ports
• Network Protocol: HARMAN HControl Ethernet
• Network Topology: Switched ports support device daisy-chaining
• USB Connectivity: None
• Wireless Connectivity: None

Power

• AC Input: 100 to 240 VAC, 50/60 Hz
• AC Power Input: One powerCON TRUE1 connector
• AC Power Output: One powerCON TRUE1 connector
• Typical Current Consumption at 120 VAC: 3 A
• Maximum Current Consumption at 120 VAC: 19.8 A
• Typical Current Consumption at 240 VAC: 1.5 A
• Maximum Current Consumption at 240 VAC: 7.4 A

Construction and Mounting

• Enclosure Material: Outdoor-grade Baltic birch plywood

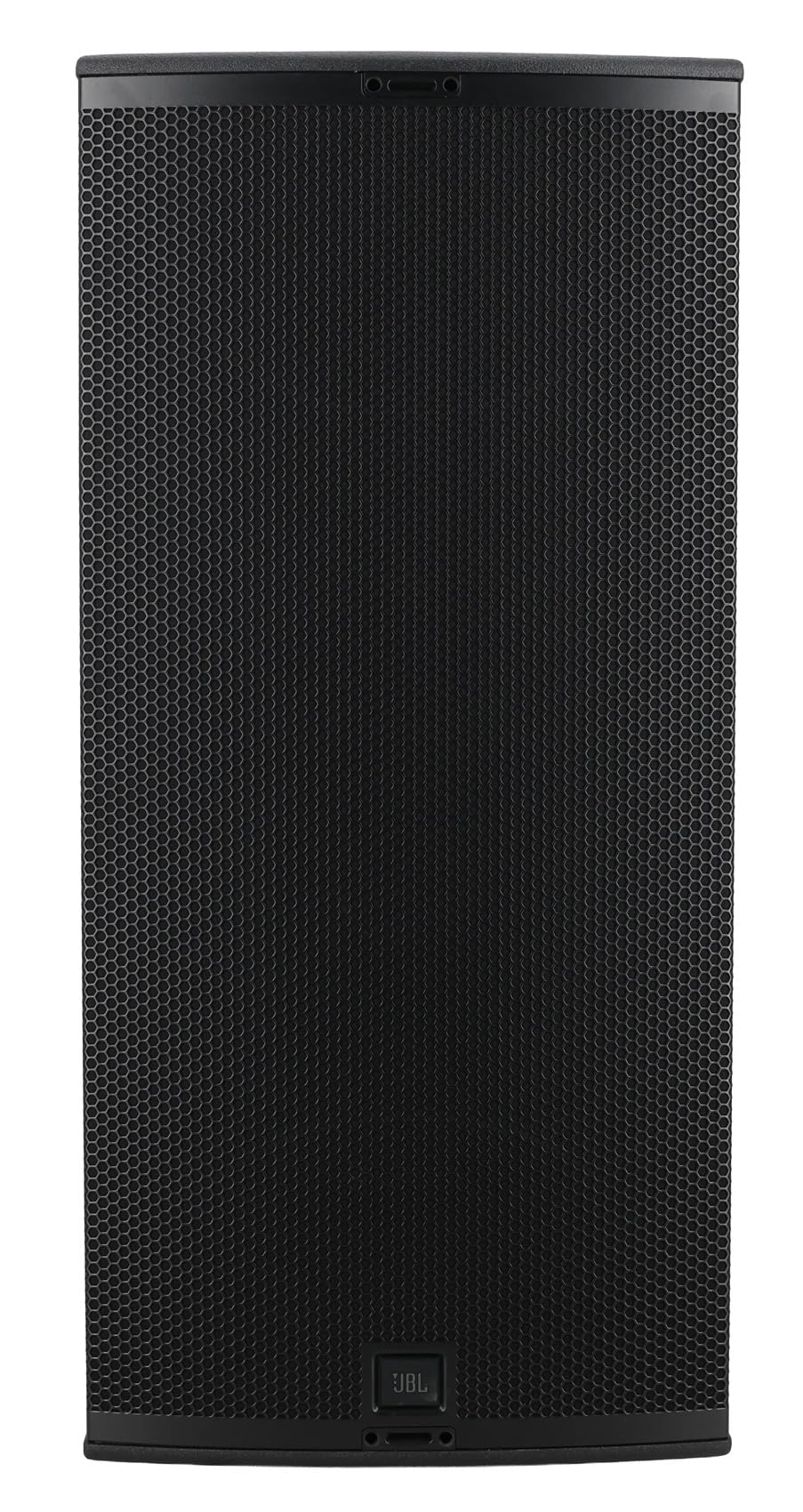

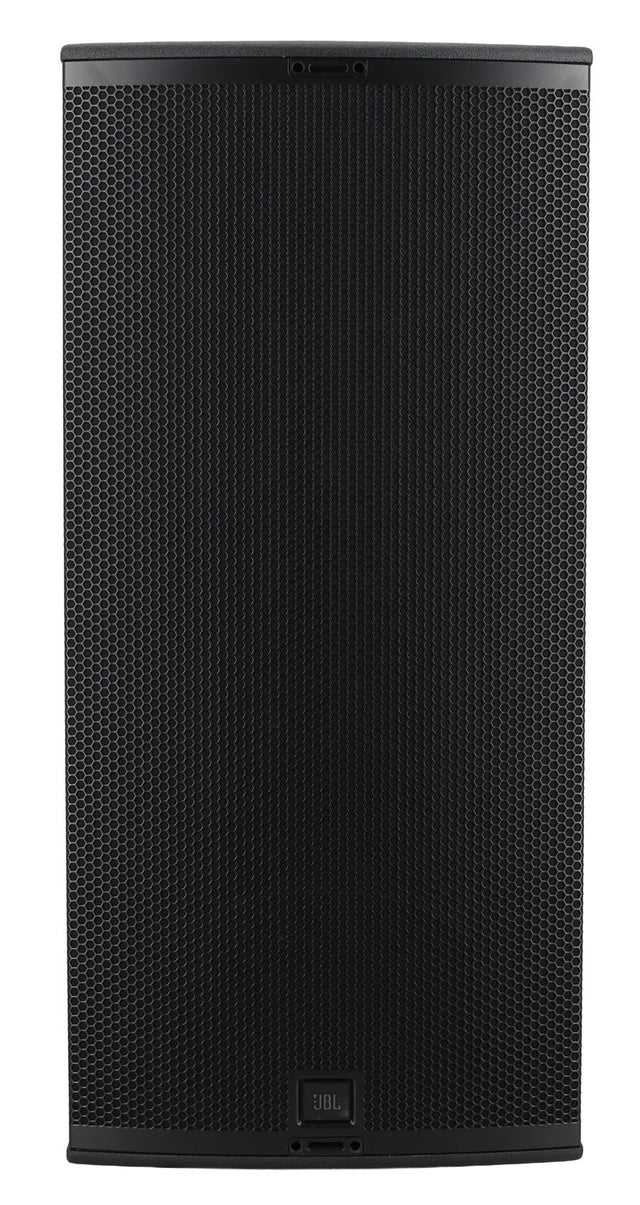

• Grille: Perforated metal
• Color: Black
• Rigging Points: Eight QuickLink M10 attachment points

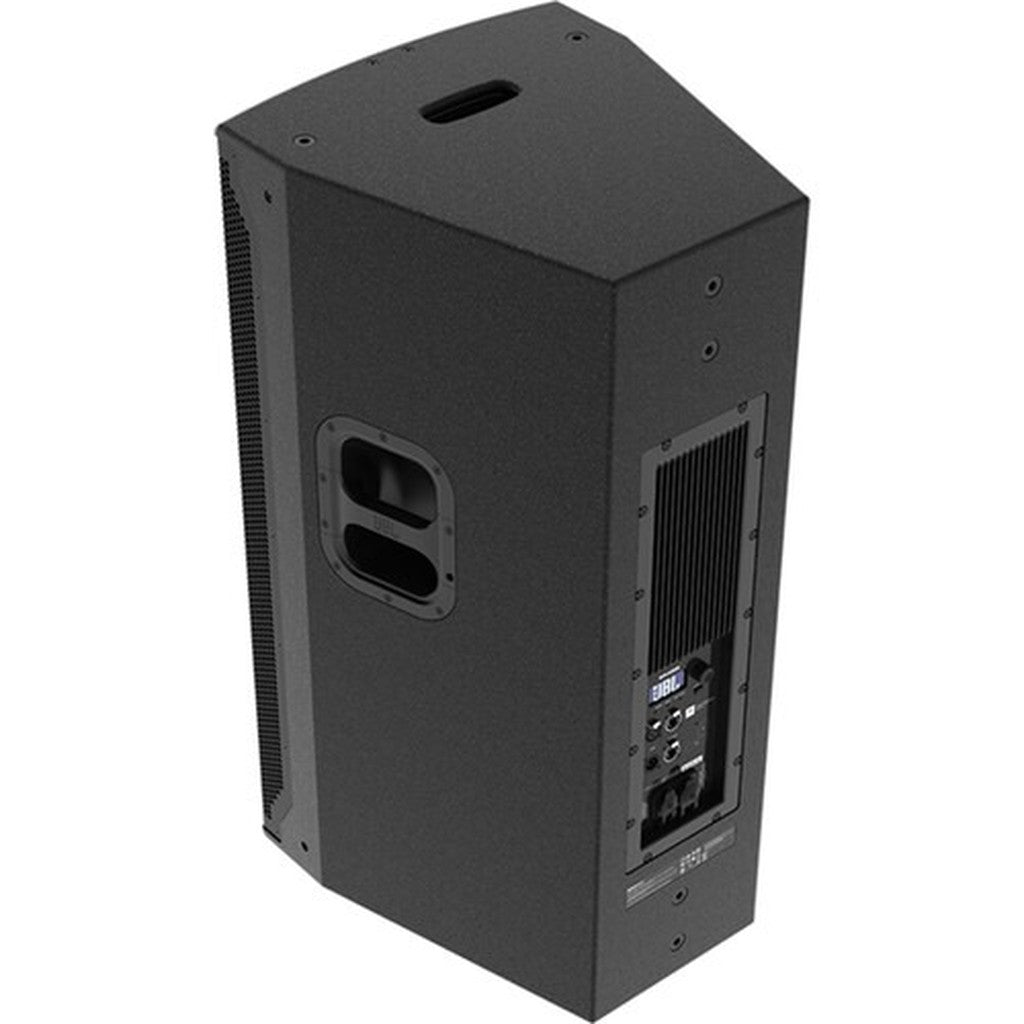

• Handles: One integral handle on each side
• Dimensions (H x W x D): 37.2" x 19.9" x 17.3"
• Net Weight: 100 lbs
• Shipping Weight: 117.28 lbs
• Package Dimensions (L x W x H): 38.75" x 27" x 23.25"
• Manufacturer Number: JBL-P3364MX

What's In the Box

• JBL SRX922 Dual 12-Inch Powered Point-Source Loudspeaker
• Two powerCON TRUE1 Power Connectors
