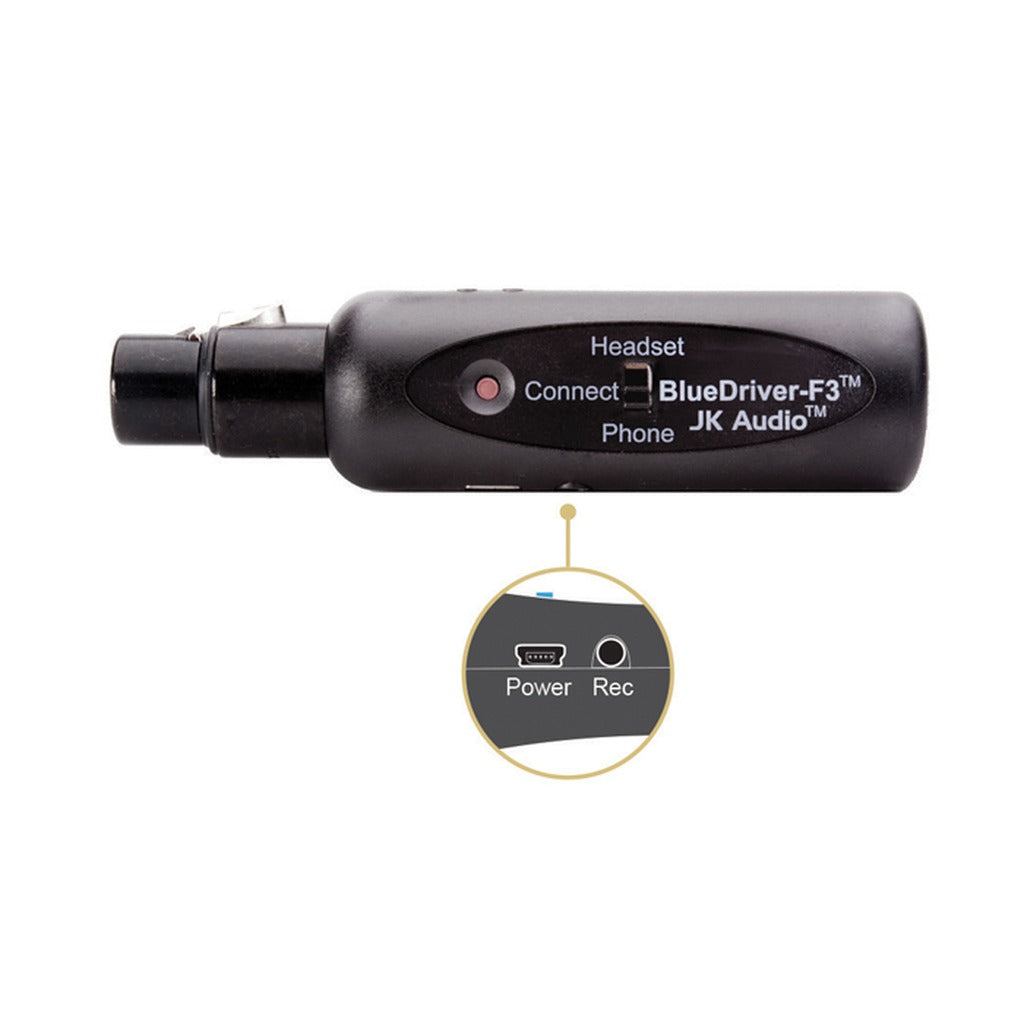

JK Audio BDRVF3 BlueDriver-F3 Bluetooth Audio Interface, XLR Female Input

Plug a dynamic mic or a mixer output into the JK Audio BlueDriver-F3 and its 3-pin female XLR input routes the audio to a paired Bluetooth phone, headset, or speaker. A 3.5 mm stereo headphone output lets you monitor the return from the Bluetooth device on wired ear buds or headphones.

In Phone mode, it pairs to a cell phone for wireless audio-for-video with a compatible camera app (about 25 ms latency using the HD Voice profile), live man-on-the-street interviews dialed into the station, or a backup audio path when the IP codec's internet connection drops. HD Voice supports 7 kHz wide-band speech on compatible phones and networks.

Headset mode connects to Bluetooth headphones or wireless speakers with full 20 kHz A2DP audio, sending the mono XLR signal to both channels; A2DP adds about 150 ms of delay, so it suits pre-recorded or broadcast feeds rather than live mics. An internal Li-ion battery runs more than 6 hours and charges via Mini-USB.

Features

• 3-pin female XLR input to Bluetooth phone, headset, or speaker
• Headset/Phone role switch
• 3.5 mm headphone output for monitoring the Bluetooth return
• HD Voice compatible (7 kHz wide-band speech); 25 ms audio-for-video latency
• Trim pot adjusts mic level
• Over 6 hours on the internal Li-ion battery; Mini-USB power jack

Technical Specifications

• Input: 3-pin female XLR, 1k ohms, -34 dBu nom
• Output: 3.5 mm stereo, 16 ohms, 35 mW (750 mV RMS)
• Bluetooth: 3.0; hands-free 300 Hz - 3.4 kHz, HD 50 Hz - 7 kHz, A2DP 30 Hz - 17 kHz
• Latency: 25 ms (HD Voice profile); 150 ms (A2DP)
• Range: 66 ft (20 m)
• Battery: Internal 250 mAh Li-ion polymer rechargeable, Mini-USB
• Size: 1.1 x 4.4 in (2.8 x 11.2 cm)
• Weight: 2.1 oz (60 g)

What's Included

• USB charger cable (CN108)
• 1 m stereo 3.5 mm cable (CN104)
