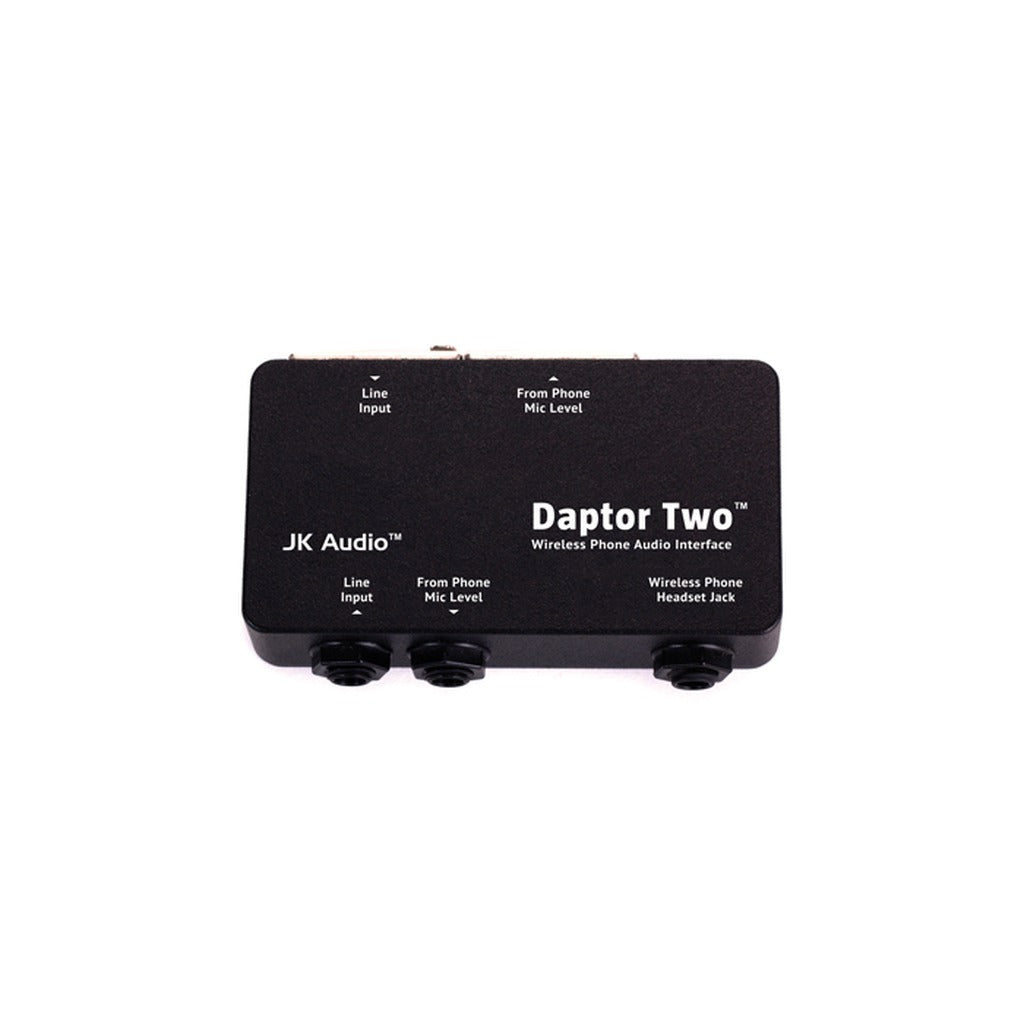

JK Audio DAP2 Daptor Two Cell Phone to XLR and 1/4 in Audio Interface

Remote broadcasts and IFB feeds over a cell phone become a plug-in job with the JK Audio Daptor Two. Connect your wireless phone with the included 1/4 in TRS to 3.5 mm TRRS interface cable and the device recognizes Daptor Two as a headset, disabling its internal mic and speaker.

Send and receive voice-band audio during regular calls, or full-bandwidth audio when using third-party codec apps. Balanced XLR and unbalanced 1/4 in inputs and outputs connect to mixers, recorders, and IFB systems; plugging into the 1/4 in jack disconnects the matching XLR, so use one or the other per direction.

Daptor Two is passive, requiring no AC or battery power, and supports HD Voice 7 kHz wide-band speech with compatible phones on compatible networks. A screwdriver-adjustable caller level lets you match the return to your gear.

Features

• Passive design, no AC or battery required

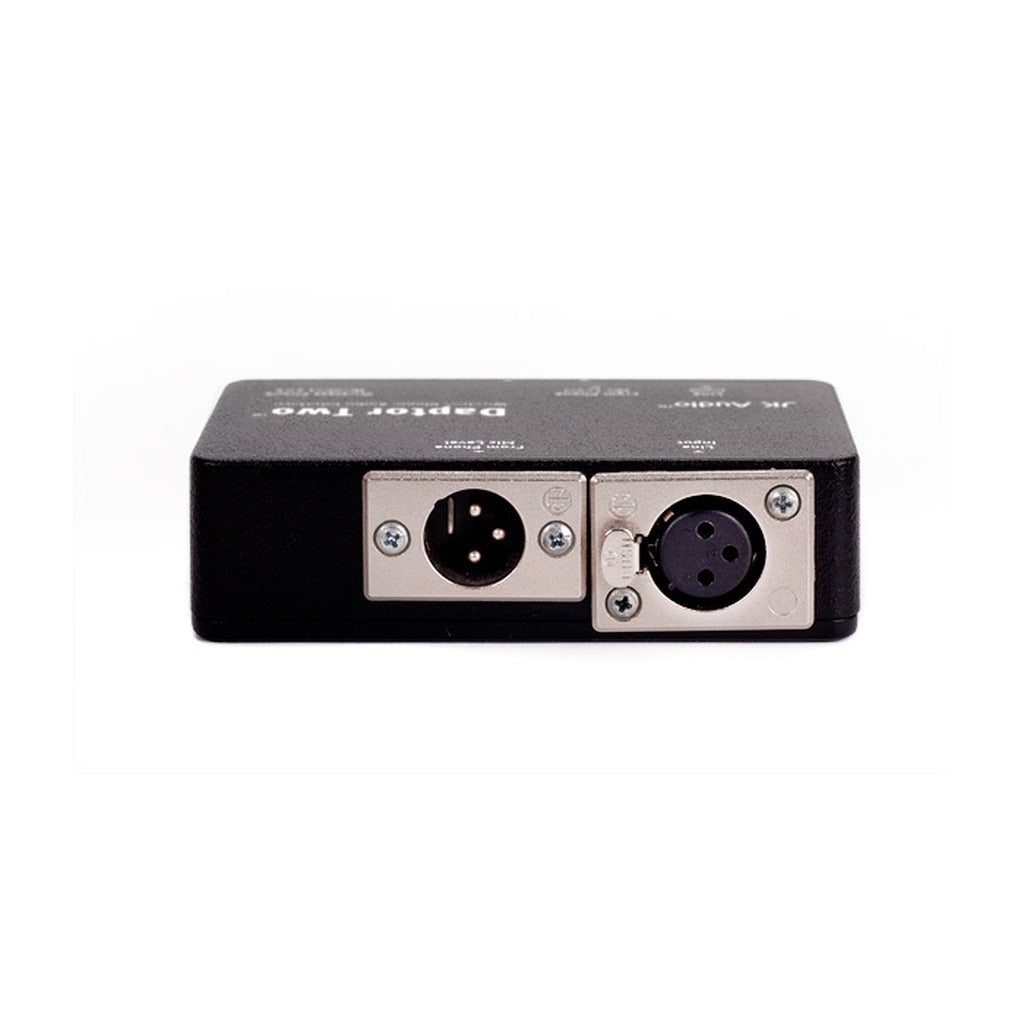

• Balanced XLR and unbalanced 1/4 in inputs and outputs
• Wireless phone headset jack for phones and notebooks with a 3.5 mm TRRS jack
• HD Voice compatible (7 kHz wide-band speech)
• Works with third-party codec apps for full-bandwidth audio
• Made in America

Technical Specifications

• Input: Balanced female XLR / unbalanced 1/4 in mono, 600 ohms, -10 dBu nom (0 dBu max)
• Output: Balanced male XLR / unbalanced 1/4 in mono, 600 ohms, -25 dBu nom
• Phone Connection: 1/4 in TRS to 3.5 mm TRRS interface cable (CN113)
• Power: Passive
• Size: 4.4 x 2.7 x 1.2 in (11.2 x 6.9 x 3.5 cm)
• Weight: 9 oz (250 g)

What's Included

• 1/4 in TRS to 3.5 mm TRRS cell phone interface cable (CN113)
