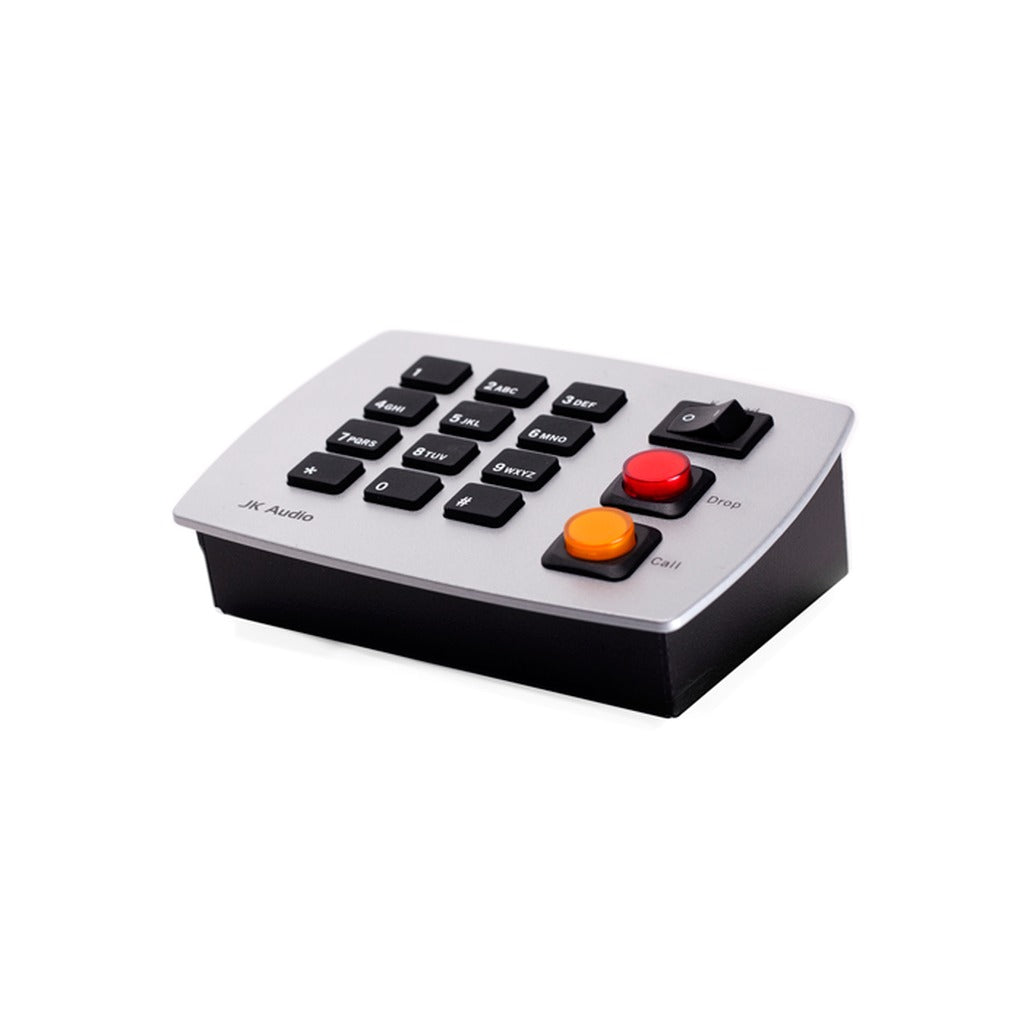

JK Audio GM1 Guest Module 1 Remote DTMF Keypad for JK Audio Digital Hybrids

Call control you simply cannot get from an auxiliary telephone and a couple of switches is what the JK Audio Guest Module 1 adds to a digital hybrid. This remote keypad was designed exclusively for the JK Audio Broadcast Host, innkeeper LTD, and innkeeper 1x/1rx.

The Call button flickers when a call comes in; press it to answer or place a call, and it stays lit while a call is present. When you dial on air, the DTMF tones go out on the line without coming back mixed with the dial tone or caller signal. A keypad disable switch prevents accidental dialing.

Power is supplied over the 8-pin RJ45 modular cable, so no batteries or external power pack are needed, and a 25 ft cable is provided to cover most installations.

Features

• DTMF keypad with Call and Drop buttons
• Ring/Call LED
• Keypad disable switch
• Powered over the RJ45 cable, no battery or AC required
• Compatible with Broadcast Host, innkeeper LTD, and innkeeper 1x/1rx
• Made in America

Technical Specifications

• Connection: 8-pin RJ45 modular (pin 1 to pin 1)
• Power: Supplied by the host hybrid over the cable
• Compatible: JK Audio Broadcast Host, innkeeper LTD, innkeeper 1x/1rx
• Size: 4.75 x 3.4 x 2 in (12 x 8.6 x 5 cm)
• Weight: 11 oz (300 g)

What's Included

• 25 ft RJ45 cable
