JK Audio INNPBX innkeeper PBX Digital Hybrid for PBX and VoIP Handset Lines

Multi-line office phones become an affordable talk-show console with the JK Audio innkeeper PBX, the Broadcast Host for PBX phone lines. It connects between the telephone handset and the phone base, passing audio through the handset cord, so it works where there is no analog line available.

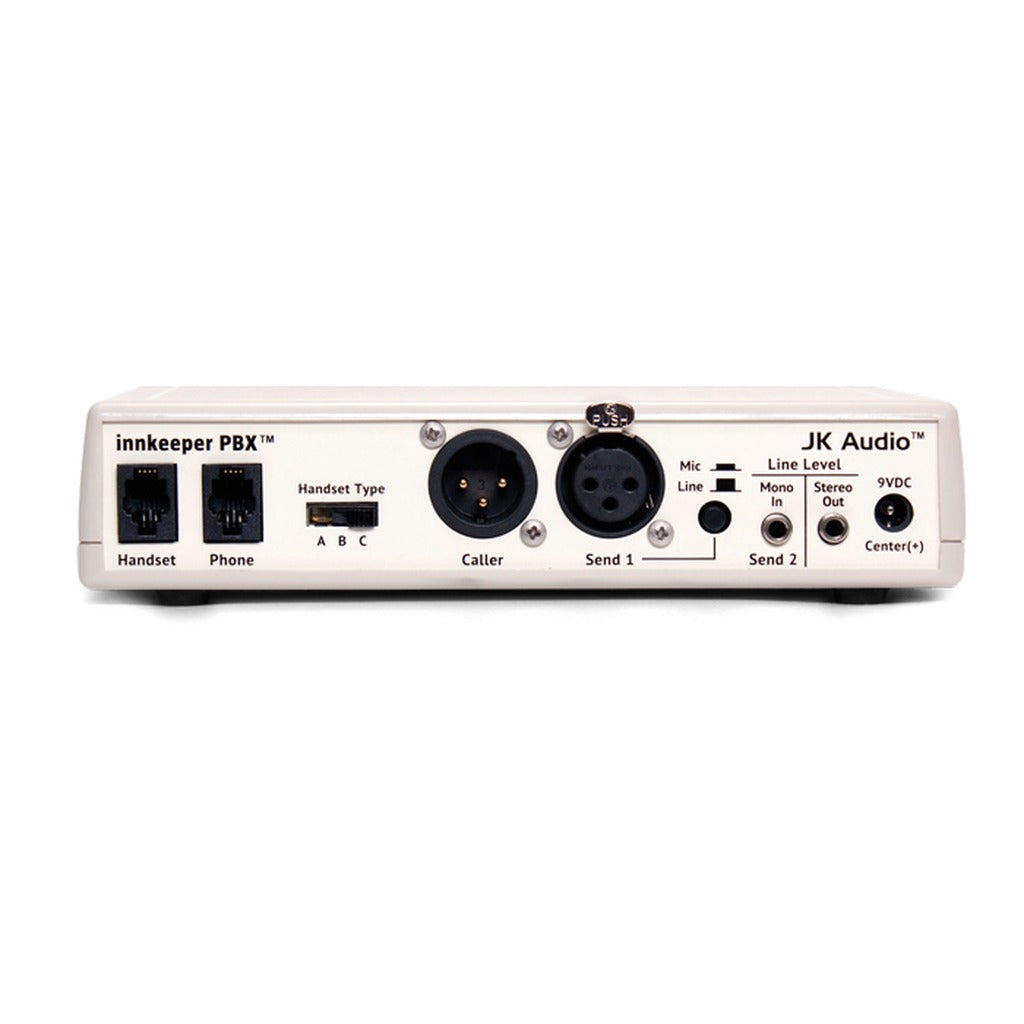

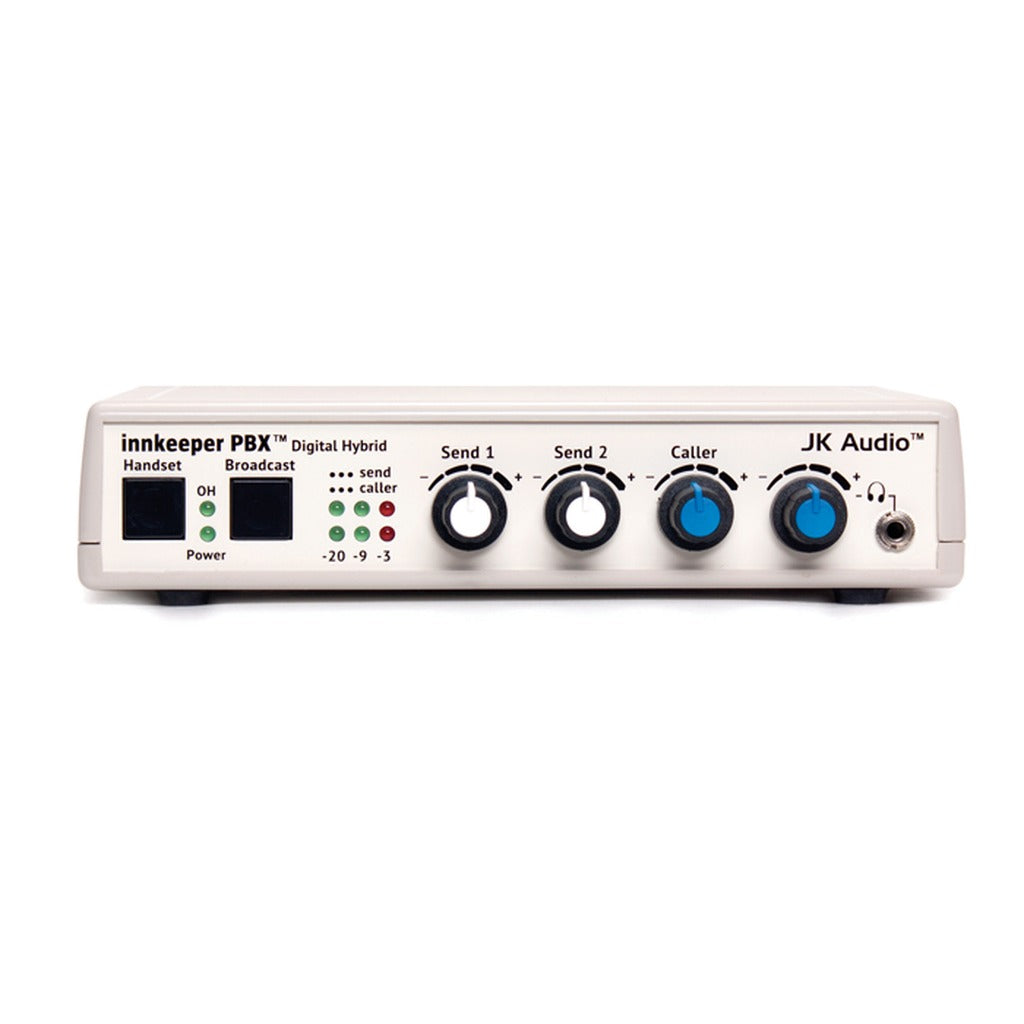

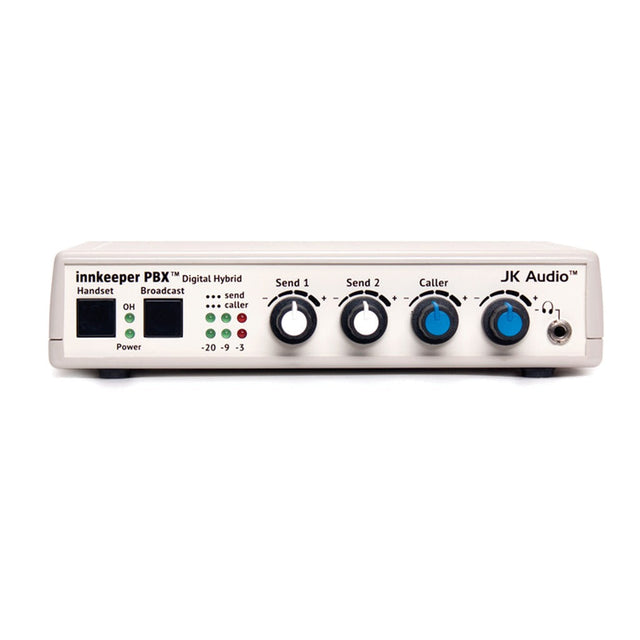

Connections for a microphone, headphones, mixer, sound card, and handset are all on board. The balanced XLR output carries only the caller, the stereo output puts your voice on one channel and the caller on the other, and Handset and Broadcast buttons switch between talking on the handset and sending and receiving through the audio connections.

The DSP echo canceller typically exceeds 50 dB of separation with no setup, and a selector matches electret, carbon, or dynamic handsets. Hosts can take callers on air while a producer screens on another phone, newsrooms can record interviews, and conference rooms can tie a PA into the PBX for full-duplex calls.

Features

• Connects between handset and base of multi-line PBX telephones
• DSP digital hybrid with proprietary auto null algorithm (typically over 50 dB separation)
• Balanced XLR send input with mic/line switch plus 3.5 mm mono line input
• Caller-only XLR output, 3.5 mm stereo output, and 3.5 mm headphone jack
• Handset selector switch for electret, carbon, or dynamic handsets
• Send and caller level LEDs and volume controls; made in America

Technical Specifications

• Send 1: Balanced female XLR, 1k ohms, -34 dBu nom, mic/line pad switch (+6 dBu max)
• Send 2: 3.5 mm mono, 20k ohms, -10 dBu nom
• Caller Out: Balanced male XLR, 200 ohms, -4 dBu nom (+14 dBu max)
• Caller Only Stereo Out: 3.5 mm, 50 ohms, -10 dBu nom (left = send, right = caller)
• Headphone: 3.5 mm, 8 ohms, 250 mW
• Handset and Telephone Connectors: RJ22; Isolation 1500 VAC
• Frequency Response: 200 Hz - 3600 Hz (telephone side)
• Power: 120-240 VAC power supply (9 VDC regulated)
• Size: 7 x 6 x 1.6 in (18 x 15 x 4.2 cm)
• Weight: 2.2 lb (1 kg)

What's Included

• Universal power supply with detachable cord
• RJ22 handset jumper cable
