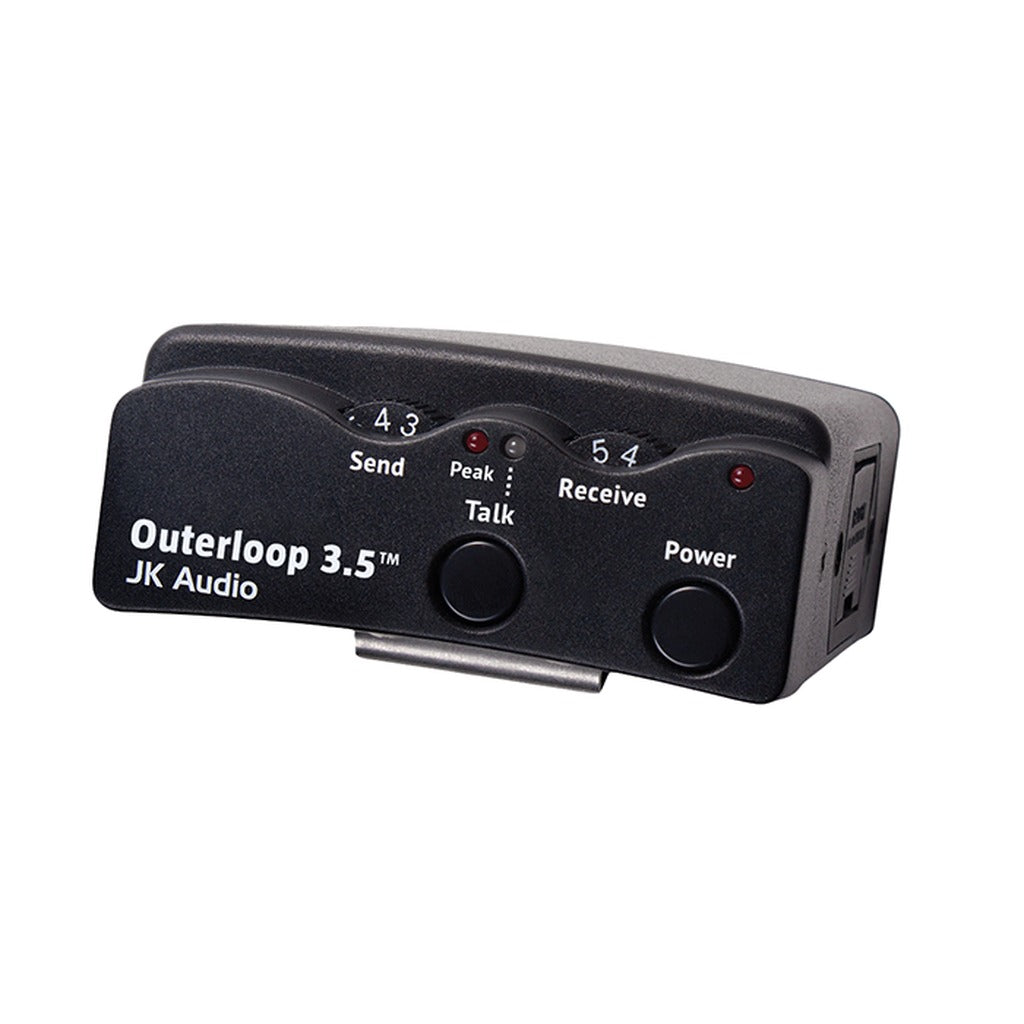

JK Audio OTL3.5F Outerloop 3.5F Phone Intercom Belt Pack 4/5-Pin Female XLR

A standard intercom headset and a mobile phone are all it takes to join the show from anywhere with the JK Audio Outerloop 3.5F. This universal belt pack provides female 4-pin and 5-pin XLR jacks for your existing intercom headset and routes the audio through a wired connection to your phone or notebook.

Use the mobile device to call into an intercom phone bridge, a station phone coupler, or a phone-based intercom app such as Unity Intercom or Clear-Com Agent-IC. The included cable plugs into the device's 3.5 mm TRRS headset jack for two-way communication, with HD Voice 7 kHz wide-band speech on compatible calls.

Separate send and receive level controls, a push-on, push-off Talk button, and a recessed sidetone control let you adapt whether you are around the corner or around the world. One 9 V battery powers it for more than 20 hours.

Features

• Universal intercom belt pack for mobile phones and notebooks (3.5 mm TRRS)

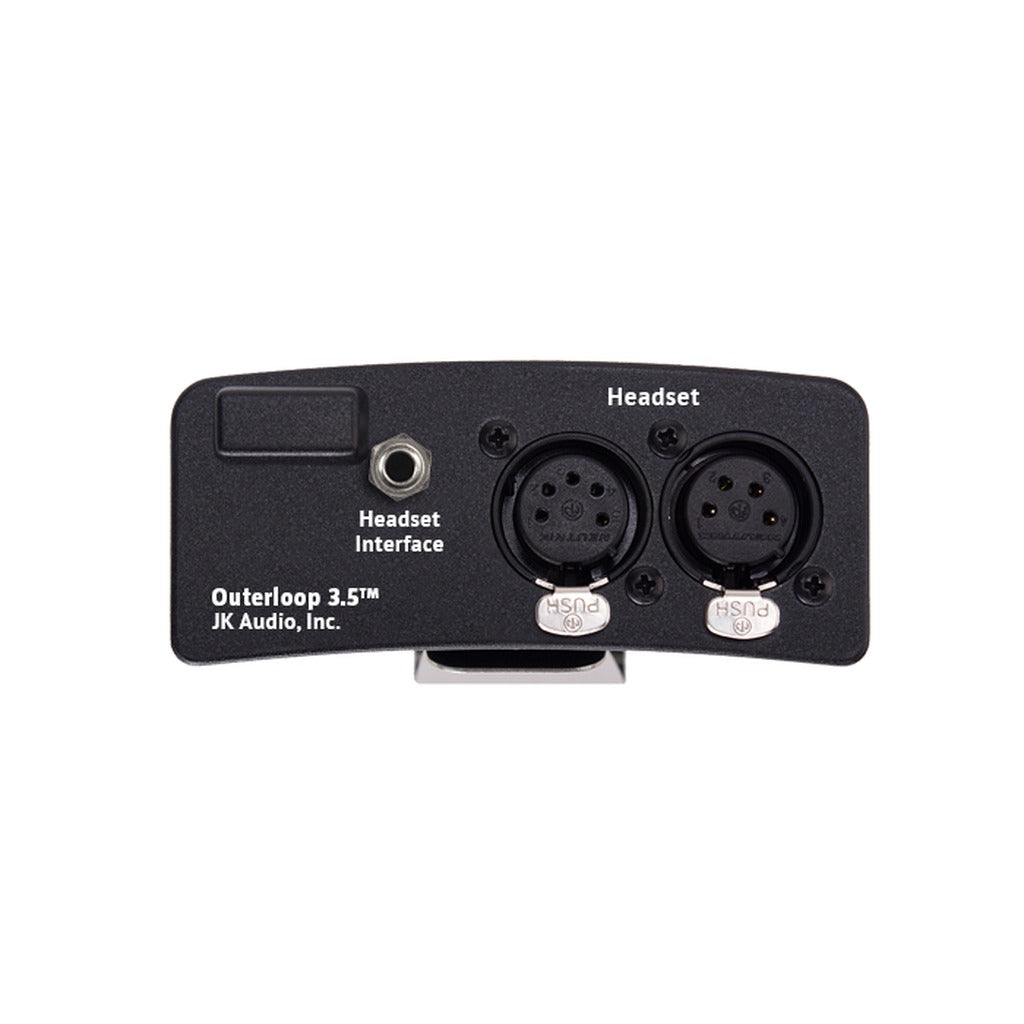

• Both 4-pin and 5-pin female XLR headset jacks
• Send and receive volume controls
• Push-on, push-off Talk button and recessed sidetone control
• HD Voice compatible (7 kHz wide-band speech)
• Over 20 hours on one 9 V battery

Technical Specifications

• Headset Jacks: 4-pin female XLR and 5-pin female XLR
• Headset Mic Impedance: 50-2000 ohms
• Earpiece Load Impedance: 50-600 ohms; over 50 mW into 150 ohms
• Frequency Response: 50 Hz - 15 kHz
• Phone Connection: 3.5 mm TRRS headset interface cable (CN150)
• Power: One 9 V battery, over 20 hours
• Size: 4.7 x 3.75 x 1.65 in (12 x 9.5 x 4.2 cm)
• Weight: 10 oz (275 g)

What's Included

• 3.5 mm TRRS headset interface cable (CN150)
