JK Audio OTL3.5M Outerloop 3.5M Phone Intercom Belt Pack 4/5-Pin Male XLR

Crew members whose intercom headsets end in male XLR connectors can go remote with the JK Audio Outerloop 3.5M. This universal belt pack features both 4-pin and 5-pin male XLR headset jacks and links the headset to a mobile phone or notebook over a wired 3.5 mm TRRS connection.

Dial into an intercom phone bridge or station phone coupler, or run a phone-based intercom app such as Unity Intercom or Clear-Com Agent-IC, and talk with the team as if you were on a local belt pack. HD Voice compatibility provides 7 kHz wide-band speech with compatible phones and networks.

Send and receive volume controls, a push-on, push-off Talk button, and a recessed sidetone level control fine-tune the connection, and a single 9 V battery provides more than 20 hours of operation.

Features

• Universal intercom belt pack for mobile phones and notebooks (3.5 mm TRRS)

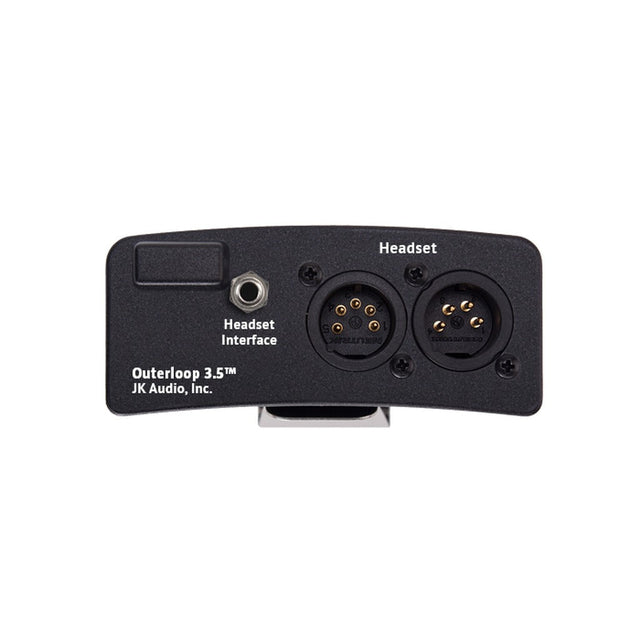

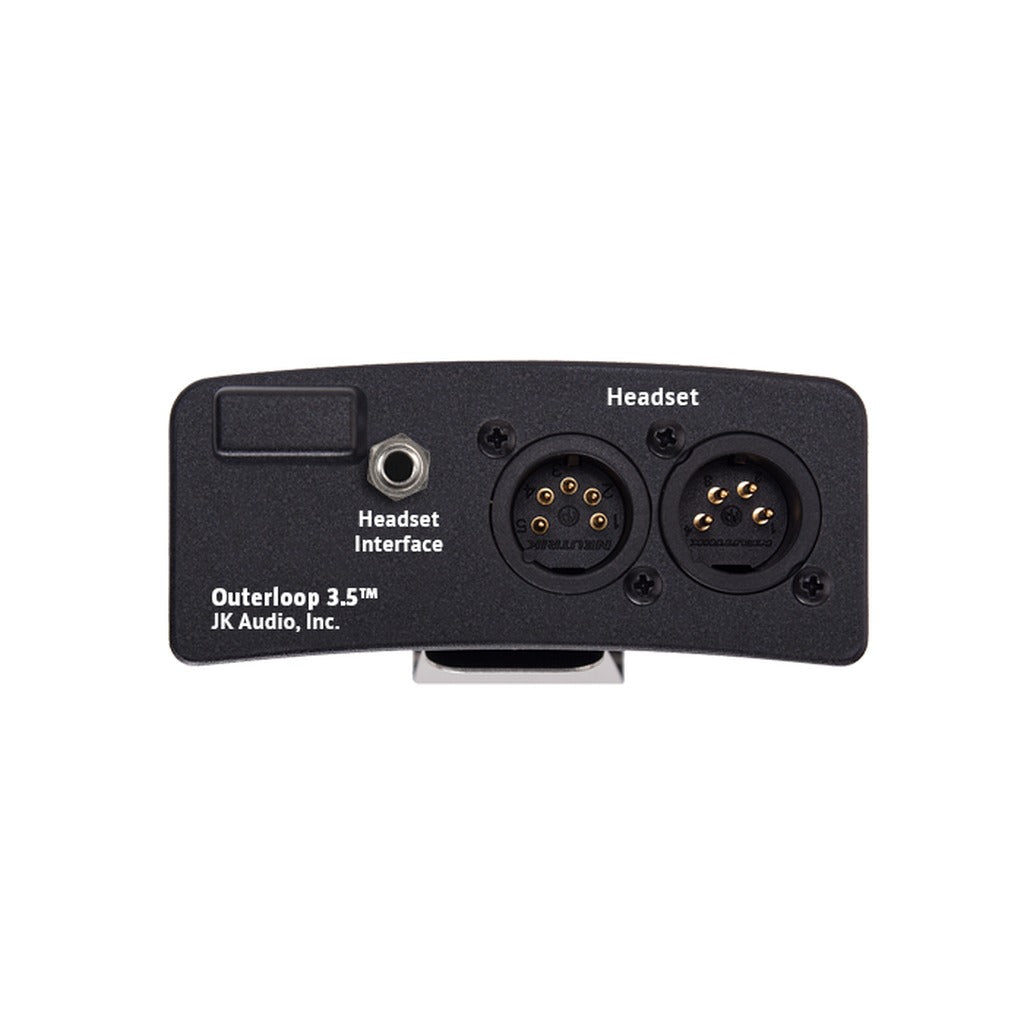

• Both 4-pin and 5-pin male XLR headset jacks

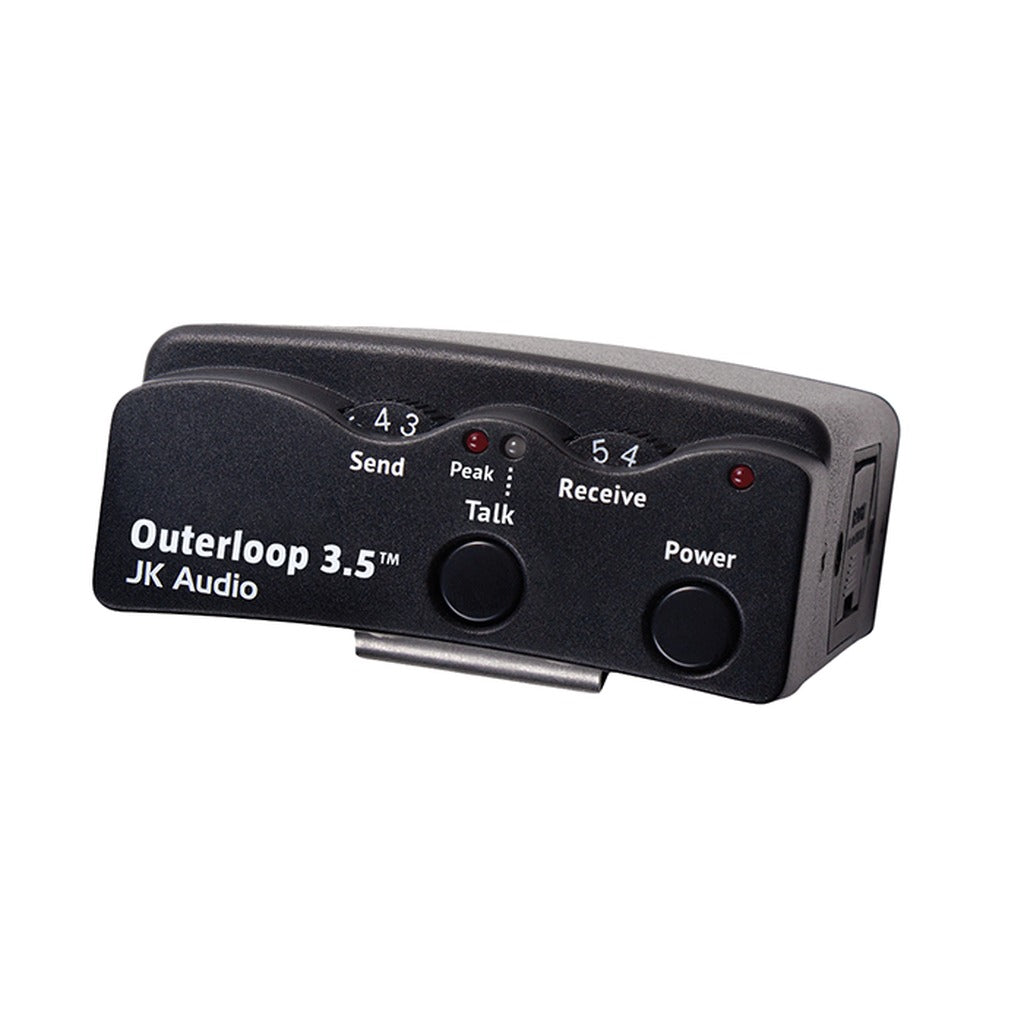

• Send and receive volume controls
• Push-on, push-off Talk button and recessed sidetone control
• HD Voice compatible (7 kHz wide-band speech)
• Over 20 hours on one 9 V battery

Technical Specifications

• Headset Jacks: 4-pin male XLR and 5-pin male XLR
• Headset Mic Impedance: 50-2000 ohms
• Earpiece Load Impedance: 50-600 ohms; over 50 mW into 150 ohms
• Frequency Response: 50 Hz - 15 kHz
• Phone Connection: 3.5 mm TRRS headset interface cable (CN150)
• Power: One 9 V battery, over 20 hours
• Size: 4.7 x 3.75 x 1.65 in (12 x 9.5 x 4.2 cm)
• Weight: 10 oz (275 g)

What's Included

• 3.5 mm TRRS headset interface cable (CN150)
