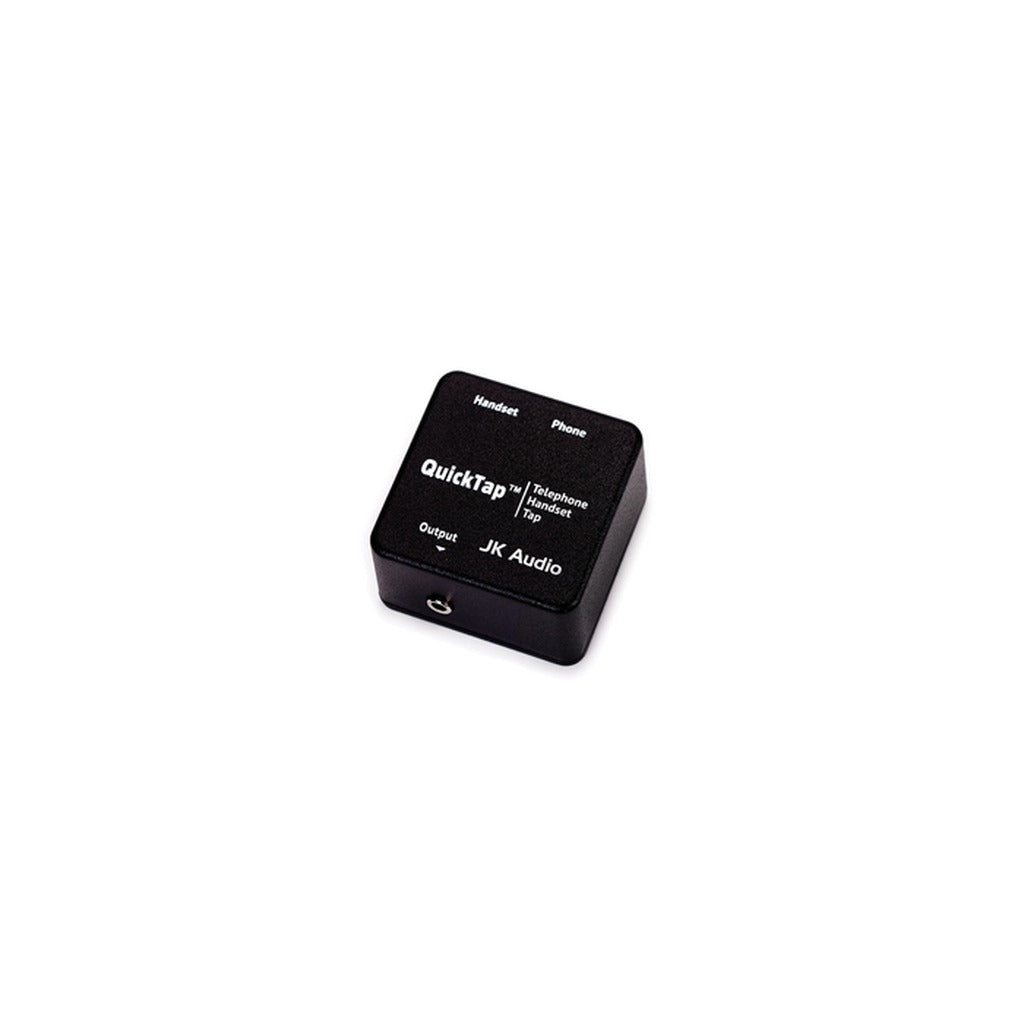

JK Audio QT QuickTap Telephone Handset Tap with 3.5 mm Recording Output

Recording a phone interview straight into a portable recorder or computer takes one small box. The JK Audio QuickTap connects between a telephone and its handset for quick access to call audio, and its 3.5 mm output carries a mix of both sides of the conversation plus the keypad tones.

Setup is simple: unplug the handset coil cord from the phone base, plug it into QuickTap, and connect QuickTap back to the base with the supplied jumper cord. Then run the output to a recorder, sound card, or powered speaker. It works with analog, digital, PBX, or VoIP telephones and is fully passive, with no battery or AC required.

QuickTap does not work with cellular telephones or any phone that has a keypad in the handset.

Features

• Taps audio between telephone handset and base
• 3.5 mm mono output with both sides of the conversation
• Works with analog, digital, PBX, or VoIP telephones
• Passive design, no battery or AC required
• Made in America

Technical Specifications

• Line Output: 3.5 mm mono, 600 ohms, -16 dBu nom (100 mV RMS)
• Handset and Telephone Connectors: RJ22
• Power: Passive
• Size: 2 x 2 x 1.3 in (5.1 x 5.1 x 3.3 cm)
• Weight: 3.4 oz

What's Included

• Handset jumper cord
