JK Audio RIUIP RIU-IP Ethernet Web Remote Control for innkeeper Hybrids
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Condition: New
Description

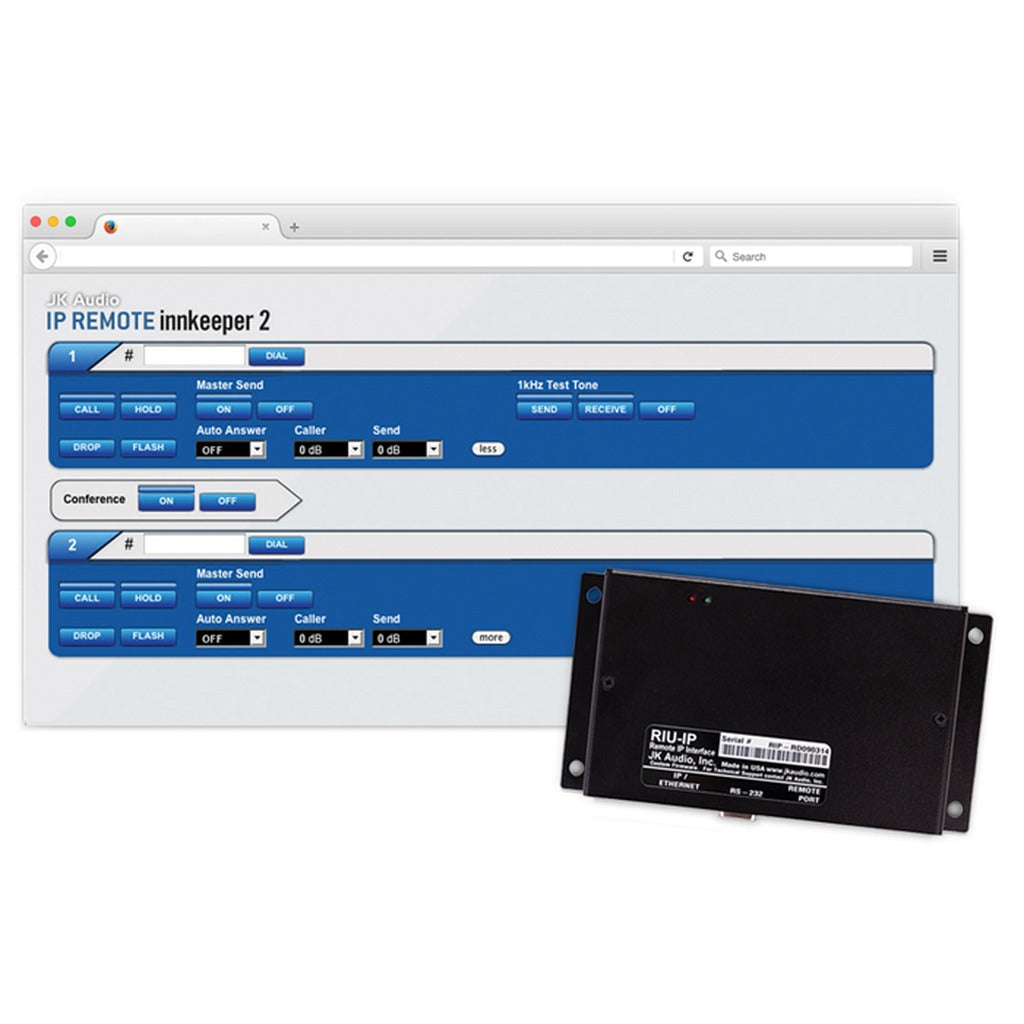

Control a studio's phone hybrids from a web browser anywhere with the JK Audio RIU-IP. This remote control interface, designed for the innkeeper 1x/1rx, innkeeper 2, and innkeeper 4 digital hybrids, contains a built-in web server that sends and receives control data through your browser.
Per-line ring indicators and call, drop, hold, and flash dialing are available, along with auto-answer on/off and test tone start/stop. Depending on the hybrid, you can also adjust transmit and receive levels and auto-answer ring count (innkeeper 2 and 4), conference two callers (innkeeper 2), or toggle presence, caller ducking, and AGC (innkeeper 1x/1rx).
Connect RIU-IP directly to a computer's network card, to a switch or hub for network control, or to an Ethernet port with internet access for control from anywhere in the world. It links to the hybrid over an RJ-50 cable, with a DB-9 RS-232 serial port also on board.
Features
- Built-in web server for browser-based hybrid control
- Ring indicator for each line; call, drop, hold, and flash dialing
- Auto-answer on/off and test tone start/stop per line
- Compatible with innkeeper 1x/1rx, innkeeper 2, and innkeeper 4
- RJ-45 Ethernet for direct, LAN, or internet control
- Made in America
Technical Specifications
- Control Connection: RJ-45 Ethernet
- Digital Hybrid Connection: RJ-50 (36 in cable included)
- Serial Connection: DB-9 RS-232
- Compatible: JK Audio innkeeper 1x/1rx, innkeeper 2, innkeeper 4
- Size: 5 x 3.25 x 1.125 in (13 x 9 x 3 cm)
- Weight: 1 lb (450 g)
What's Included
- 36 in 10-pin RJ-50 interface cable
- Flash chip for innkeeper 2
- Flash chip for innkeeper 4
