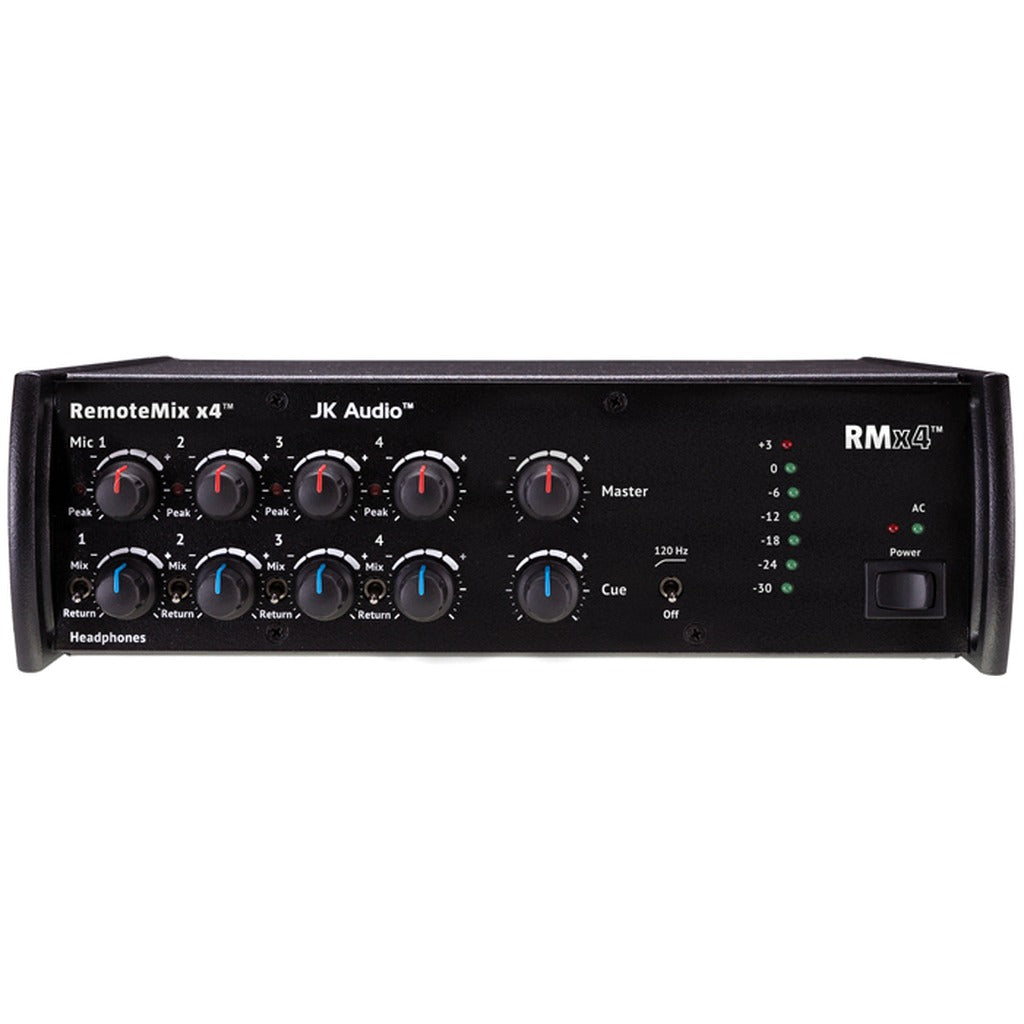

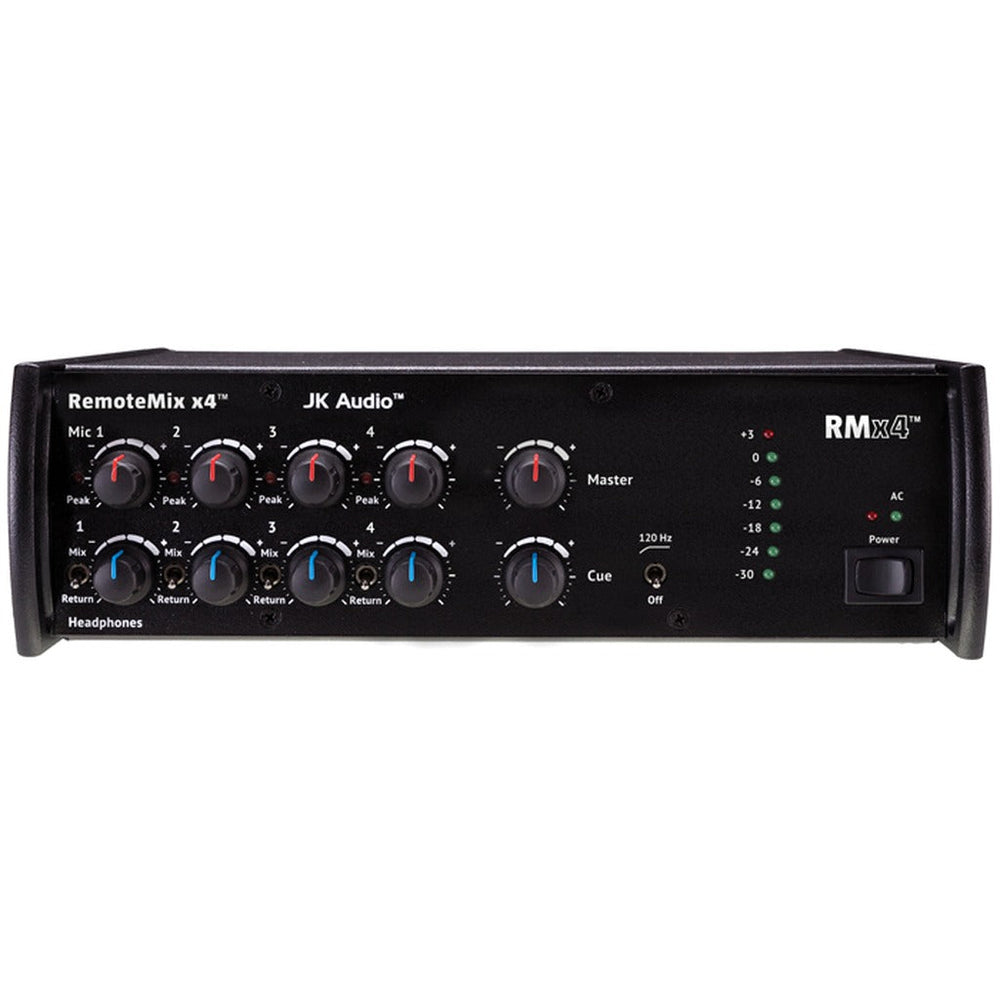

JK Audio RMX4 RemoteMix x4 Four-Channel Field Mixer and Headphone Amplifier

What good is a field mixer without flexible monitoring for the whole crew? The JK Audio RemoteMix x4 (RMx4) combines a four-channel field mixer with a four-channel headphone amplifier, giving every 1/4 in headphone output its own level control and source selection between the clean mix or the cue input plus the mix.

Four low-noise, high-headroom active balanced XLR mic inputs offer high common mode rejection, individually switchable 48 V phantom power, and mic/line switching on channels 3 and 4. A 120 Hz low-cut filter removes room rumble and handling noise, and the direct-drive DC-coupled master XLR output delivers up to +16 dBu with 0.04% THD.

A 3.5 mm TRRS headset interface provides two-way IFB audio from a cell phone or notebook, with a soft limiter protecting it from overdrive, and 3.5 mm stereo line in and out handle recording and playback. Power comes from dual hot-swappable 9 V batteries or the included 100-240 VAC supply, which takes over when connected.

Features

• Four low-noise XLR mic inputs with individually switchable 48 V phantom power
• Mic/line switches on channels 3 and 4; 120 Hz low-cut filter
• Four 1/4 in headphone outputs with individual source and level controls
• Phone headset interface with 3.5 mm TRRS plug for cell phone or notebook IFB

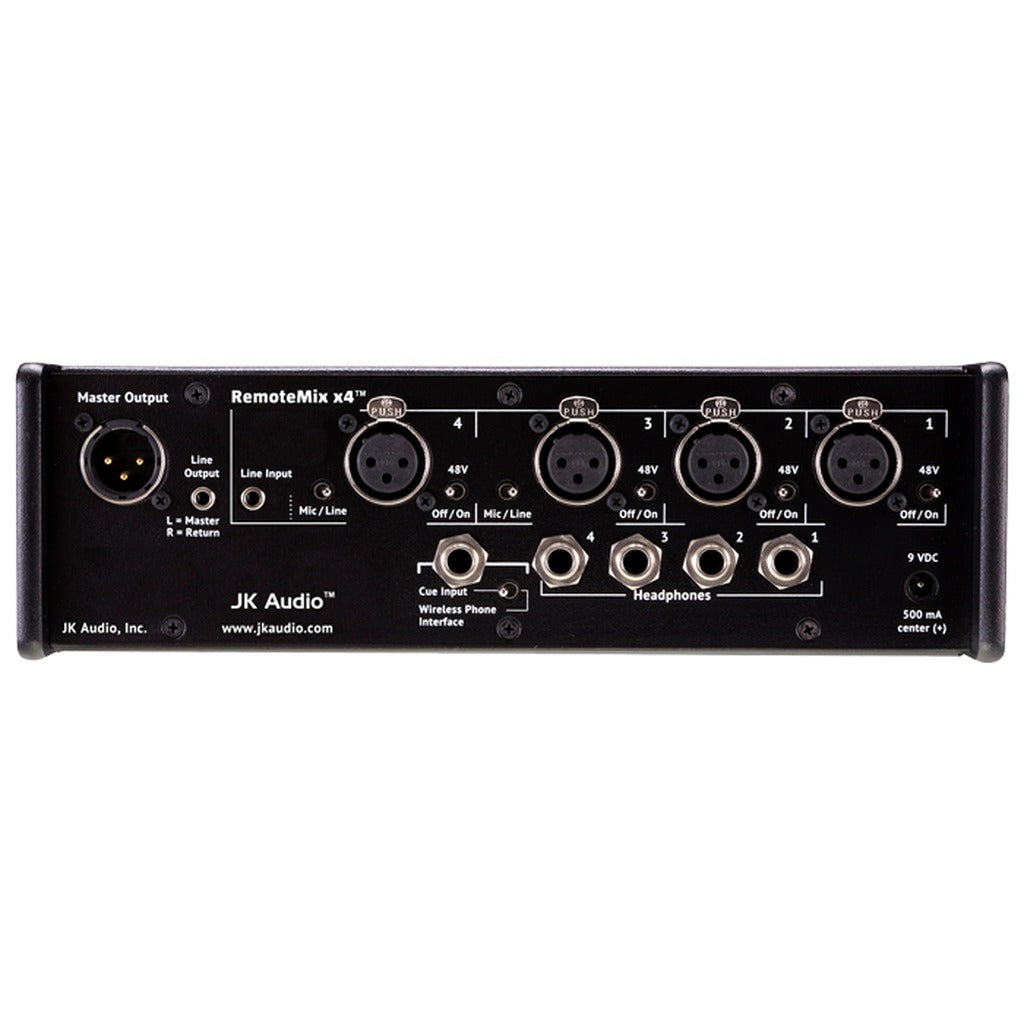

• Master XLR output, 3.5 mm stereo line in/out, LED VU meter
• Hot-swappable dual 9 V batteries plus 100-240 VAC external power supply

Technical Specifications

• Mic Inputs: 4 x female XLR, 2k ohms mic / 50k ohms line, -25 dBu nom mic, +20 dBu max line
• Mic/Line Pad: -40 dB
• Phantom Power: 48 VDC, 6.8k ohm supply resistance
• Master Output: Balanced male XLR, 50 ohms, +16 dBu max, 20 Hz - 20 kHz +/- 1 dB, 0.04% THD
• Line Input / Output: 3.5 mm stereo (20k ohms in / 100 ohms out), -10 dBu nom
• Headphone Cue In: 1/4 in mono, 20k ohms, -10 dBu nom
• Headphones: 4 x 1/4 in stereo, 8 ohms, 1/3 W per channel
• Power: 100-240 VAC external supply or two 9 V batteries
• Size: 9.5 x 8 x 3 in (24 x 20 x 8 cm)
• Weight: 3.6 lb (1.6 kg)

What's Included

• Universal power supply with detachable cord
• 3.5 mm 4-conductor wireless interface cable
