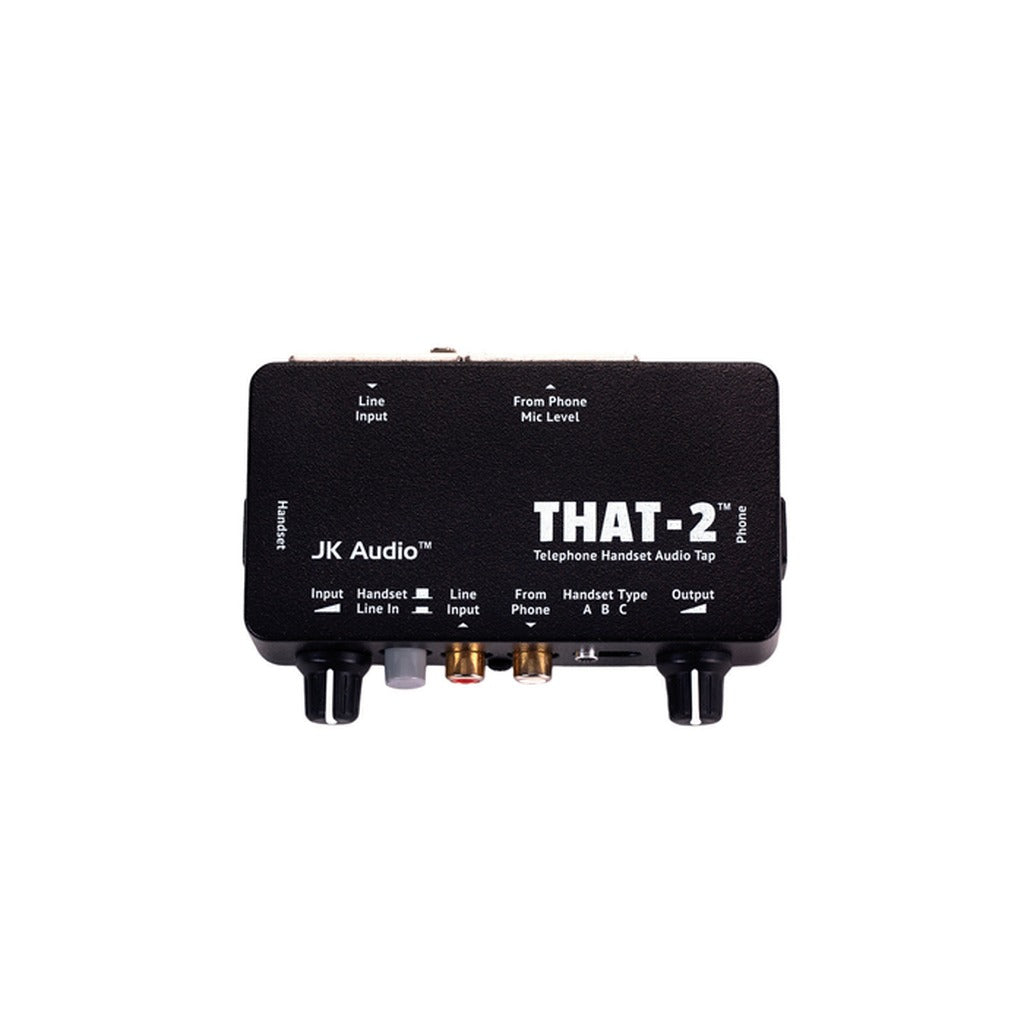

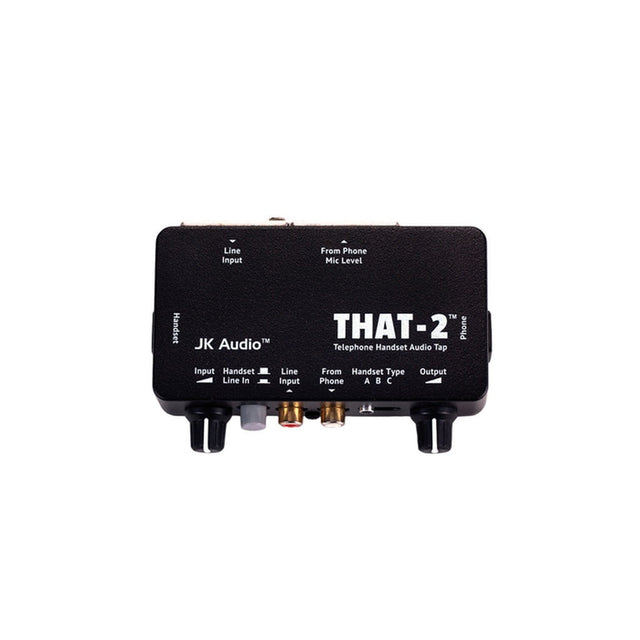

JK Audio THAT2 THAT-2 Telephone Handset Audio Tap with XLR and RCA In/Out

Radio stations recording and playing sound bites, and TV and film sound crews pulling IFB dialog over phone lines, rely on the JK Audio THAT-2 for quick access to audio in and out of a telephone. It connects between the phone and its handset and offers both XLR and RCA inputs and outputs with input and output level controls.

A three-position switch emulates electret, dynamic, or carbon handset microphones, so THAT-2 can send audio into many analog and digital PBX sets as well as ISDN telephones. A grey pushbutton selects whether the handset or the line input is sent into the phone, and the outputs carry a mix of both sides of the conversation plus keypad tones.

THAT-2 is passive, needing no battery or AC power. It does not work with cordless or cell phones, or any telephone with a keypad in the handset.

Features

• XLR and RCA line inputs and outputs
• Input and output level controls
• Handset type switch: electret, dynamic, or carbon
• Works with analog, digital, PBX, ISDN, and VoIP telephones
• Passive design, no battery or AC required
• Made in America

Technical Specifications

• Line Input: RCA and female XLR, 600-9000 ohms, 250 mV RMS
• Output: RCA and male XLR, 0-2500 ohms, 100 mV RMS (-18 dBu nom)
• Handset Type: Electret, dynamic, carbon
• Handset and Telephone Connectors: RJ22
• Power: Passive
• Size: 4.5 x 3.2 x 1.3 in (11.4 x 8.2 x 3.3 cm)
• Weight: 9 oz

What's Included

• Handset jumper cord
