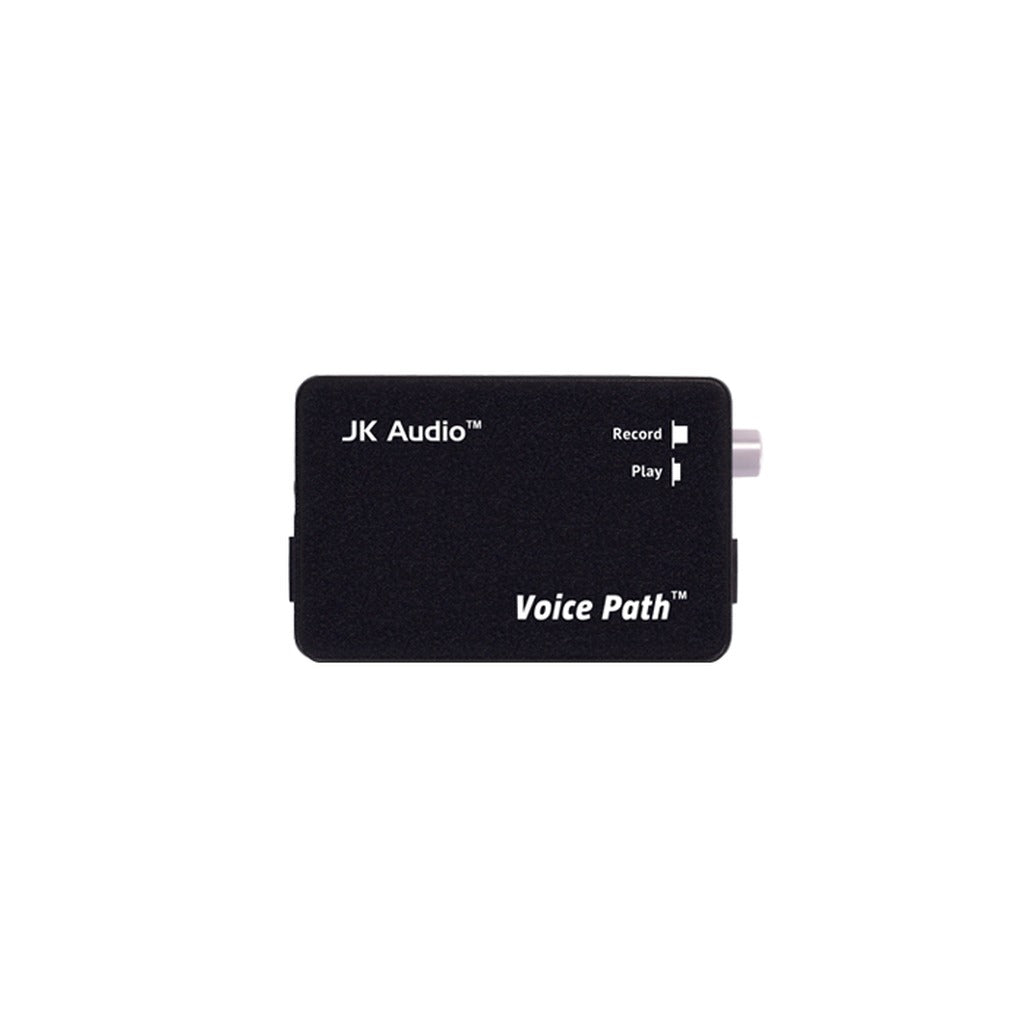

JK Audio VOICE Voice Path Telephone Handset Tap with 3.5 mm Sound Card Cables

Newsrooms, weather and traffic reporters, ad producers, and transcriptionists can move call audio straight to a computer with the JK Audio Voice Path. It continuously routes both sides of the conversation to the mic input of a PC or Mac sound card through attached 3.5 mm cables.

Press the grey button when you are ready to play a recording back into the call: Voice Path disconnects the handset mic and sends your audio down the phone line and into your receiver, so you hear the transmit audio along with the far end. Record, edit, and play back voice mail prompts or clips with your PC software.

A rear switch emulates electret, dynamic, or carbon handset microphones for compatibility with analog, digital PBX, and VoIP phones, and the level to the sound card is adjustable. It is passive, and it will not work with telephones that have a keypad in the handset.

Features

• Taps audio between telephone handset and base
• Attached 3.5 mm mono input and output cables for PC or Mac sound cards
• Pushbutton sends recorded audio into the phone line
• Handset type switch: electret, dynamic, or carbon
• Adjustable output level; passive, no battery or AC required
• Made in America

Technical Specifications

• Input: 3.5 mm mono (left channel only), 10k ohms, 250 mV nominal
• Output: 3.5 mm mono, 2800 ohms, 100 mV max
• Handset Type: Electret, dynamic, carbon
• Handset and Telephone Connectors: RJ22
• Handset Cable: 18 in flat cable (provided)
• Size: 3 x 1 x 2 in (7.6 x 2.5 x 5.1 cm)
• Weight: 9 oz

What's Included

• 18 in flat handset jumper cable
