JMAZ JZ1058 MAD PAR 4SQUARE Mounting Frame

JMAZ JZ1058 MAD PAR 4SQUARE Mounting Frame

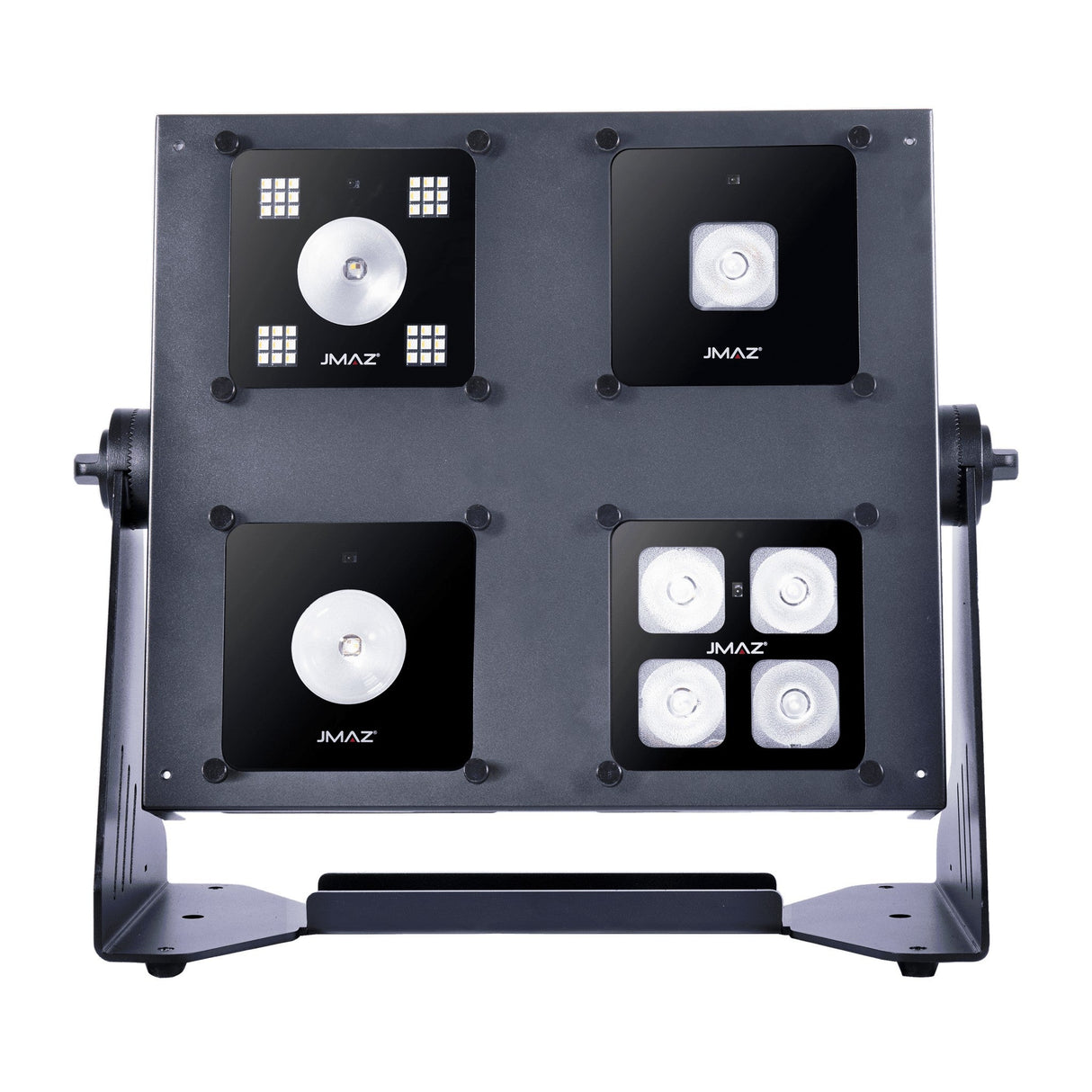

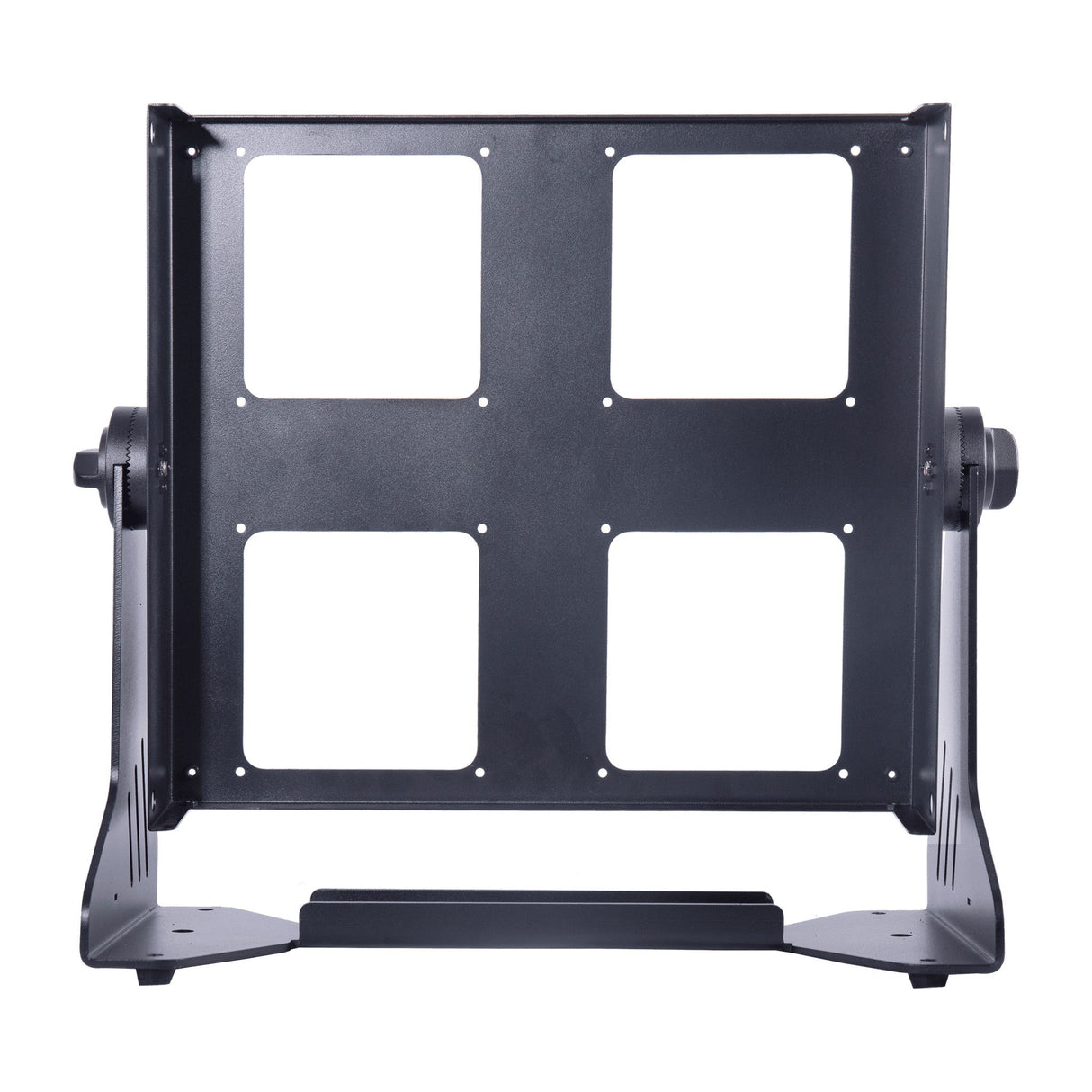

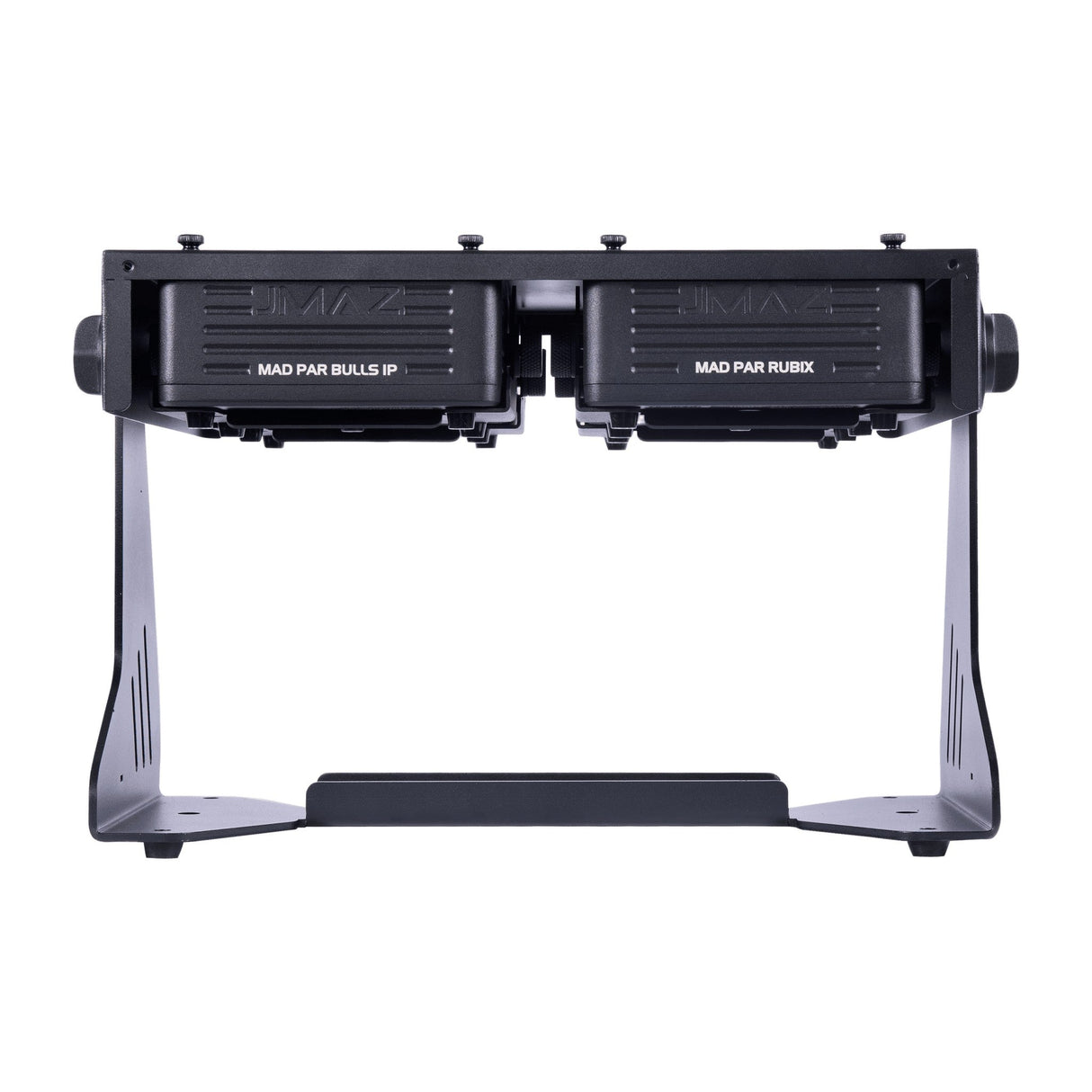

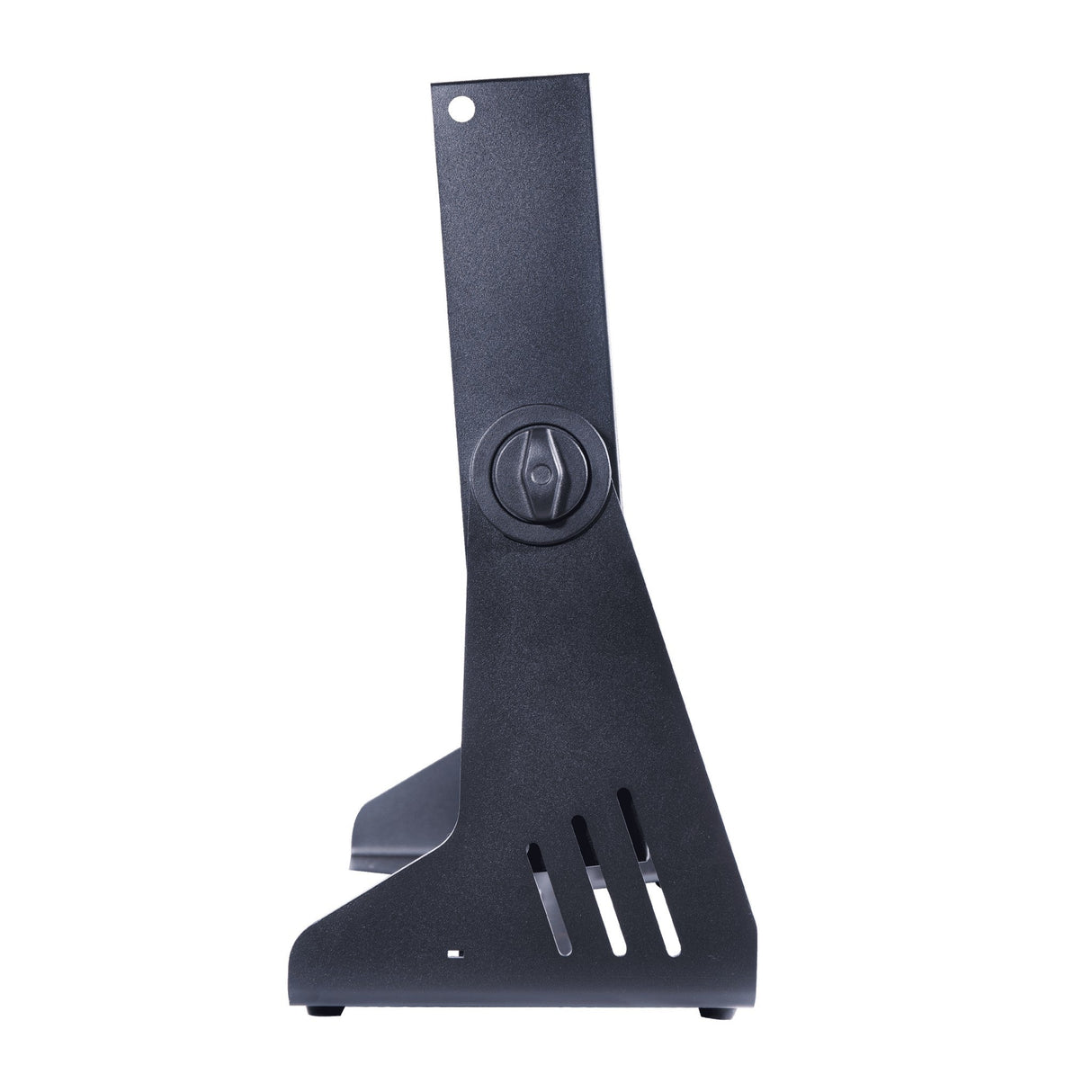

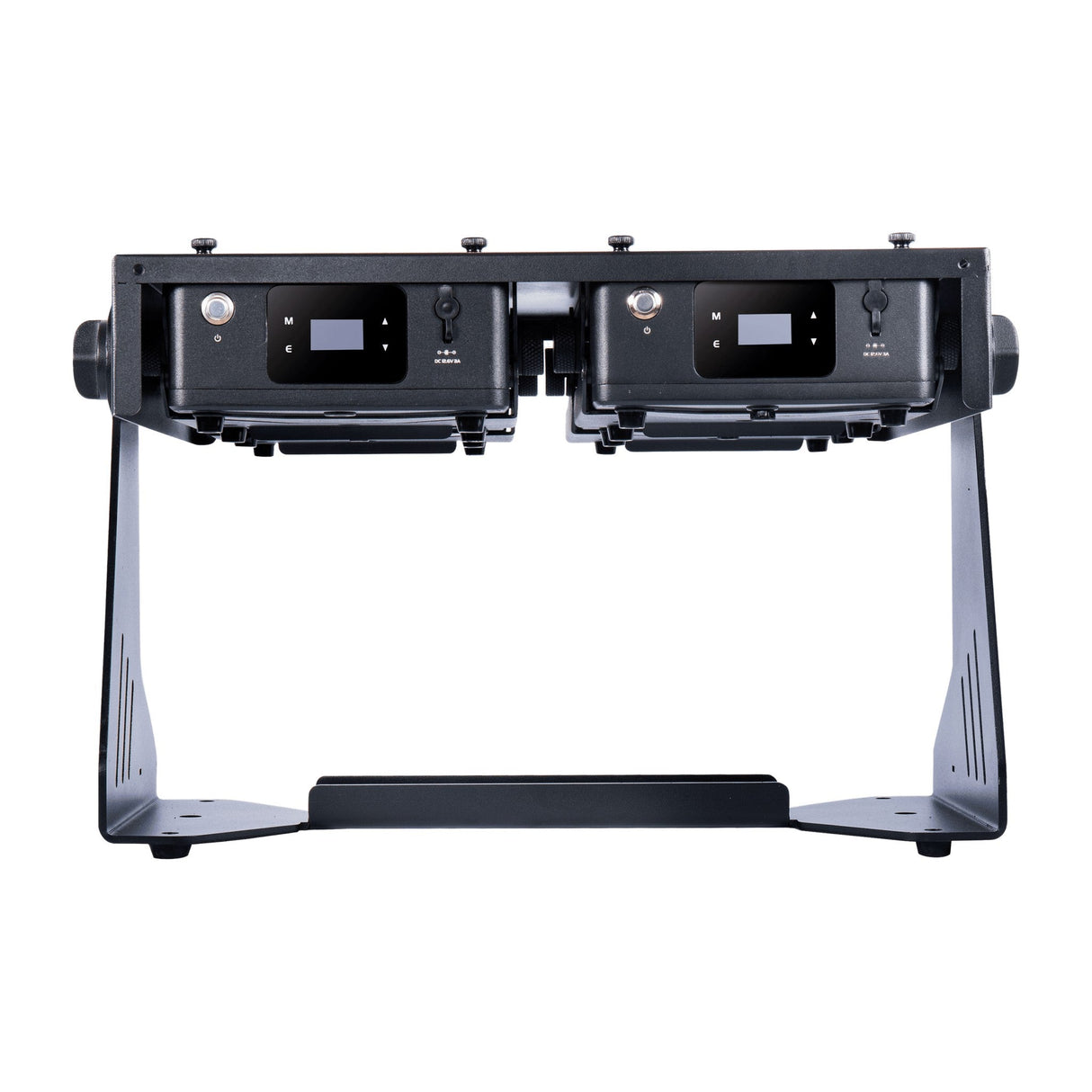

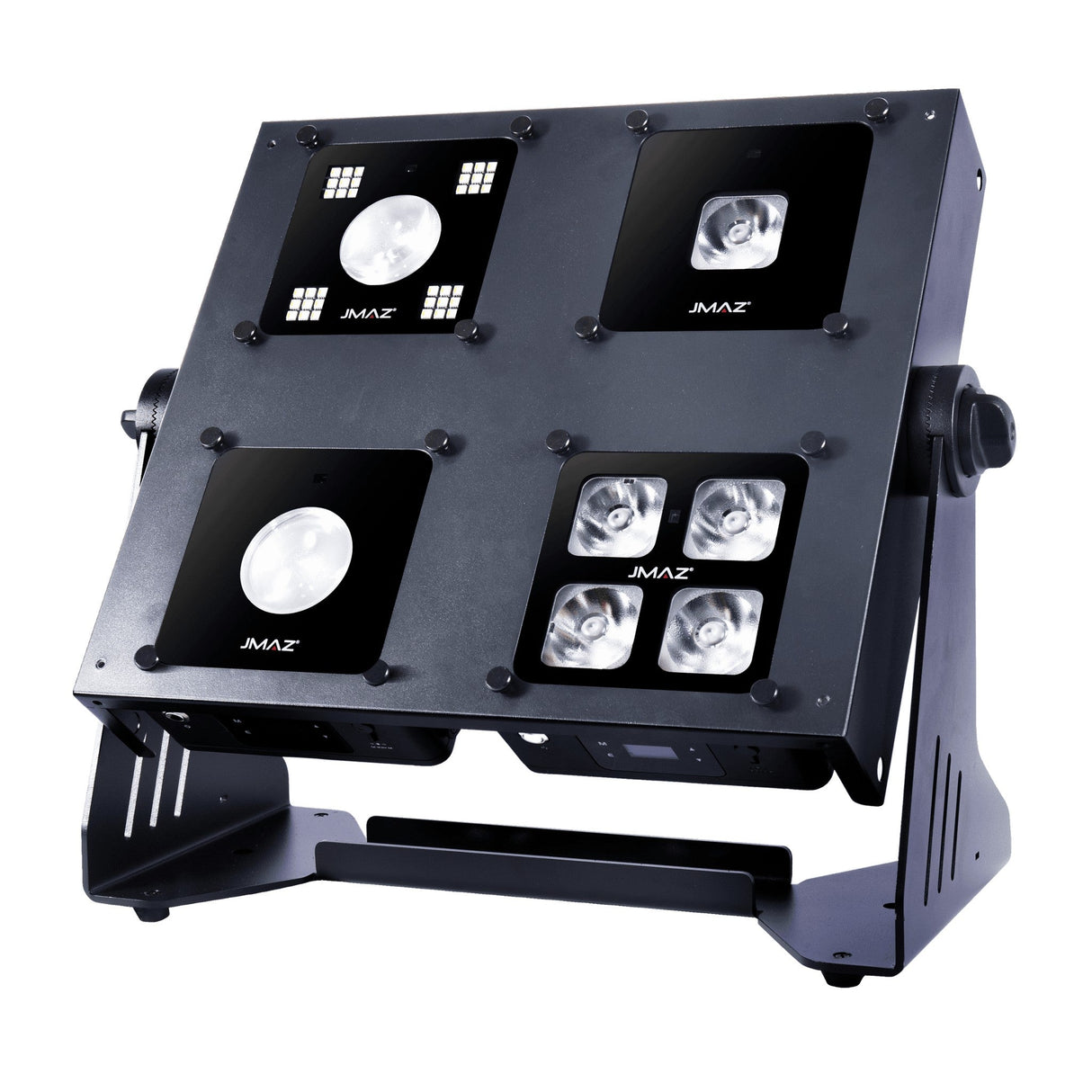

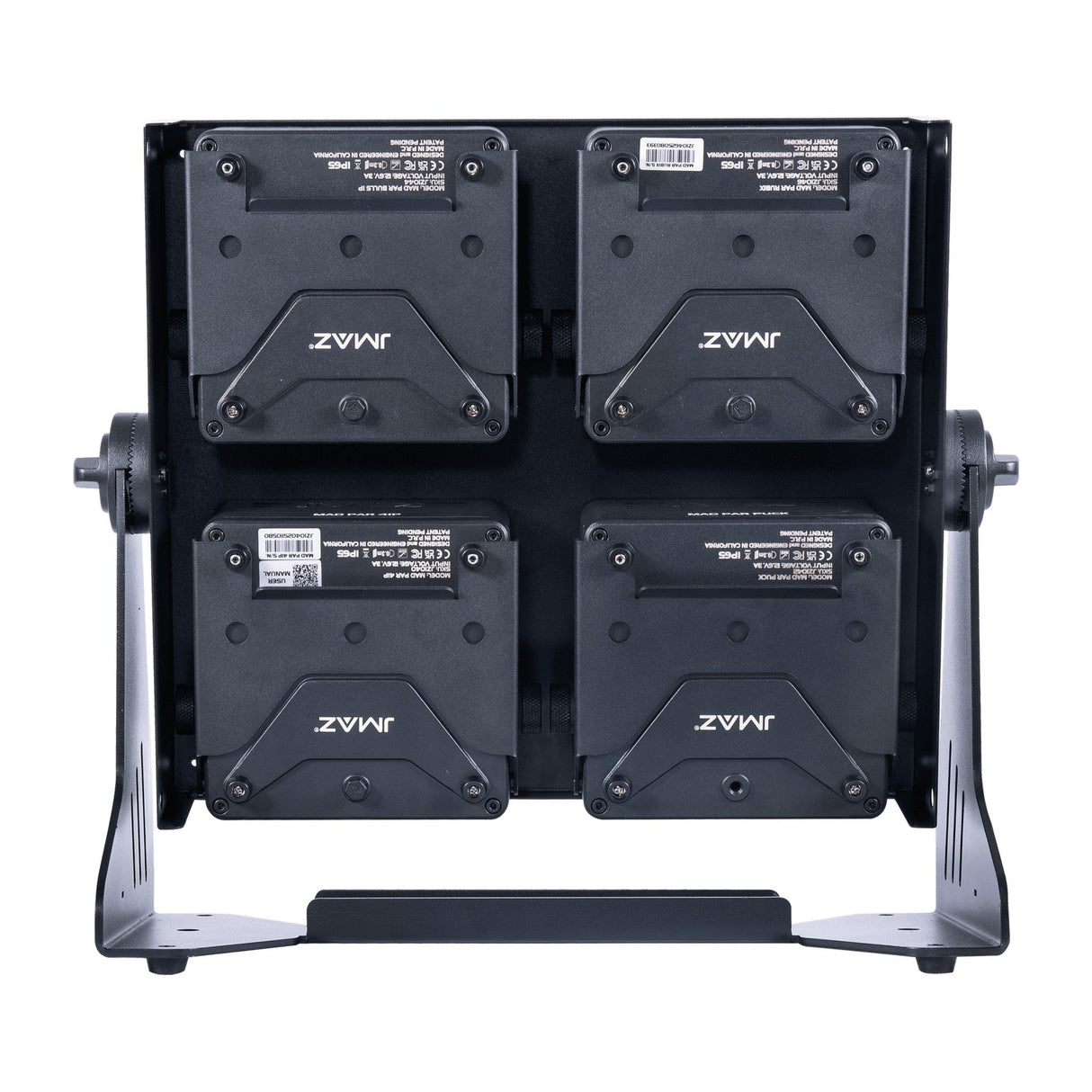

The JMAZ MAD PAR 4SQUARE is a heavy-duty steel mounting frame that combines up to four compatible MAD PAR LED wash fixtures into one adjustable panel. Designed for professional lighting applications, it supports 360-degree fixture positioning and multiple installation methods for wall washing, uplighting, stage coverage, and accent lighting.

The frame is compatible with MAD PAR 4IP, MAD PAR BULLS UP, MAD PAR PUCK, and MAD PAR RUBIX fixtures. Production companies, mobile DJs, rental houses, houses of worship, and event venues can use the 4SQUARE to organize four individual fixtures into a unified lighting platform while retaining independent aiming flexibility.

Multiple mounting options support floor, tripod, and truss applications. An Omega bracket interface accommodates compatible truss hardware, while the integrated speaker-stand adapter enables tripod mounting. Four non-slip rubber feet provide stable floor placement and help protect finished surfaces. The steel structure weighs 9.9 lb and measures 18.2" x 13.4" x 10.7".

Key Features

• Four-Fixture Mounting: Holds up to four compatible MAD PAR fixtures on one organized lighting platform.
• 360-Degree Adjustment: Side-lock controls provide continuous positioning for precise aiming and wash coverage.
• MAD PAR Compatibility: Supports MAD PAR 4IP, MAD PAR BULLS UP, MAD PAR PUCK, and MAD PAR RUBIX fixtures.
• Heavy-Duty Steel Construction: Provides a durable structure for production, touring, rental, and permanent-installation environments.
• Truss Mounting: Accepts an Omega bracket for integration with compatible professional truss hardware.
• Speaker-Stand Mounting: Includes a speaker-stand adapter for tripod-based installations.
• Floor-Standing Capability: Four non-slip rubber feet provide stable placement while helping protect finished surfaces.
• Flexible Applications: Supports uplighting, wall washing, stage lighting, architectural accents, and event-production setups.

Technical Specifications

• Brand: JMAZ Lighting
• Model: MAD PAR 4SQUARE
• SKU: JZ1058
• Product Type: Four-Fixture MAD PAR Mounting Frame
• Fixture Capacity: Up to 4 MAD PAR fixtures
• Material: Steel
• Compatible Fixtures: MAD PAR 4IP, MAD PAR BULLS UP, MAD PAR PUCK, MAD PAR RUBIX
• Fixture Positioning: 360-degree adjustable with side-lock controls
• Truss Mounting: Omega bracket compatible
• Tripod Mounting: Speaker-stand adapter
• Floor Mounting: 4 non-slip rubber feet
• Dimensions: 18.2" x 13.4" x 10.7"
• Weight: 9.9 lb
• UPC: 618528599885
